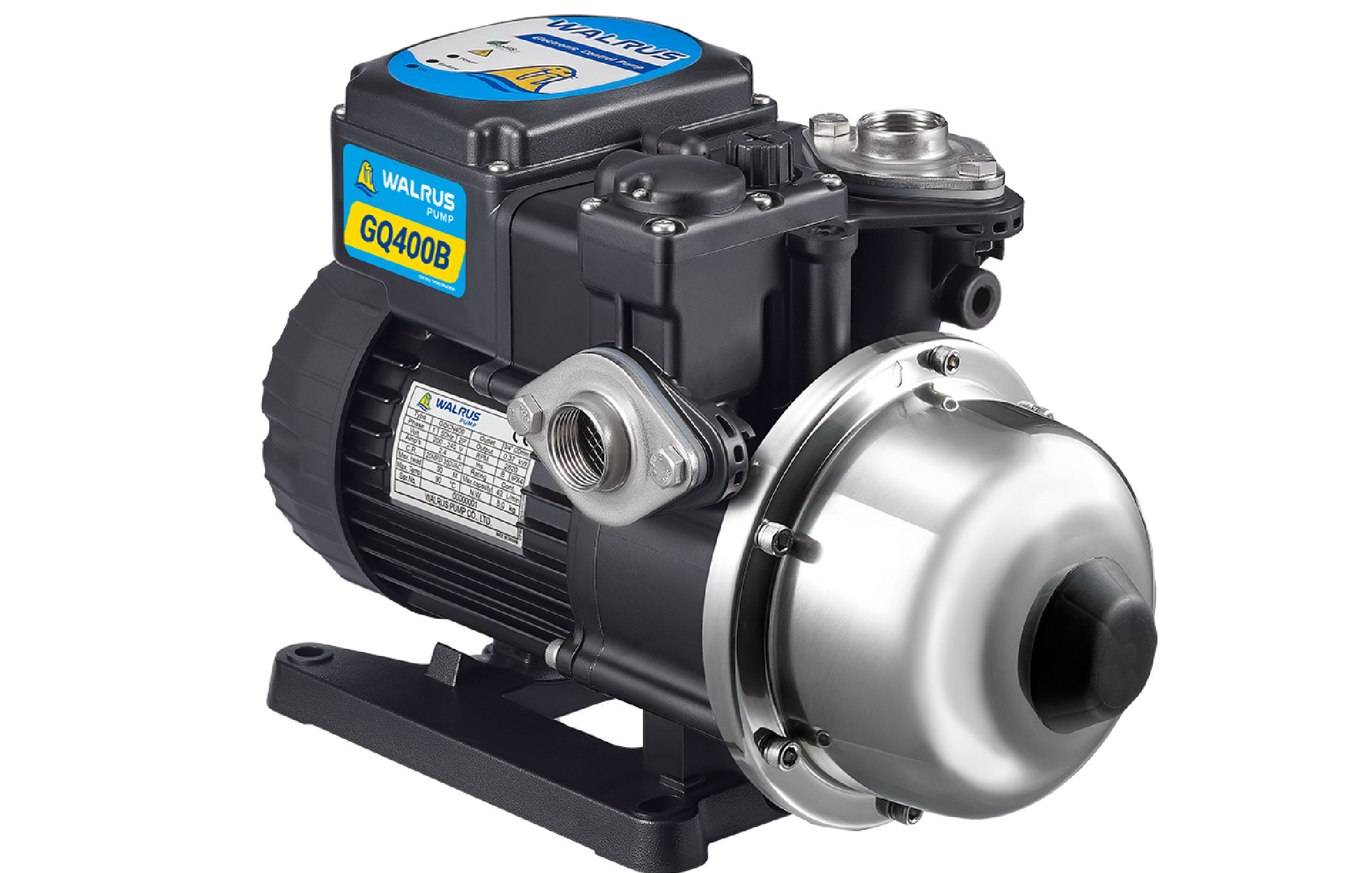

Model | GQ400B

Regenerative Pump

Electronic Control Booster Pump
GQ_B Series

  • An optimized structure combined with gear impellers for outstanding exhaust performance.
  • Electronic program control ensures stable water pressure.
  • Equipped with double dry-running protection.
Construction Industry Entertainment & Leisure Industry Accommodation & Food Service Industry Agriculture, Forestry, Fishery and Animal Husbandry Wholesale & Retail Trade Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.18 - 0.75
38
80
60
0.18 - 0.75
38
85

Features

Outstanding Exhaust Performance
An optimized structure combined with gear impellers self-regulates the pressure differential, enabling rapid water return and quick air removal to prevent supply disruption caused by air blockage.
Power Module
Equipped with industrial-grade safety protections, it adapts to various voltage conditions to ensure consistently stable water pressure.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Double Dry-Running Protection
Features a built-in temperature protection switch and a dry-running protection device to prevent overheating caused by operation without water, ensuring safe use.
Rapid Cycling Protection
A design allows for programmable control to delay shutdown by 6 seconds, avoiding frequent pump starts and stops due to low water volume, effectively extending the pump's lifespan.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.
All-In-One
Integrated system that combines the pump, motor, pressure tank, and electronic controller for a stable and enduring water supply environment for household use.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
System Pressure
Max. 8.5 kg/cm²
Inlet Pressure
Must be less than the pressure switch start value.

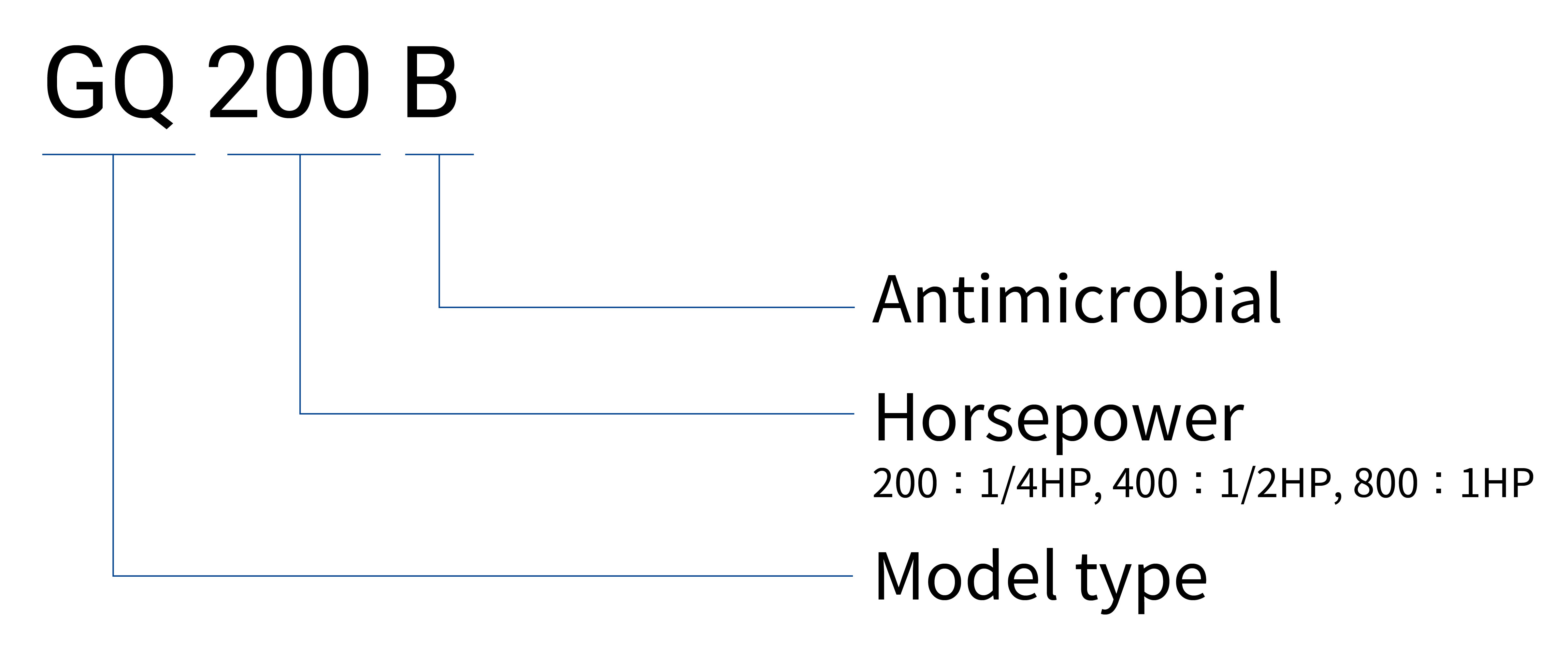

Model code




















Select Frequency
































Electrical standards


Inquiry
Model
Frequency
Phase
(Ø)
Power
(kW)
Voltage
(V)
Current
(A)
GQ200B
50
1
0.18
200 - 240
1.5
GQ200B
60
1
0.18
110 / 220
4.0 / 2.0
GQ400B
50
1
0.37
200 - 240
2.4
GQ400B
60
1
0.37
110 / 220
6.0 / 3.0
GQ800B
50
1
0.75
200 - 240
4.5
GQ800B
60
1
0.75
110 / 220
11.0 / 5.5





Pump specifications

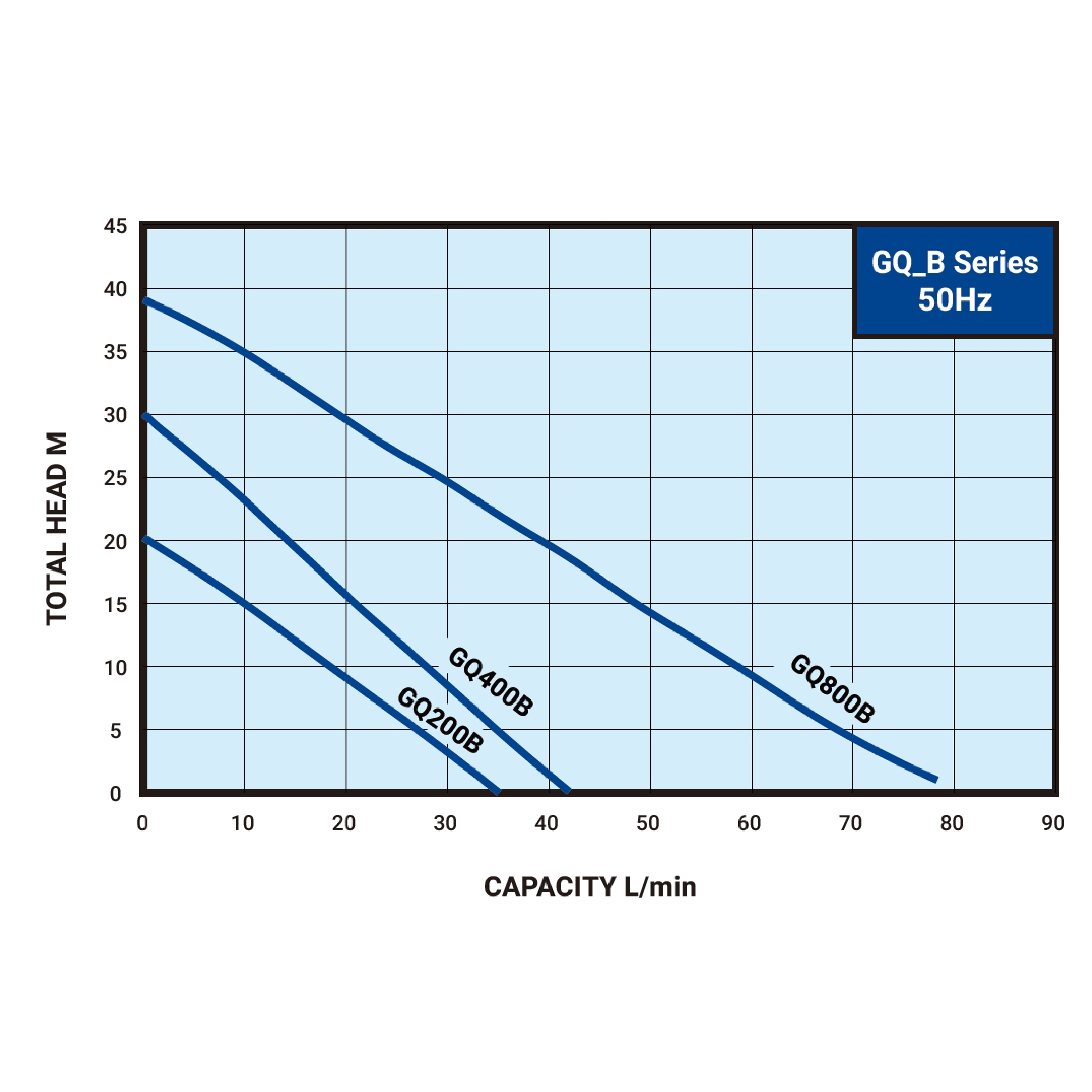

Graph
Model
Frequency
Max. Head
(m)
Max. Flow
(L/min)
Activation Pressure
(kg/cm2)
Inlet
(in.)
Outlet
(in.)
GQ200B
50
20
35
1.6
1"
1"
GQ200B
60
26
42
1.6
1"
1"
GQ400B
50
30
42
2.0
1"
1"
GQ400B
60
35
50
1.8
1"
1"
GQ800B
50
38
80
2.0
1"
1"
GQ800B
60
38
85
2.0
1"
1"





Dimension



Model
Frequency
A
B
C
N.W.
G.W.
Pallet Loading Qty.
GQ200B
50
345
135
140
7.8
8.4
36
GQ200B
60
345
135
140
7.0
7.6
36
GQ400B
50
345
135
140
8.8
9.4
36
GQ400B
60
345
135
140
8.0
8.6
36
GQ800B
50
407
152
157
10.8
11.4
36
GQ800B
60
407
152
157
10.6
11.2
36



























GQ_B Series Applications












Construction Industry


Domestic Water Supply


For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.

















Entertainment & Leisure Industry


Commercial Water Supply


Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.

















Accommodation & Food Service Industry


Commercial Water Supply


Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.

















Agriculture, Forestry, Fishery and Animal Husbandry


Irrigation


Delivers water to irrigation points for even moisture distribution across soil and plants. With inverters, settings can be adjusted based on soil moisture, weather conditions, and water demand to improve resource efficiency.

















Agriculture, Forestry, Fishery and Animal Husbandry


Water Supply for Animal Husbandry and Aquaculture


Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.

















Wholesale & Retail Trade


Ice Machine Water Supply


We offer pump solutions that reliably transport clean water from storage to ice machines, ensuring continuous ice production. Integrated with filters, water purification systems, or RO systems, our products enhance hygiene and operational safety.

















Wholesale & Retail Trade


Commercial Water Supply


Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.

















Service Industry


Domestic Water Supply


For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.





































GQ_B Product Catalogue







                                                        Update2025-08-16



Size6.99 MB

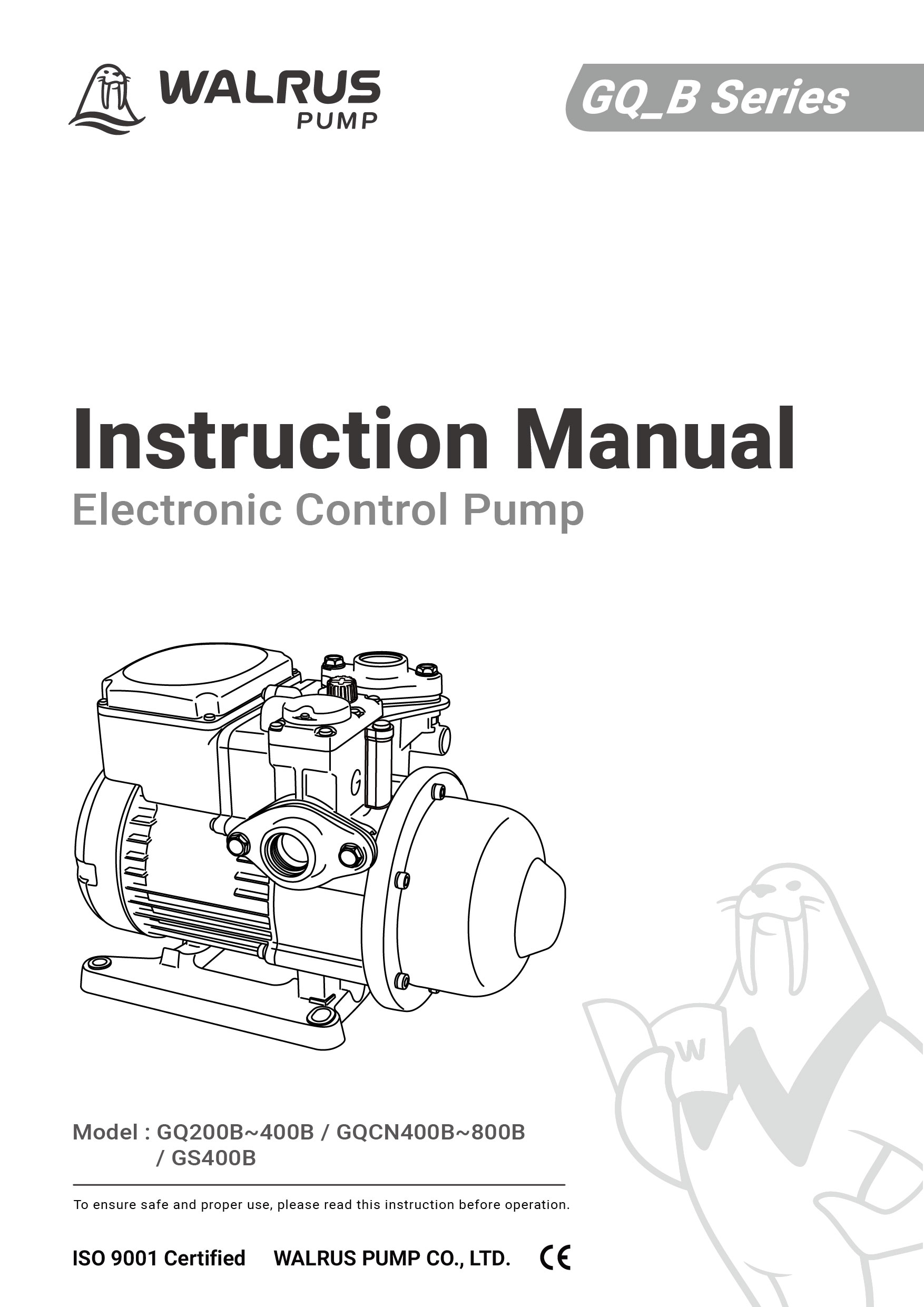

GQ_B Instruction Manual







                                                        Update2025-08-16



Size1.19 MB
























                                        Download ({{ selectedDownloadIds.length }})















Downward Pressurization: Calculated at 15 L/min per faucet.
Upward Water Lifting: Each floor is approximately 5 meters high, calculated at 0.5 kg/cm² per floor.
