Regenerative Pump

Hot Water Electronic Control Booster Pump
GQCN_B Series

Engineered for hot water, ideal for solar systems.
An optimized structure combined with gear impellers for outstanding exhaust performance.
Equipped with dry-run protection. Your Safety, Our Priority.

Construction Industry

Accommodation & Food Service Industry

Service Industry

Frequency (Hz)

Power (kW)

Head (M)

Flow (L/min)

0.18 - 0.75

Features

Engineered for Hot Water

Made from heat-resistant materials up to 90°C, ideal for solar hot water systems, offering pressure boosting at the system’s outlet.

Safe and Reliable

Equipped with a relief valve that automatically releases pressure when the pump system exceeds 5 kg/cm², ensuring safe operation.

Outstanding Exhaust Performance

An optimized structure combined with gear impellers self-regulates the pressure differential, enabling rapid water return and quick air removal to prevent supply disruption caused by air blockage.

Antibacterial

The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.

Thermal Overload Protection

The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.

Dry-Running Protection

Features program-controlled dry-run protection to avoid damage when the pump runs without water.

Rapid Cycling Protection

A design allows for programmable control to delay shutdown by 6 seconds, avoiding frequent pump starts and stops due to low water volume, effectively extending the pump's lifespan.

Rust-Resistant

The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.

All-In-One

Integrated system that combines the pump, motor, pressure tank, and electronic controller for a stable and enduring water supply environment for household use.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+4°C ~ +90°C

System Pressure

Max. 5 kg/cm²

Inlet Pressure

Must be less than the pressure switch start value.

Relief Pressure Value Automatically

5 kg/cm²

Model code

Select Frequency

50 Hz

60 Hz

Electrical standards

Inquiry

Model

Frequency

Phase
(Ø)

Power
(kW)

Voltage
(V)

Current
(A)

GQCN200B

0.18

200 - 240

1.5

GQCN200B

0.18

110 / 220

4.0 / 2.0

GQCN400B

0.37

200 - 240

2.4

GQCN400B

0.37

110 / 220

6.0 / 3.0

GQCN800B

0.75

200 - 240

4.5

GQCN800B

0.75

110 / 220

11.0 / 5.5

Pump specifications

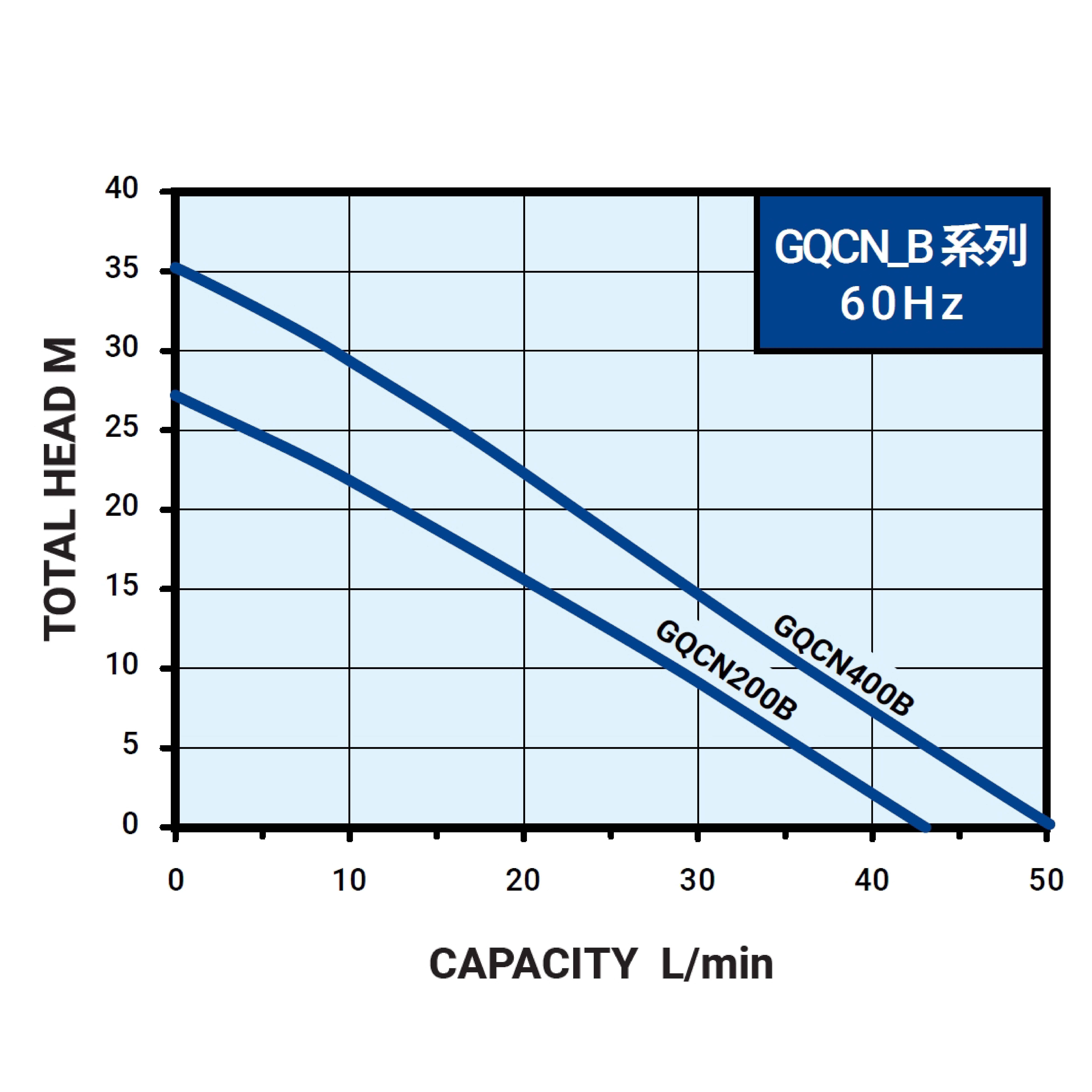

Graph

Model

Frequency

Max. Head
(m)

Max. Flow
(L/min)

Activation Pressure
(kg/cm2)

Inlet
(in.)

Outlet
(in.)

GQCN200B

1.6

GQCN200B

1.6

GQCN400B

2.0

GQCN400B

1.8

GQCN800B

2.0

GQCN800B

2.0

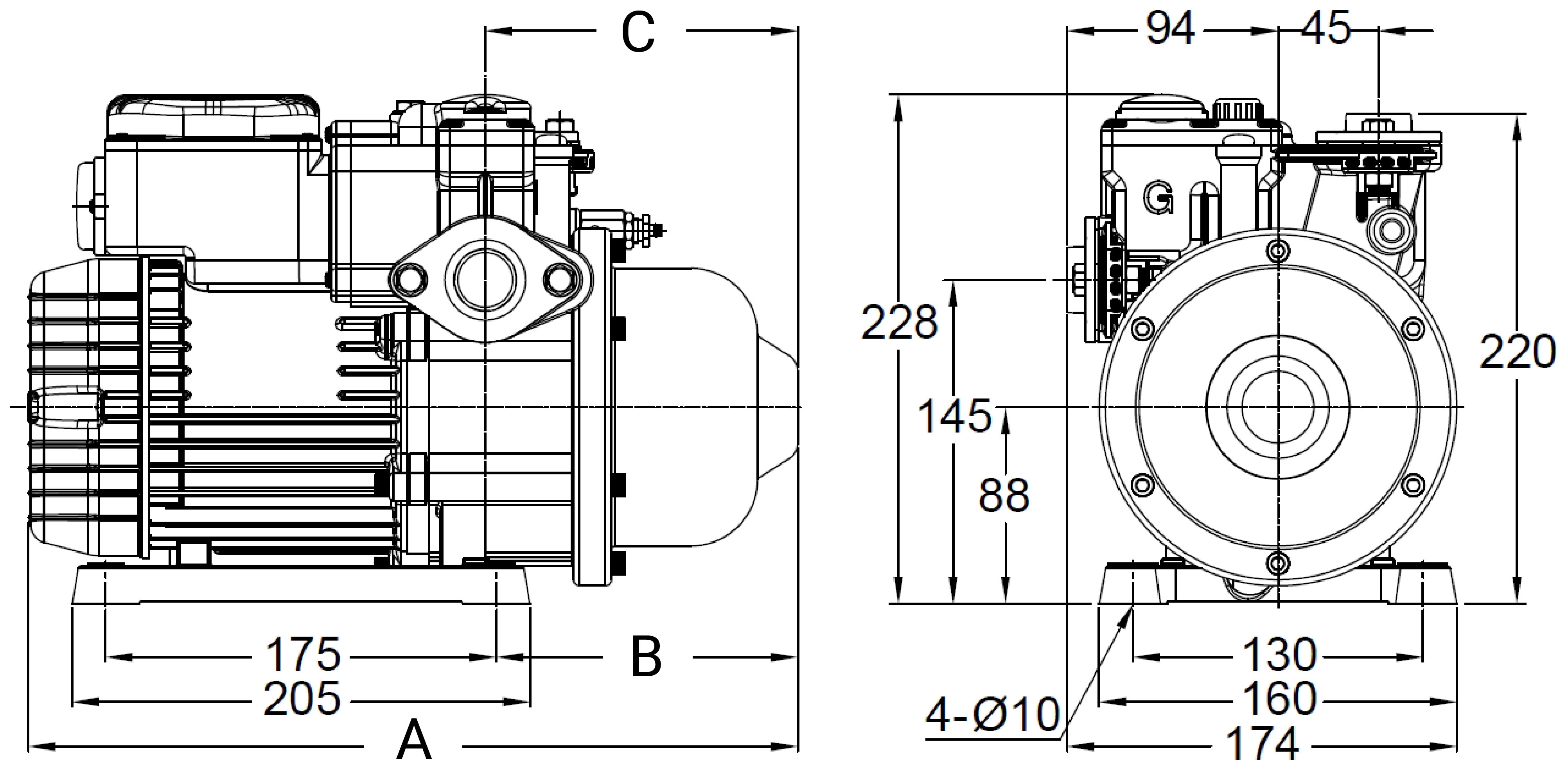

Dimension

Model

Frequency

N.W.

G.W.

Pallet Loading Qty.

GQCN200B

345

135

140

7.9

8.6

GQCN200B

345

135

140

7.1

7.8

GQCN400B

345

135

140

8.9

9.6

GQCN400B

345

135

140

8.1

8.8

GQCN800B

407

152

157

10.9

11.6

GQCN800B

407

152

157

10.7

11.4

GQCN_B Series Applications

Construction Industry

Domestic Hot Water Pressure Boosting

Designed for hot water use, it maintains stable water pressure and prevents temperature fluctuations, enhancing the overall water experience. Ideal for solar systems.

Accommodation & Food Service Industry

Hot Spring Water Transport

Extracting high-temperature spring water from storage wells or heat sources to various hot spring pools, spa areas, and heating circulation systems, ensuring adequate water flow and consistent temperature.

Service Industry

Domestic Hot Water Pressure Boosting

Designed for hot water use, it maintains stable water pressure and prevents temperature fluctuations, enhancing the overall water experience. Ideal for solar systems.
