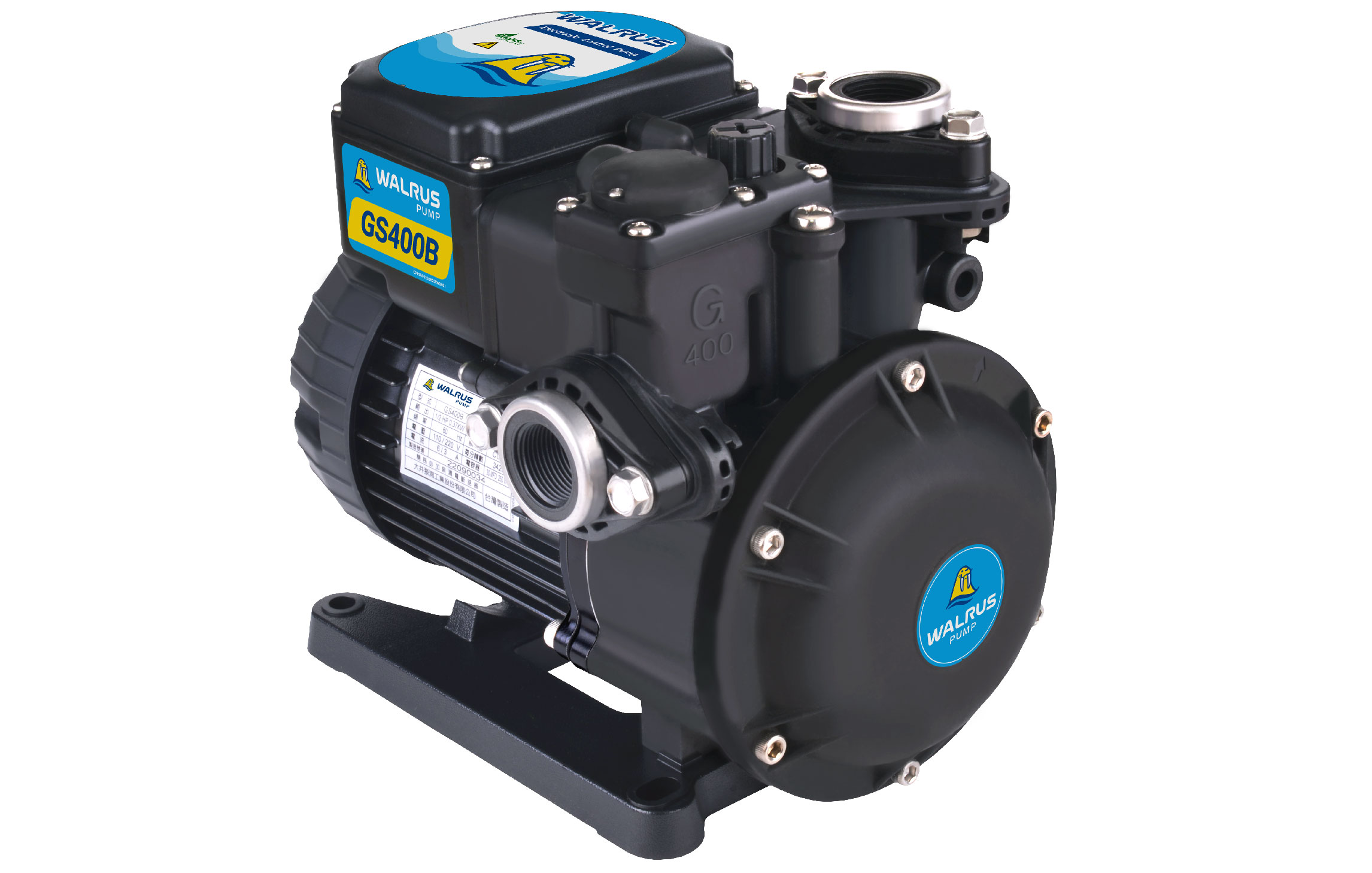

Model | GS400B

Regenerative Pump

Direct-Drive Water Pump
GS_B Series

  • An optimized structure combined with gear impellers for outstanding exhaust performance.
  • Equipped with dry – run protection. Your Safety, Our Priority.
  • Thermal overload protection to prevent burnout.
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37
30
42
60
0.37
35
50

Features

Outstanding Exhaust Performance
An optimized structure combined with gear impellers self-regulates the pressure differential, enabling rapid water return and quick air removal to prevent supply disruption caused by air blockage.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Dry-Running Protection
Features program-controlled dry-run protection to avoid damage when the pump runs without water.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Suction Head
Max. 6 m
工作壓力
Max. 8.5 kg/cm2

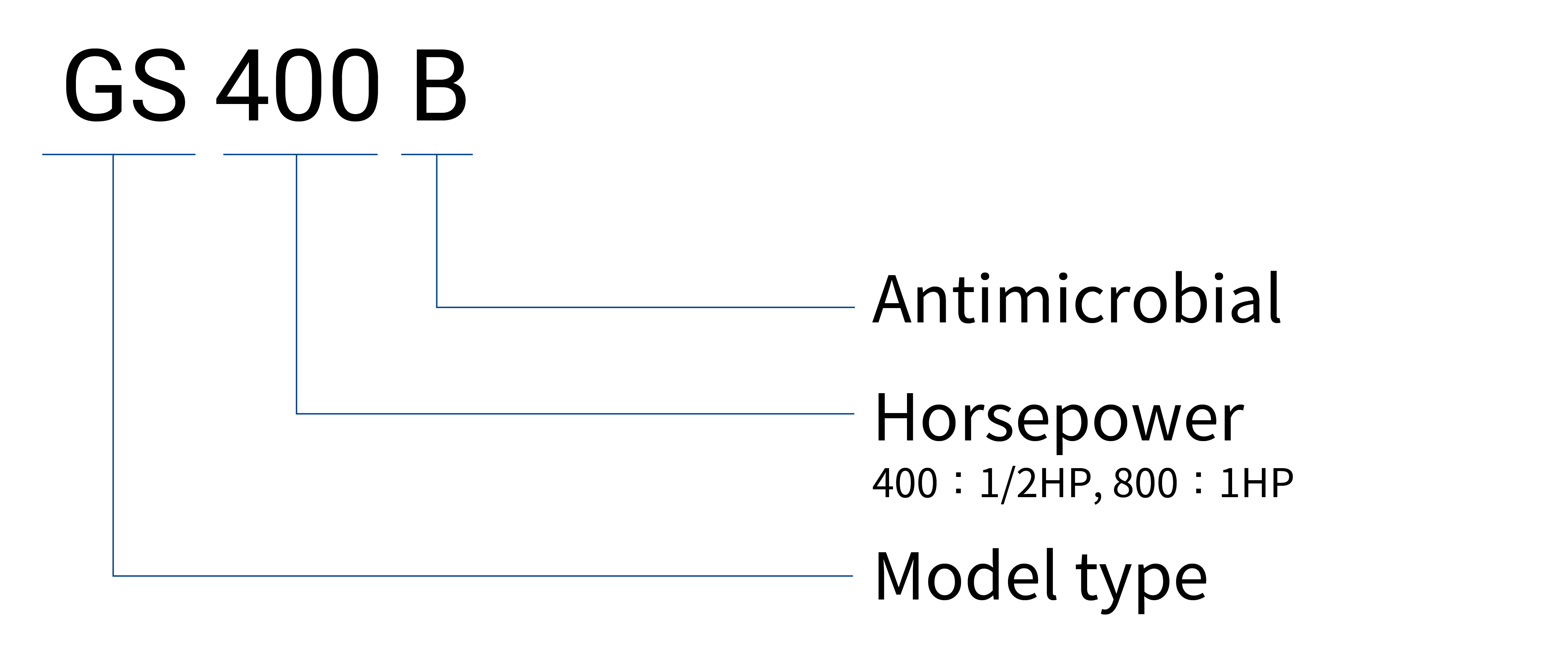

Model code

Select Frequency

Electrical standards
Inquiry
Model
Frequency(Hz)
Phase(Ø)
Power(kW)
Voltage(V)
Current(A)
GS400B
50
1
0.37
200 - 240
2.4
GS400B
60
1
0.37
110 / 220
6.0 / 3.0
Pump specifications

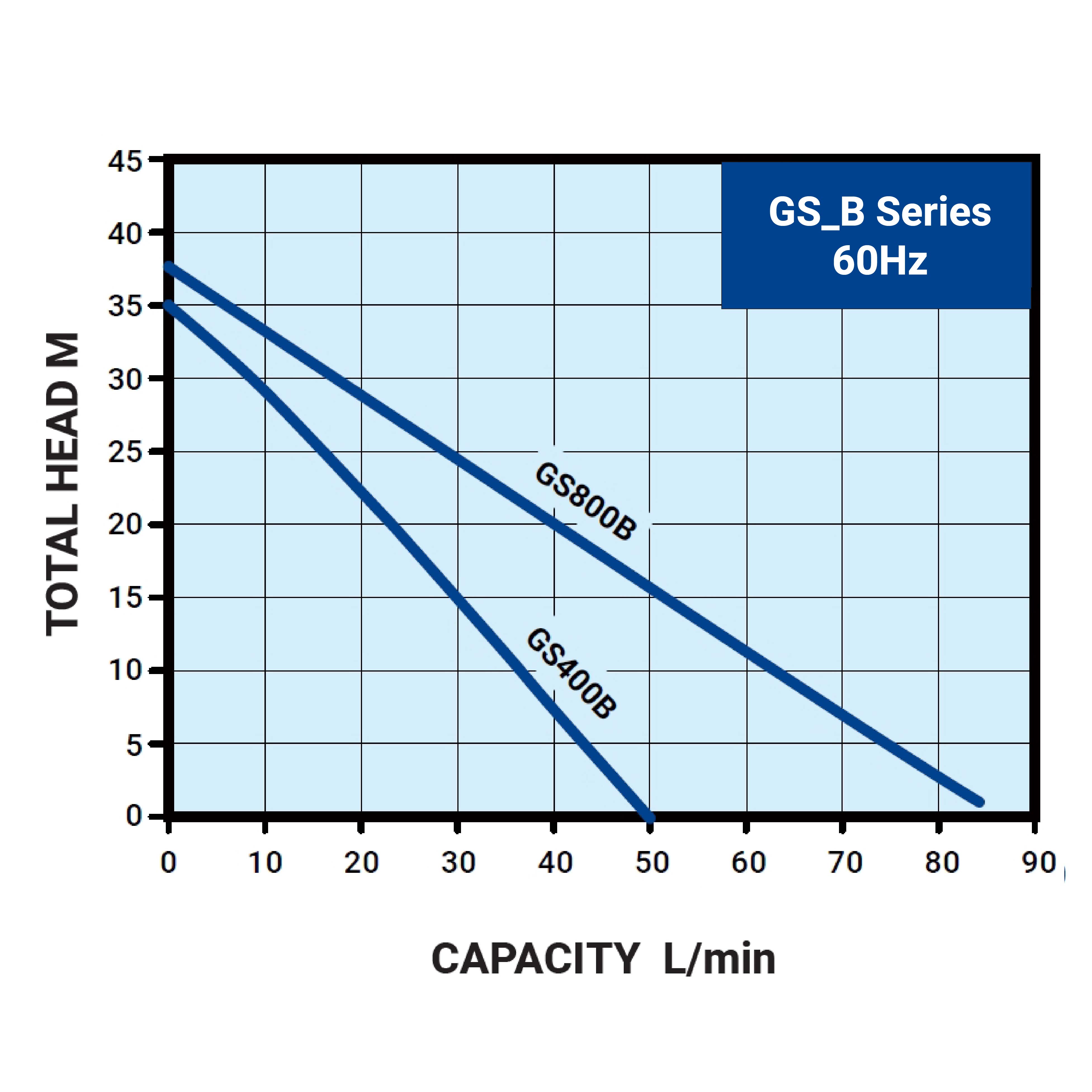

Graph
Model
Frequency(Hz)
Max. Head(M)
Max. Flow(L/min)
Inlet(in.)
Outlet(in.)
GS400B
50
30
42
1"
1"
GS400B
60
35
50
1"
1"

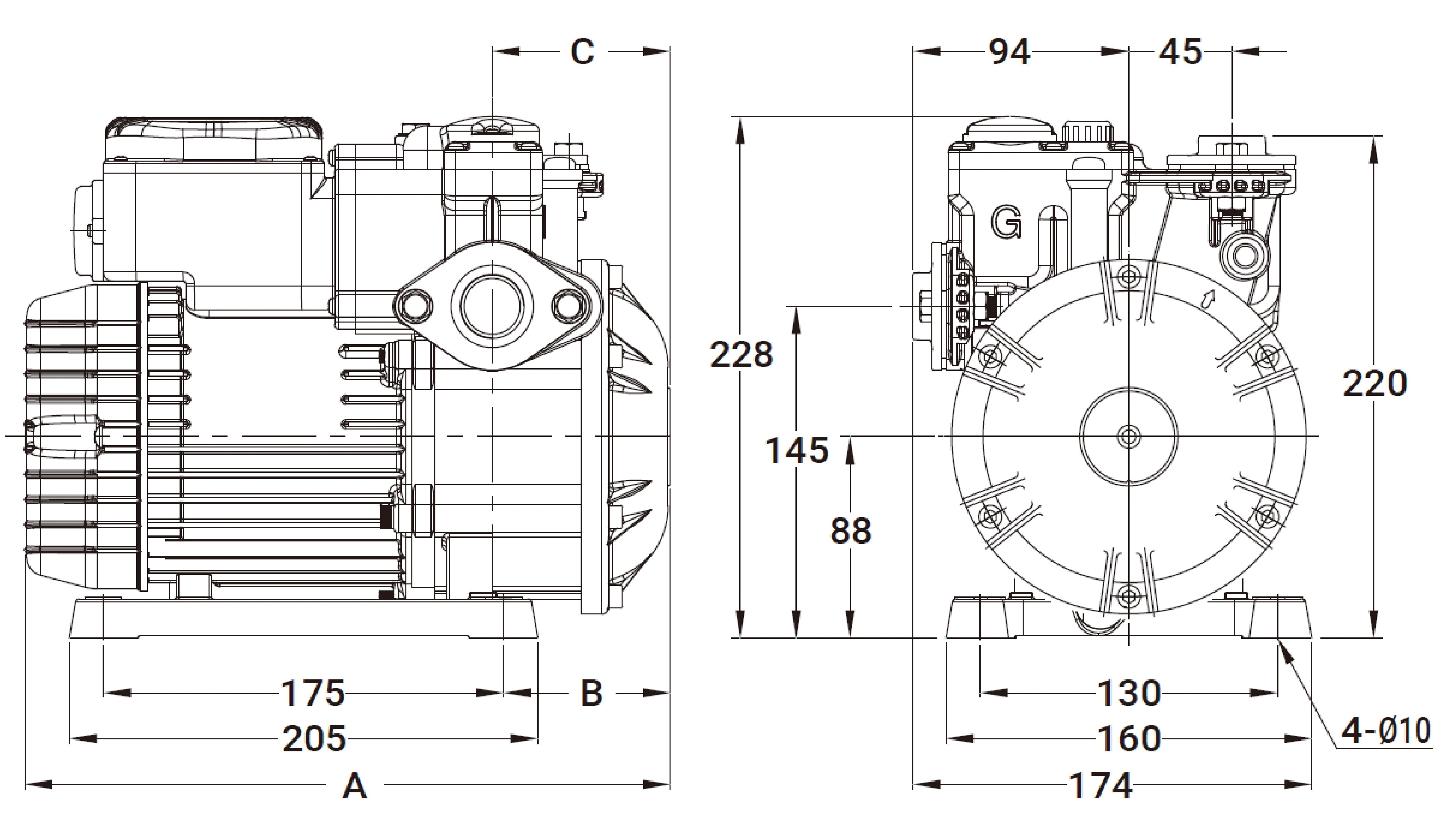

Dimension
Model
Frequency(Hz)
A(mm)
B(mm)
C(mm)
N.W.(kg)
G.W.(kg)
Pallet Loading Qty.(pc)
GS400B
50
283
73
78
36
GS400B
60
283
73
78
7.0
7.8
36

GS_B Series Applications

For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
Reliably transports clean water from storage to ice machines, ensuring continuous ice production. Compatible with filters, water purification systems, or RO systems.
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
GS_B Instruction Manual
Update2025-08-18
Size1.19 MB
