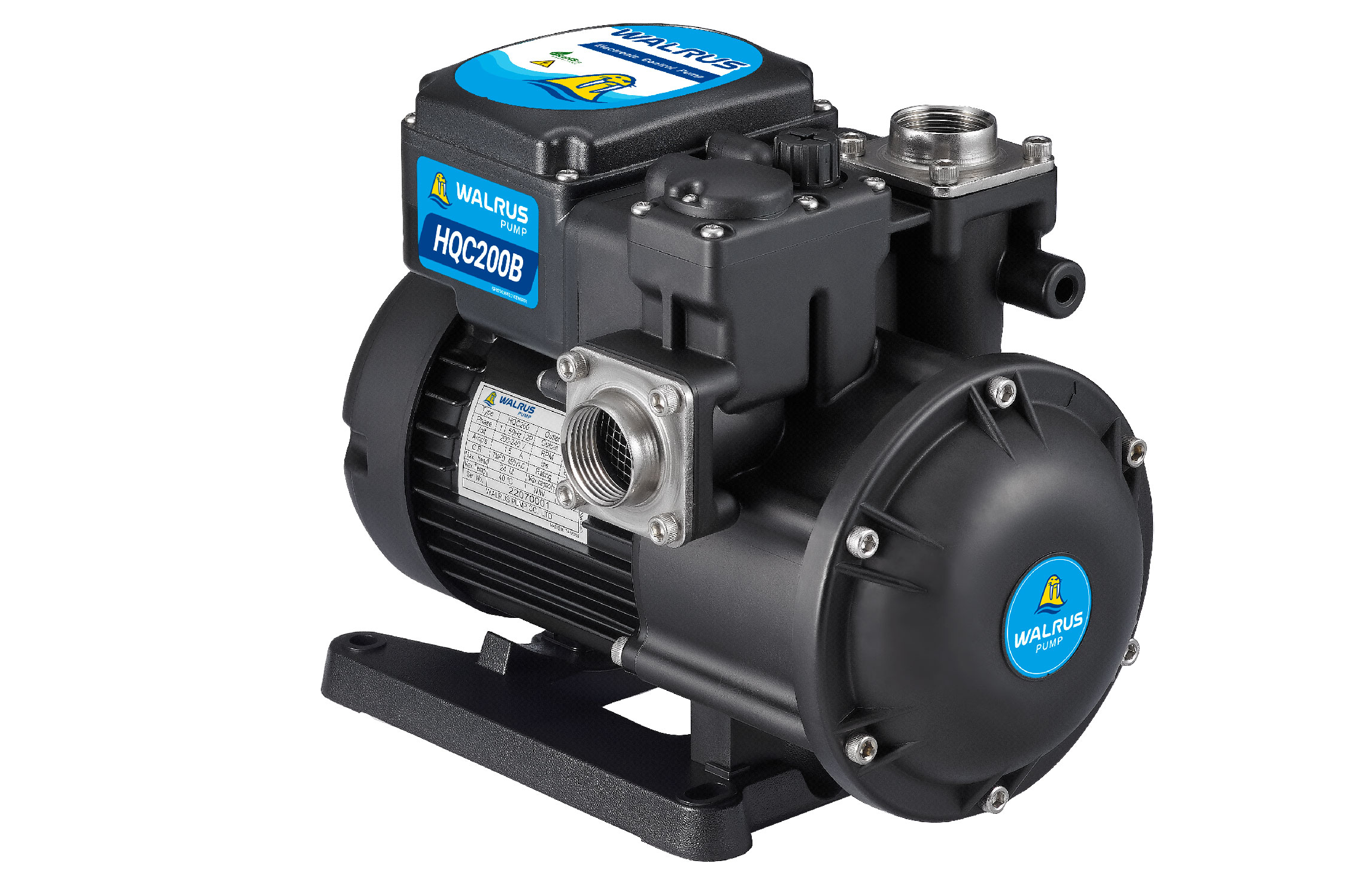

Model | HQC200B

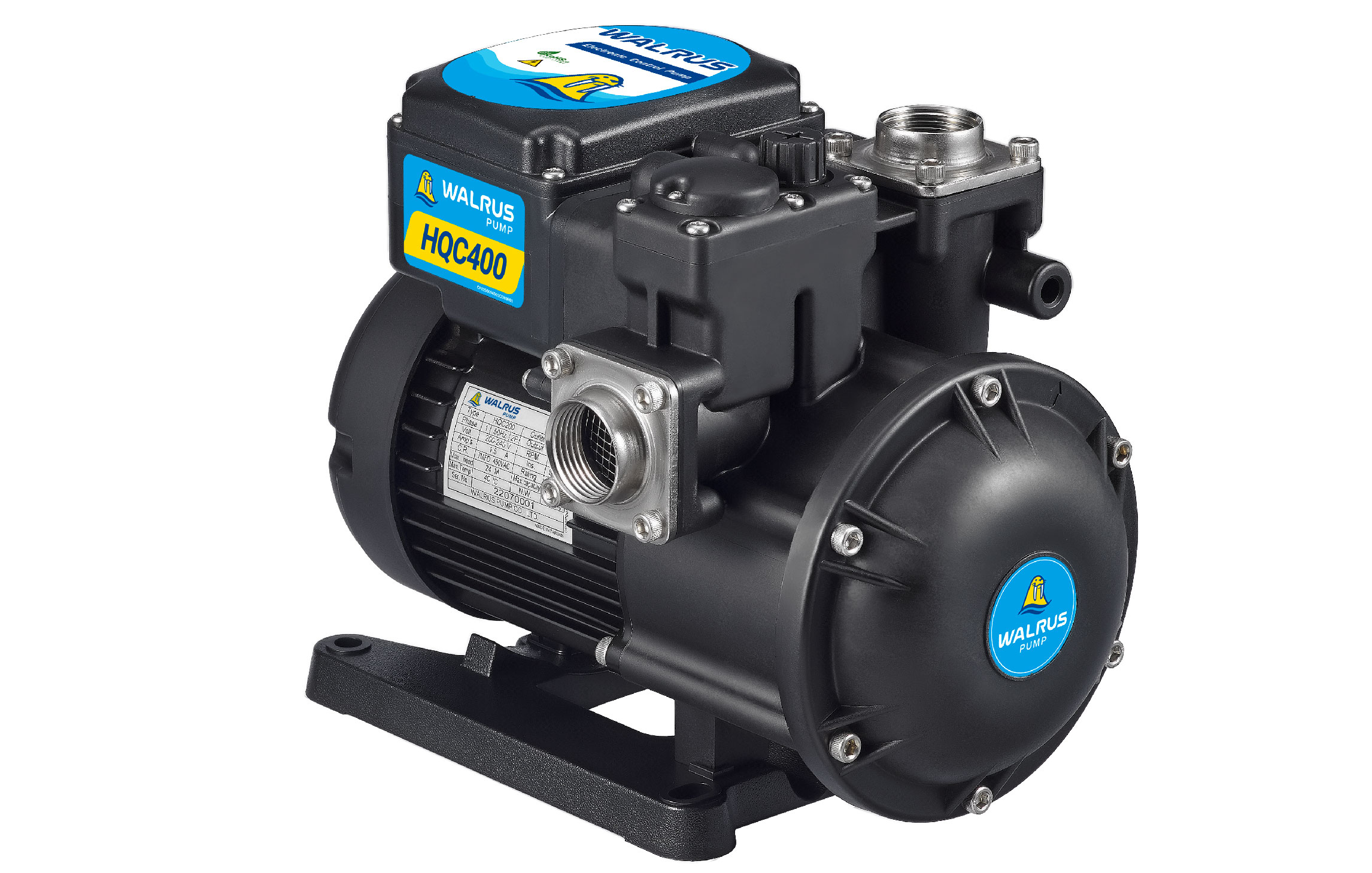

Model | HQC400B

Horizontal Centrifugal Pump

Automatic Flow-Controlled Booster Pump
HQC_B Series

  • Automatically starts and stops based on water inflow, no pressure retention in pipes.
  • Using SUS304 stainless steel centrifugal impellers, quiet and durable.
  • The parts in contact with liquid are made of rust-resistant materials
Construction Industry Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.18 - 0.75
Up to 33
Up to 110
60
0.18 - 0.75
Up to 27
Up to 120

Features

Power Module
Equipped with industrial-grade safety protections, it adapts to various voltage conditions to ensure consistently stable water pressure.
No pressure retention in pipes.
Intelligent electronic control with automatic start / stop based on inflow.
Quiet and Durable
The impeller is made of SUS304 stainless steel to ensure quite operation, high water quality and strength.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Suction Pipes
Must run in positive pressure only a negative pressure unable to work the pump.
Discharge Pipes
Must lower than water tower over 0.5 meter.
Operation Method
It must be installed below a water tower to enable downward pressurization and automatically starts and stops with water usage.
Operating Limitations
The pump cannot operate if the faucet outlet is higher than the water tower or when drawing water upwards from a reservoir.

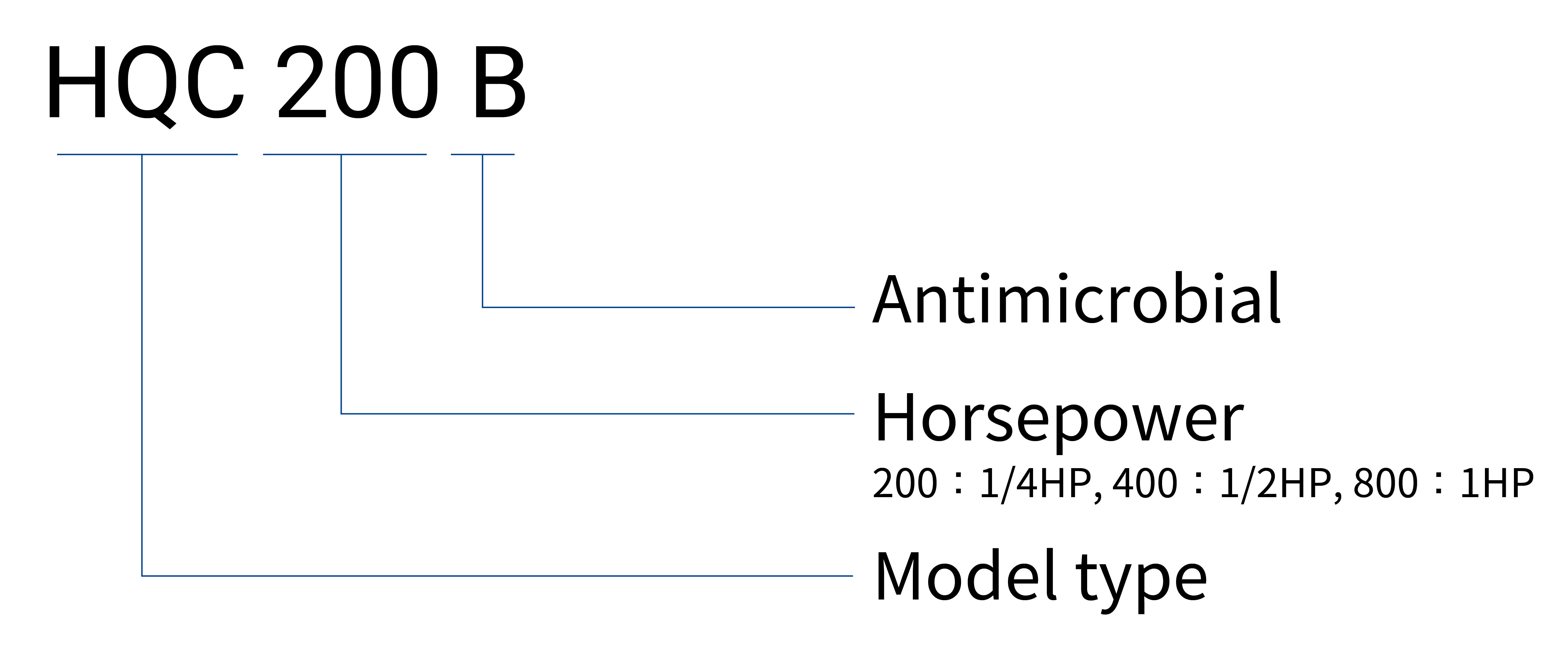

Model code

Select Frequency

Electrical standards
Inquiry
Model
Frequency
Phase
(Ø)
Power
(kW)
Voltage
(V)
Current
(A)
HQC200B
50
1
0.18
200 - 240
1.5
HQC200B
60
1
0.18
110 / 220
4.0 / 2.0
HQC400B
50
1
0.37
200 - 240
2.8
HQC400B
60
1
0.37
110 / 220
6.0 / 3.0
HQC800B
50
1
0.75
200 - 240
4.5
HQC800B
60
1
0.75
110 / 220
10.0 / 5.5
Pump specifications

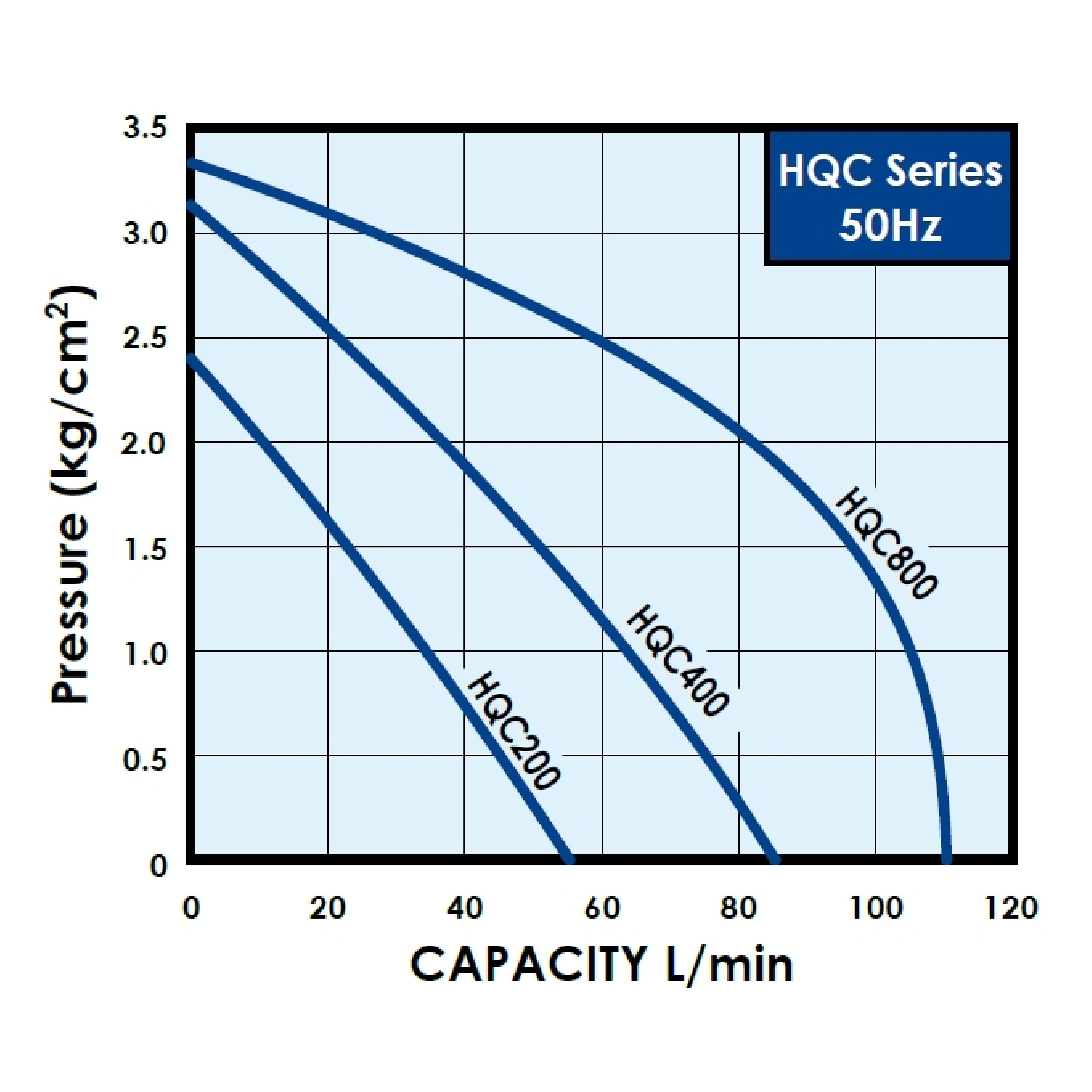

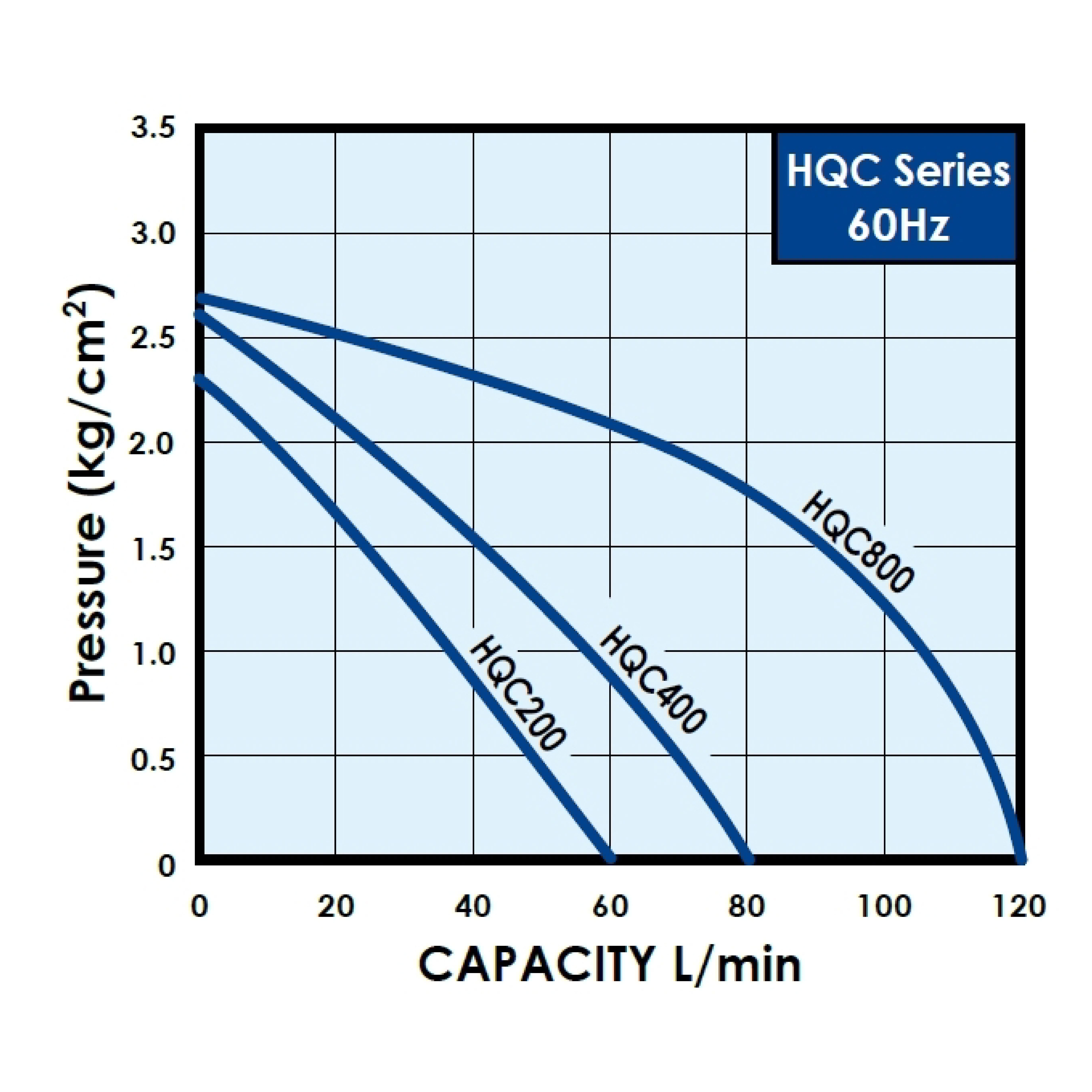

Graph
Model
Frequency
Max. Head
(m)
Max. Flow
(L/min)
Inlet
(in.)
Outlet
(in.)
HQC200B
50
24
55
1"
1"
HQC200B
60
23
60
1"
1"
HQC400B
50
31
85
1"
1"
HQC400B
60
26
80
1"
1"
HQC800B
50
33
110
1"
1"
HQC800B
60
27
120
1"
1"

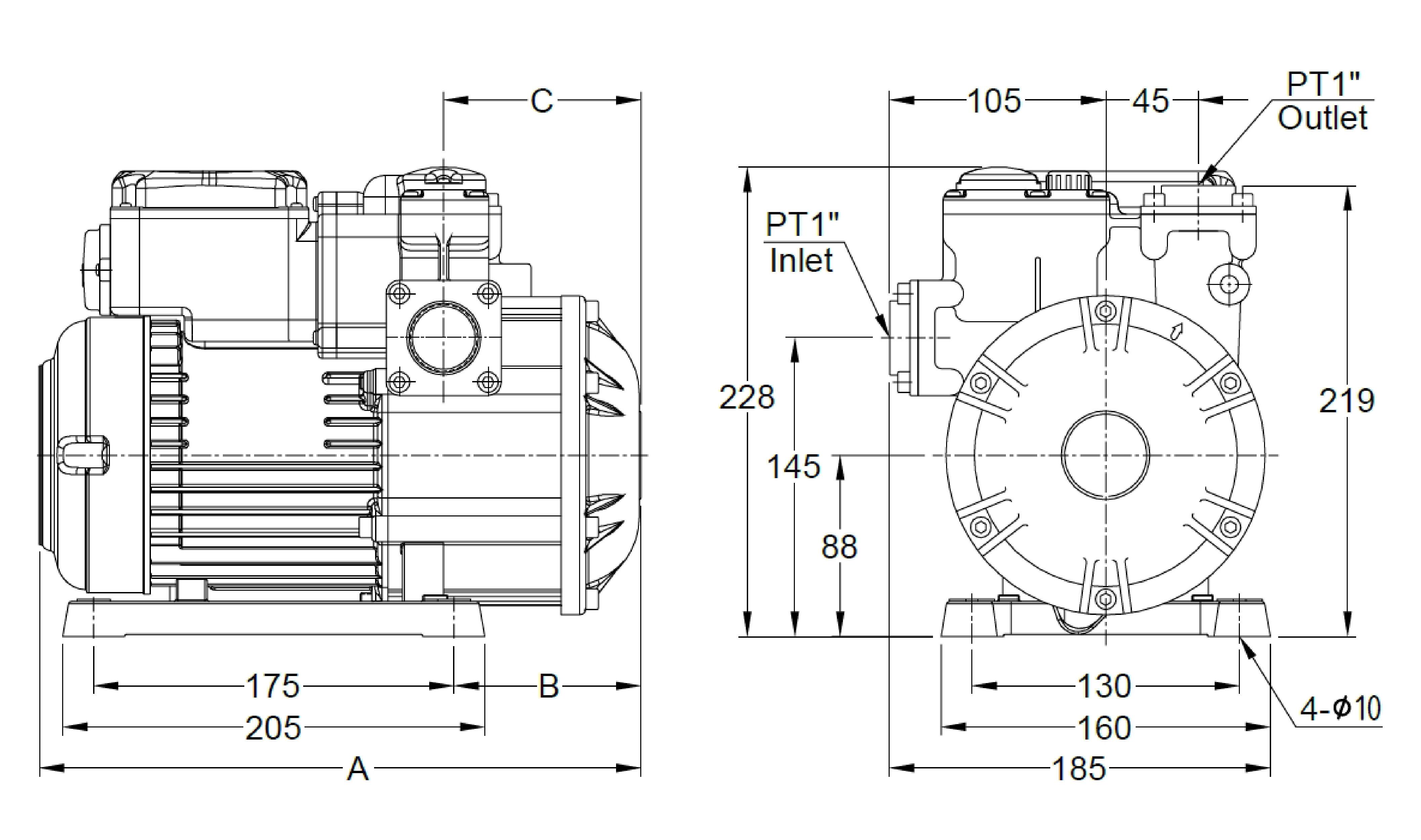

Dimension
Model
Frequency
A
B
C
N.W.
G.W.
Pallet Loading Qty.
HQC200B
50
292
91
96
6.8
7.5
45
HQC200B
60
292
91
96
6.7
7.4
45
HQC400B
50
292
91
96
7.9
8.5
45
HQC400B
60
292
91
96
7.8
8.4
45
HQC800B
50
344
96
101
10.3
10.9
36
HQC800B
60
344
96
101
10.2
10.8
36

HQC_B Series Applications

Construction Industry
Domestic Water Supply
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
Service Industry
Domestic Water Supply
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
HQC_B Product Catalogue
Update2025-08-18
Size1.06 MB

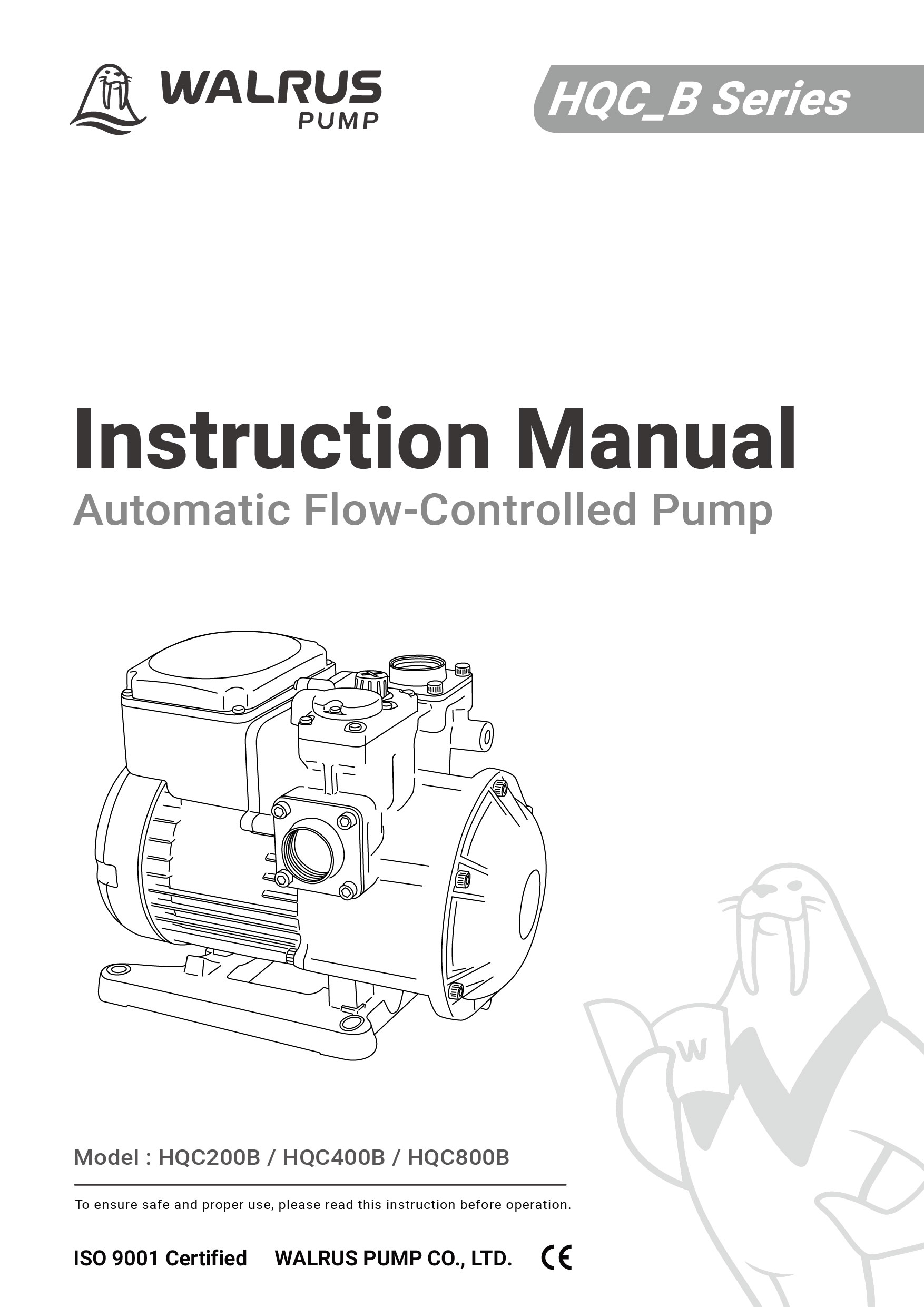

HQC_B Instruction Manual
Update2025-08-18
Size305.1 KB
