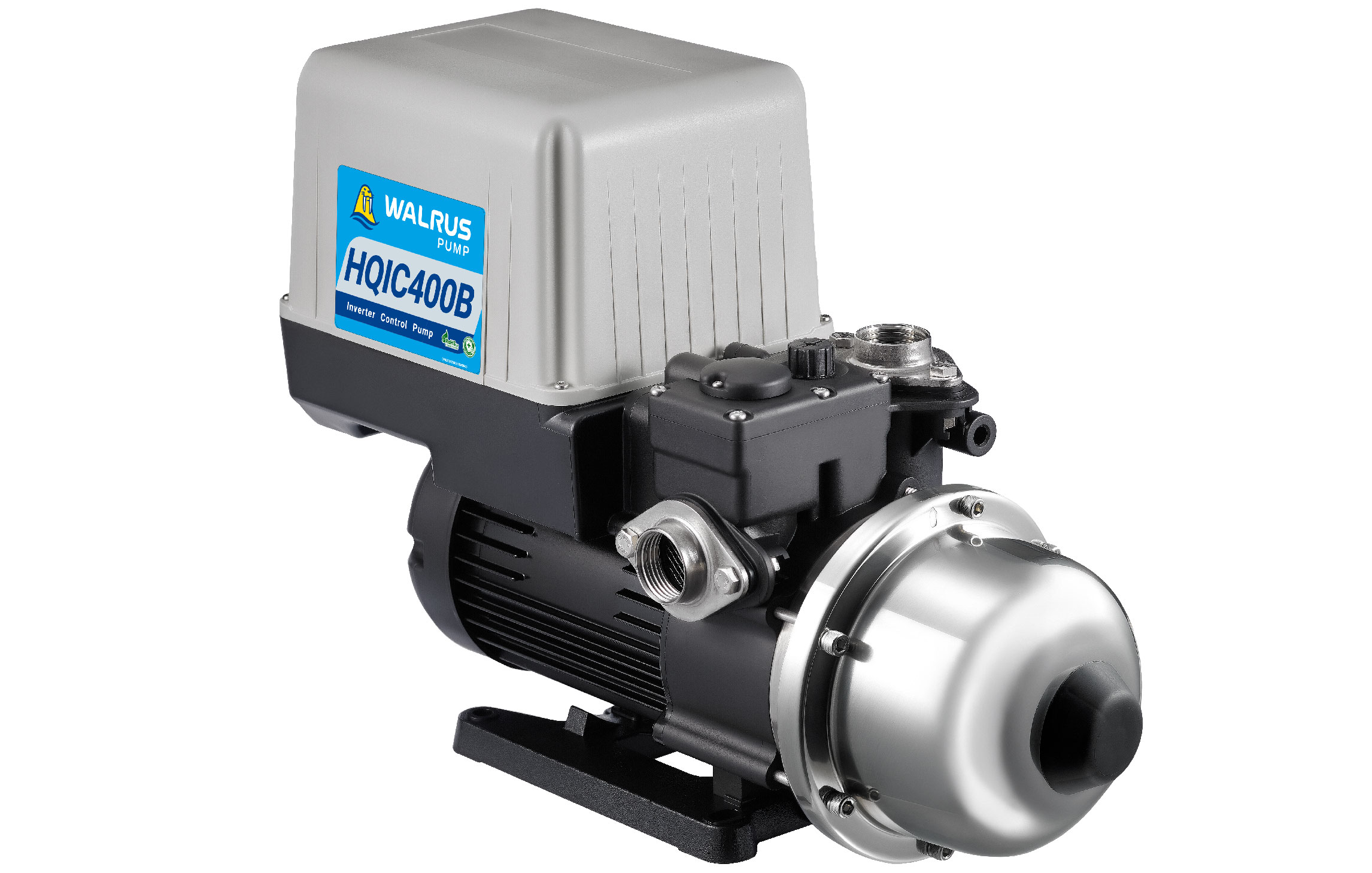

Model | HQIC400B

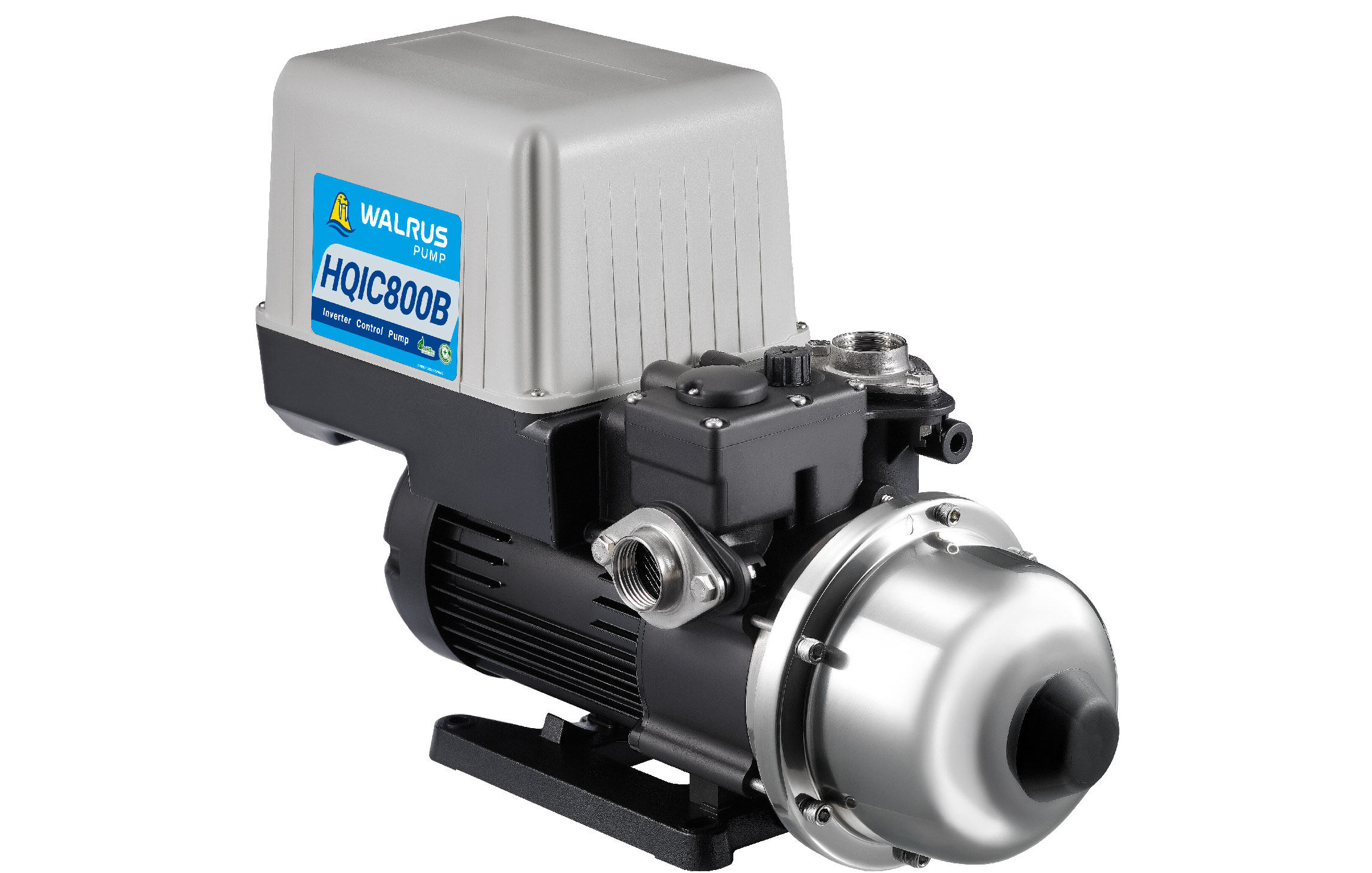

Model | HQIC800B

Constant Pressure Inverter Control System

Constant Pressure Inverter Control Pump
HQIC_B Series

  • Inverter controller can continuously adjust the motor speed to meet constant pressure water supply requirements.
  • Intelligently adjusts based on water usage conditions to achieve high efficiency and energy savings.
  • Using SUS304 stainless steel centrifugal impellers, quiet and durable.
Power (kW)
Pre-set Pressure (kg/cm²)
Nominal Set Flow (L/min)
0.37 - 0.75
Up to 3.0
Up to 40

Features

Inverter controller
The motor starts smoothly during water usage, with the inverter controller continuously adjusting the motor speed via pressure sensor feedback to maintain stable pressure at the preset value.
Smart and Energy-Saving
The pump will maintain a constant operating pressure at the pressure setting, ensuring a stable water supply even though occasionally the output flow is over the capacity.
Dry-Run Protection
Auto shutoff after 1 minute of dry run; restarts hourly until water is restored.
Auto Stop Upon Flow Interruption
The pump will automatically cycle down as water usage decreases
Pressure Compensation
Automatically detects pressure loss and operates the pump to maintain the pressure setting if there is leakage or dripping in the piping system.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Quiet and Durable
The impeller is made of SUS304 stainless steel to ensure quite operation, high water quality and strength.
All-In-One
Integrated system that combines the pump, Inverter, motor, pressure tank, and electronic controller for a stable and enduring water supply environment for household use.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Relative Humidity
Max. 85%(RH)
System Pressure
Max. 8.5 kg/cm²
Inlet Pressure
Must be less than the pressure switch start value.

Model code

Select Frequency

Electrical standards
Inquiry
Model
Phase
(Ø)
Power
(kW)
Voltage
(V)
Current
(A)
HQIC400B
1
0.37
110
8.0
HQIC400B
1
0.37
220
4.0
HQIC800B
1
0.75
110
12.6
HQIC800B
1
0.75
220
6.3
Pump specifications

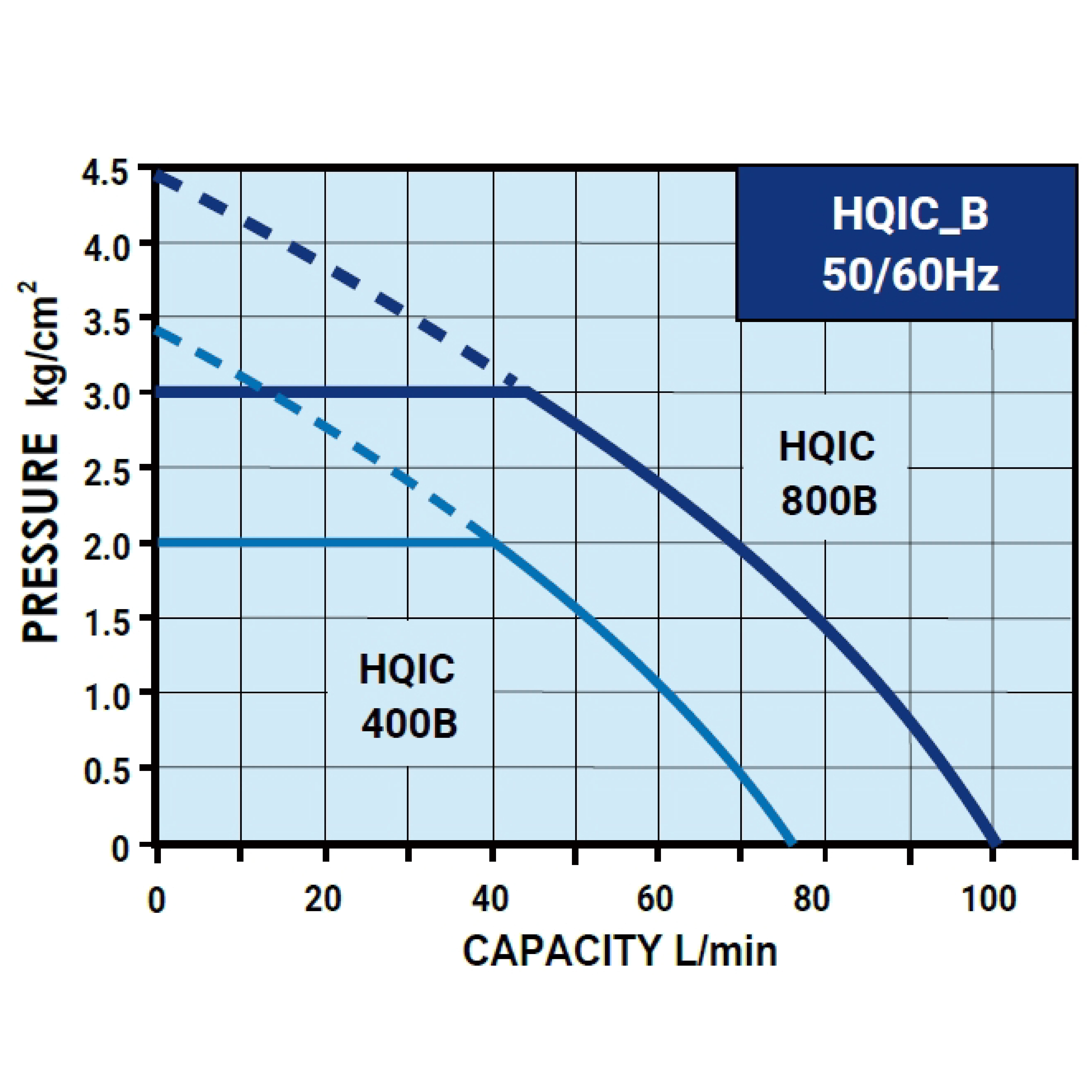

Graph
Model
Pre-Set Pressure
Nominal Set Flow
Inlet
(in.)
Outlet
(in.)
HQIC400B
2.0
40
1"
1"
HQIC800B
3.0
40
1"
1"

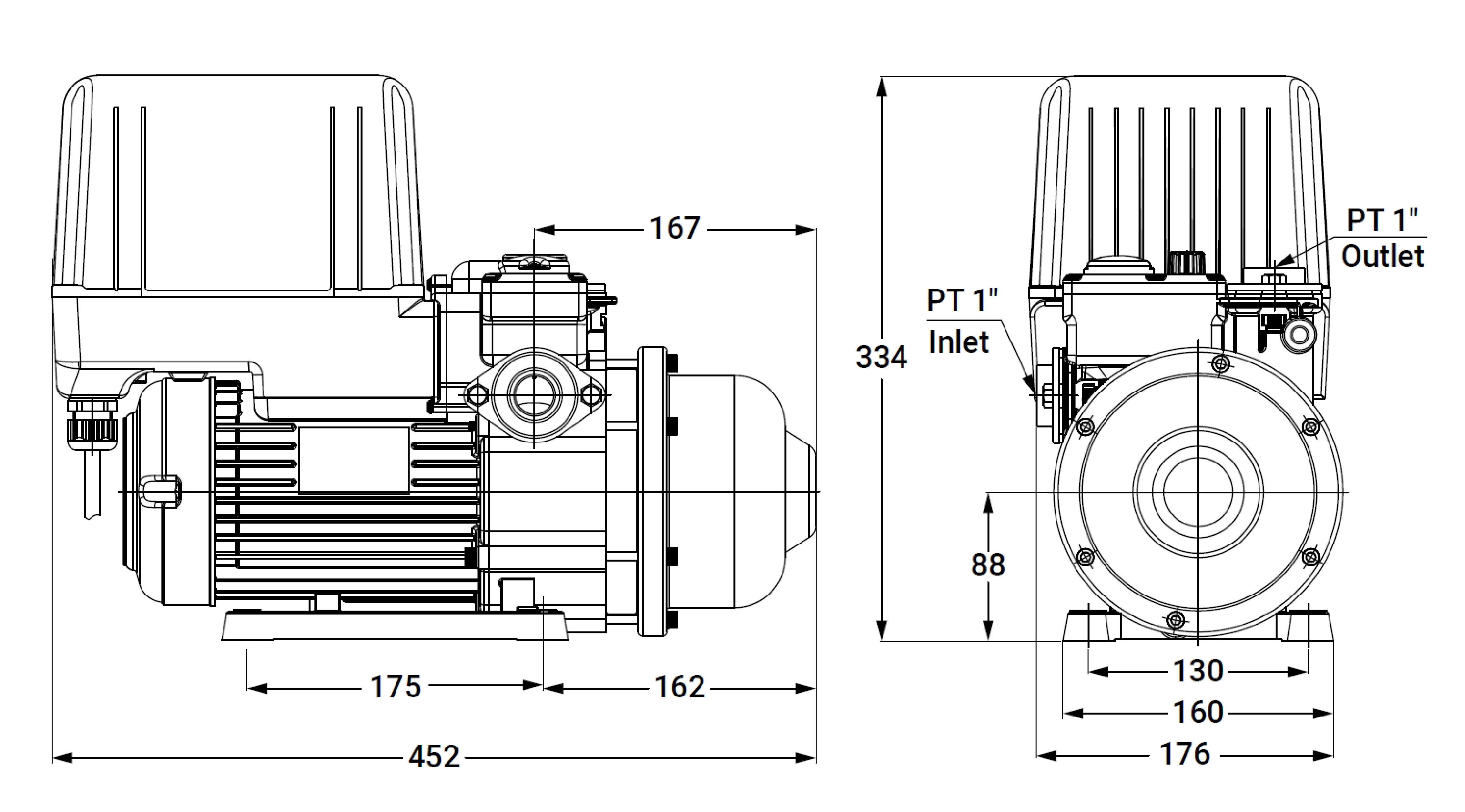

Dimension
Model
Length
(mm)
Width
(mm)
Height
(mm)
Net Weight
(kg)
Gross Weight
(kg)
HQIC400B
452
176
334
11.0
12.8
HQIC800B
452
176
334
13.0
14.3

HQIC_B Series Applications

For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
Providing water circulation, pressure regulation, and filtration support. Ensuring stable transport of large volumes of water to water entertainment facilities, enhancing guest safety and experience.
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
The pump with inverter system addresses issues such as low water pressure, uneven water flow, and temperature fluctuations during peak times, ensuring a continuous and stable water supply that enhances customer comfort and satisfaction.
Delivers water to irrigation points for even moisture distribution across soil and plants. With inverters, settings can be adjusted based on soil moisture, weather conditions, and water demand to improve resource efficiency.
Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
HQIC_B Catalogue
Update2025-08-20
Size494.87 KB
