Model | LMP2050

Screw Pump

Screw Pump
LMP Series

  • Meets water pressure requirements ranging from 50 to 80 bar.
  • Wear-resistant, and specifically designed for high-pressure machining to ensure stable workpiece quality.
  • Various precision applications in industries such as aerospace.
Manufacturing Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
5.5 - 7.5
Up to 800
Up to 28
60
5.5 - 7.5
Up to 800
Up to 28

Features

Durable, Wear-Resistant Construction
Particularly suitable for precision-critical machining applications involving difficult-to-machine materials such as aluminum and stainless steel.
Complies with High-Precision Processing Standards
Applicable to high-precision industries, such as aerospace machining processes.
Grinding Applications
Machine Tools, Machining Center, Booster station, Centralized and decentralized coolant preparation systems, Lubricants and hydraulics.
High-Pressure
Supports high-pressure water applications within the 50–80 bar range.
Precision Chip Control
Delivers efficient chip breaking to extend tool life and reduce operational costs.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
0°C ~ +80°C
Requirement
When emulsion, minimum oil content is 5%
Maximum Solid Content
40 mg/liter
Maximum Particle Size
0.05 mm (50 microns)
Rotation Direction
Clockwise, starting from the top on the motor vent side.

Model code

Select Frequency

Electrical standards
Inquiry
Model
Frequency(Hz)
50/60Hz Common Motor(Y/N)
Phase(Ø)
Output Power P2(kW)
Voltage(V)
Current I1/1(A)
Current Imax(A)
LMP2050
50
Y
3
5.5
220-240 / 380-415
19.6-19.9 / 11.3-11.4
21.3-21.2 / 12.3-12.2
LMP2050
60
Y
3
5.5
220-255 / 380-440
19.1-17.9 / 10.9-10.3
21.7-19.9 / 12.4-11.5
LMP2070
50
Y
3
7.5
220-240 / 380-415
25.0-24.8 / 14.6-14.5
27.3-26.8 / 15.9-15.7
LMP2070
60
Y
3
7.5
220-255 / 380-440
25.4-24.4 / 14.7-14.1
28.9-27.1 / 16.7-15.8
LMP2080
50
N
3
7.5
220-240 / 380-415
25.0-24.8 / 14.6-14.5
27.3-26.8 / 12.3-15.7
Pump specifications

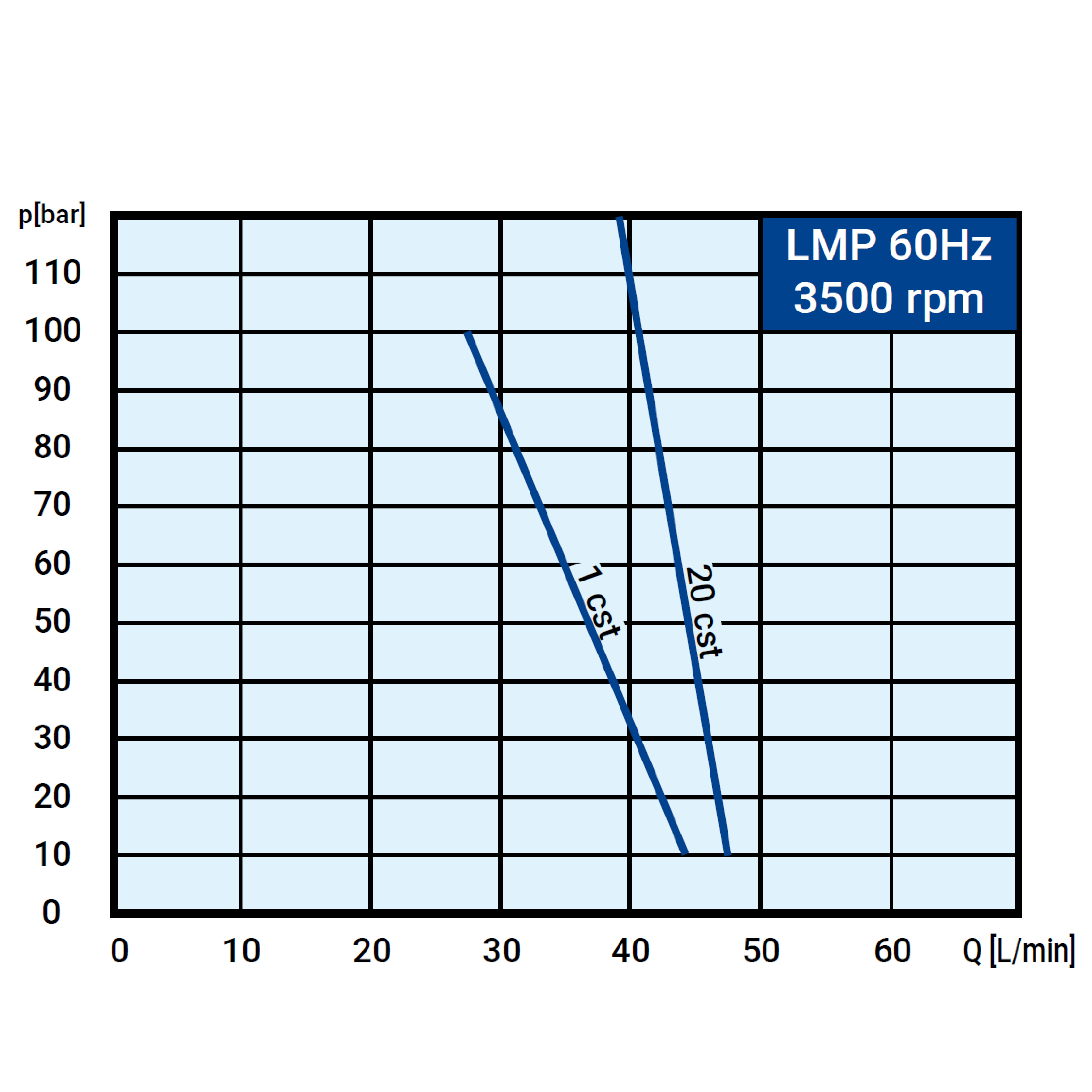

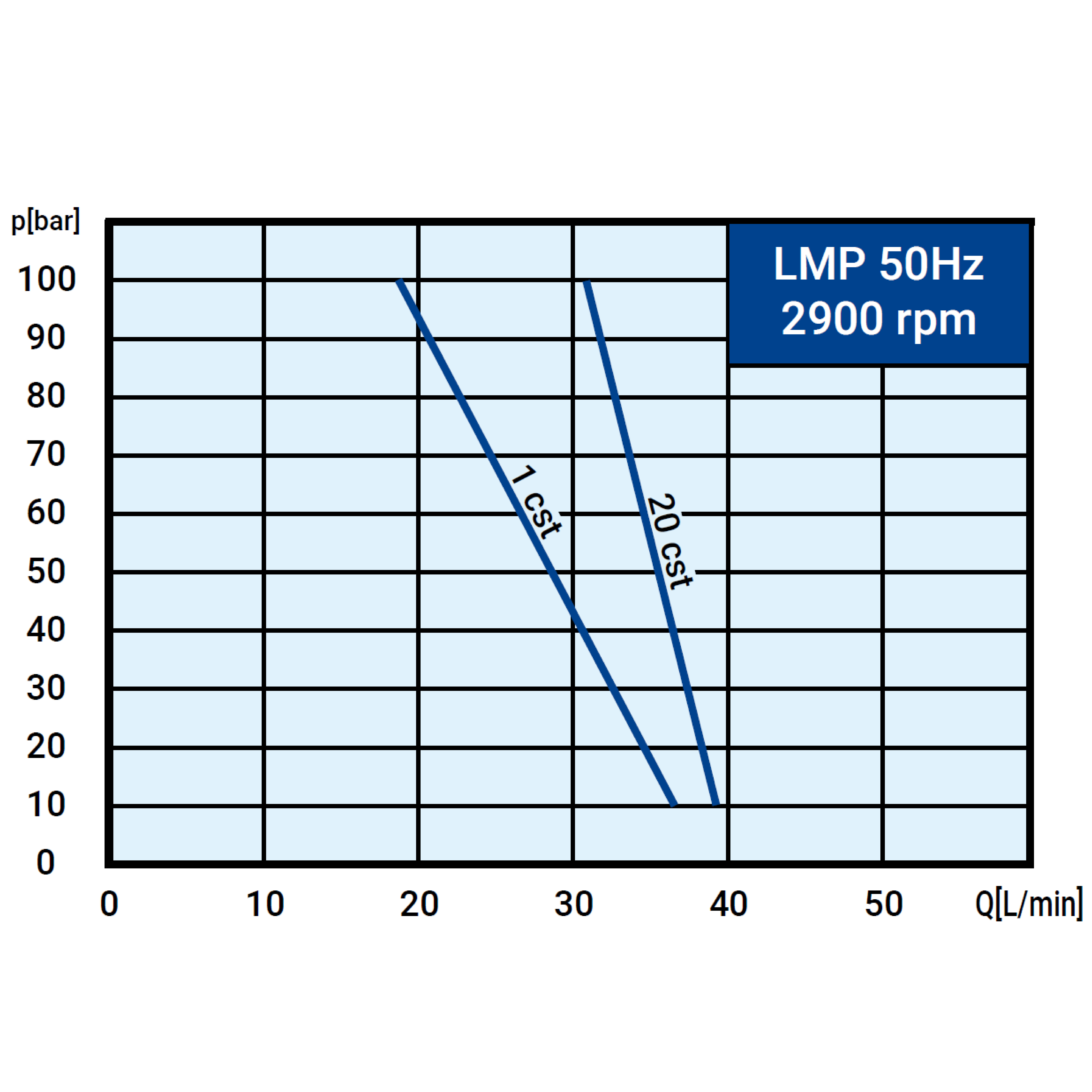

Graph
Model
Frequency(Hz)
Rated Pressure(bar)
1cst Rate Flow(L/min)
20cst Rate Flow(L/min)
Inlet(in.)
Outlet(in.)
LMP2050
50
50
22.7
34.6
1" BSP
1" SAE + ¾" BSP
LMP2050
60
50
36.2
43.1
1" BSP
1" SAE + ¾" BSP
LMP2070
50
70
19.4
27.2
1" BSP
1" SAE + ¾" BSP
LMP2070
60
70
32.4
41.3
1" BSP
1" SAE + ¾" BSP
LMP2080
50
80
17.7
26.5
1" BSP
1" SAE + ¾" BSP

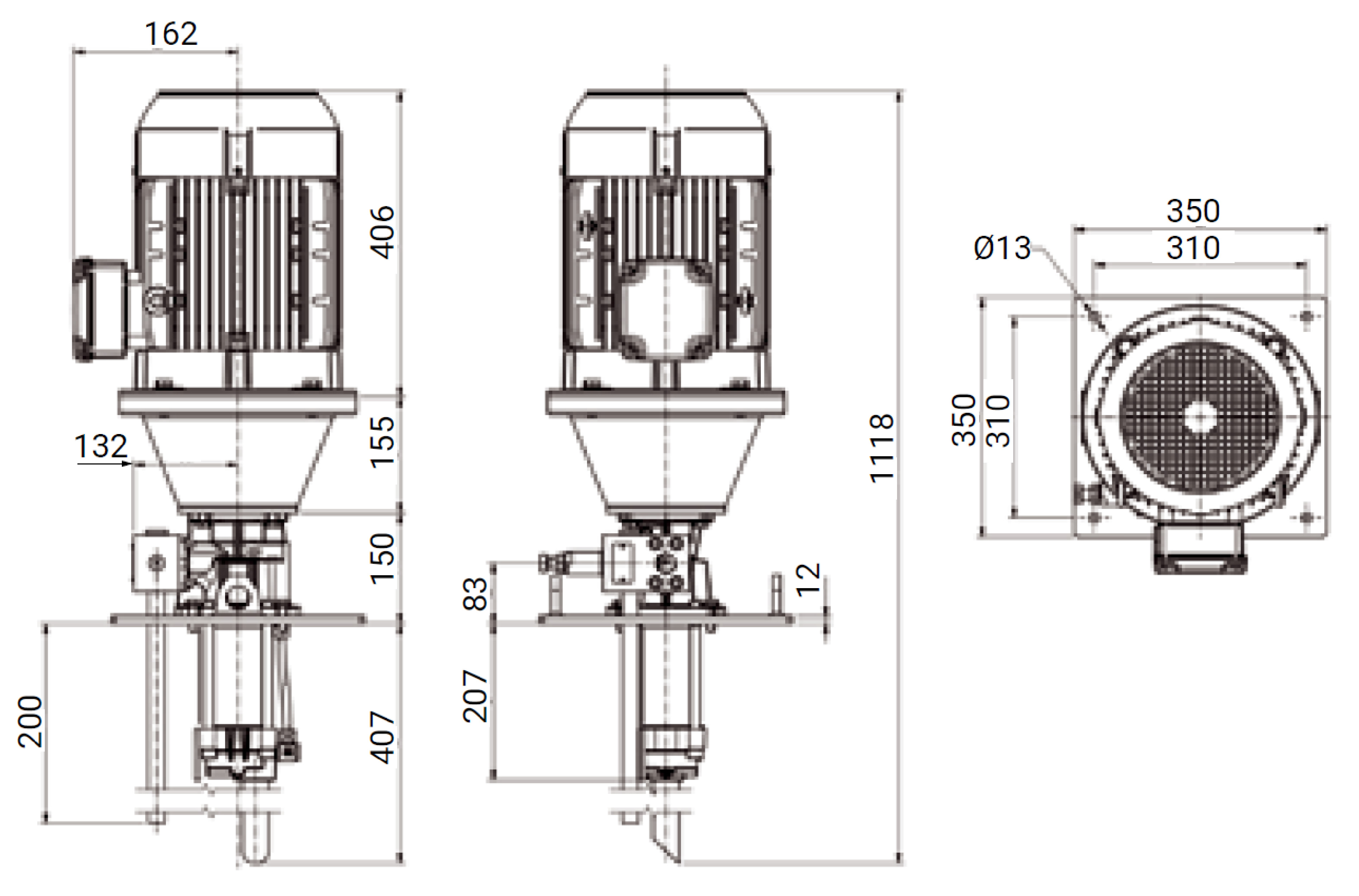

Dimension
Model
Frequency(Hz)
Length(mm)
Width(mm)
Height(mm)
LMP2050
50
337
350
1,118
LMP2050
60
337
350
1,118
LMP2070
50
337
350
1,118
LMP2070
60
337
350
1,118
LMP2080
50
337
350
1,118

LMP Series Applications

Manufacturing Industry
Industrial Process Cooling
Circulating coolant solutions dissipate heat, ensuring stable operation of industrial equipment, maintaining precise output quality, and enhancing production efficiency.
