Model | PK100
Model | PK250

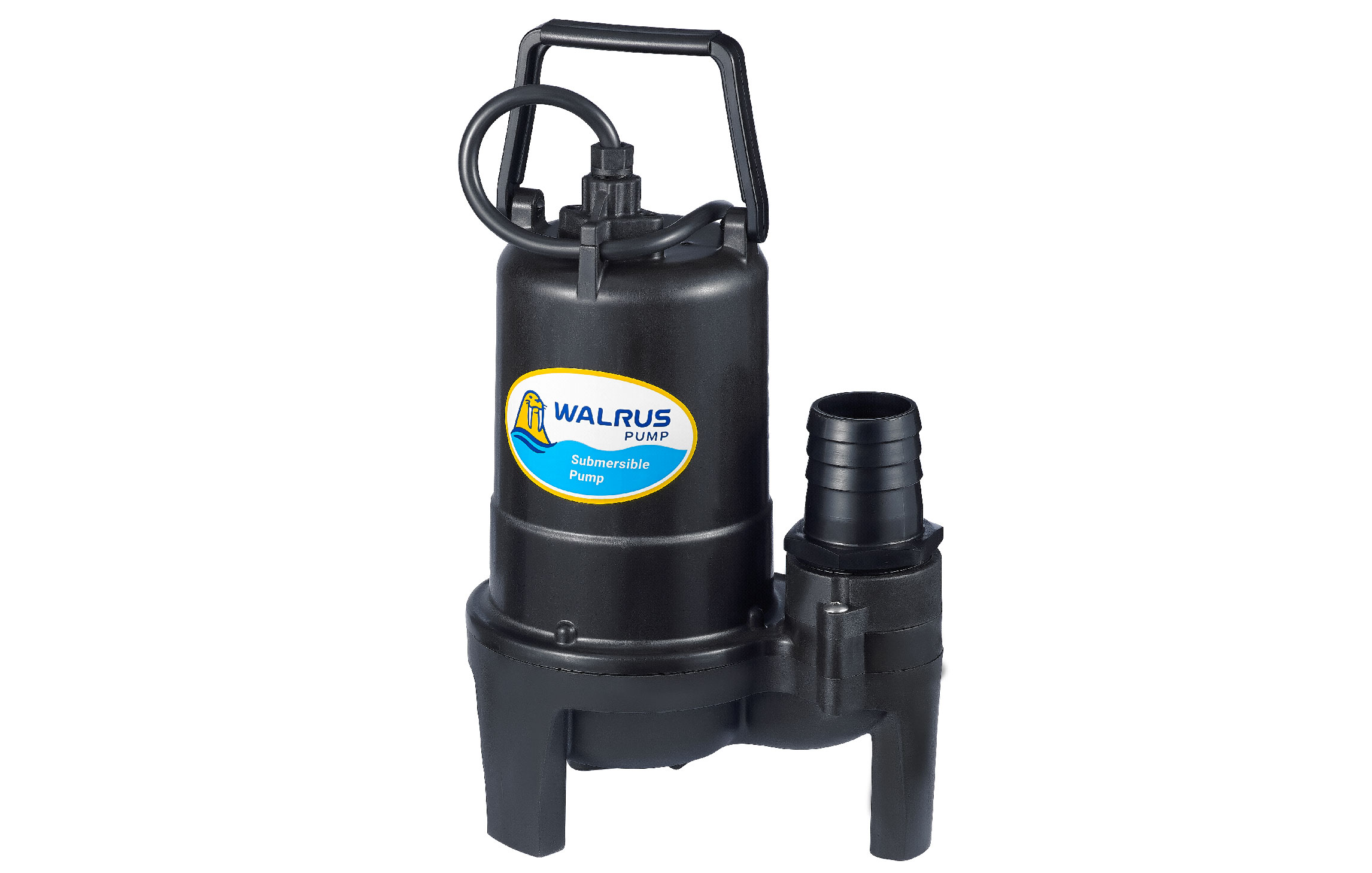

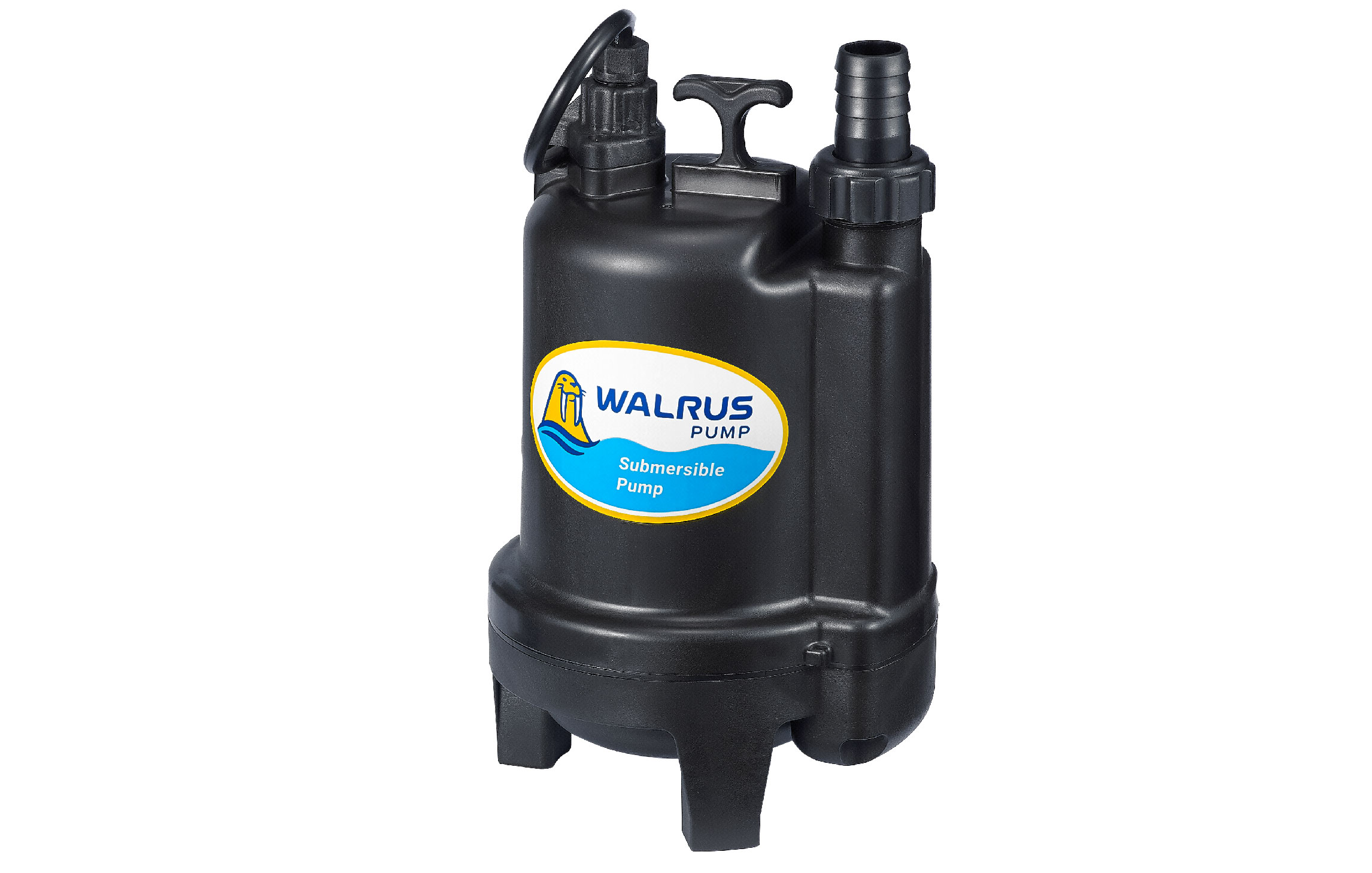

Submersible Pump

Fishpond Submersible Pump
PK Series

  • Specifically designed for aquaculture.
  • Thermal overload protection to prevent burnout.
  • Energy-efficient and high-performance.
Construction Industry Entertainment & Leisure Industry Agriculture, Forestry, Fishery and Animal Husbandry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.15
Up to 6.0
Up to 220
60
0.10 - 0.25
Up to 6.5
Up to 260

Features

Excellent Performance
Equipped with a high-efficiency motor, offering energy savings and superior performance.
Aquaculture-Specific
Ideal for landscape fish ponds, koi ponds, and aquaculture applications.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Lightweight Design
Using high-performance composite materials, durable and lightweight.
User-Friendly
Includes plug-in power cord for easy use
Air Release Design
The PK100 features an air release port design that eliminates airlocks within the pump. (A small amount of water may be discharged during operation.

Operating Conditions

Liquid Temp.
4°C ~ +35°C
Min. Submerged Depth
12±1 cm
Solids Passage
PK100: 16mm
PK150: 18mm
PK250: 18mm

Motor

Protection
IP68
Insulation Class
B

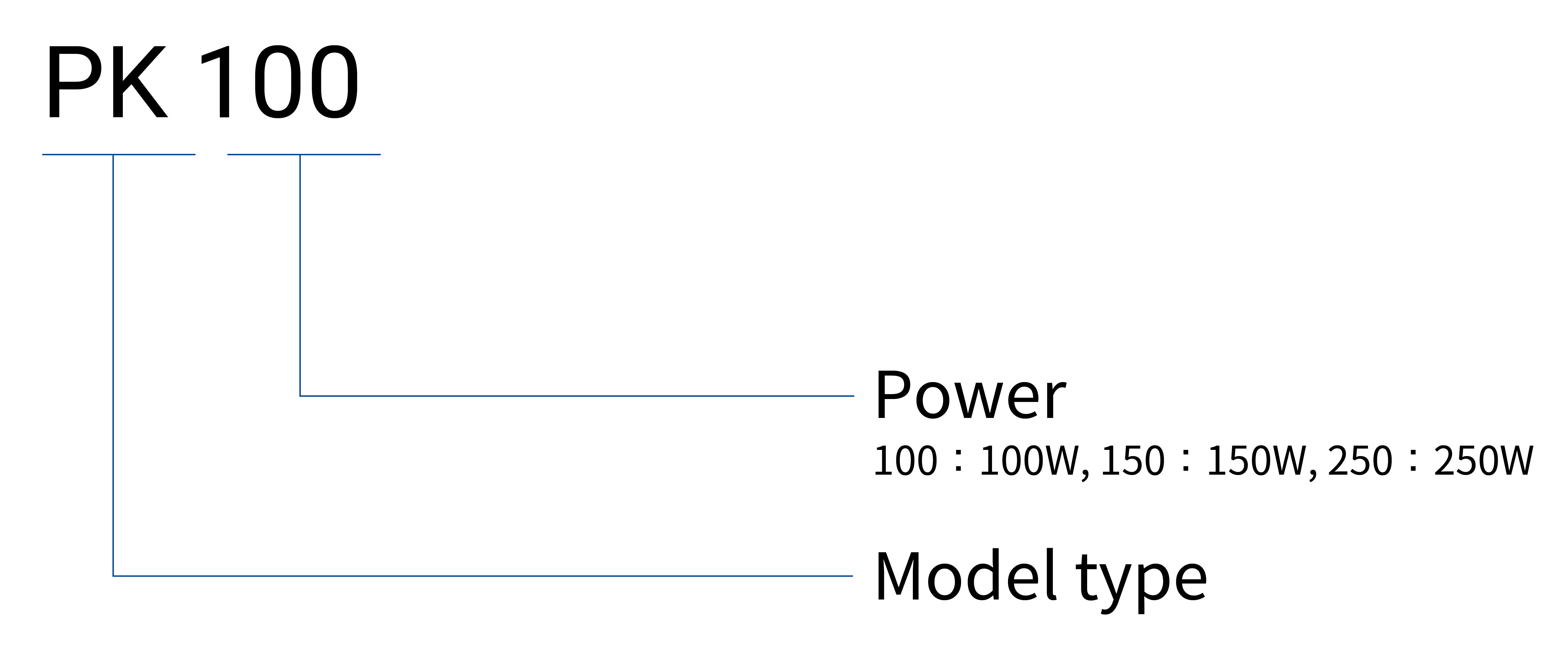

Model code

Select Frequency

Electrical standards
Inquiry
Model
Frequency
Phase
(Ø)
Power
(kW)
Voltage
(V)
Current
(A)
PK100
60
1
0.1
110
2.0
PK100
60
1
0.1
220
1.0
PK150
50
1
0.15
220 - 240
1.7 - 1.6
PK250
60
1
0.25
110
4.2
PK250
60
1
0.25
220
2,0
Pump specifications

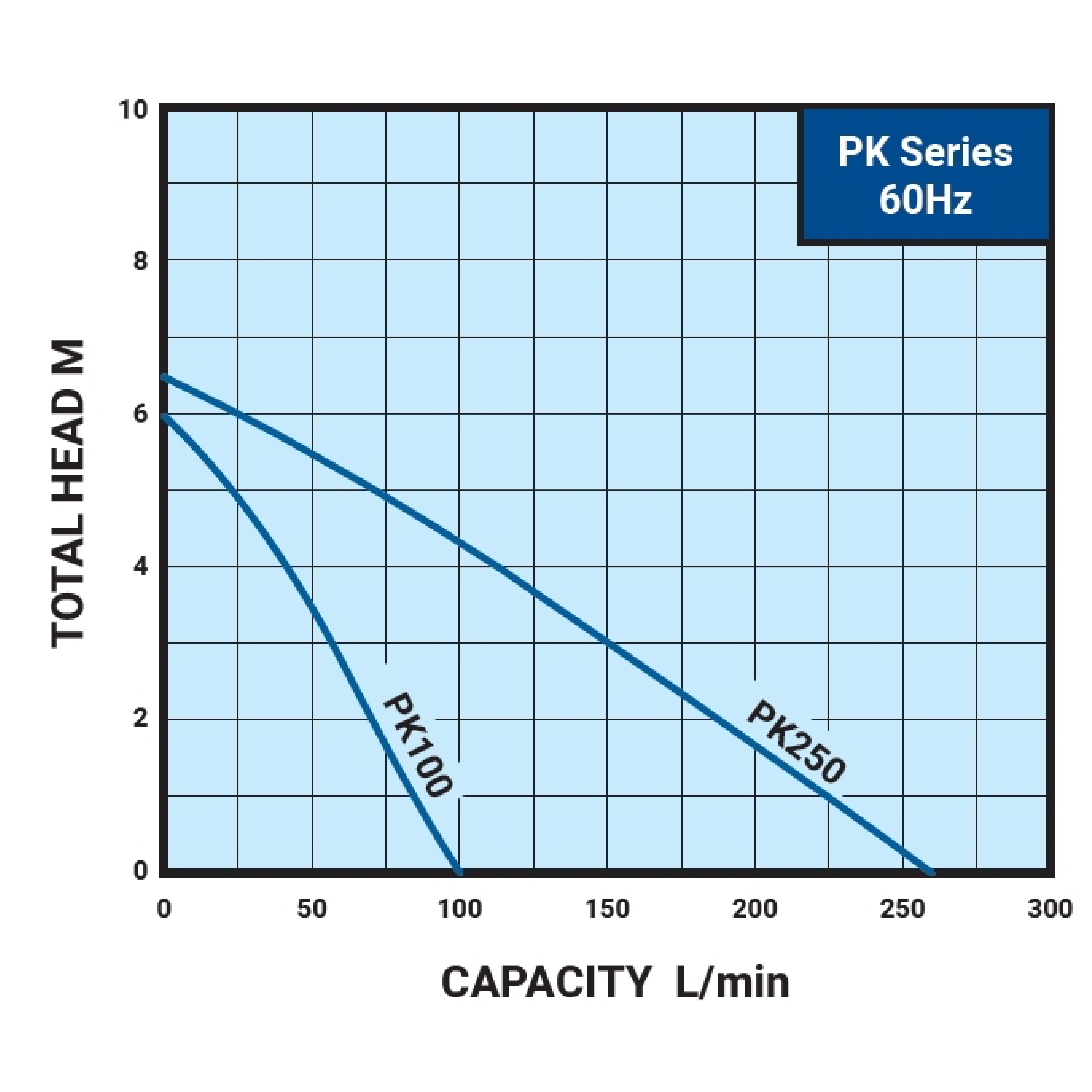

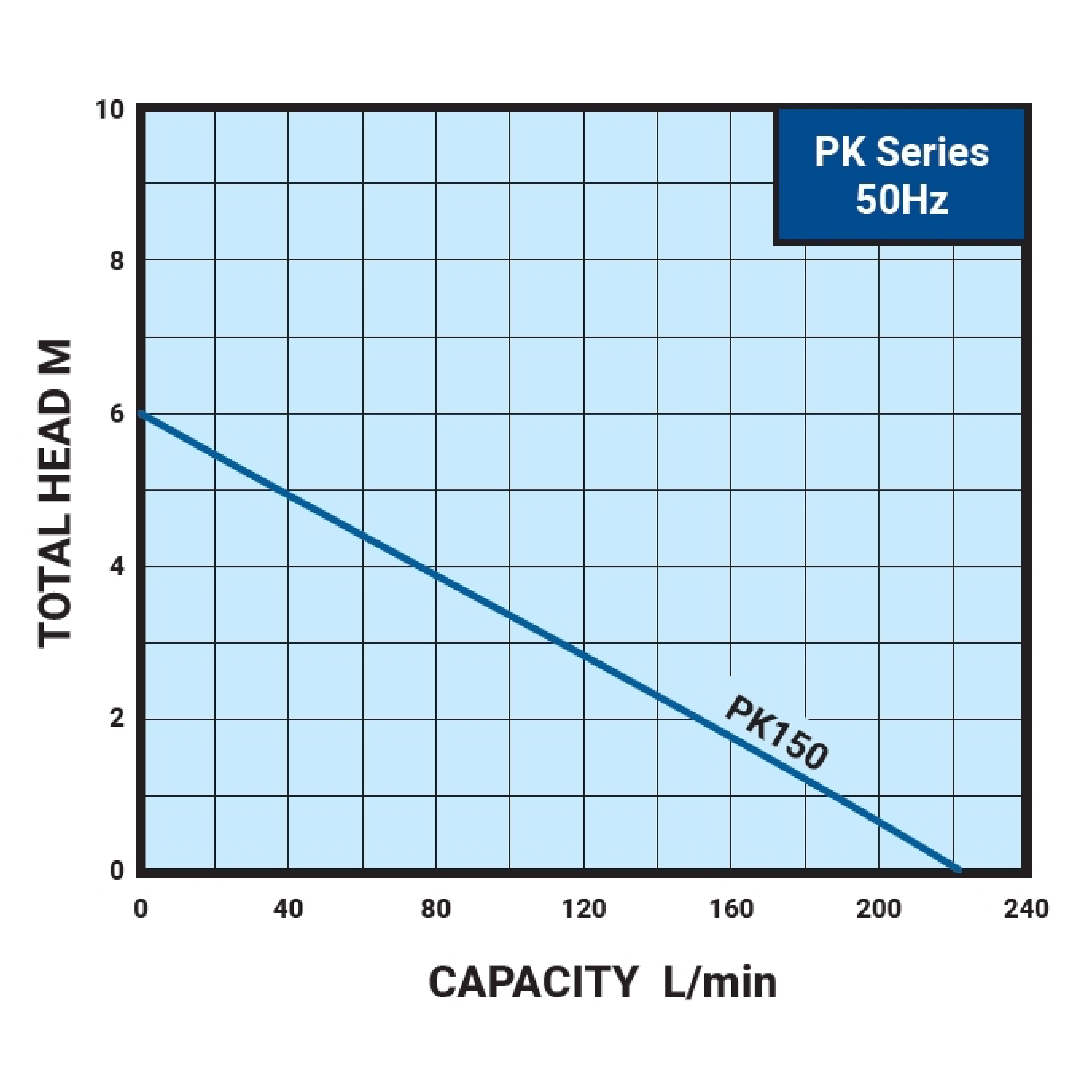

Graph
Model
Frequency
Outlet
Max. Head
(m)
Max. Flow
(L/min)
Cable Wire
PK100
60
1"
6.0
100
3 x 0.75 x 4
PK150
50
2"
6
220
3 x 1.5 x 5
PK250
60
2"
6.5
260
3 x 1.25 x 5
Dimension
Model
Frequency
Length
(mm)
Width
(mm)
Height
(mm)
N.W.
G.W.
Pallet Loading Qty.
PK100
60
155
140
267
4.2
4.6
72
PK150
50
221
151
365
6.1
6.6
50
PK250
60
221
151
365
6.2
6.7
50

PK Series Applications

Construction Industry
Landscape Pond Water Recirculation
A key component in maintaining water clarity, enhancing landscaping, and preserving ecological balance. Driving water flow to achieve circulation, filtration, and oxygenation, creating a fresh and natural aquatic environment.
Entertainment & Leisure Industry
Landscape Pond Water Circulation
A key component in maintaining water clarity, enhancing landscaping, and preserving ecological balance. Driving water flow to achieve circulation, filtration, and oxygenation, creating a fresh and natural aquatic environment.
Agriculture, Forestry, Fishery and Animal Husbandry
Water Supply for Animal Husbandry and Aquaculture
Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
Agriculture, Forestry, Fishery and Animal Husbandry
Seawater Discharge
Designed for saline environments, suitable for coastal facilities, fish farms, and seawater treatment systems.

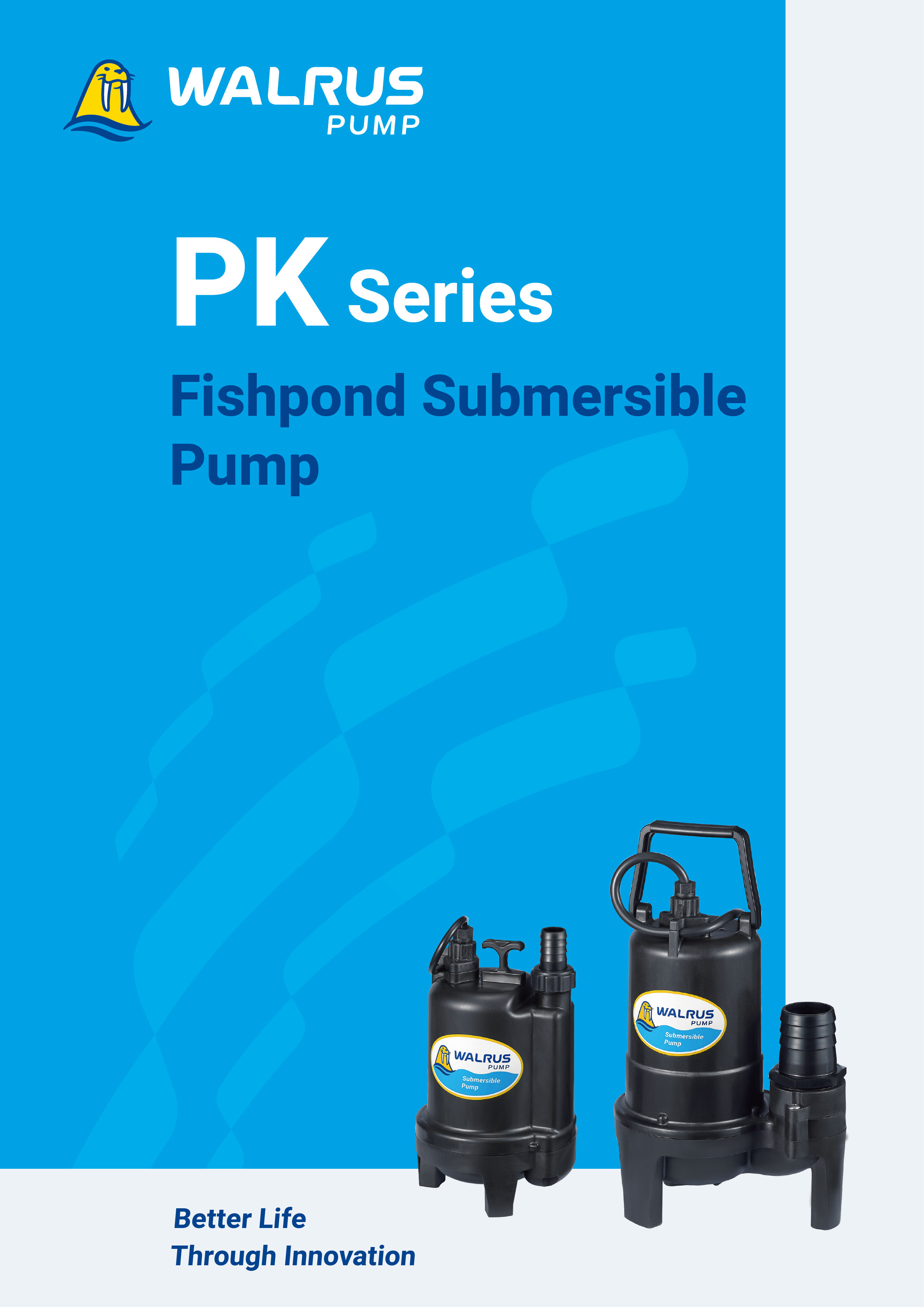

PK Product Catalogue
Update2025-08-18
Size1.24 MB

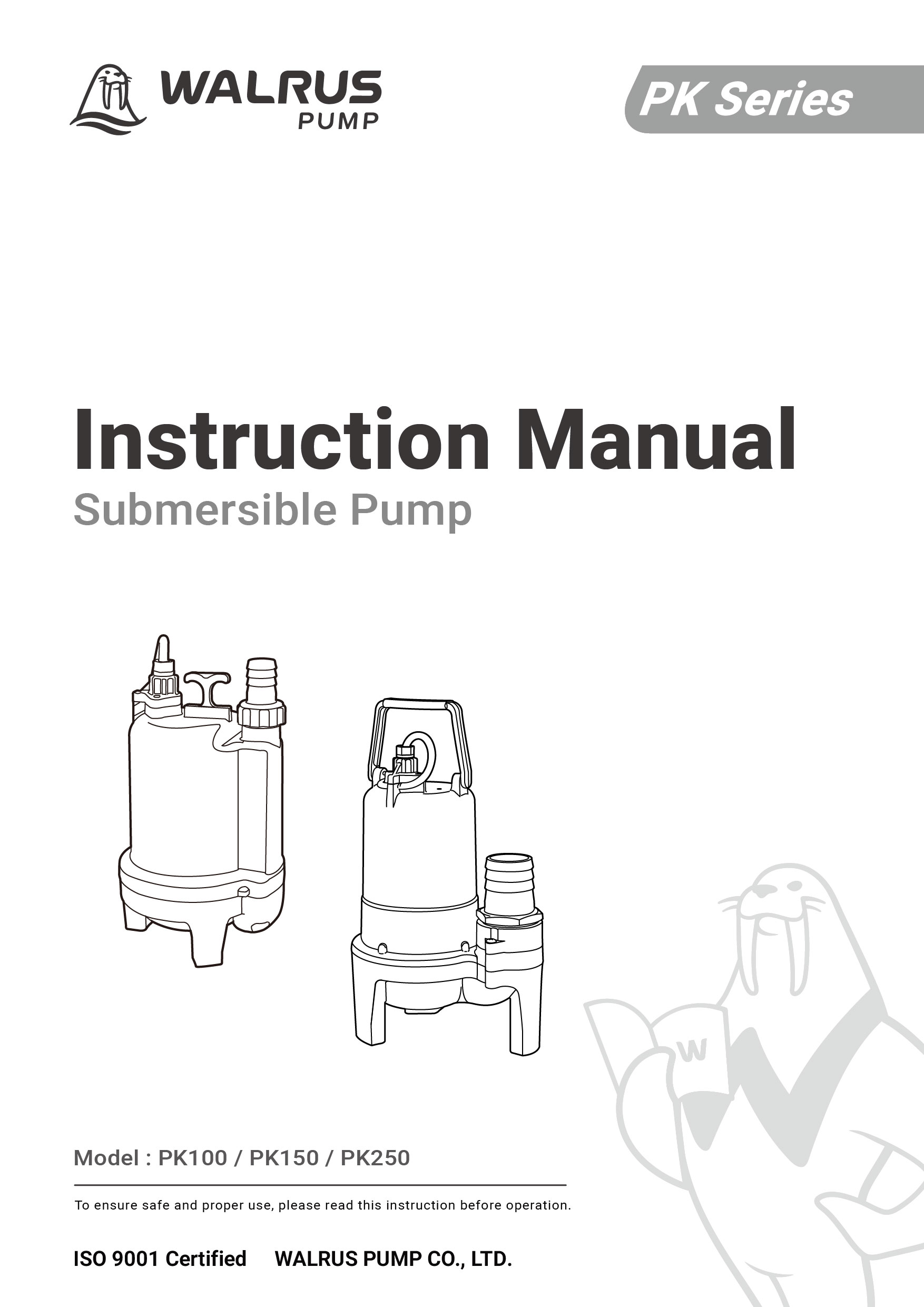

PK Instruction Manual
Update2025-08-18
Size333.84 KB
Download ({{ selectedDownloadIds.length }})
