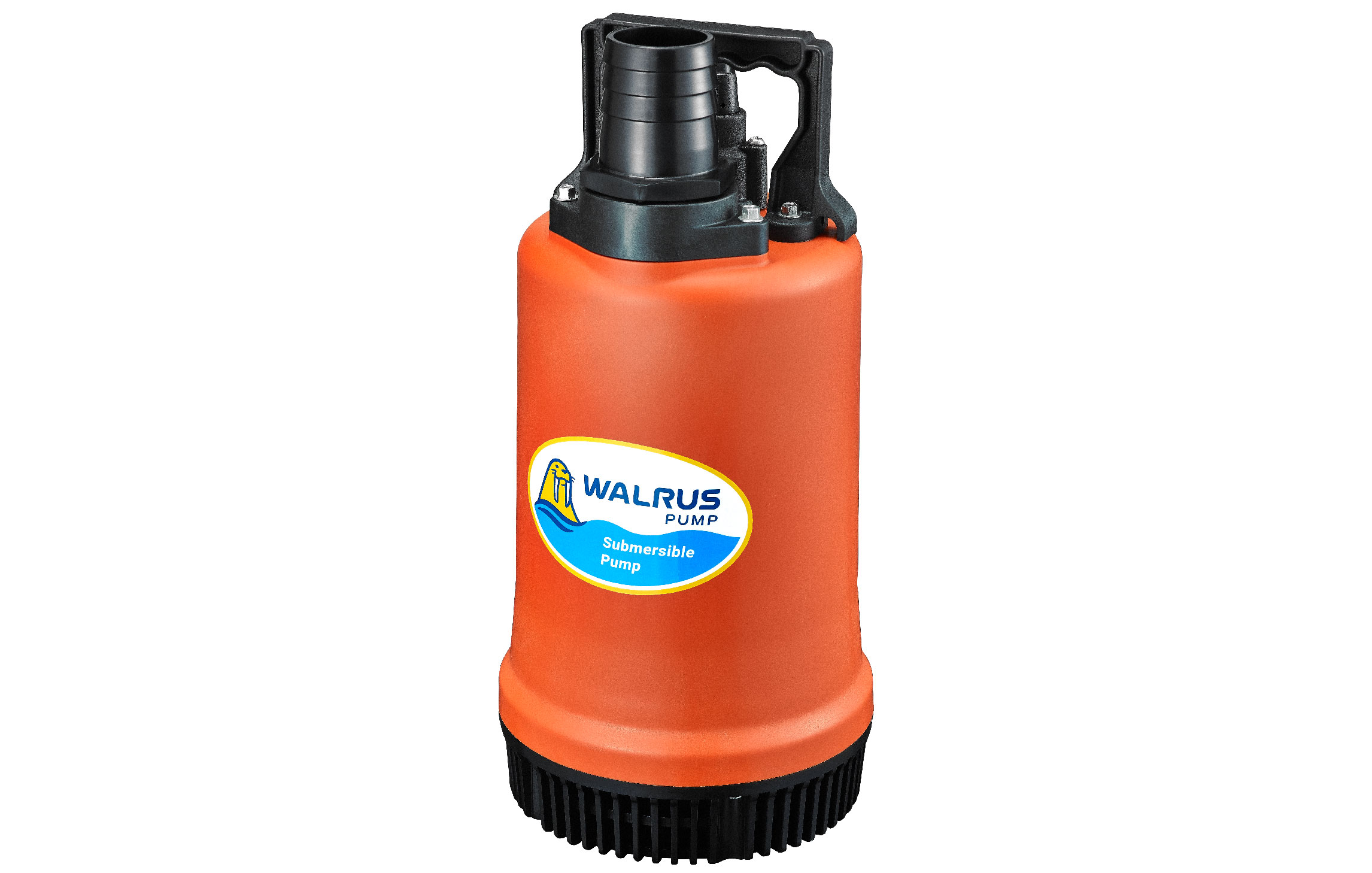

Model | PW400A
Model | PW400AD
Model | PW100E

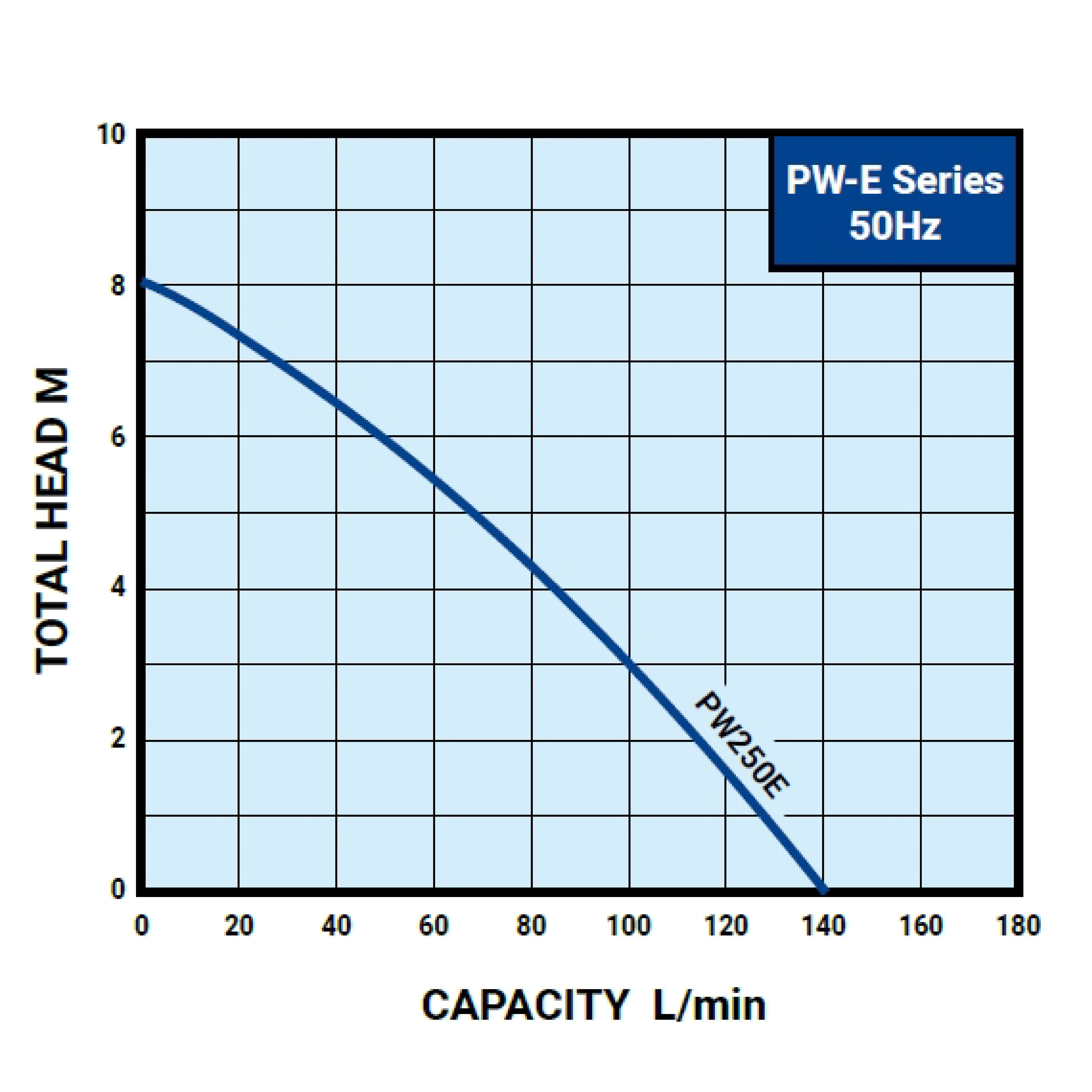

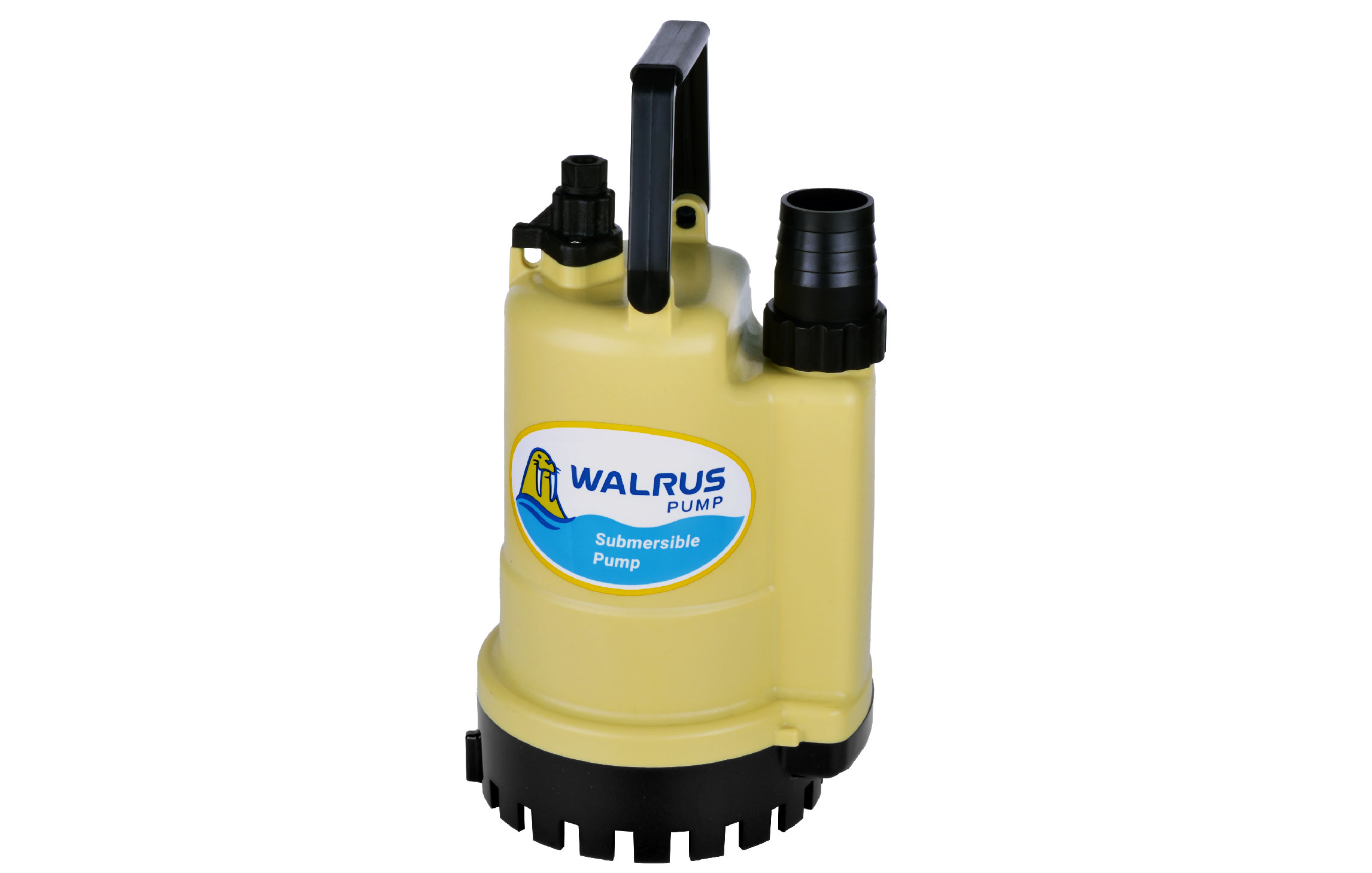

Model | PW250E

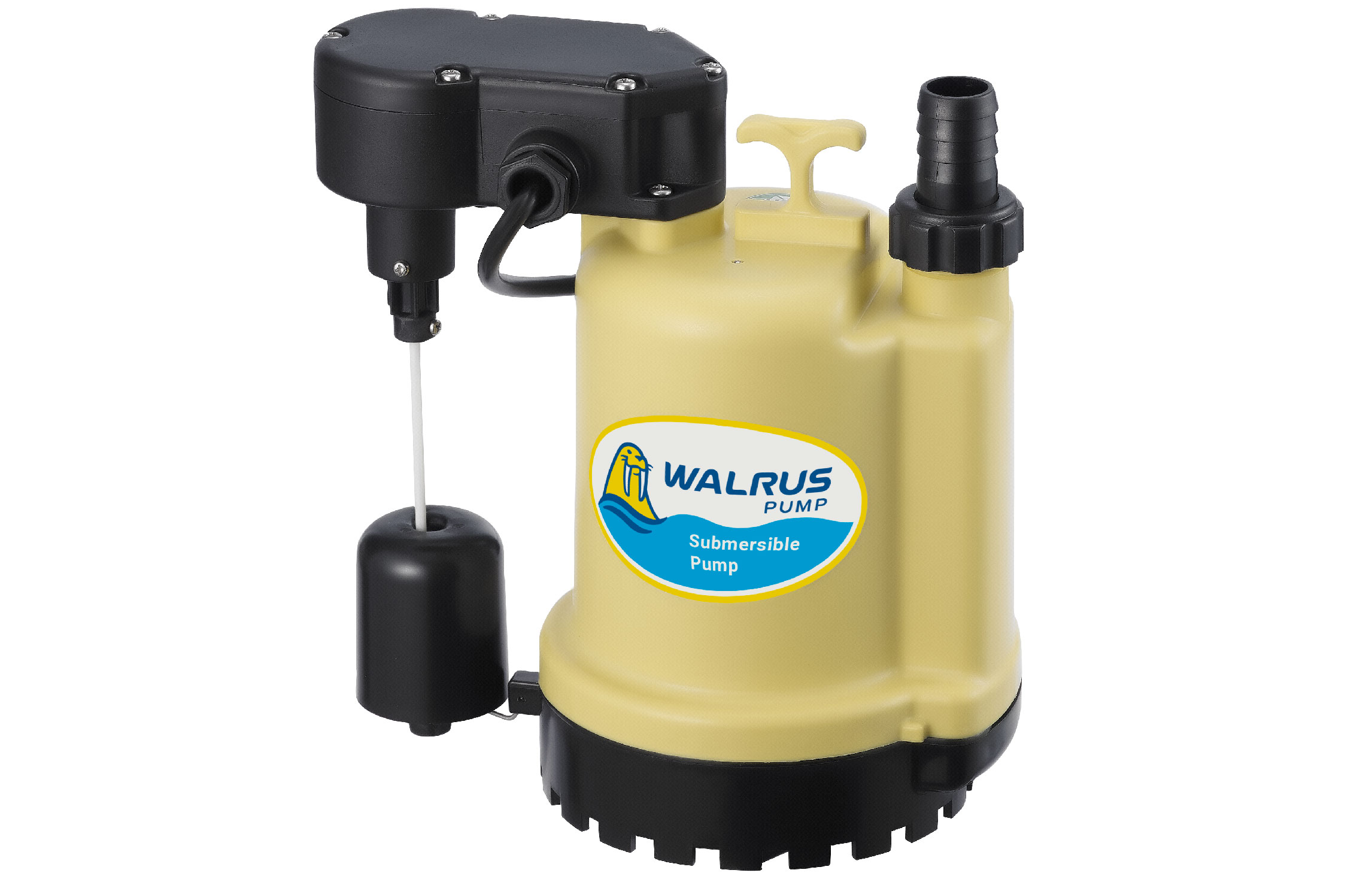

Model | PW100AC

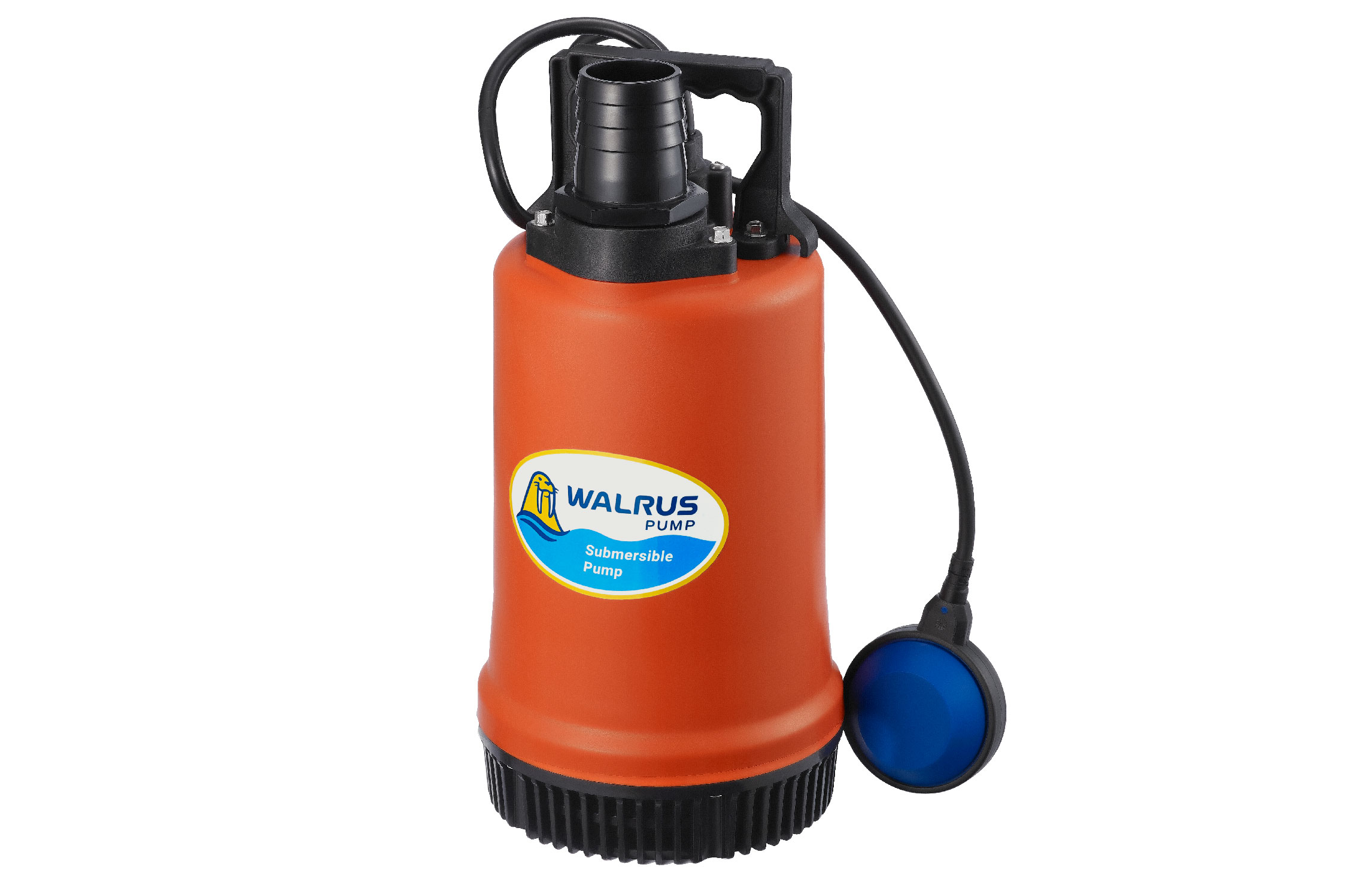

Model | PW400AF

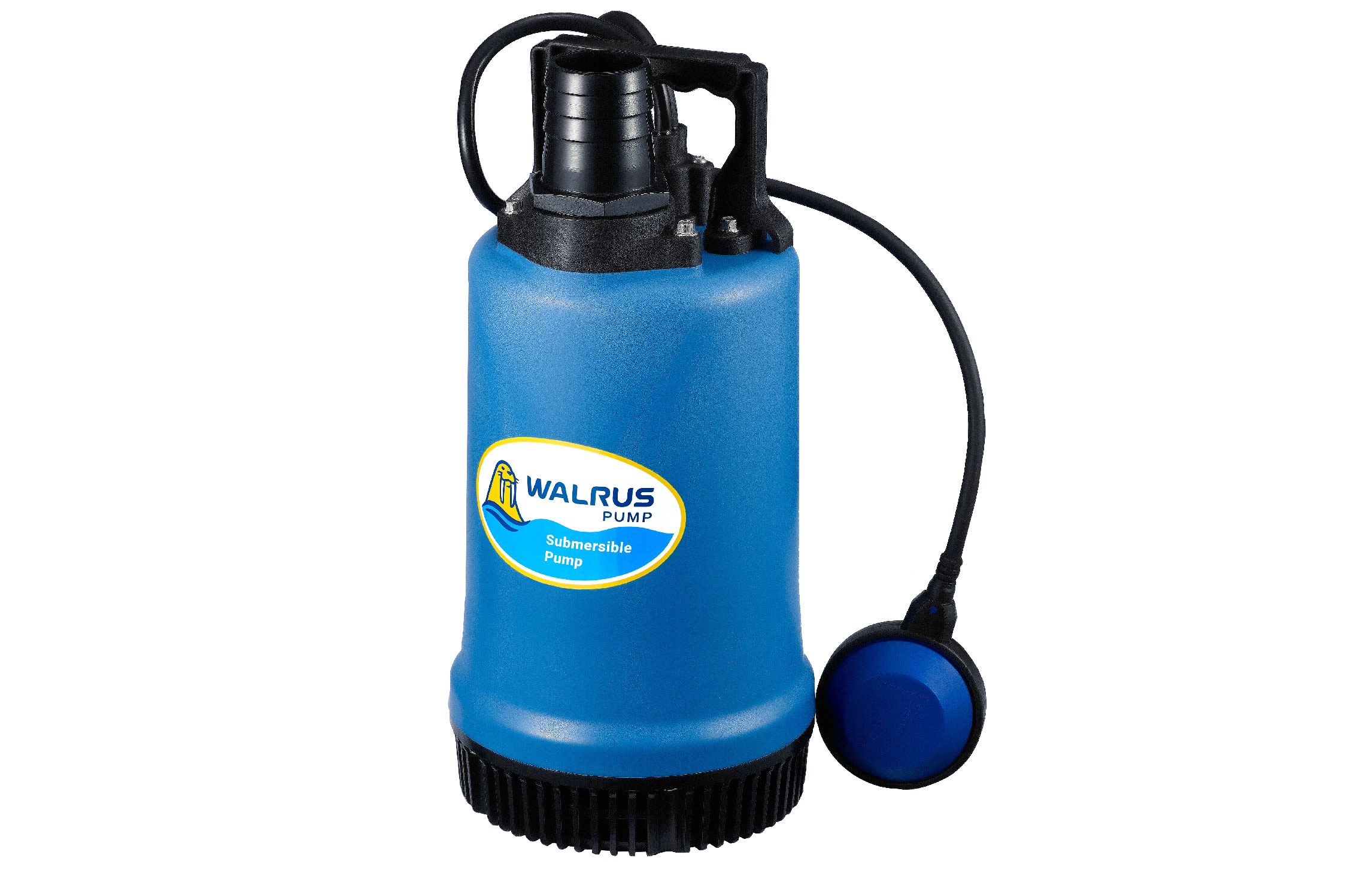

Model | PW400ARF

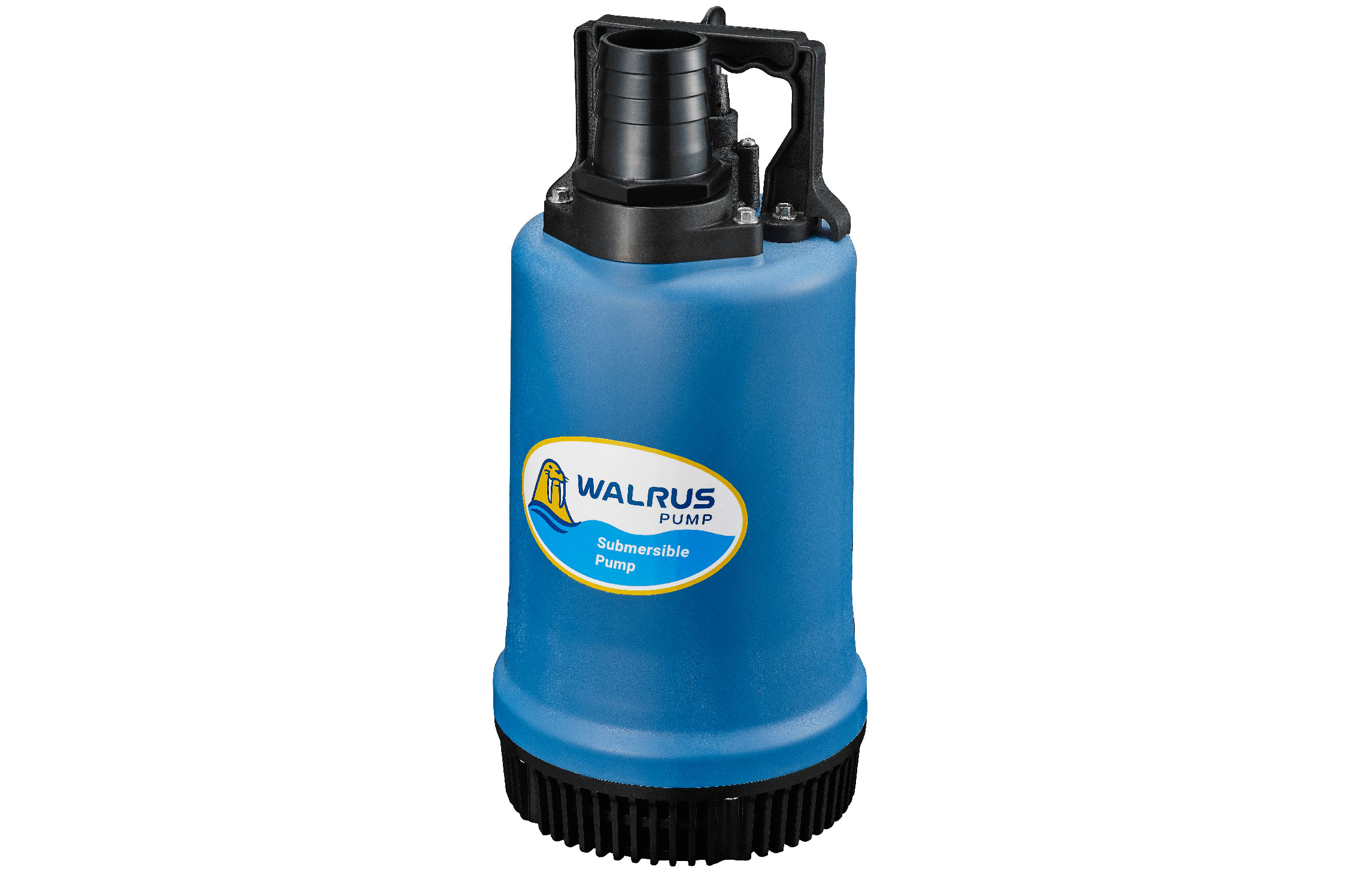

Model | PW400AR

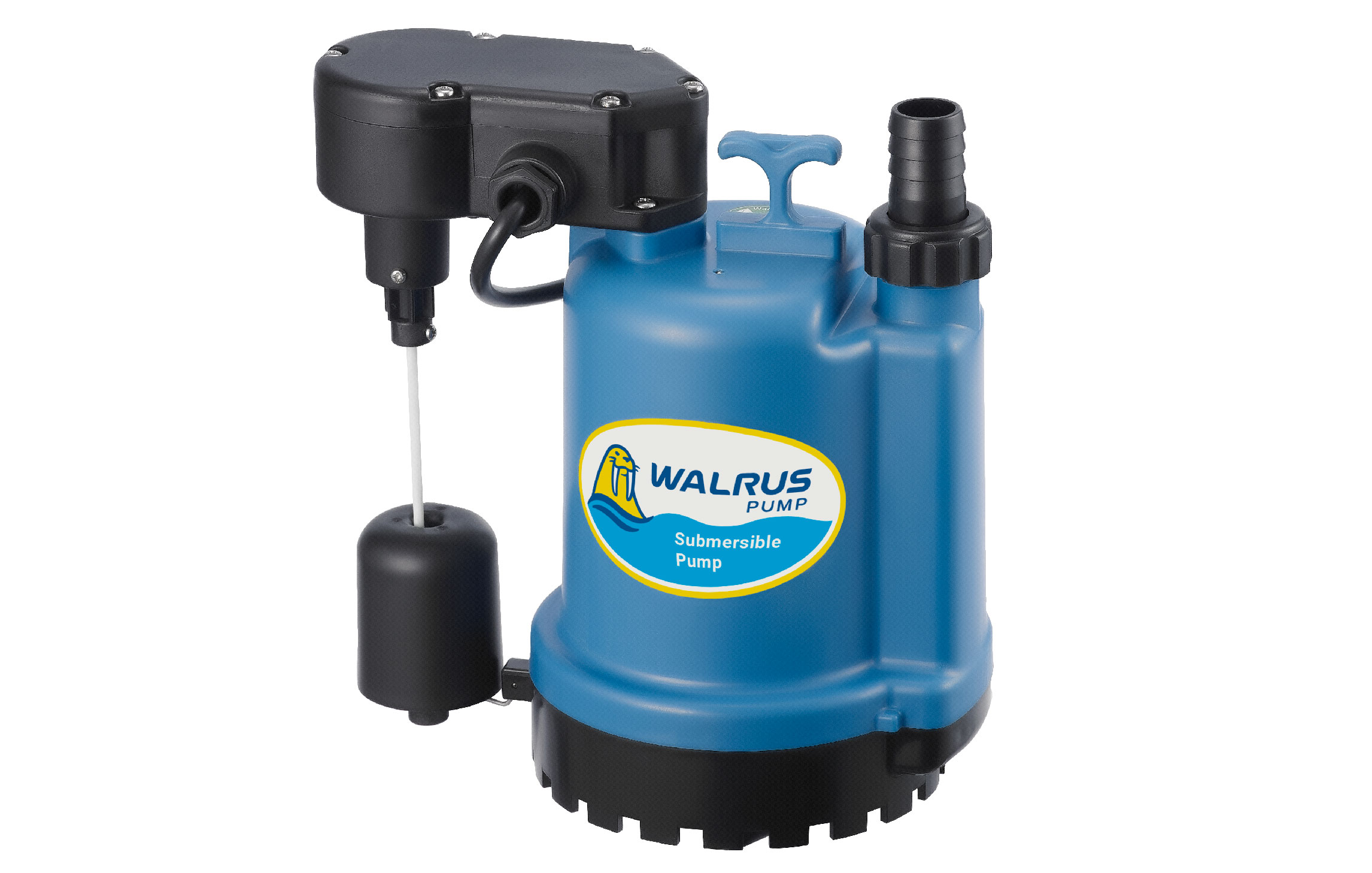

Model | PW100ARC

Submersible Pump

Submersible Pump
PW Series

  • Designed for submerged operations, offering flexible options tailored to requirements.
  • Thermal overload protection to prevent burnout.
  • Energy-efficient and high-performance.

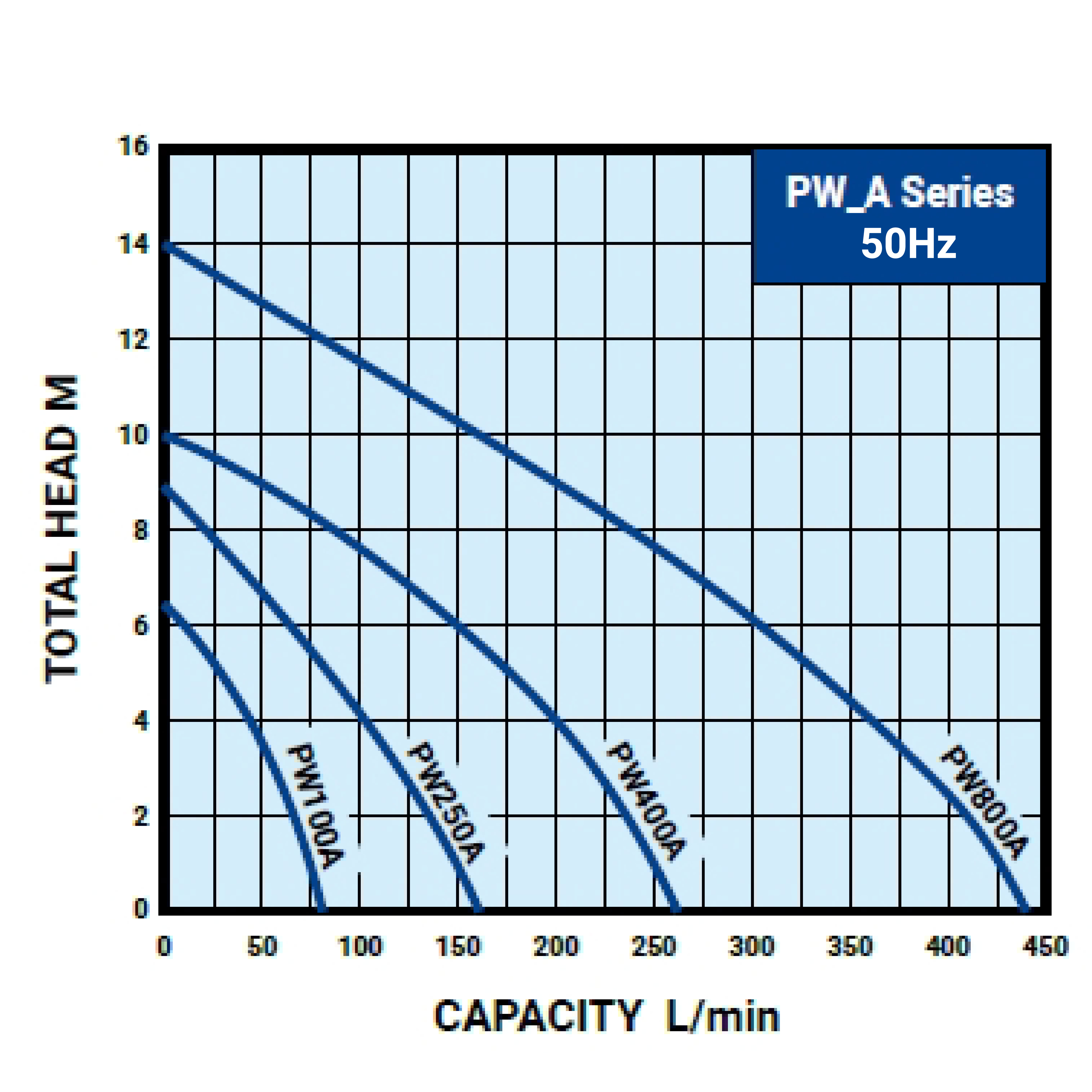

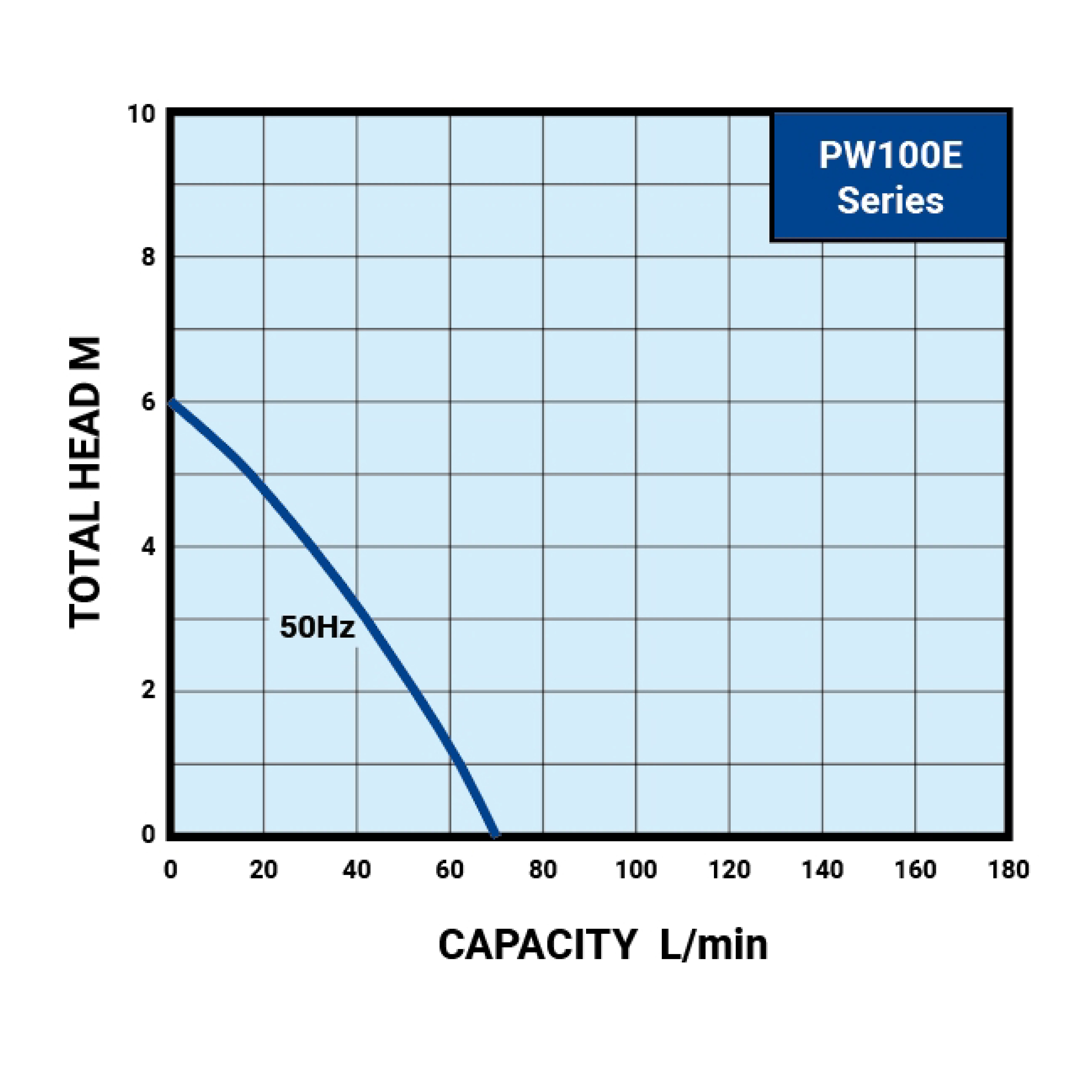

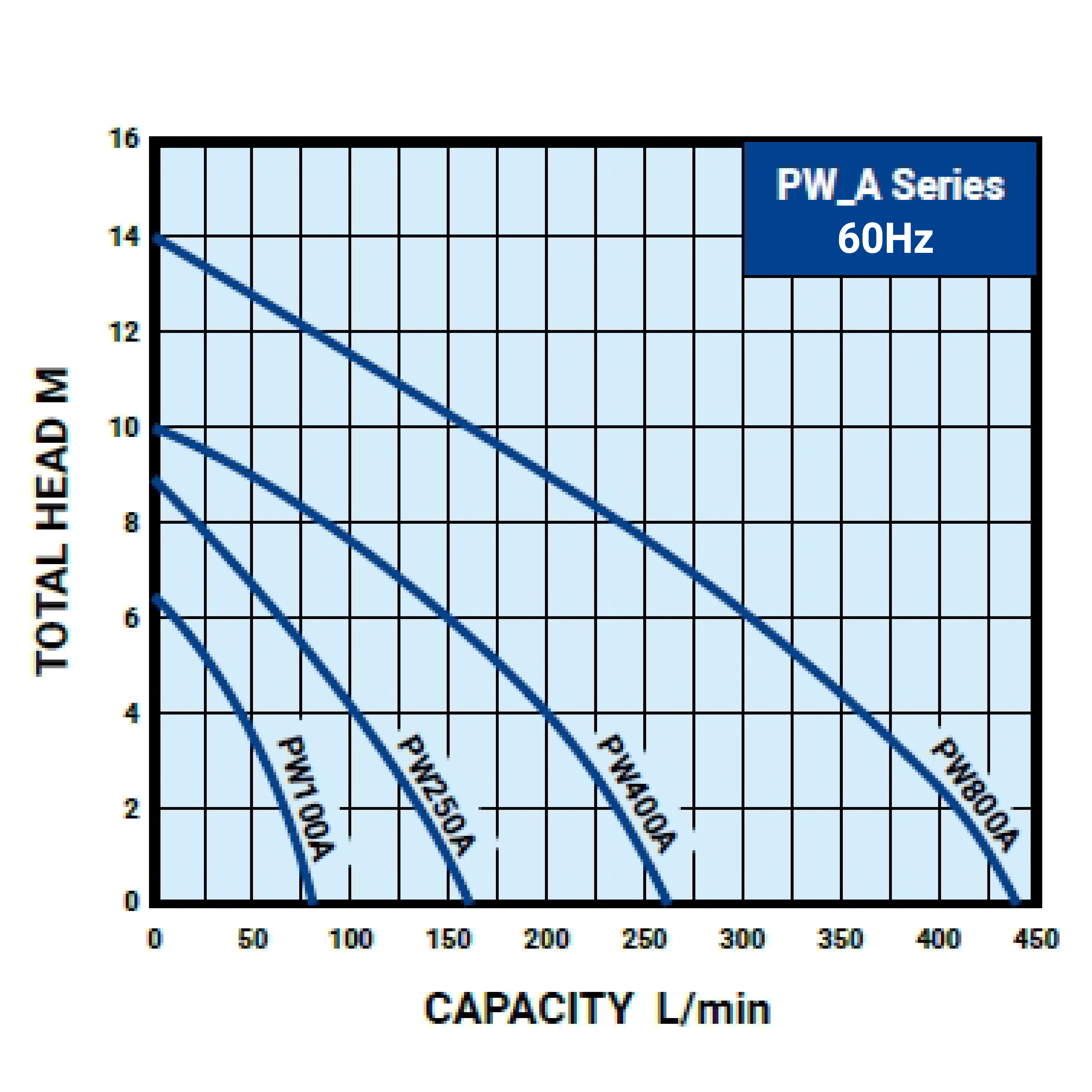

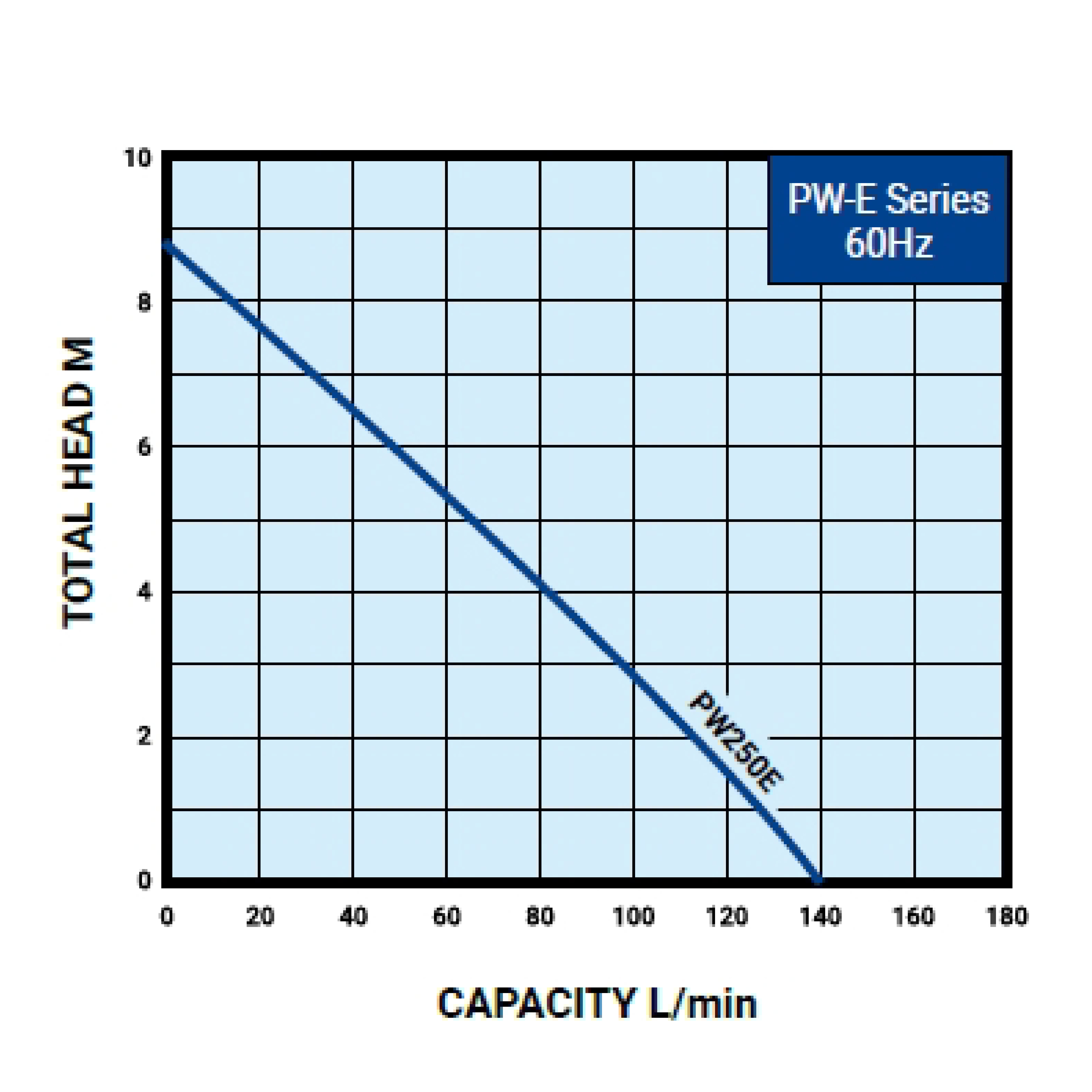

Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.1 - 0.8
Up to 14
Up to 440
60
0.1 - 0.8
Up to 14
Up to 440

Features

Wide Applications
Ideal for submerged operations in ponds, fish tanks, and water reservoirs, as well as for removing accumulated water in various application areas.
Excellent Performance
Equipped with a high-efficiency motor, offering energy savings and superior performance.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Lightweight Design
Using high-performance composite materials, durable and lightweight.
User-Friendly
Includes plug-in power cord for easy use.
Diverse Selections
Other options for Sea Water, Float Ball Level Switch, Level Regulator and Low Suction.
Air Release Design

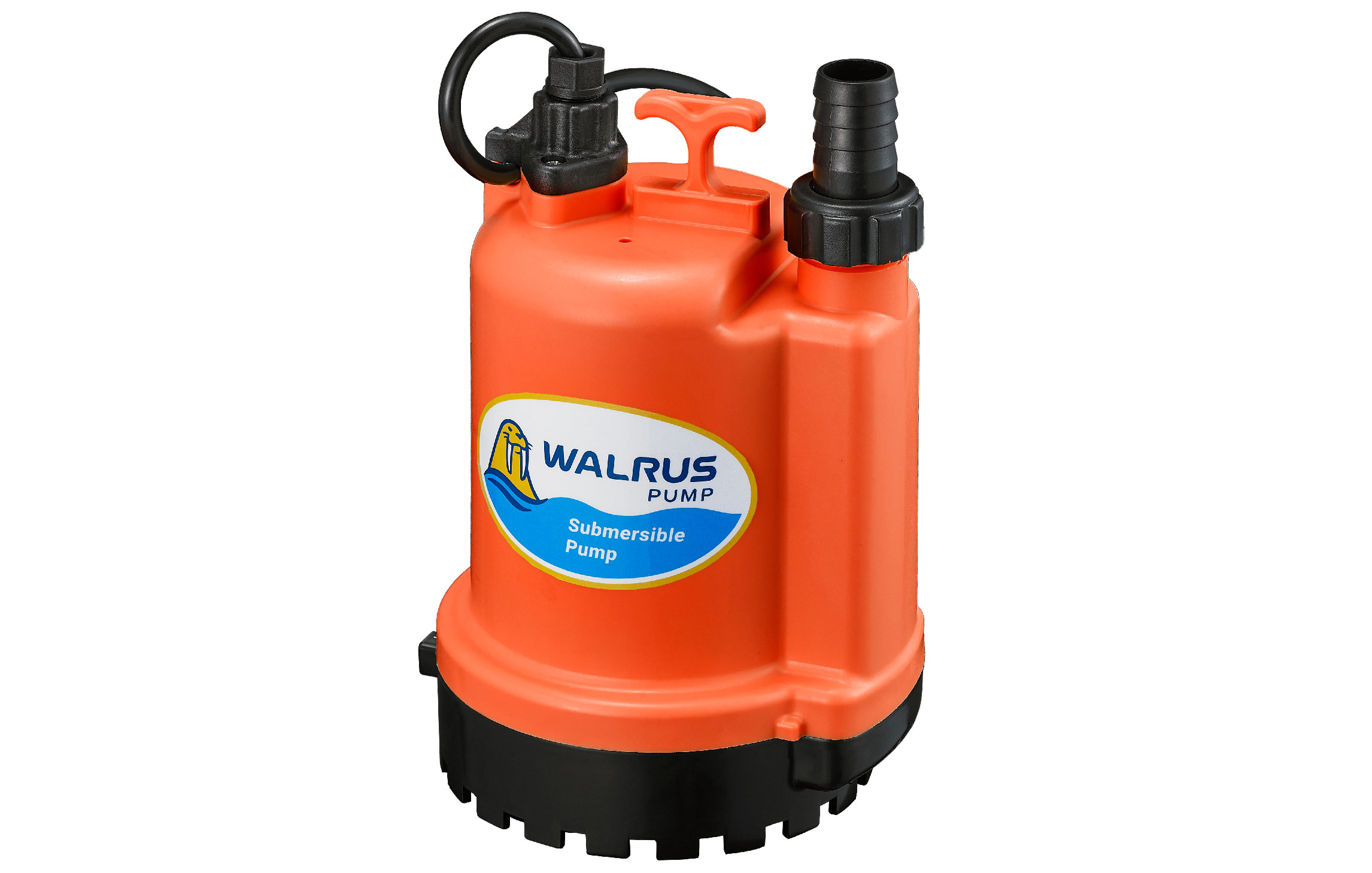

The PW100E features an air release port design that eliminates airlocks within the pump. (A small amount of water may be discharged during operation)

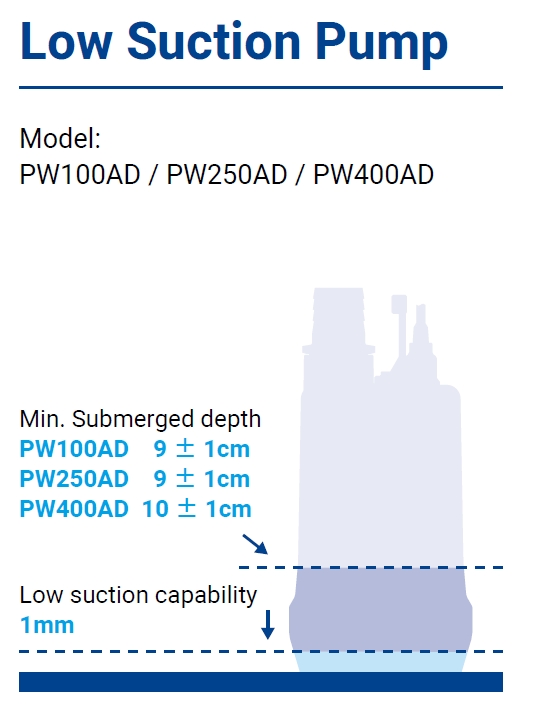

Ultra-Low Suction

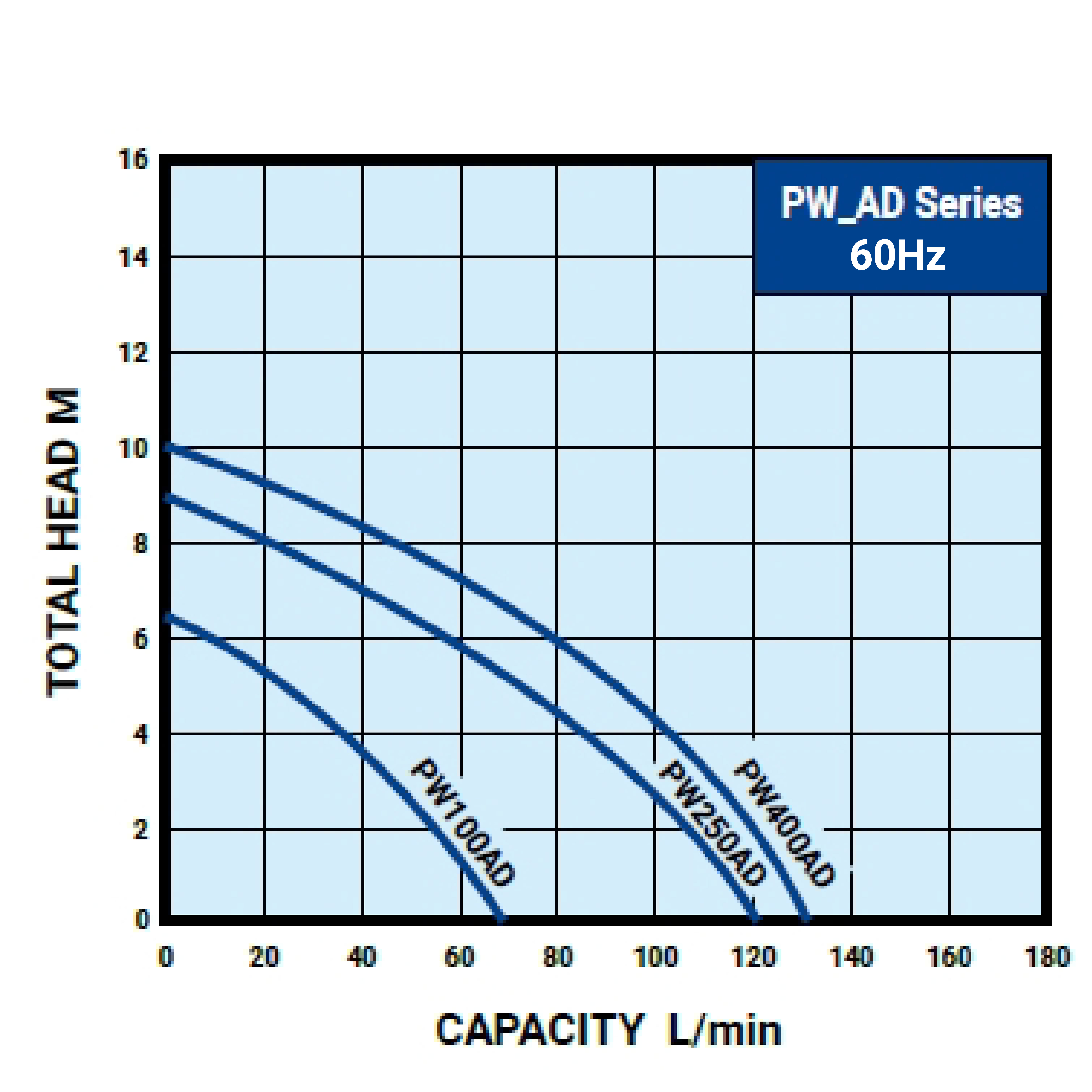

The PW_AD series efficiently drains down to an ultra-low water level of just 1mm.
For Industrial Applications
The PW400AB, fitted with an industrial-grade shaft seal, enhances wear resistance and is suitable for industrial applications.

Operating Conditions

Liquid Temp.
4°C ~ +35°C
Min. Submerged Depth
PW100 : 7±1 cm
PW250 : 9±1 cm
PW400 : 10±1 cm
PW800 : 12±1 cm

Motor

Protection
IP68
Insulation Class
B

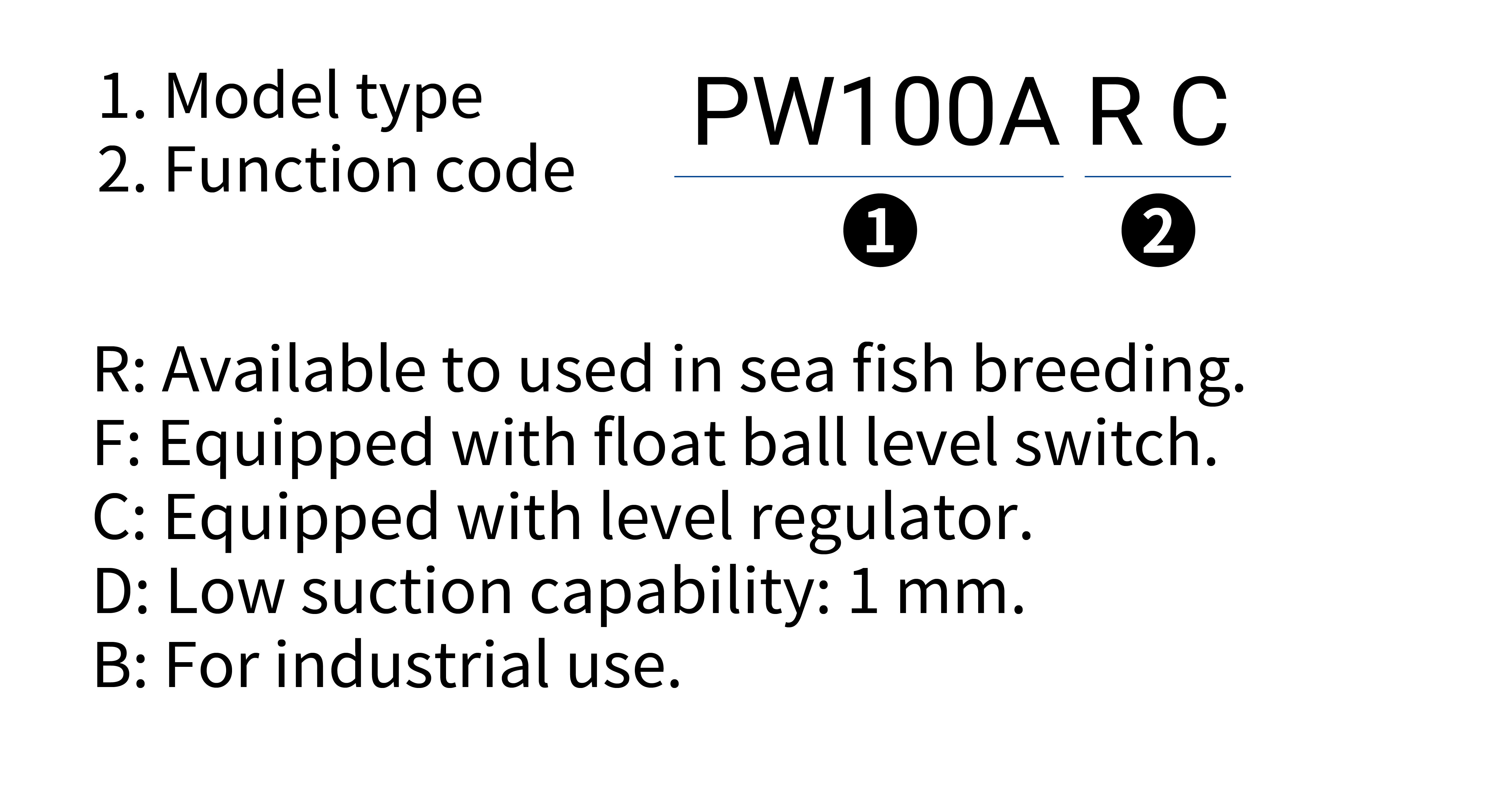

Model code

Select Frequency

Standard Type
For Salt Water

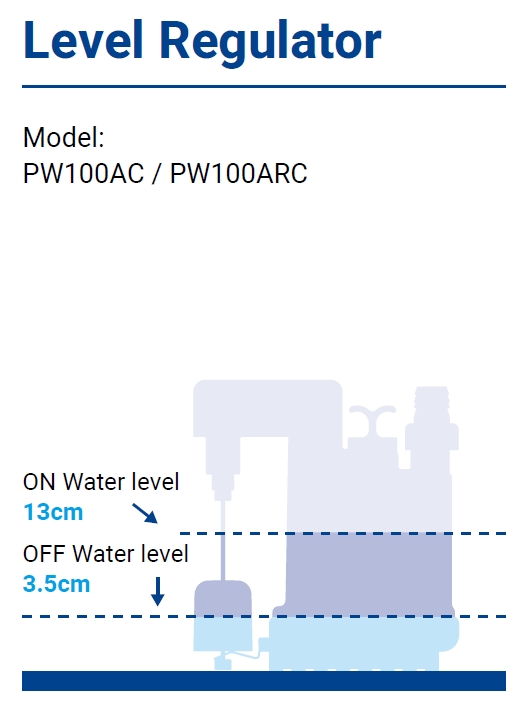

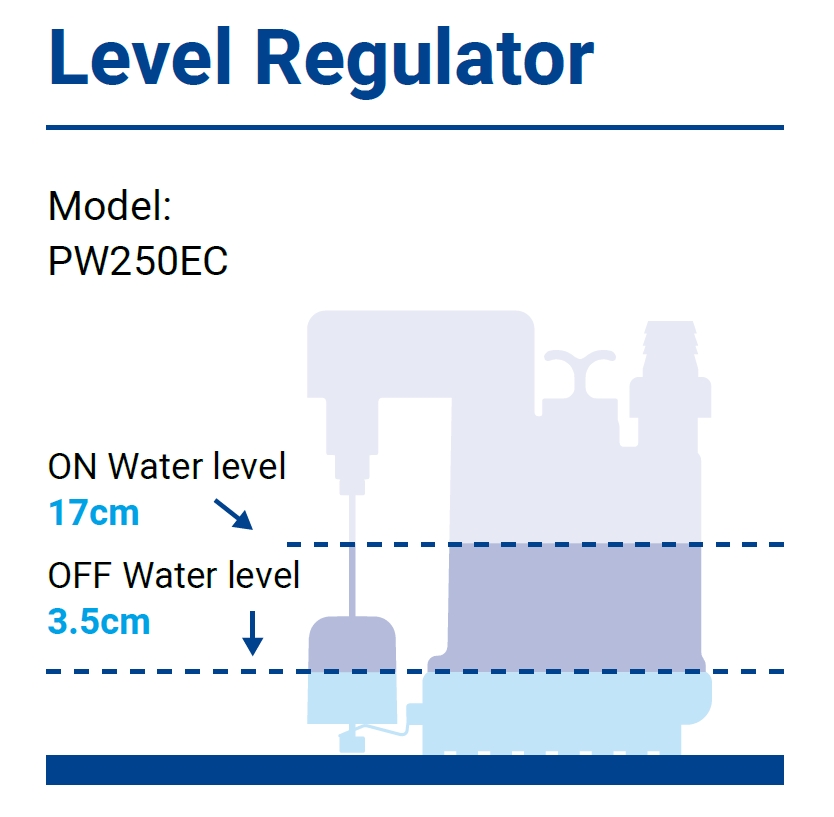

Level Regulator

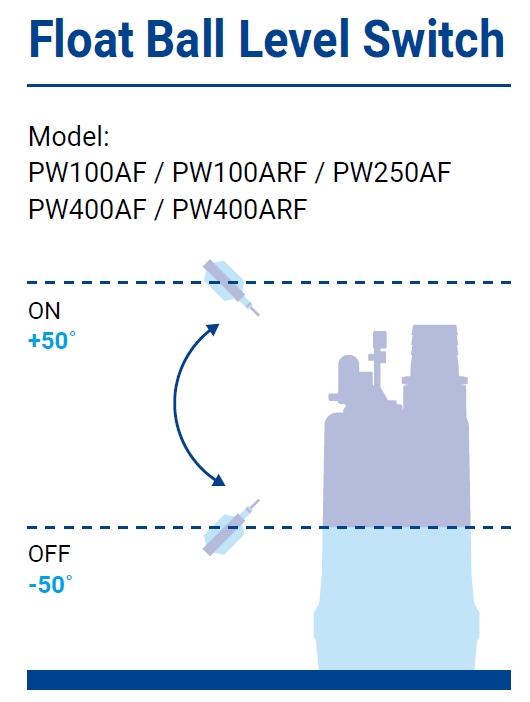

Float Ball Level Switch
Low Suction

PW Series Applications

A key component in maintaining water clarity, enhancing landscaping, and preserving ecological balance. Driving water flow to achieve circulation, filtration, and oxygenation, creating a fresh and natural aquatic environment.
Quickly removes water accumulation in basements, parking areas, construction sites, and low-lying zones. Especially effective during rainy seasons, typhoons, and downpours.
A key component in maintaining water clarity, enhancing landscaping, and preserving ecological balance. Driving water flow to achieve circulation, filtration, and oxygenation, creating a fresh and natural aquatic environment.
Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
Designed for saline environments, suitable for coastal facilities, fish farms, and seawater treatment systems.
Installed in low points or water collection areas, it can rapidly remove accumulated water, helping to prevent system overflow or equipment submersion, and transferring the water to downstream treatment units to maintain overall process stability.

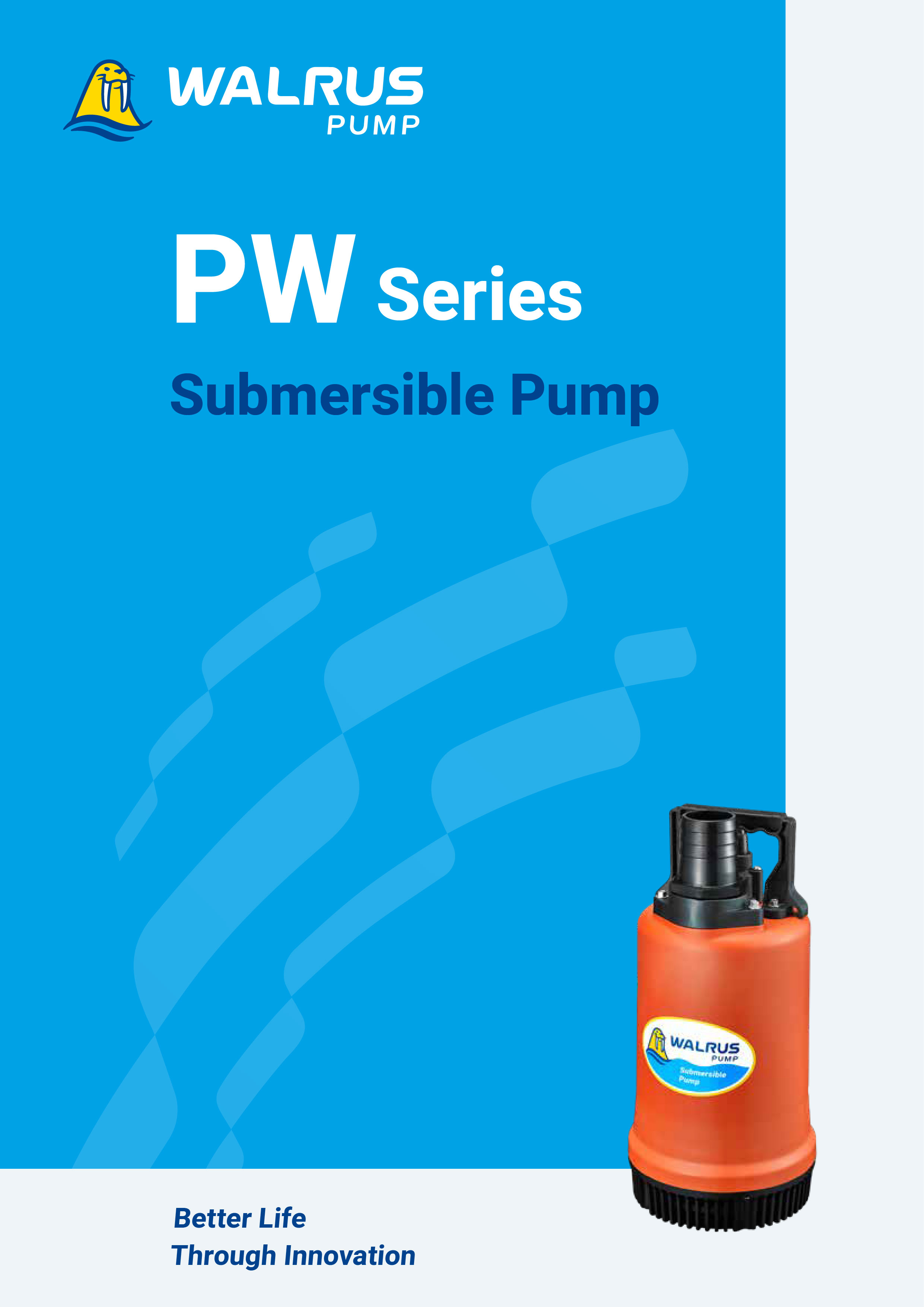

PW Product Catalogue
Update2025-08-18
Size658.34 KB

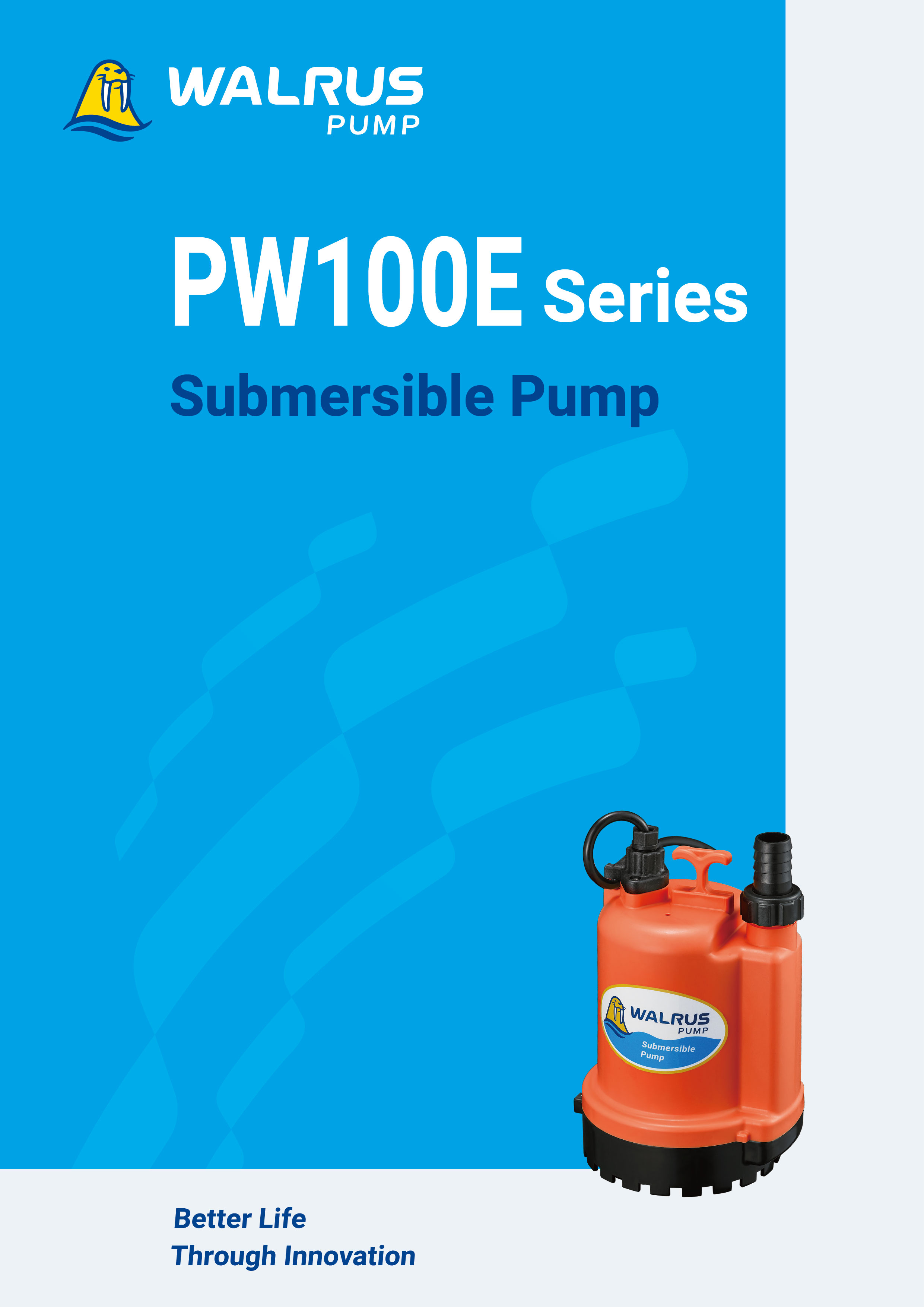

PW_E Product Catalogue
Update2025-08-18
Size749.29 KB

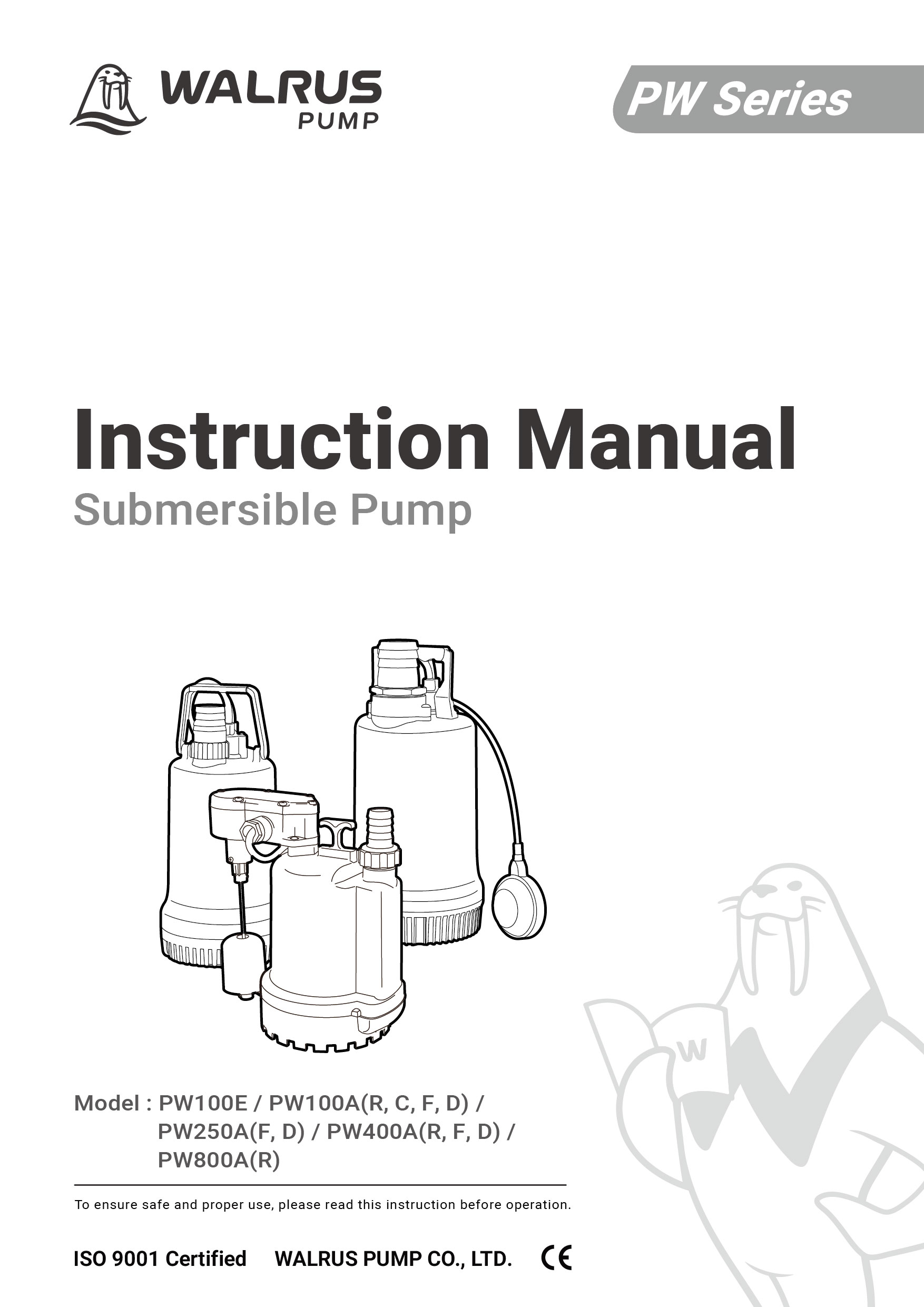

PW Instruction Manual
Update2025-08-18
Size951.76 KB
