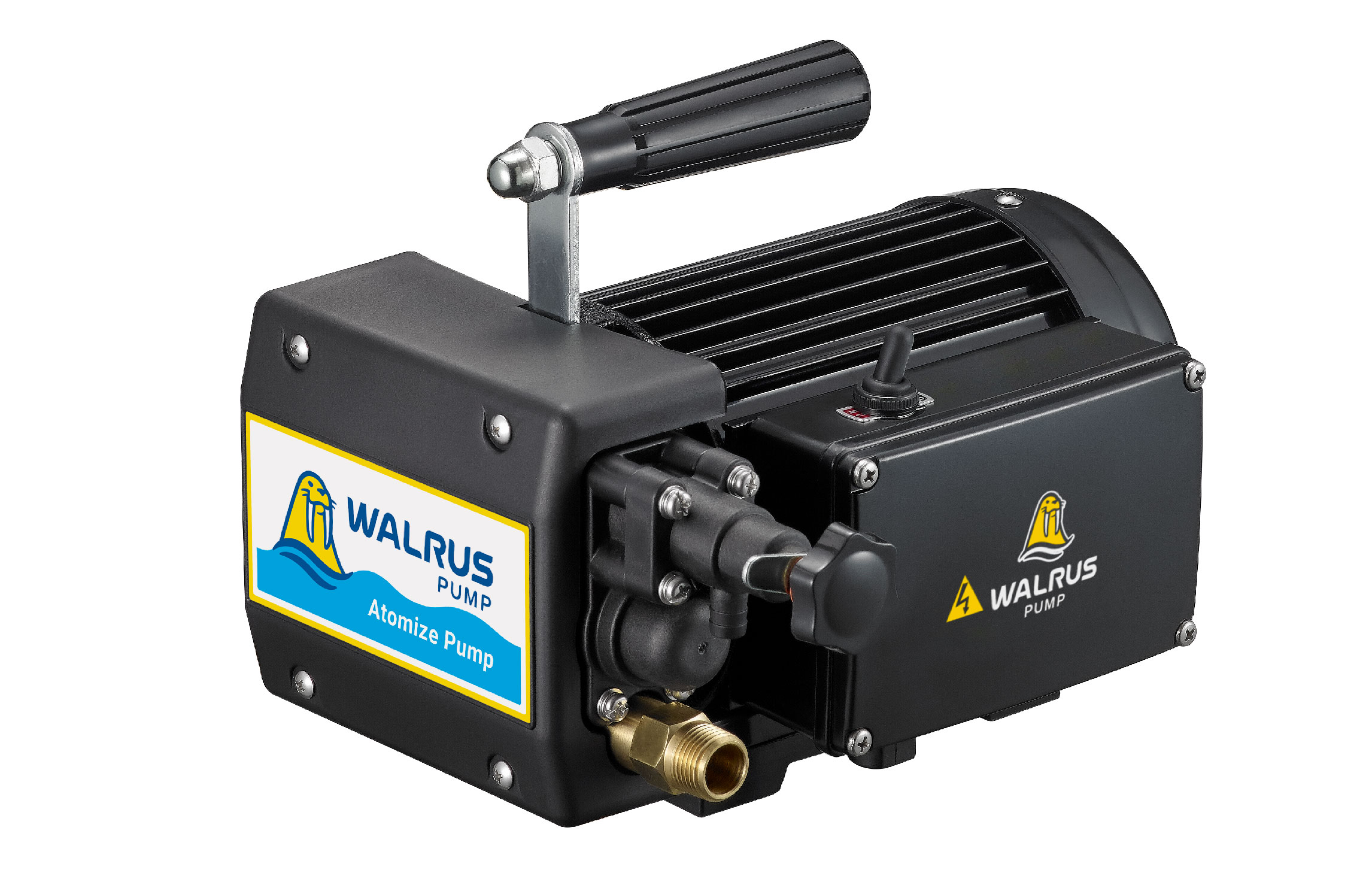

Model | TH250P

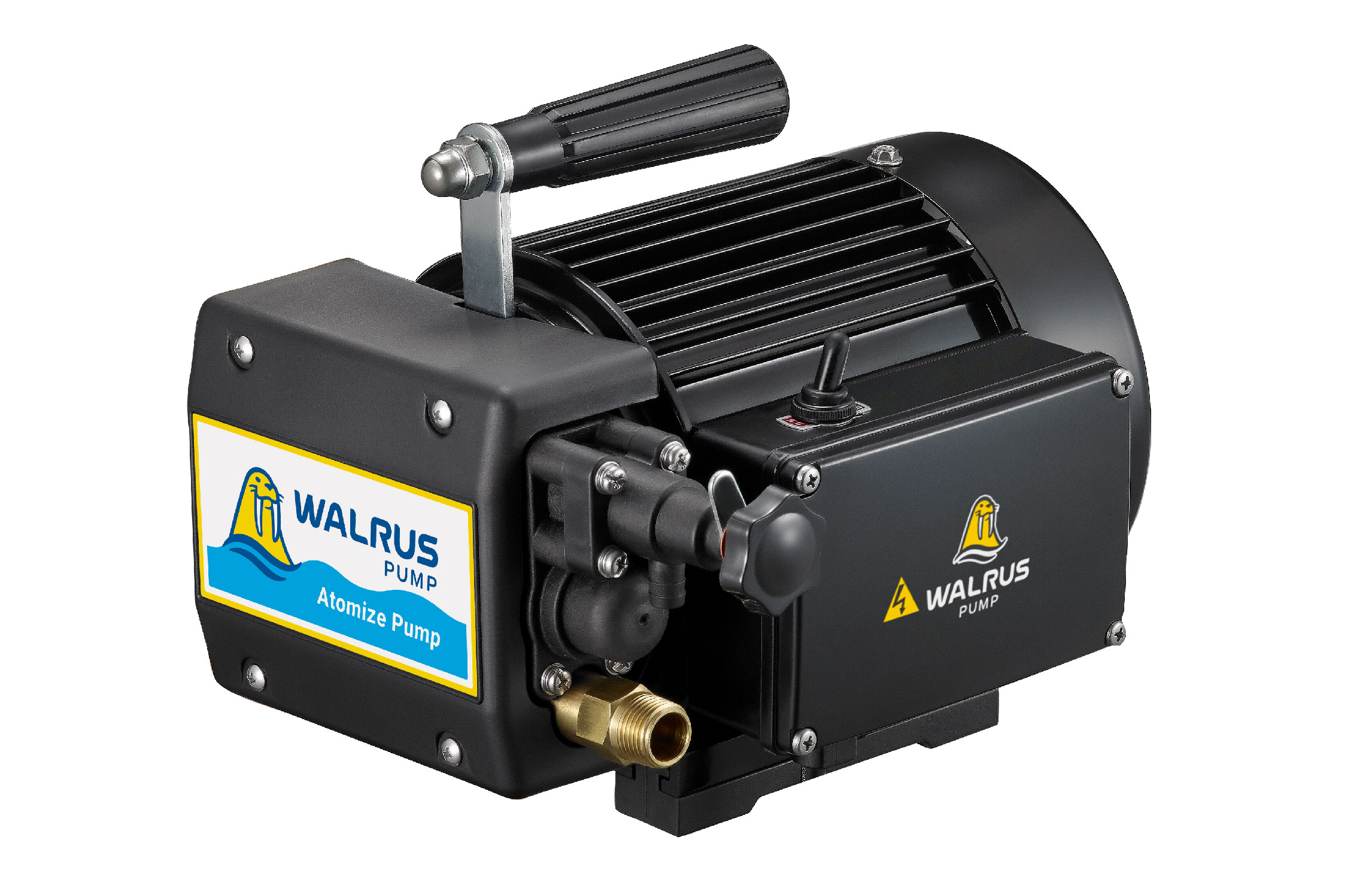

Model | TH400P

Atomize Pump

Atomize Pump
TH Series

  • A compact design with high pressure output.
  • Equipped with a carrying handle and a plug-in power cord.
  • Easy operation and maintenance.
Frequency (Hz)
Power (kW)
Pressure (kg/cm²)
50
0.25 - 0.37
Up to 30
60
0.25 - 0.37
Up to 30

Features

Wide Applications
Provides strong water pressure, ideal for applications such as high-pressure spraying, vehicle washing, household cleaning, leak detection, and pesticide spraying.
Self Priming Suction Function
A compact design with high pressure output.
User-Friendly
Comes with a plug-in power cord and a compact, portable design for easy use and carrying.
Standard Accessories
Suction hose pipe with inlet filter, High pressure hose (30 ft.), overflow hose and spray gun.
Optional Accessories
Hydraulic testing kit (pressure gauge, valve and high pressure hose pipe).

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Maximum output pressure.
TH250P - 20 kg/cm²
TH400P - 30 kg/cm²

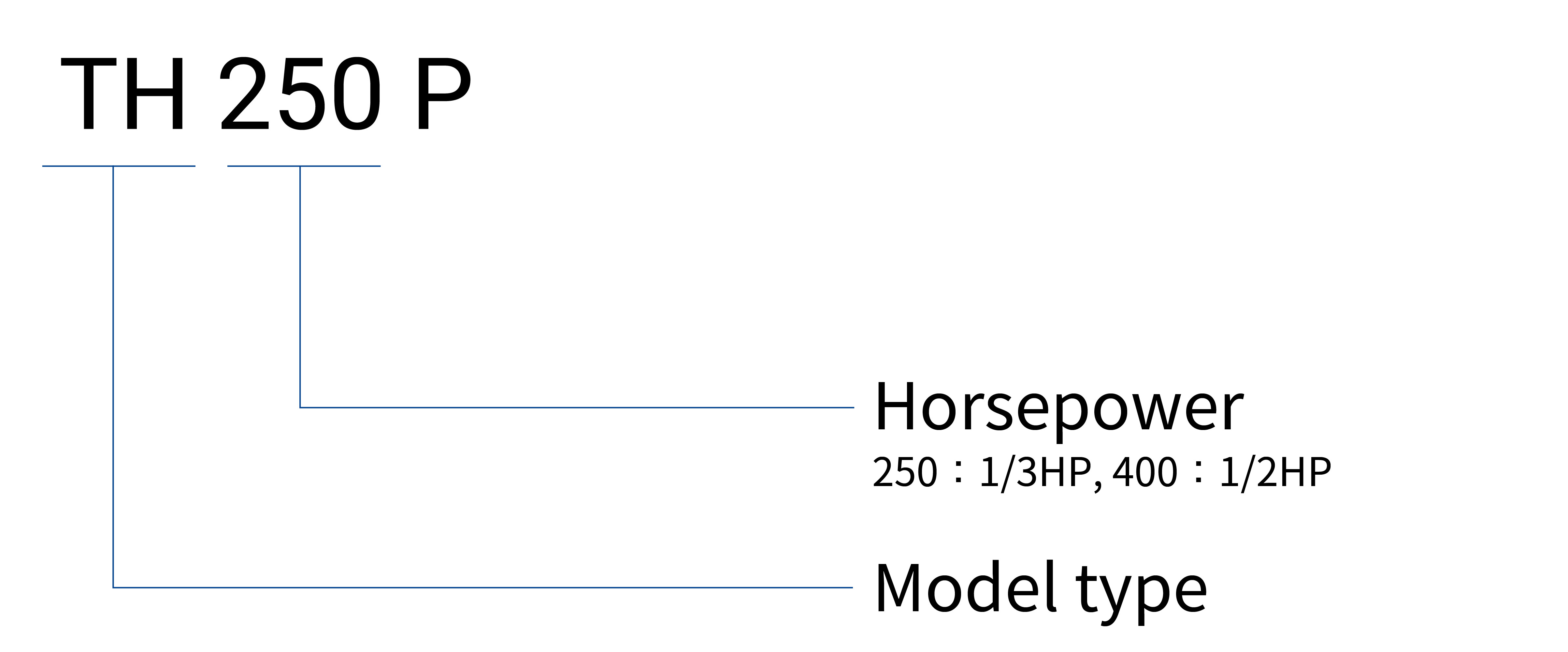

Model code

COMPONENTS



Standard Accessories

  • Suction hose pipe with inlet filter
  • High pressure hose (30 ft.)
  • Overflow hose
  • Spray gun



Optional Accessories

Hydraulic testing kit
(pressure gauge, valve and high pressure hose pipe).

Select Frequency

Electrical standards
Inquiry
Model
Frequency
Phase
(Ø)
Power
(kW)
Poles
Voltage
(V)
Current
(A)
TH250P
50
1
0.25
4
200 - 240
2.0
TH250P
60
1
0.25
4
110 / 220
6.0 / 3.0
TH400P
50
1
0.37
4
200 - 240
4.4
TH400P
60
1
0.37
4
110 / 220
10.0 / 5.0
Pump specifications
Model
Frequency
Pressure
Water Output
TH250P
50
20
7.5
TH250P
60
20
8.5
TH400P
50
30
7.5
TH400P
60
30
8.5
Dimension
Model
Frequency
Length
(mm)
Width
(mm)
Height
(mm)
Net Weight
(kg)
Gross Weight
(kg)
Pallet Loading Qty.
TH250P
50
403
287
270
11.8
12.2
24
TH250P
60
403
287
270
11.8
12.2
24
TH400P
50
403
287
270
14.2
15.1
24
TH400P
60
403
287
270
14.2
15.1
24

TH Series Applications

Ideal for the even spraying of pesticides, fertilizers, and water, ensuring consistent coverage while greatly reducing labor and operation time.
Delivers powerful water pressure for efficient water supply, supporting cleaning, cooling, disinfection, and spraying. Optimized pump solutions meet diverse industry water needs.
