Immersible Centrifugal Pump

Single-Stage Immersible Pump
TPAK Series

Meets the demands for high flow and low head, ensuring efficient chip flushing.
The semi-open impeller design ensures large water volumes and reduces clogging concerns.
In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.

Manufacturing Industry

Frequency (Hz)

Power (kW)

Head (M)

Flow (L/min)

0.18 - 1.3

Up to 12

Up to 360

0.18 - 1.3

Up to 17

Up to 400

Features

Without Mechanical Seal Design

The pump without a mechanical seal design makes maintenance easy.

Energy Efficient

Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.

Meeting High Flow Demand

The semi-open impeller design ensures large water volumes and reduces clogging concerns, while supporting efficient chip flushing and making it ideal for high flow, low head applications.

Coolant Circulation

The TPAK Series coolant pump is design for the circulation and spraying of cooling lubricants, especially for machine tools.

Various Applications

Suitable for turning, milling, drilling, cutting, slitting, grinding, and other machining operations.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+0°C ~ +90°C

Operating Pressure

Max. 10 kg/cm²

Motor

Frequency Range

50 / 60 Hz

Nominal Speed

2900 / 3500 rpm

Enclosure Protection Class

IP54

Insulation Class

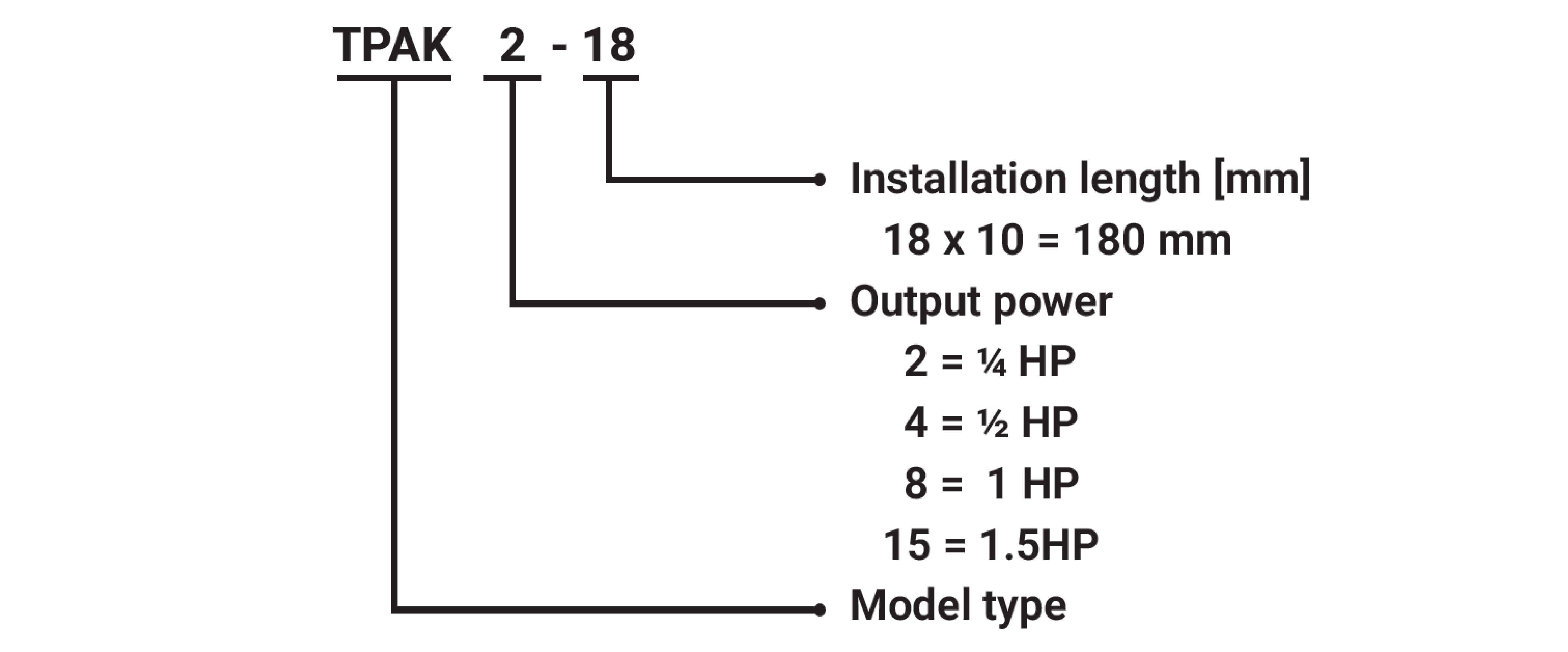

Model code

Select Frequency

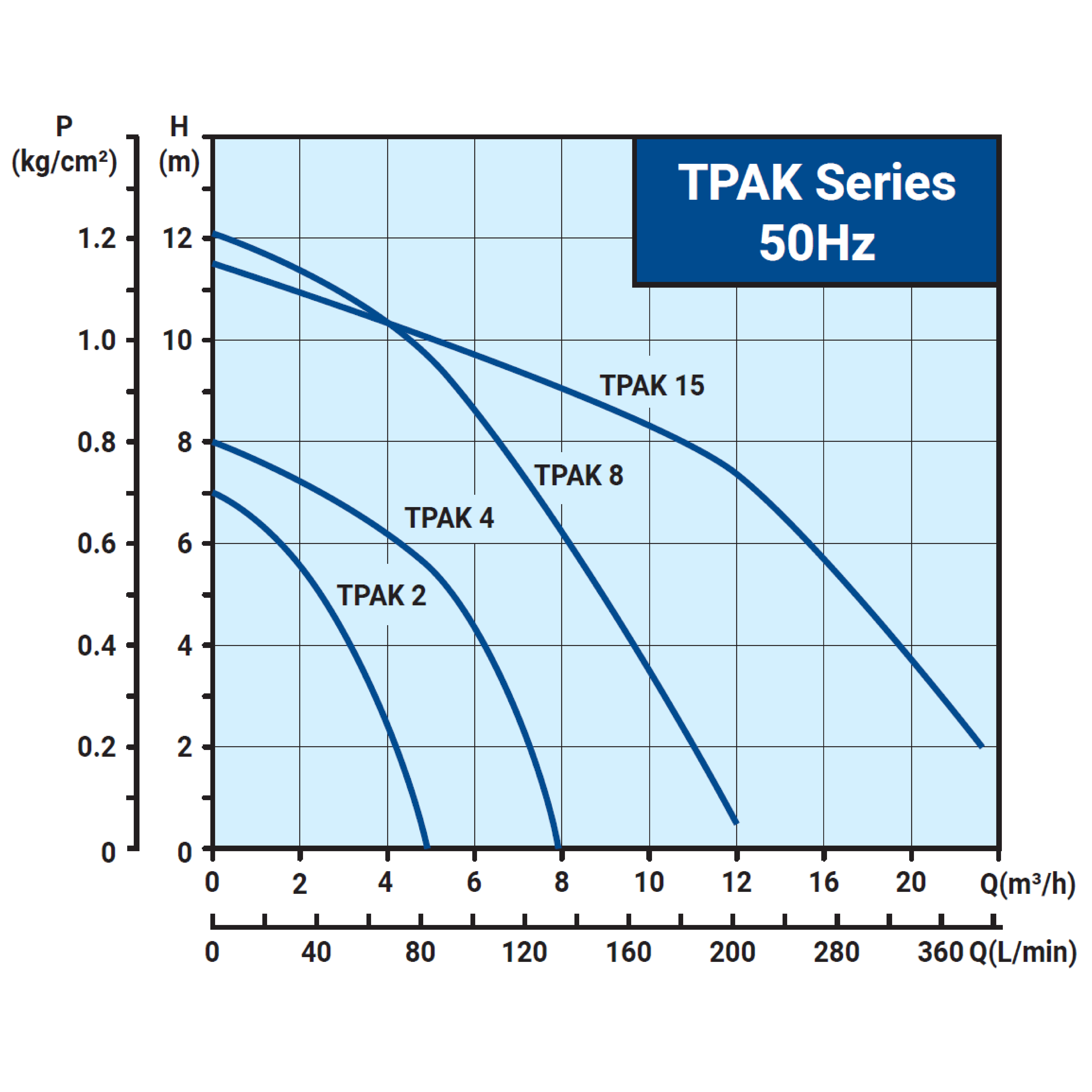

50 Hz

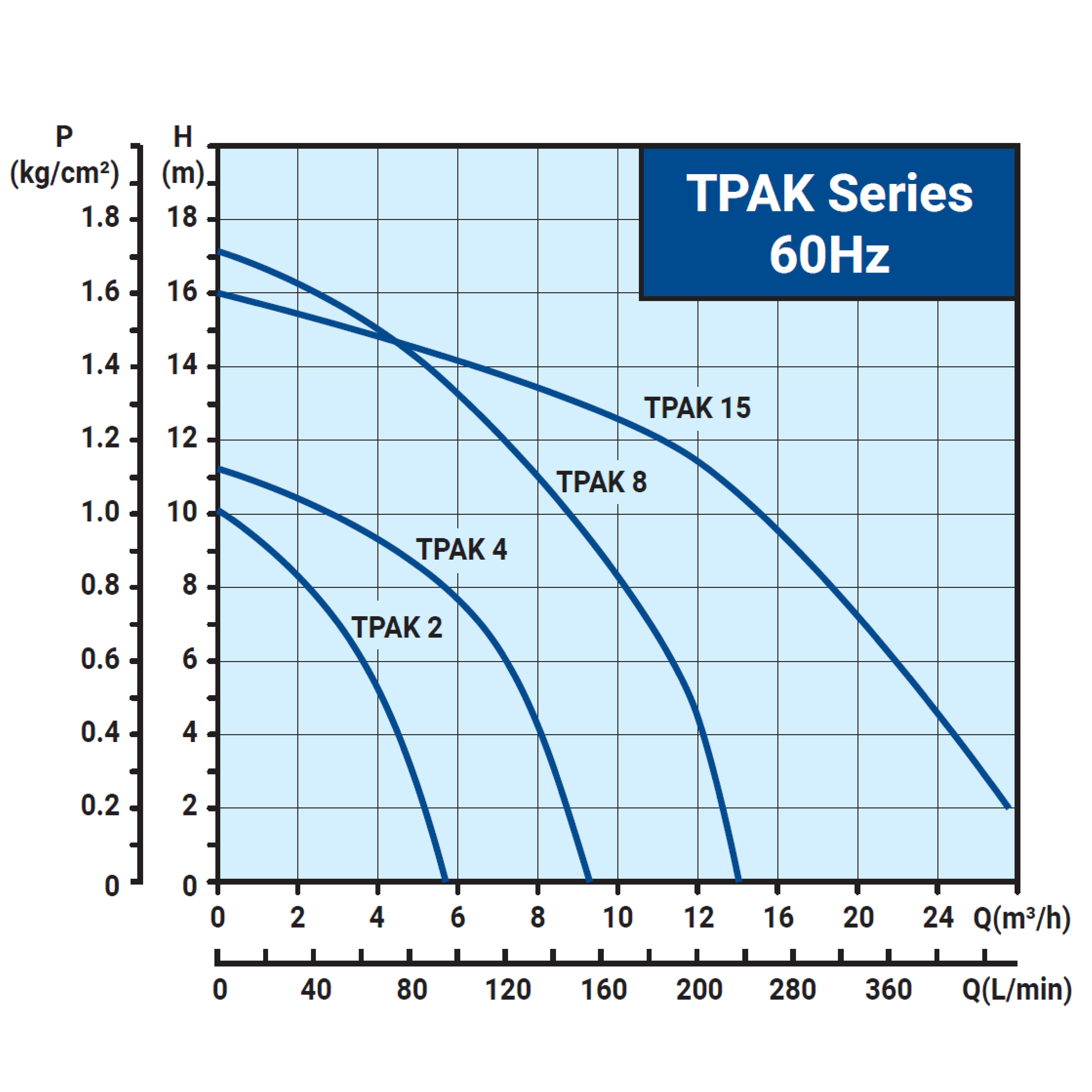

60 Hz

TPAK 2

TPAK 4

TPAK 8

TPAK 15

TPAK Series Applications

Manufacturing Industry

Industrial Filtration

Reliable and efficient transportation to storage tanks or subsequent processing stages ensures continuity and consistent quality. Integration with filtration and recycling systems enables cost-effective reuse, further enhancing operational efficiency.

Manufacturing Industry

Industrial Process Cooling

Circulating coolant solutions dissipate heat, ensuring stable operation of industrial equipment, maintaining precise output quality, and enhancing production efficiency.

Manufacturing Industry

Industrial Process Cleaning

Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants, ensuring high-quality results for subsequent processes.
