Constant Pressure Inverter Control System

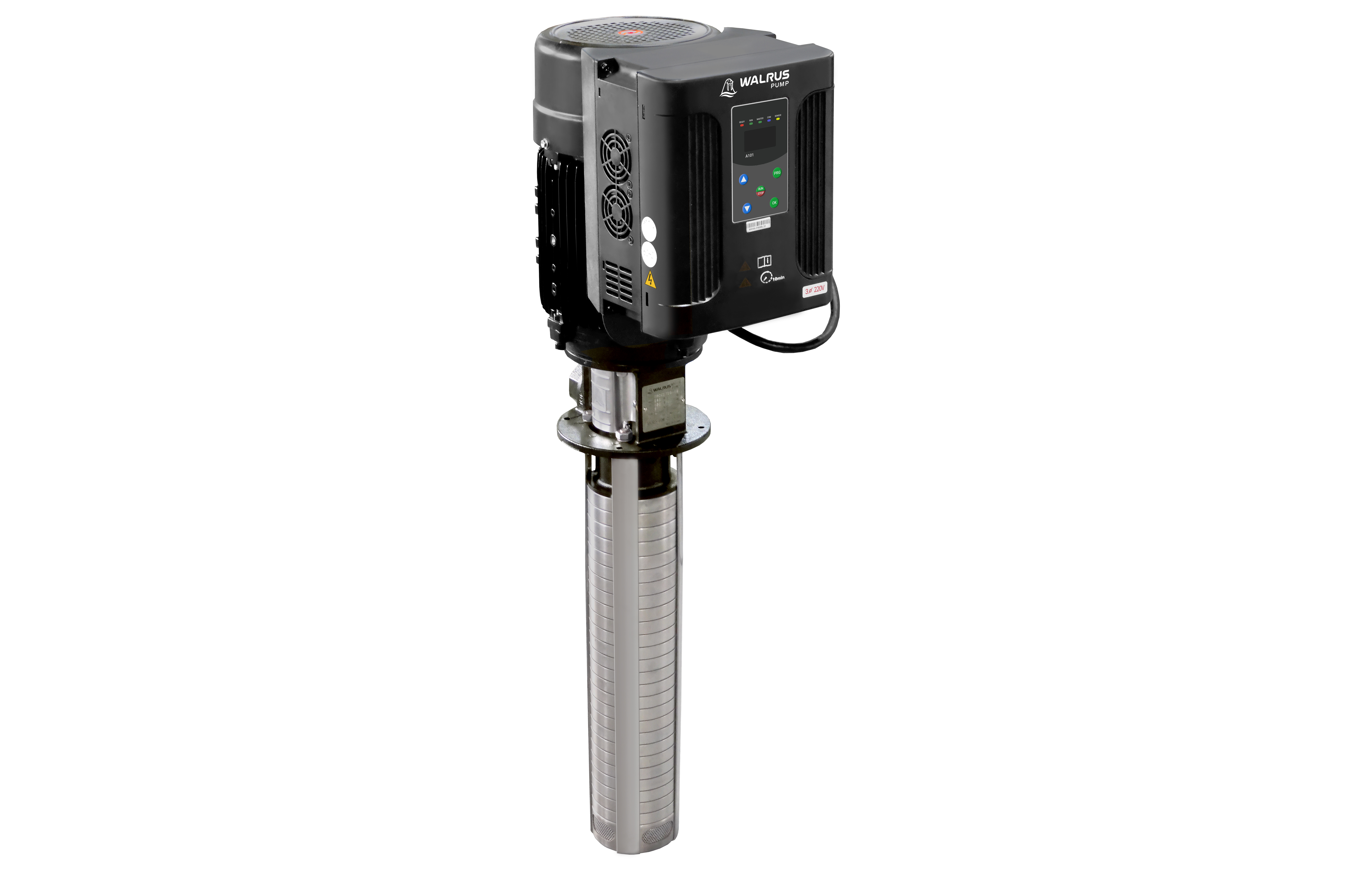

Inverter Control Immersible Pump
TPCK_EHIC Series

Integrated variable frequency drive with three-stage pressure control supports frequency settings for various applications.
Patented drain back tank design allows the leaked liquids to flow back to the tank without interrupting the process.
Centrifugal impeller design eliminates concerns related to the oil-water ratio of the cutting fluid, while also offering low operating noise, high efficiency, and low pulsation.
Coupling design for easy maintenance.

Manufacturing Industry

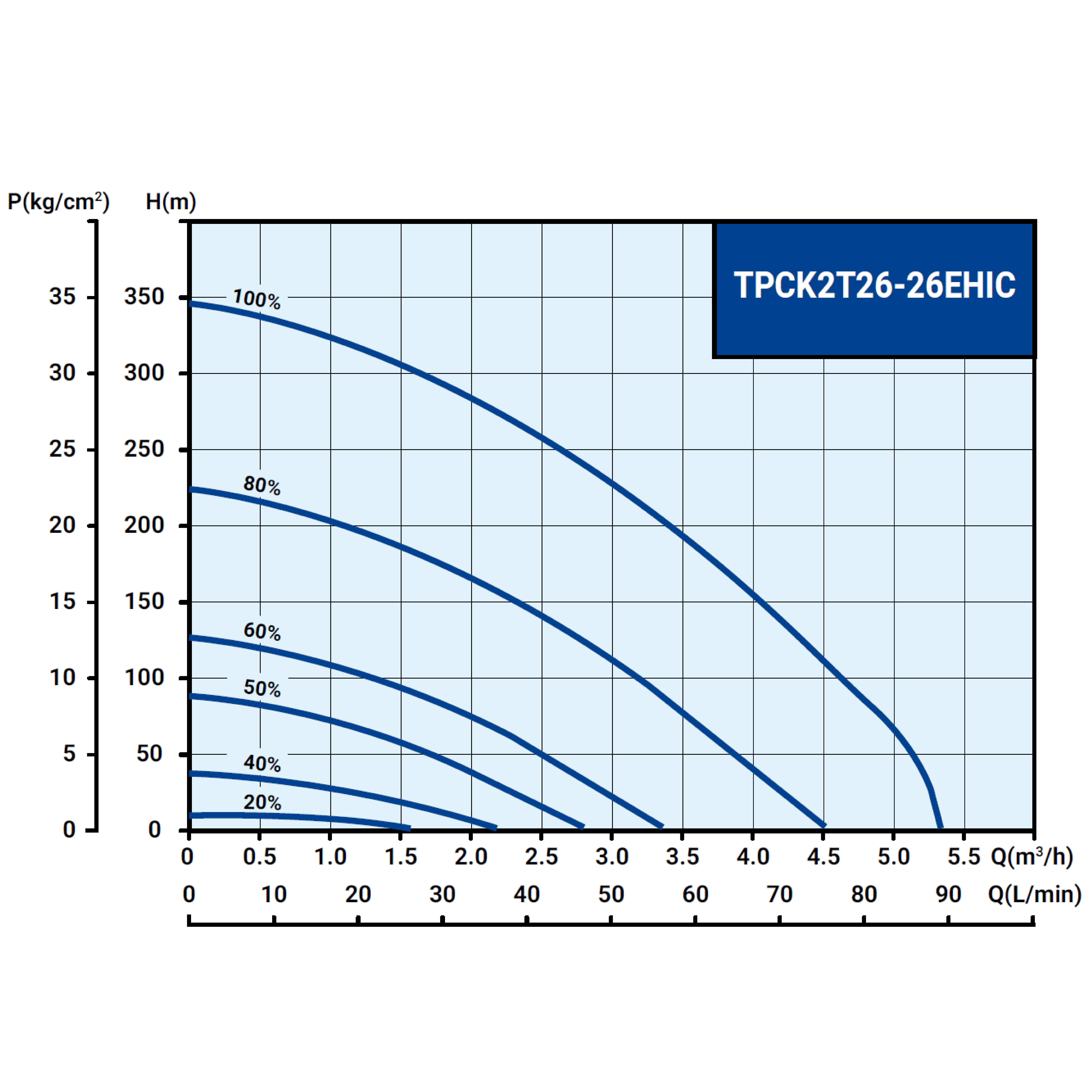

Power (kW)

Head (M)

Flow (L/min)

5.5

Up to 350

Up to 91

Features

High Efficiency & Energy Saving

Equipped with a variable frequency drive to enhance operational efficiency, it enables control based on requirements while reducing power consumption, promoting green manufacturing, and lowering carbon emissions.

Flexibly Adjusted for Your Needs

Three-stage pressure control supports frequency settings for various applications.

Stability and Reliability

Centrifugal impeller design eliminates concerns over coolant oil–water ratio, reduces noise, minimizes wear, and maintains performance stability.

No Pressure Relief Valve Needed

No pressure relief valve needed, reducing labor and installation costs.

Drain Back Tank structure

Patented drain back tank structure allows the leaked liquids to flow back to the tank without interrupting the process.

Coupling Design

Coupling design enables easy shaft seal replacement, improving maintenance and lowering costs.

Seal Material Selection

Various seal material options are offered for different liquid applications.

Ideal for the Machine Tool

Immersible multistage centrifugal pump, designed for industrial use, especially for machine tools. It is suitable for carrying fluids such as water, coolant, light oil and other clean, non aggressive matters.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+0℃ ~ +90℃

Operating Pressure

Max. 38 kg/cm²

Submerged Depth

Min. 40 mm

Filtration Precision

Below 1.5 mm

Motor

Enclosure Protection Class

IP54 (Pump and Motor)

Insulation Class

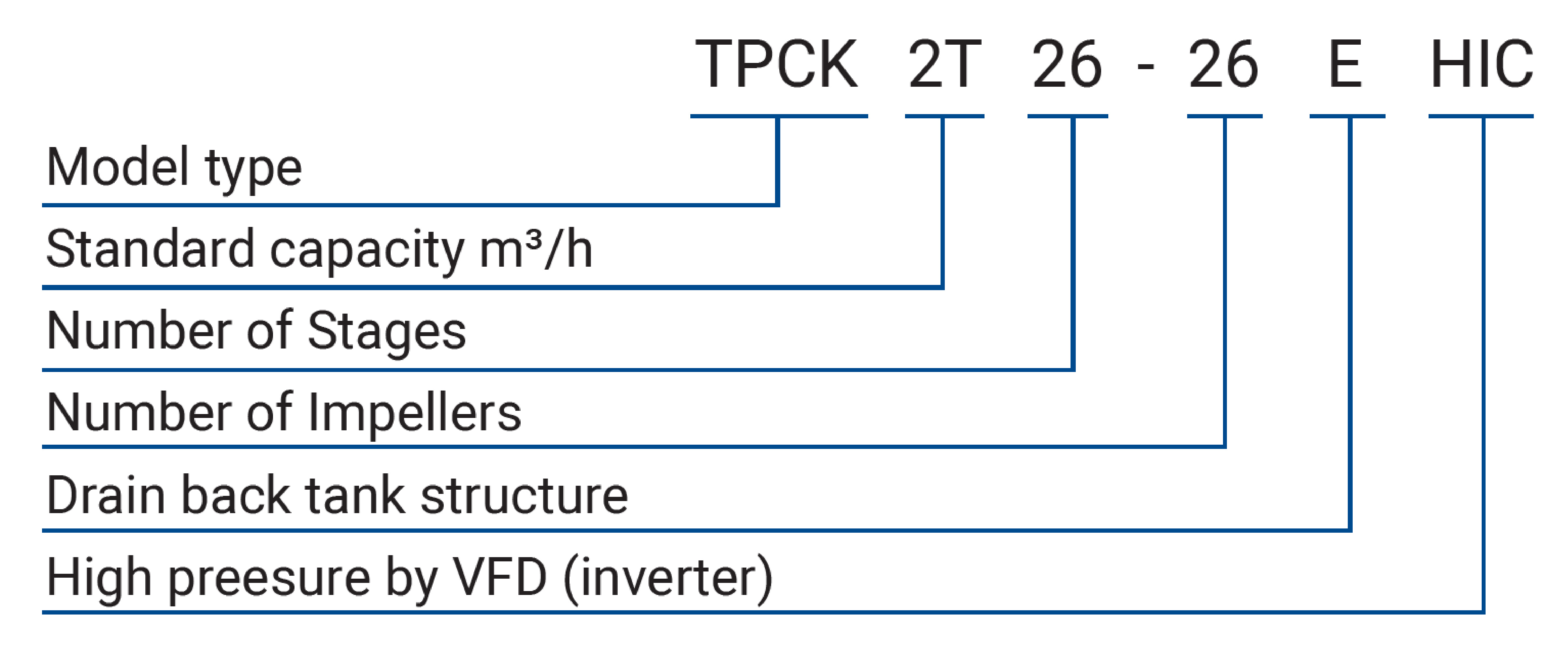

Model code

Select Frequency

50 Hz

60 Hz

Electrical standards

Inquiry

Model

Phase
(Ø)

Output Power P2

Voltage
(V)

Current
(A)

TPCK2T26-26EHIC

5.5

220

18.3

TPCK2T26-26EHIC

5.5

380

10.6

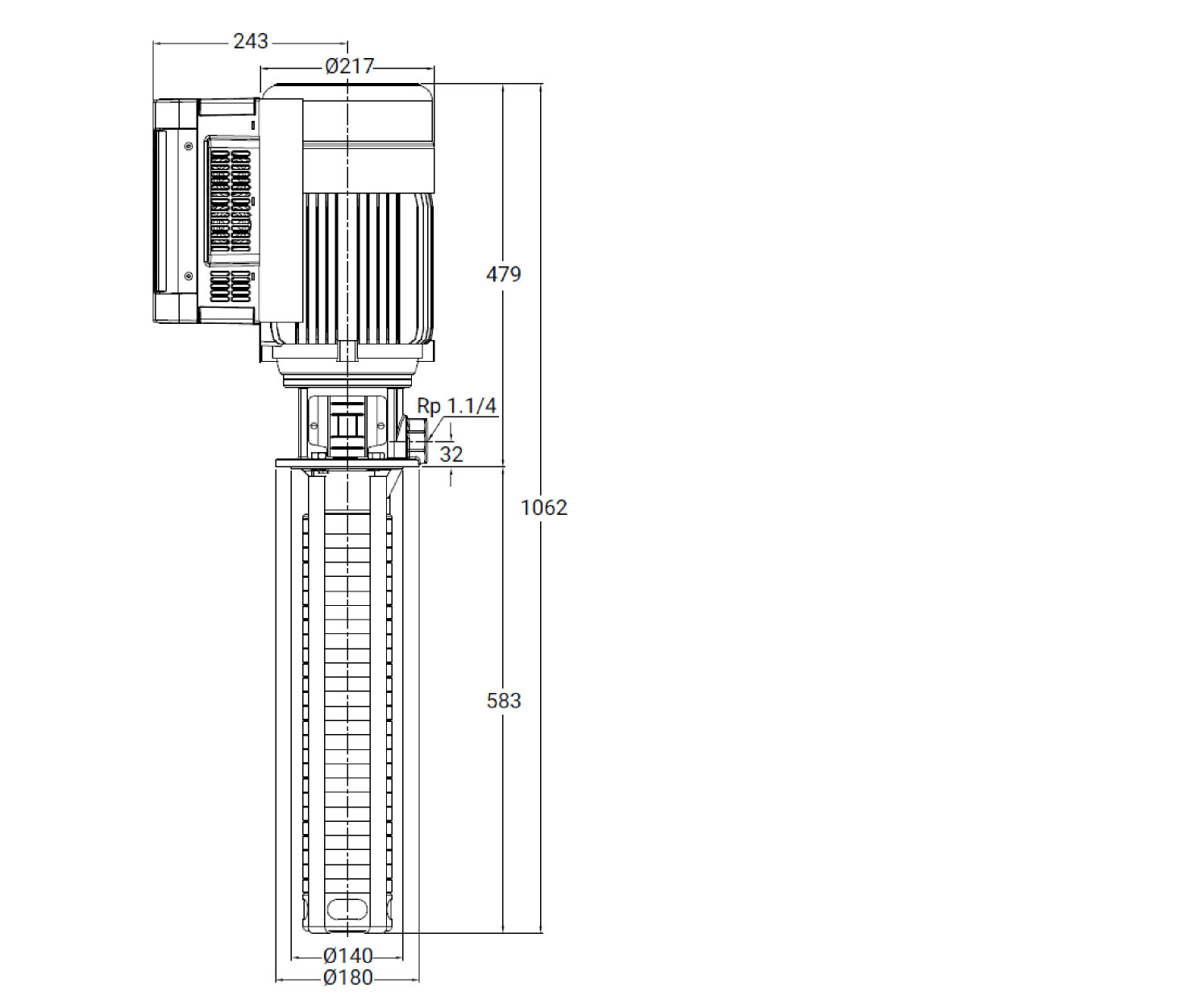

Dimension

Model

Net Weight
(kg)

TPCK2T26-26EHIC

TPCK_EHIC Series Applications

Manufacturing Industry

Industrial Process Cooling

Circulating coolant solutions dissipate heat, ensuring stable operation of industrial equipment, maintaining precise output quality, and enhancing production efficiency.
