Model | TPH2T4K

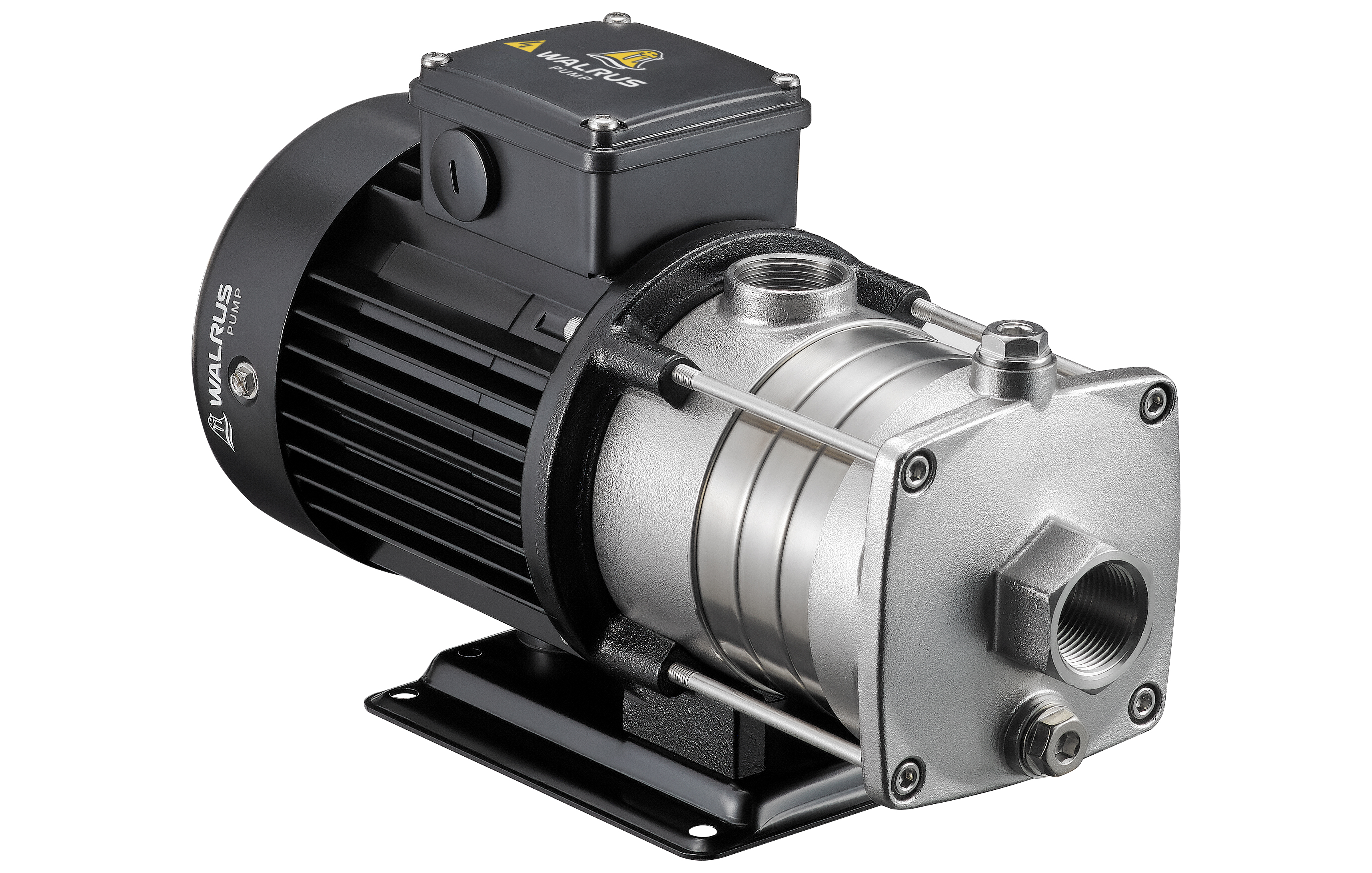

Model | TPH2T4KS

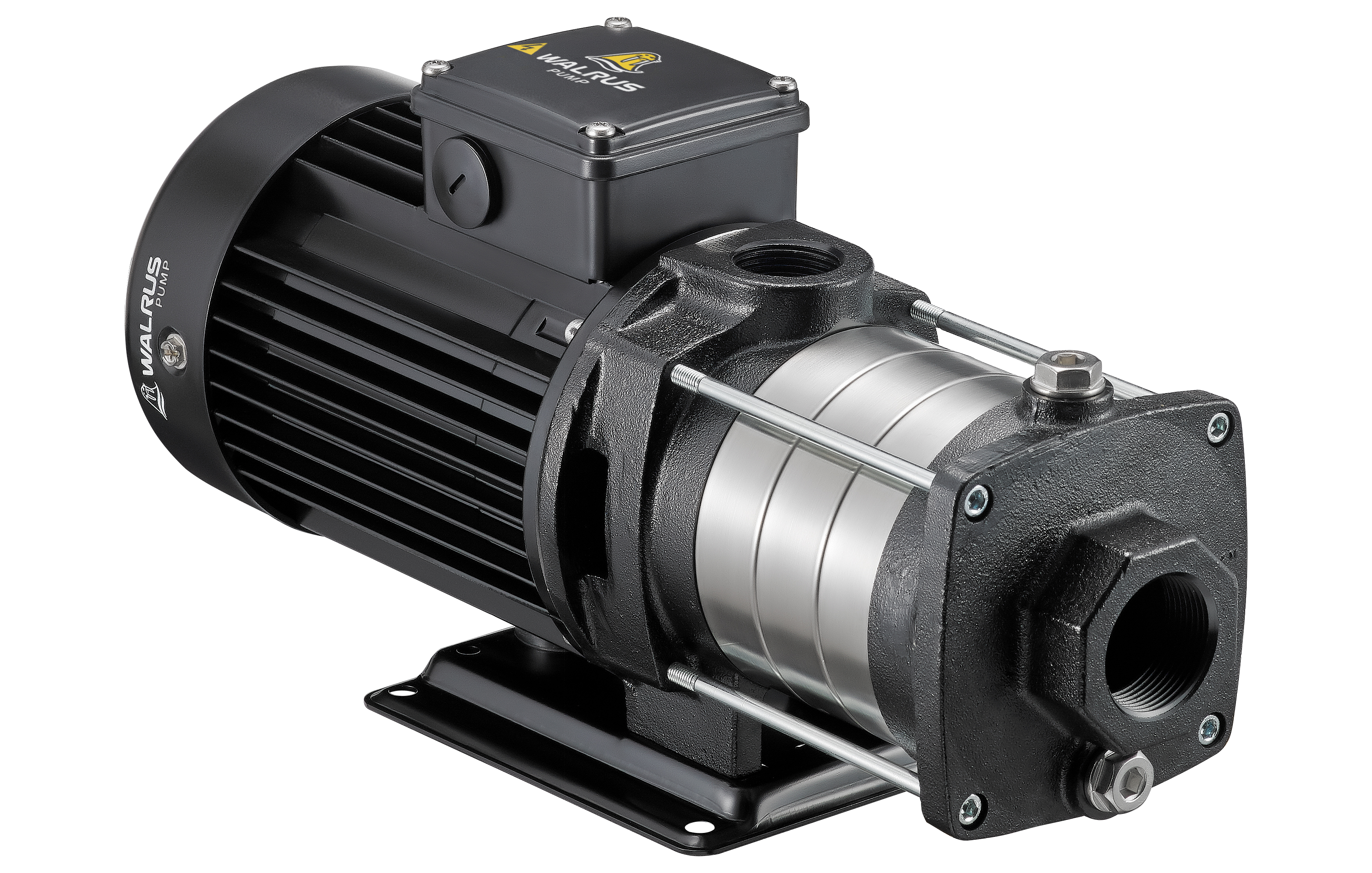

Model | TPH4T4K

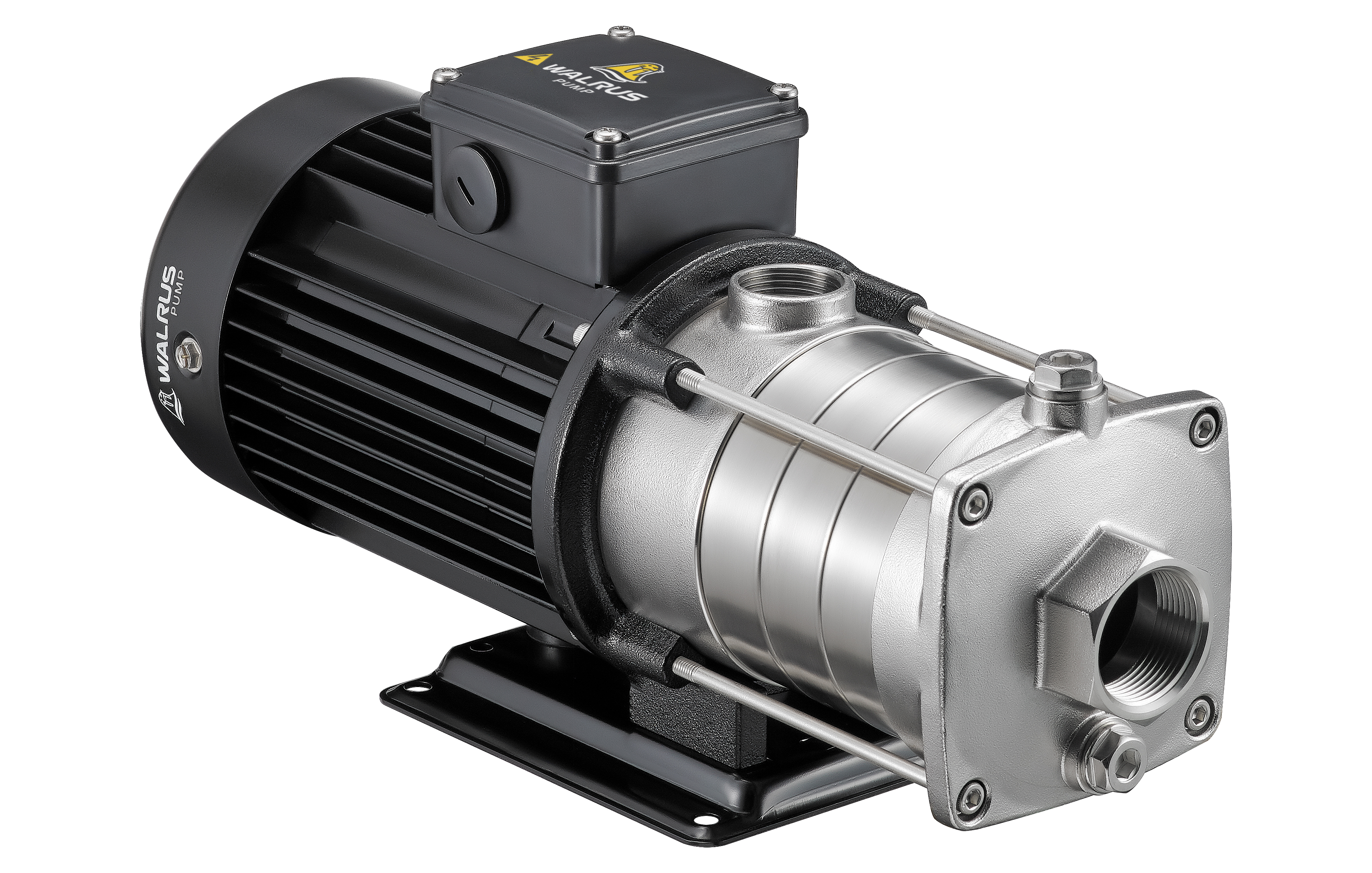

Model | TPH4T4KS

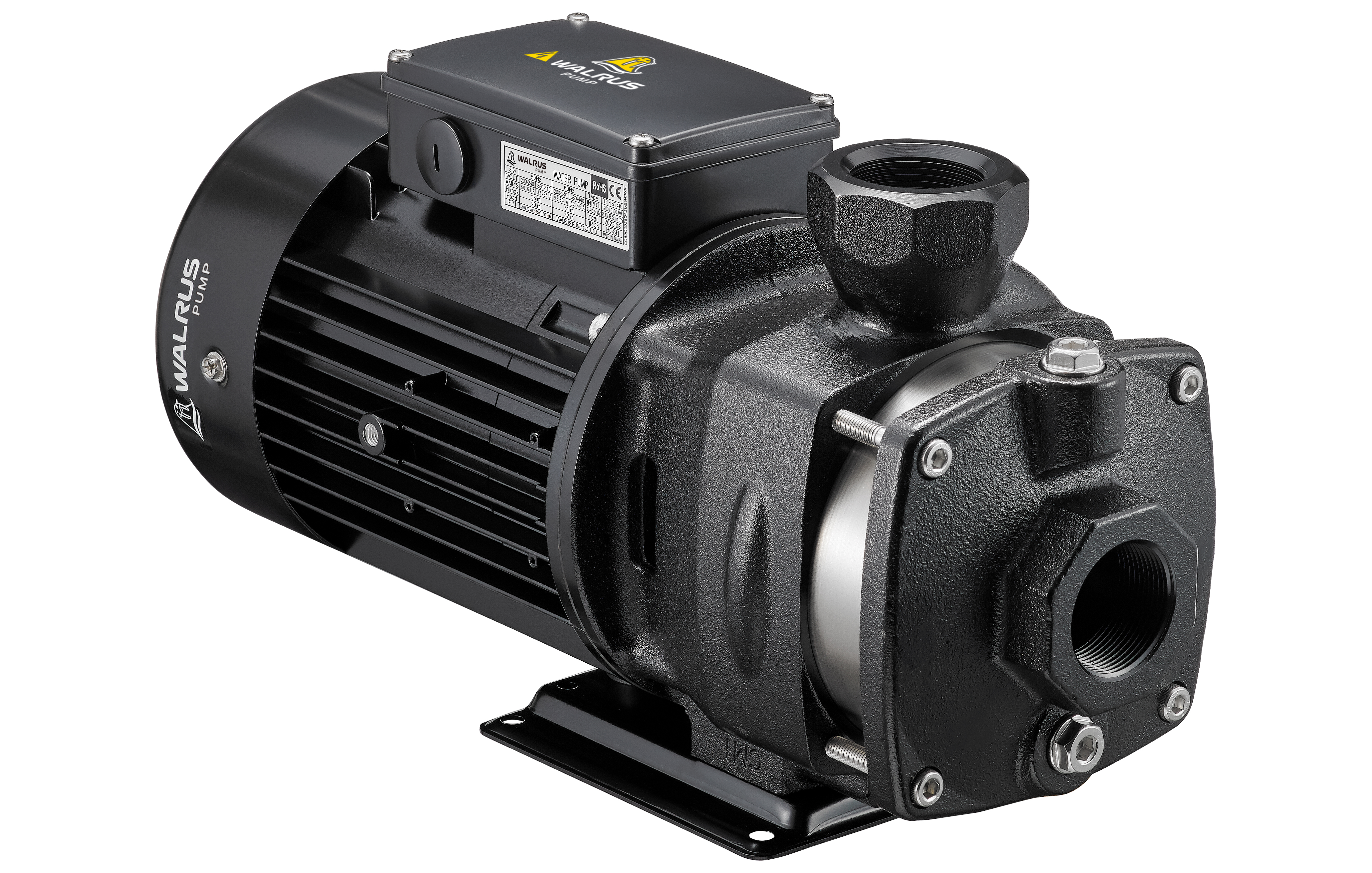

Model | TPH8T4K

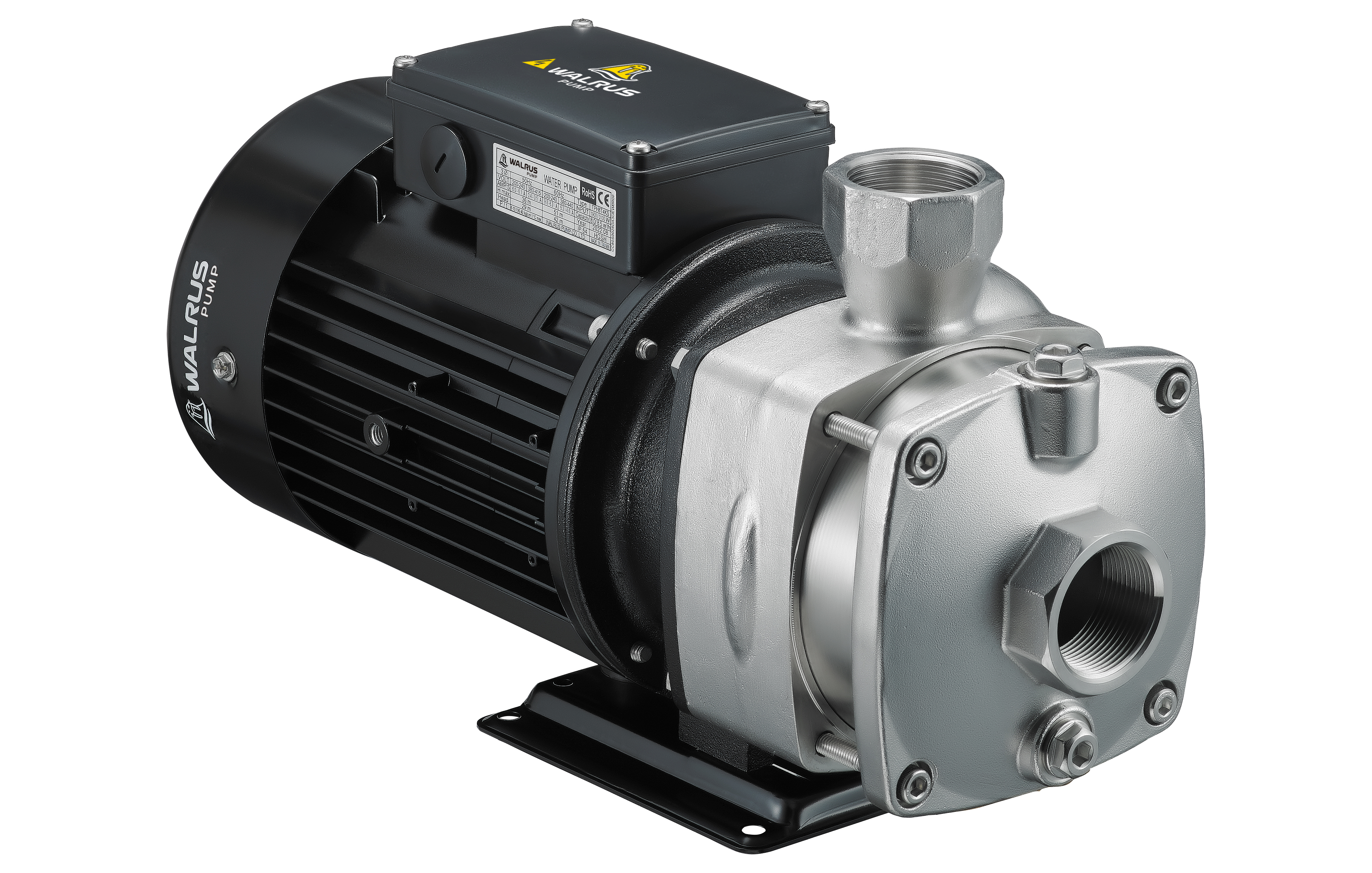

Model | TPH8T4KS

Horizontal Centrifugal Pump

Multi-Stage Horizontal Pump
TPH Series

  • Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.
  • In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.
  • Flexible adjustment of Iimpeller stages based on configuration requirements.
Construction Industry Manufacturing Industry Electricity & New Energy Industry Entertainment & Leisure Industry Accommodation & Food Service Industry Agriculture, Forestry, Fishery and Animal Husbandry Wholesale & Retail Trade Water Supply & Pollution Control Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37 - 3.4
Up to 57
Up to 240
60
0.37-3.7
Up to 79
Up to 280

Features

Stability and Reliability
The centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.
Flexible Configuration
The number of impeller segments can be adjusted to suit different application requirements.
Energy Efficient
Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.
Compact Structure
"Structural optimization design provides the most appropriate water source transportation.
Damage Prevention
Featured drainage ports to prevent condensation water buildup and protect the motor burnout.
Low-Noise Operation
The horizontal multistage centrifugal pump features low operational noise.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+0°C ~ +90°C
Operating Pressure
Max. 10 kg/cm²
Inlet Pressure
Max. 6 kg/cm²

Motor

Frequency Range
50 / 60 Hz
Nominal Speed
2900 / 3500 rpm
Enclosure Protection Class
IP54
Insulation Class
F

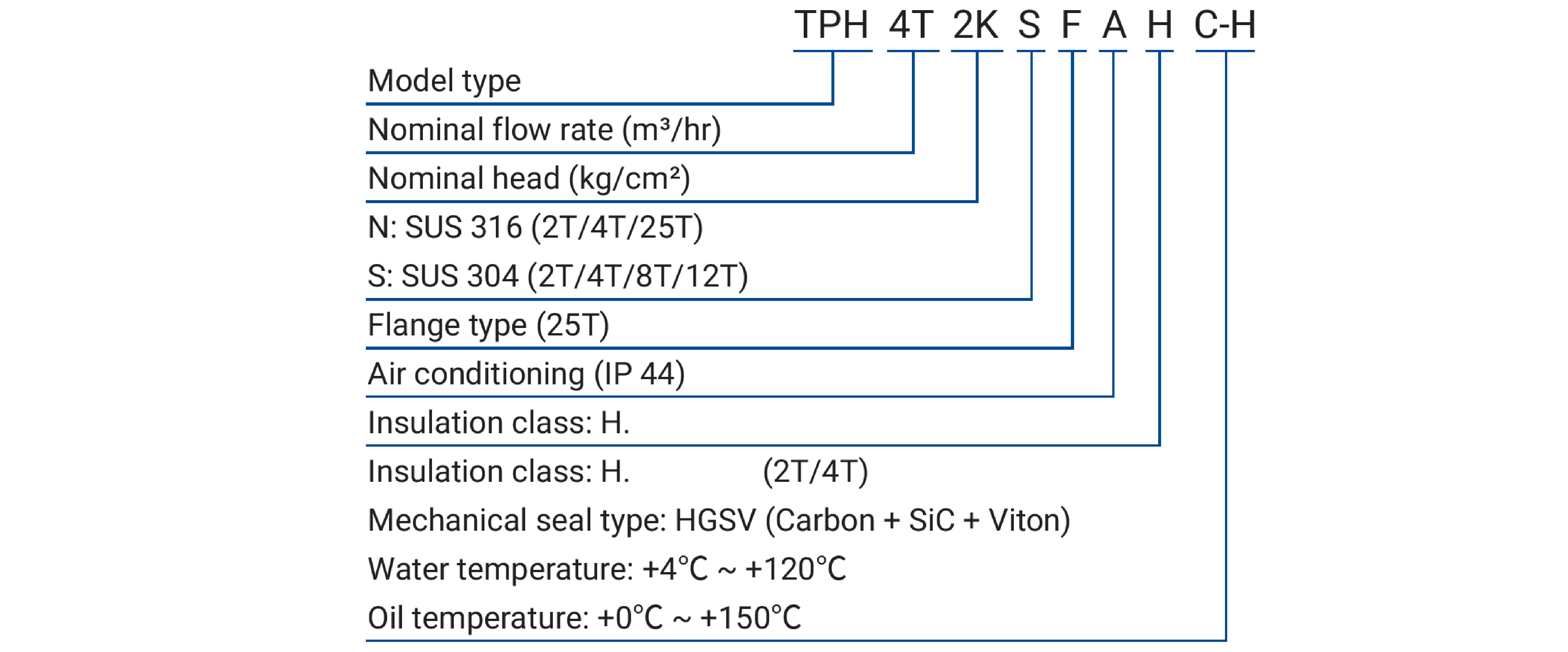

Model code

Select Frequency

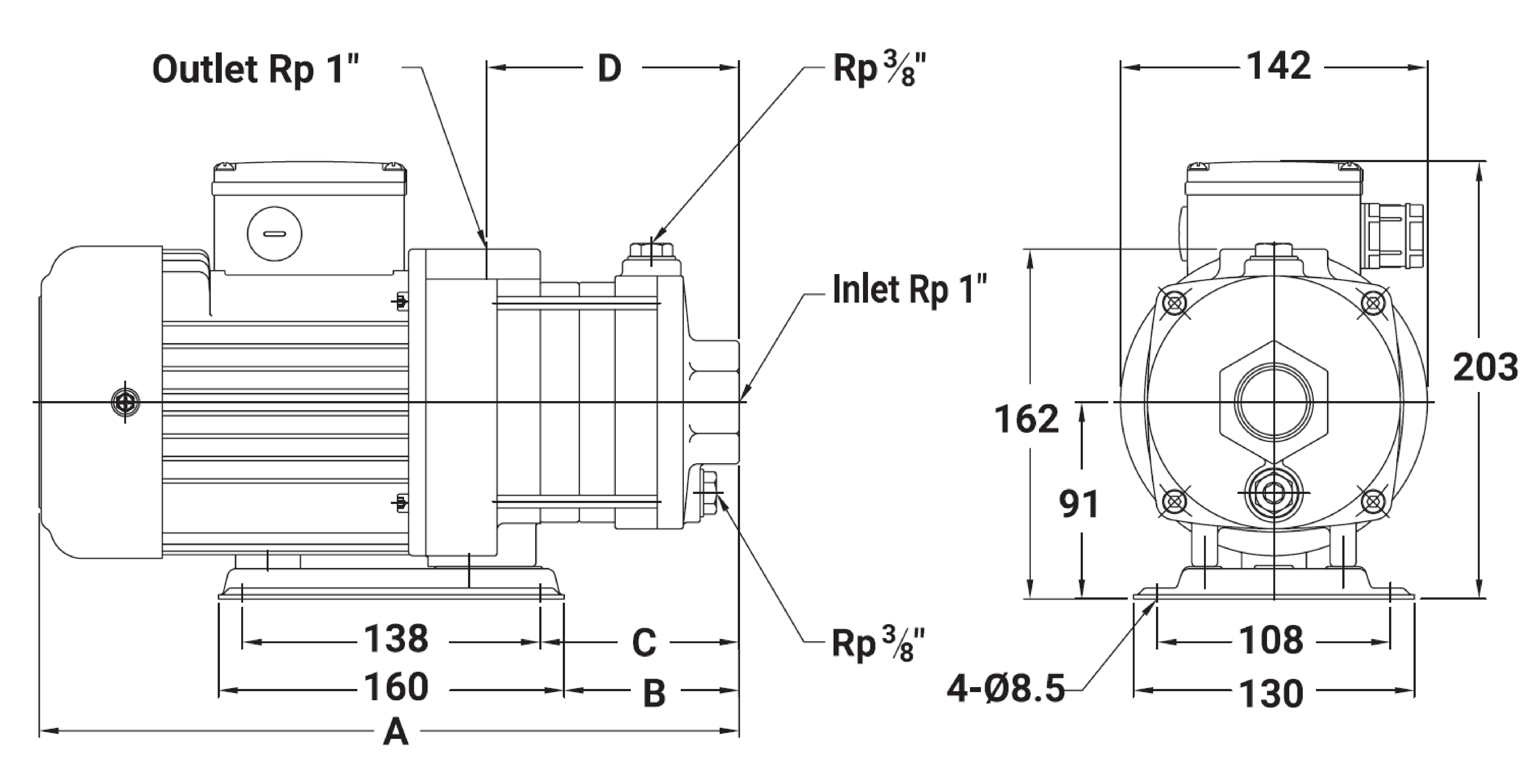

TPH2T
TPH4T
TPH8T
TPH12T

TPH Series Applications

Construction Industry

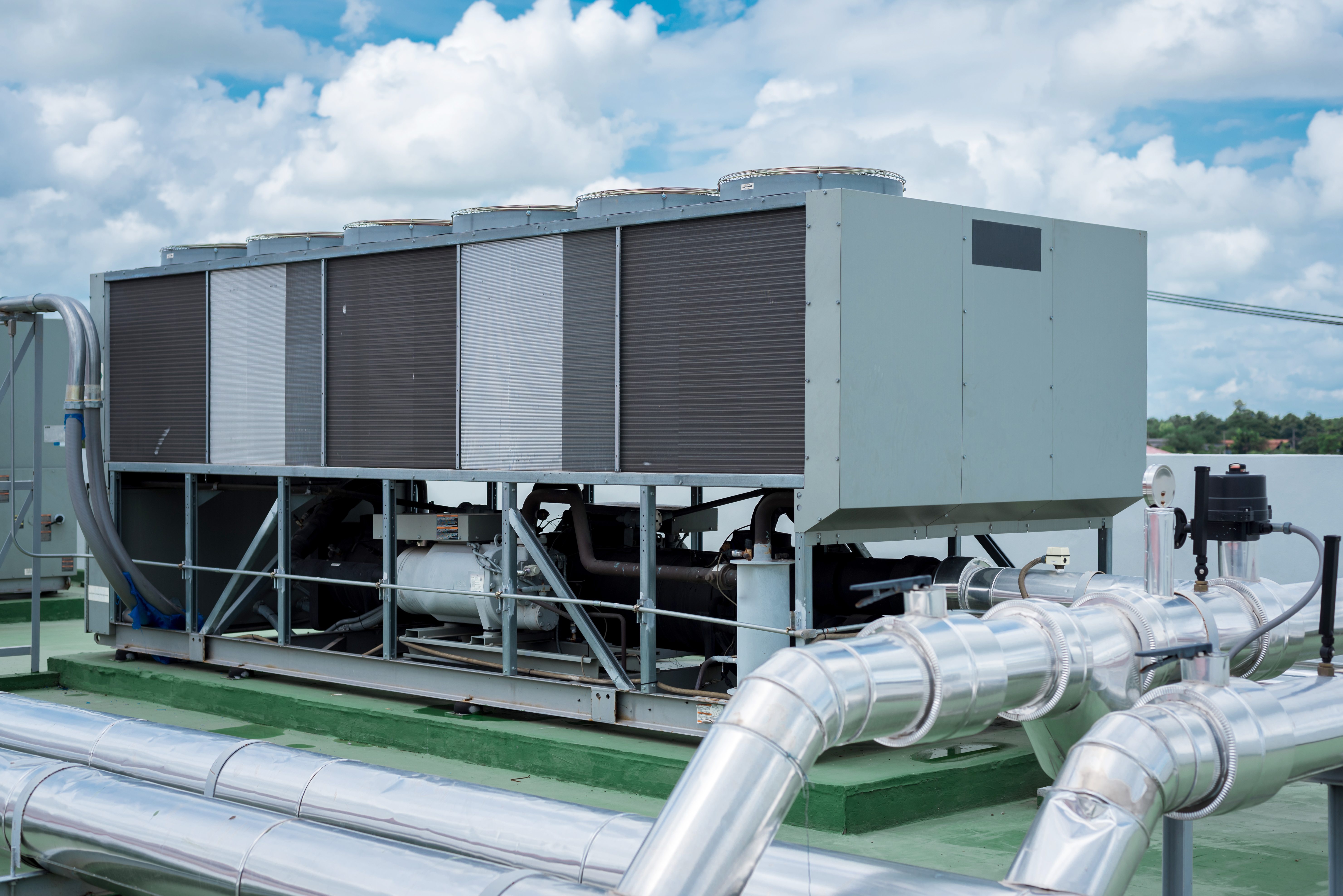

Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Construction Industry
Building Water Supply Systems
Meeting the water extraction, storage, and constant pressure supply needs of large buildings and construction projects. Paired with VFDs, the system adjusts pressure based on water demand, ensuring a stable and uninterrupted water supply.
Construction Industry
Landscape Pond Water Recirculation
A key component in maintaining water clarity, enhancing landscaping, and preserving ecological balance. Driving water flow to achieve circulation, filtration, and oxygenation, creating a fresh and natural aquatic environment.
Construction Industry
Rainwater Harvesting and Treatment
Transfers rainwater from collection points to storage tanks, providing stable pressure for secondary uses such as irrigation, firefighting reserves, and cleaning. Supports water level sensing and smart control for automatic start-stop based on demand.
Manufacturing Industry
Hot and Cold Liquid Transfer
Meeting the water needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas, maintaining low temperature environments for machinery or steady heat flow, and ensuring overall stable operation
Manufacturing Industry

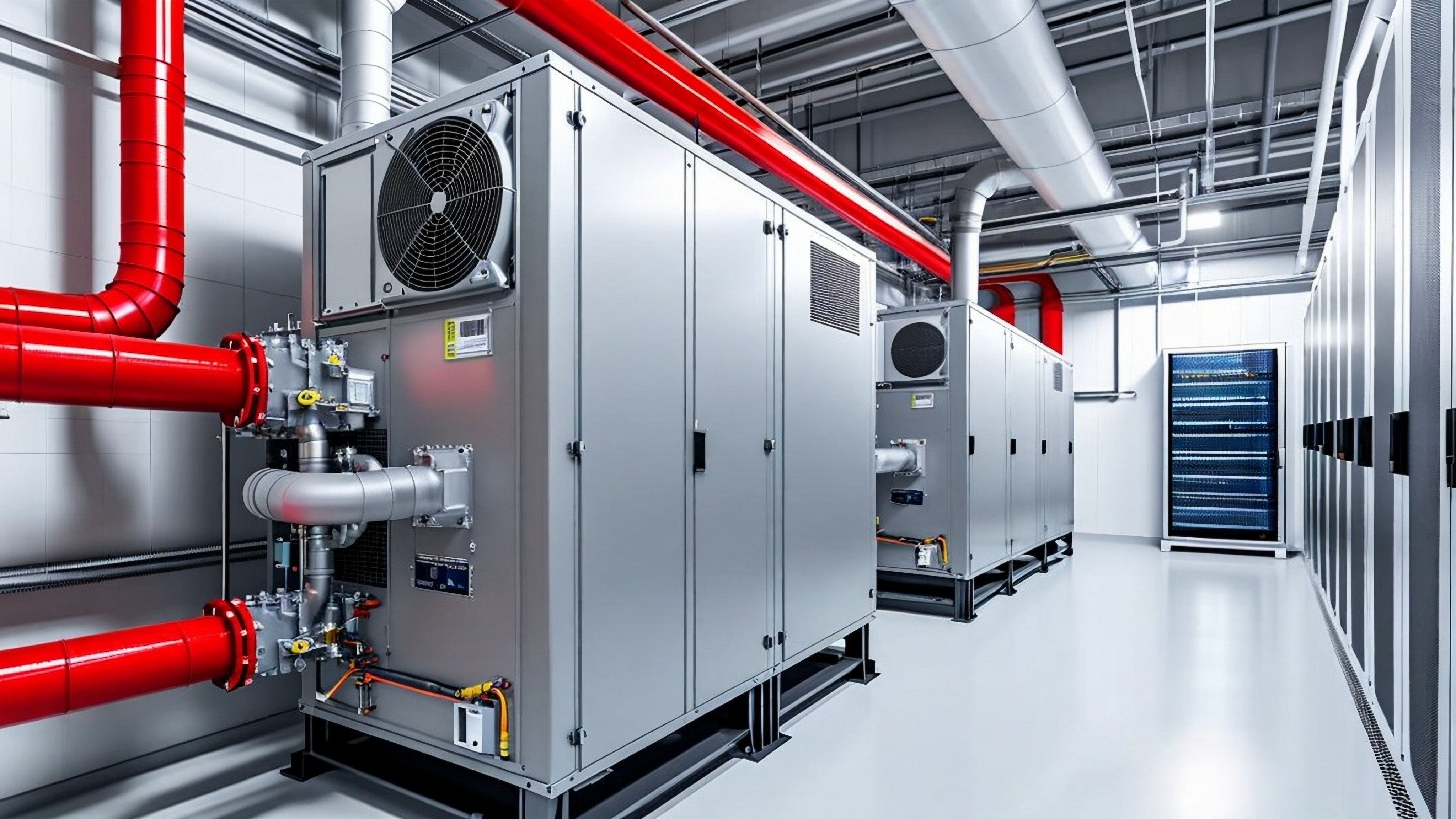

Data Center Cooling
Meets the cooling and heat dissipation needs of technology servers, efficiently removing the large amount of heat generated during operations to ensure stable equipment performance. Providing innovative pump solutions in response to the growing demand of the AI era.
Manufacturing Industry
Industrial Filtration
Reliable and efficient transportation to storage tanks or subsequent processing stages ensures continuity and consistent quality. Integration with filtration and recycling systems enables cost-effective reuse, further enhancing operational efficiency.
Manufacturing Industry
Industrial Process Cooling
Circulating coolant solutions dissipate heat, ensuring stable operation of industrial equipment, maintaining precise output quality, and enhancing production efficiency.
Manufacturing Industry
Industrial Process Cleaning
Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants, ensuring high-quality results for subsequent processes.
Manufacturing Industry
Industrial Wastewater Discharge (Compliance-Oriented)
Enabling businesses to reliably transport treated industrial wastewater to discharge systems, ensuring environmental protection and regulatory compliance.
Electricity & New Energy Industry
Power Supply System Cooling and Heat Dissipation
Driving the circulation of cooling liquids in fast charging systems to efficiently dissipate generated heat, extending system lifespan and preventing overheating that could lead to failures or downtime.
Electricity & New Energy Industry

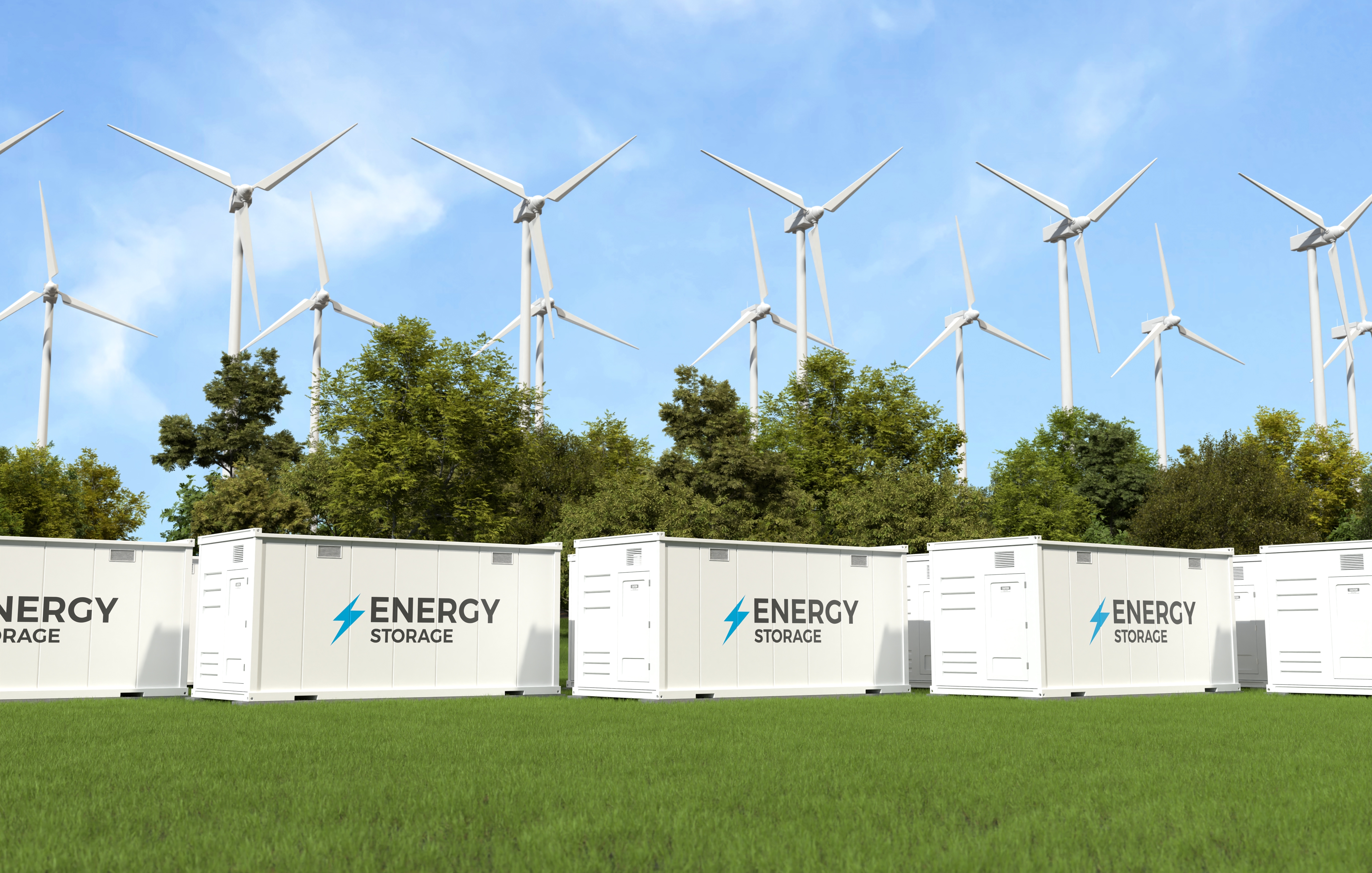

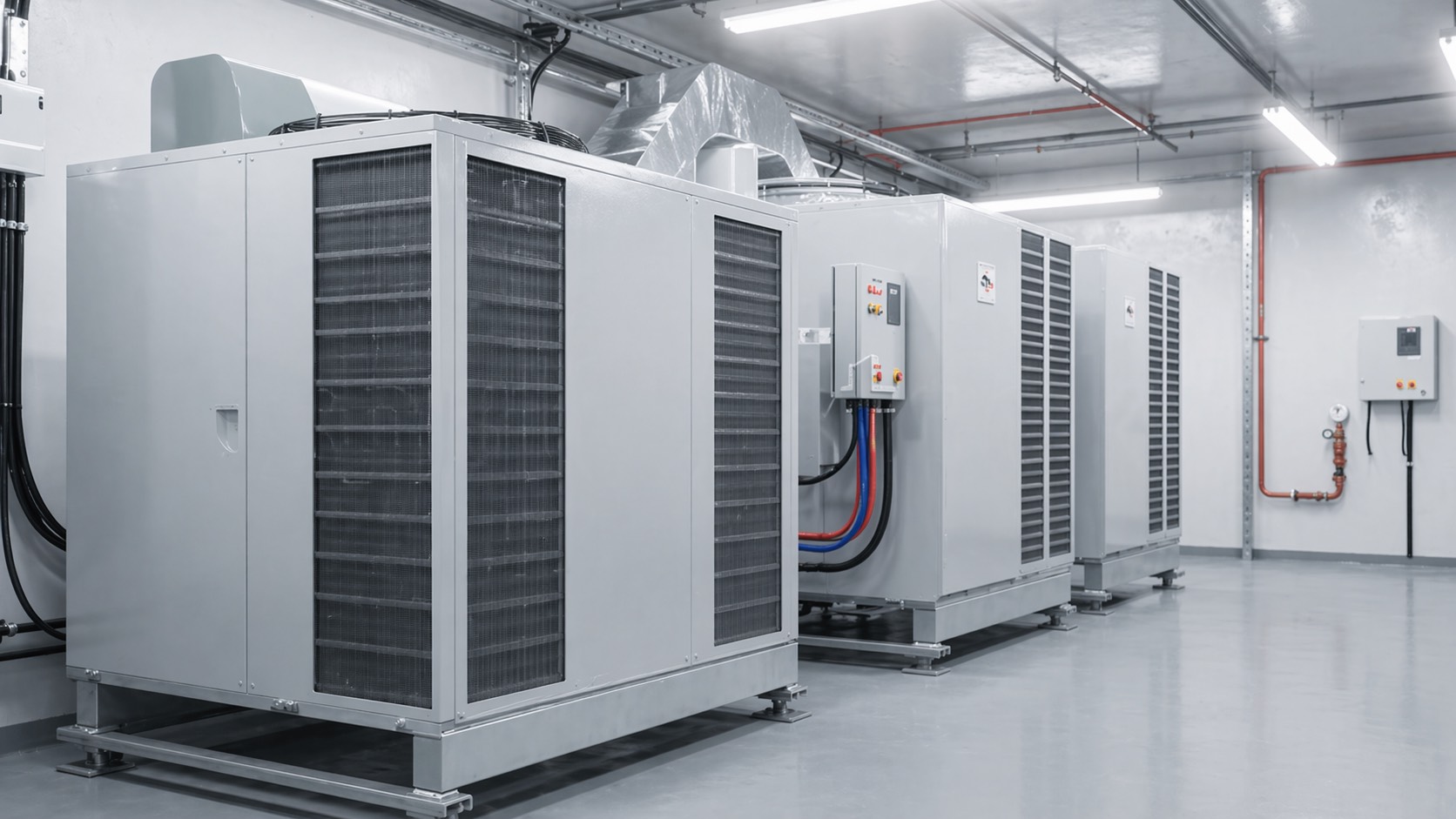

Energy Storage System Cooling and Heat Dissipation
Drives the circulation of cooling liquids in energy storage systems, effectively dissipating heat generated during operation, extending system lifespan, preventing overheating, and ensuring safe and efficient performance.
Entertainment & Leisure Industry
Landscape Pond Water Circulation
A key component in maintaining water clarity, enhancing landscaping, and preserving ecological balance. Driving water flow to achieve circulation, filtration, and oxygenation, creating a fresh and natural aquatic environment.
Entertainment & Leisure Industry
Aquatic Facility Water Systems
Providing water circulation, pressure regulation, and filtration support. Ensuring stable transport of large volumes of water to water entertainment facilities, enhancing guest safety and experience.
Entertainment & Leisure Industry
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Accommodation & Food Service Industry
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Agriculture, Forestry, Fishery and Animal Husbandry

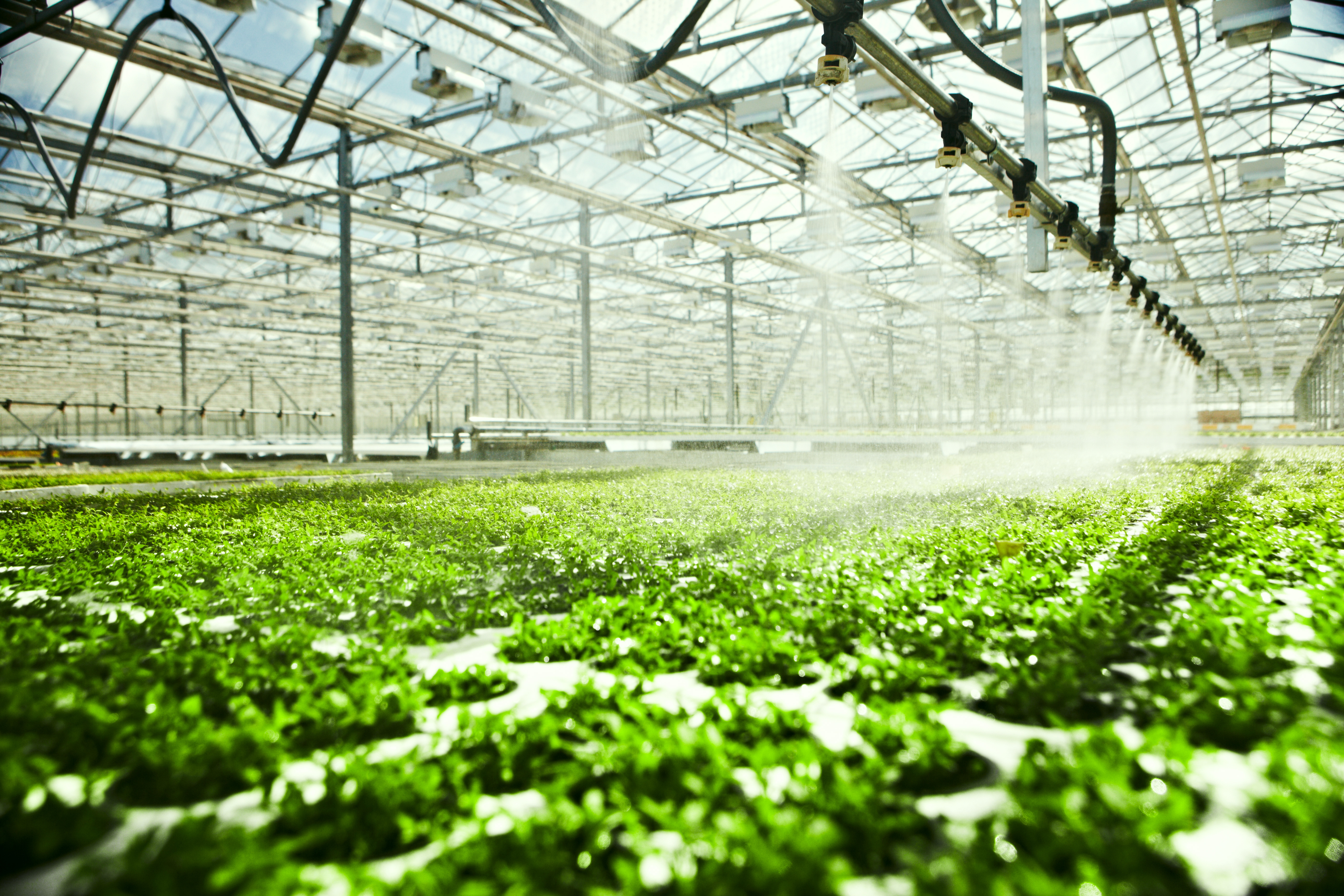

Irrigation
Delivers water to irrigation points for even moisture distribution across soil and plants. With inverters, settings can be adjusted based on soil moisture, weather conditions, and water demand to improve resource efficiency.
Agriculture, Forestry, Fishery and Animal Husbandry
Water Supply for Animal Husbandry and Aquaculture
Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
Wholesale & Retail Trade
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Water Supply & Pollution Control
Water Distribution Transport
Transports water to reservoirs, municipal systems, and end-users, designed for large-scale capacity and continuous operation. Efficiently stabilizes water pressure and supply, enhances distribution performance, and reduces energy consumption.
Water Supply & Pollution Control

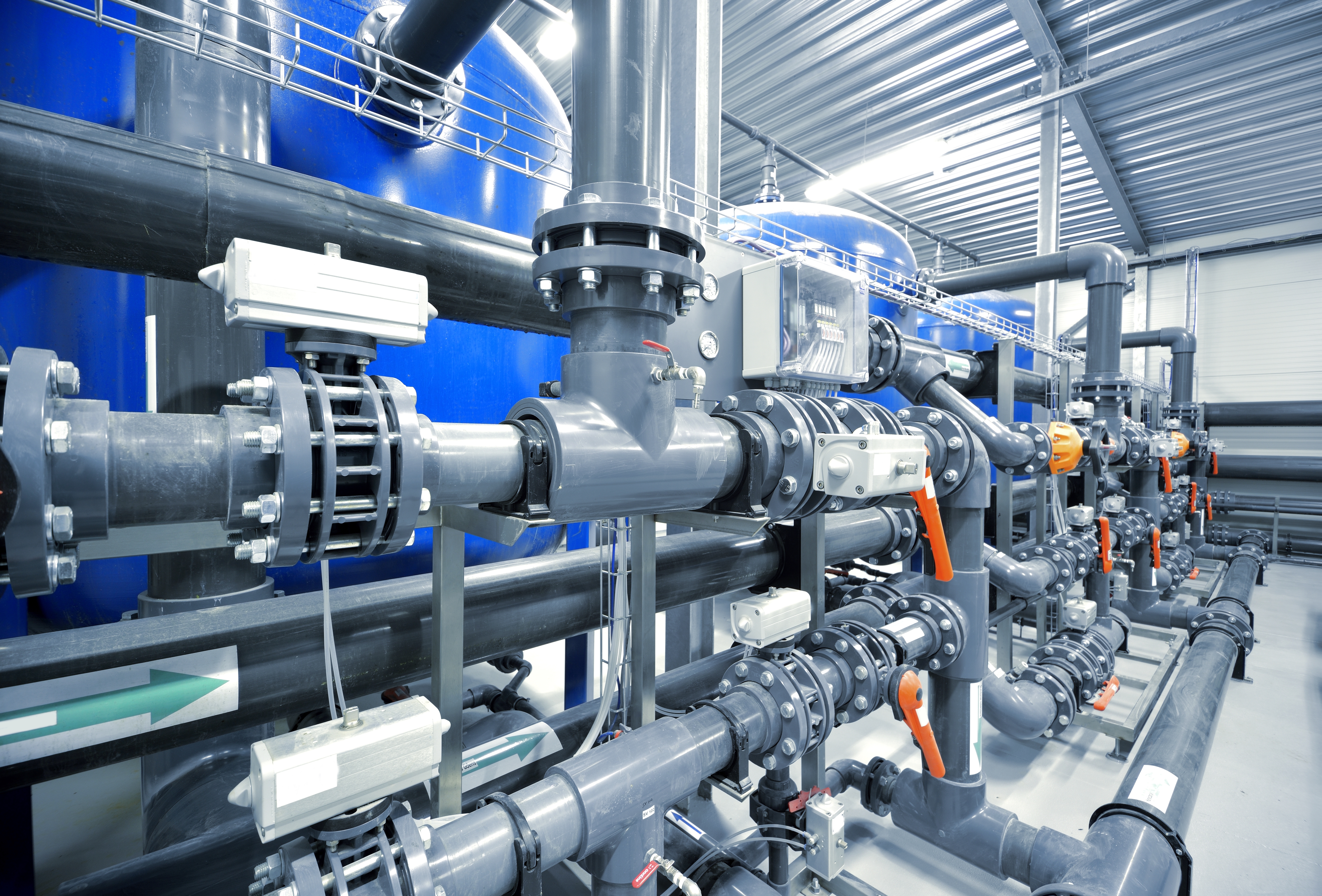

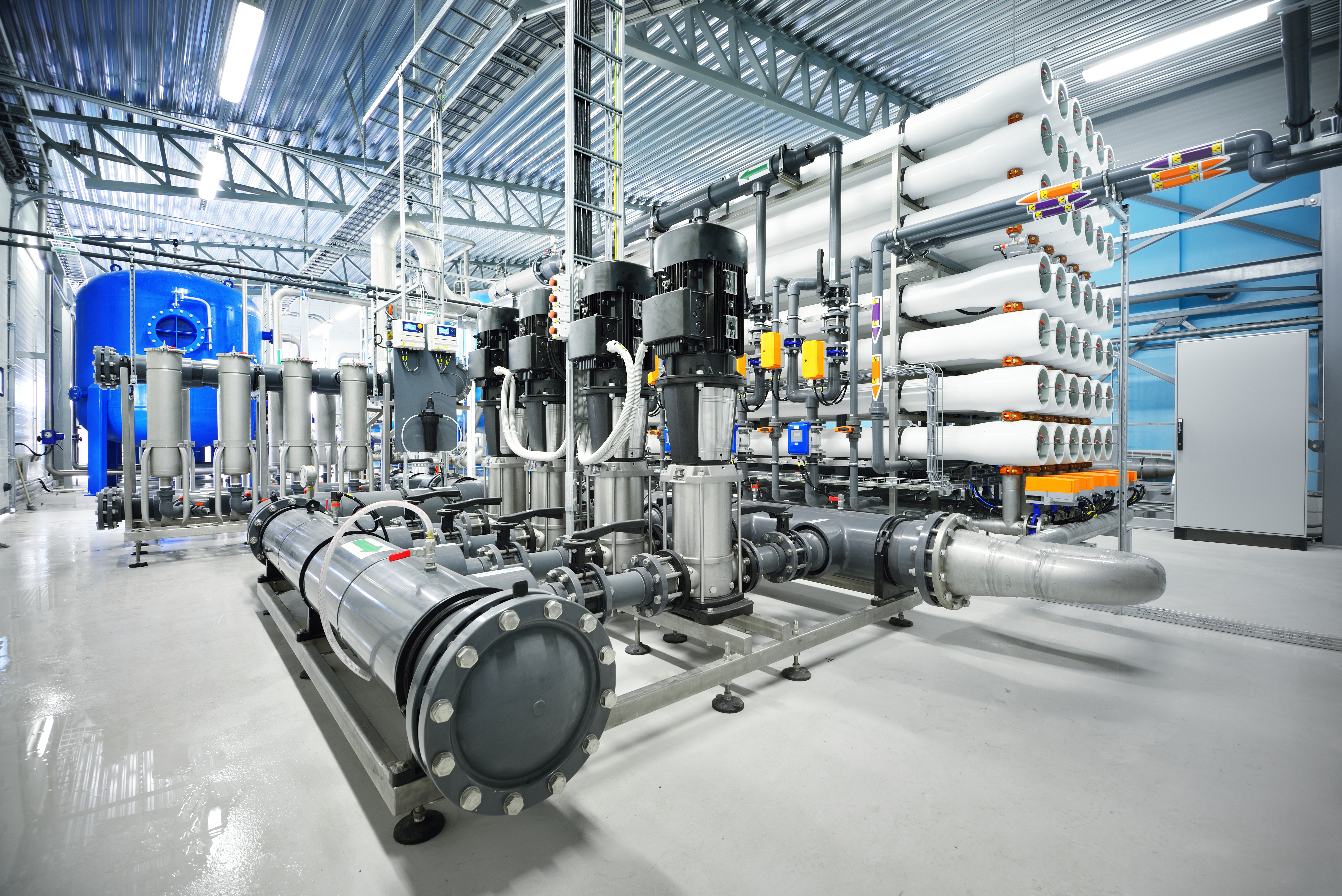

Purified Water Treatment (RO)
Provides high pressure to deliver water to RO systems, ensuring efficient treatment and optimal filtration performance to meet the demands of reverse osmosis.
Water Supply & Pollution Control

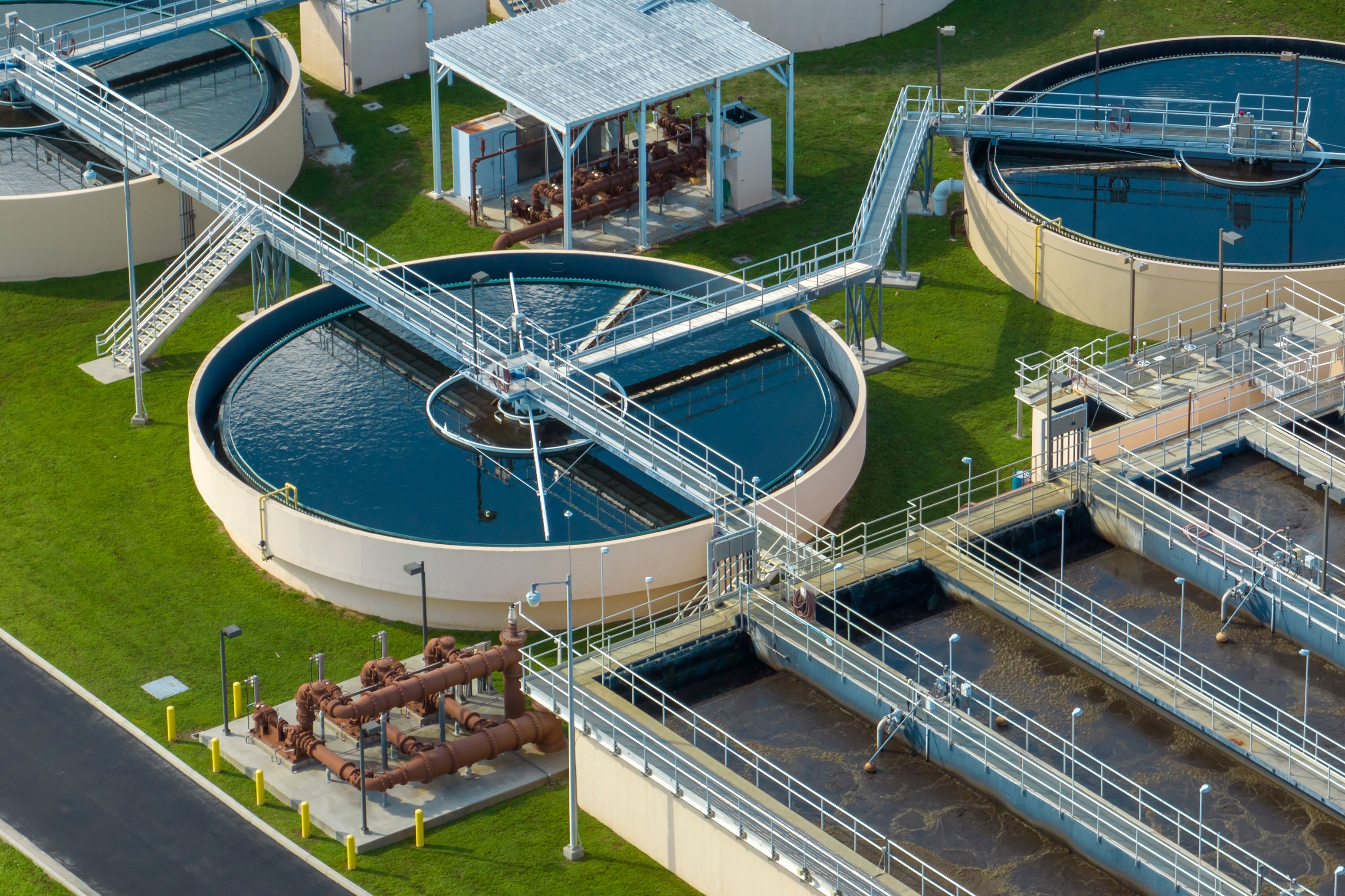

Wastewater Discharge (Compliance-Oriented)
Stable transfer of treated wastewater to discharge systems, complying with regulations, preventing pollution, and supporting sustainability goals.
Service Industry
High-Pressure Water Supply and Cleaning Systems
Delivers powerful water pressure for efficient water supply, supporting cleaning, cooling, disinfection, and spraying. Optimized pump solutions meet diverse industry water needs.

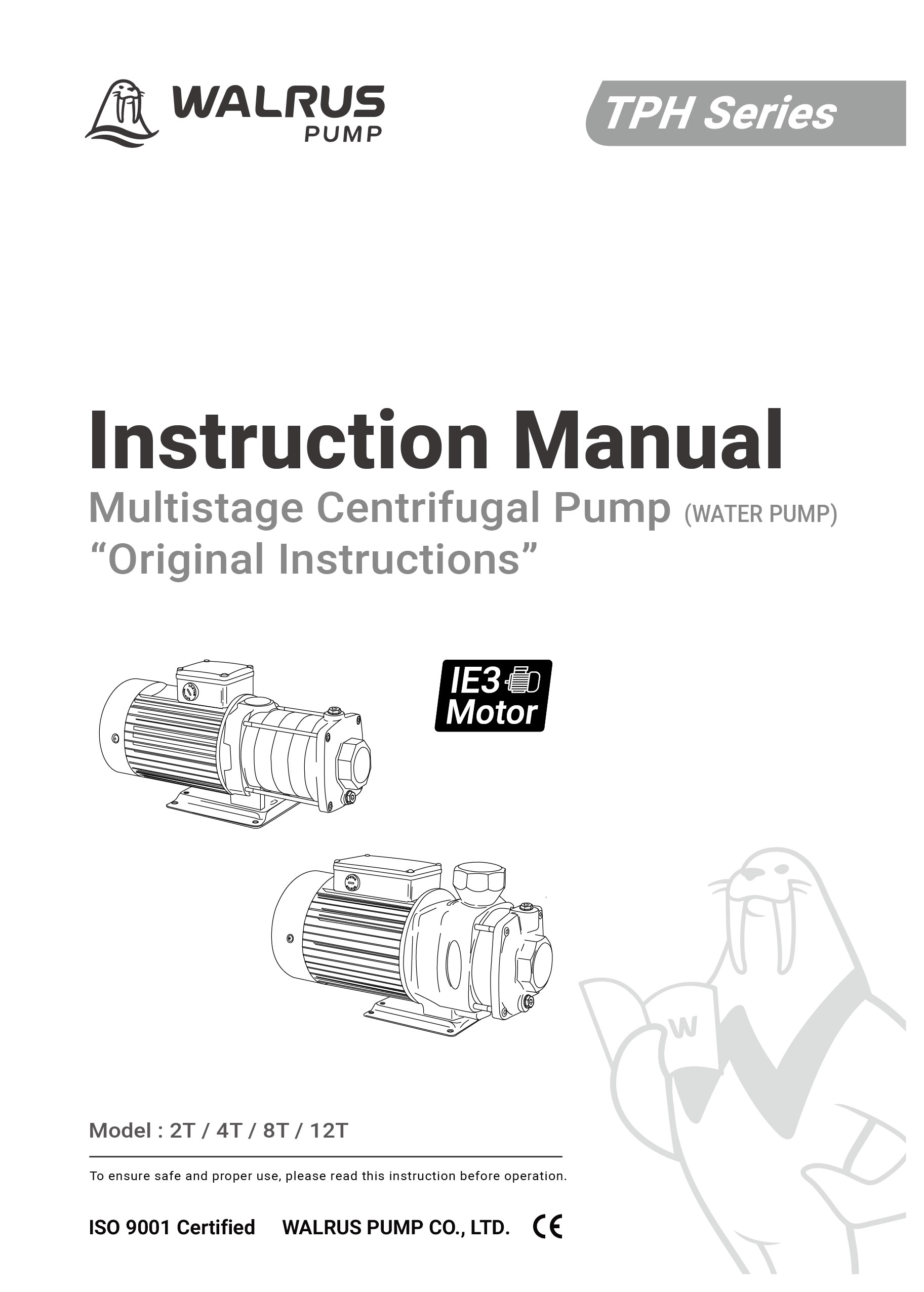

TPH_Instruction Manual
