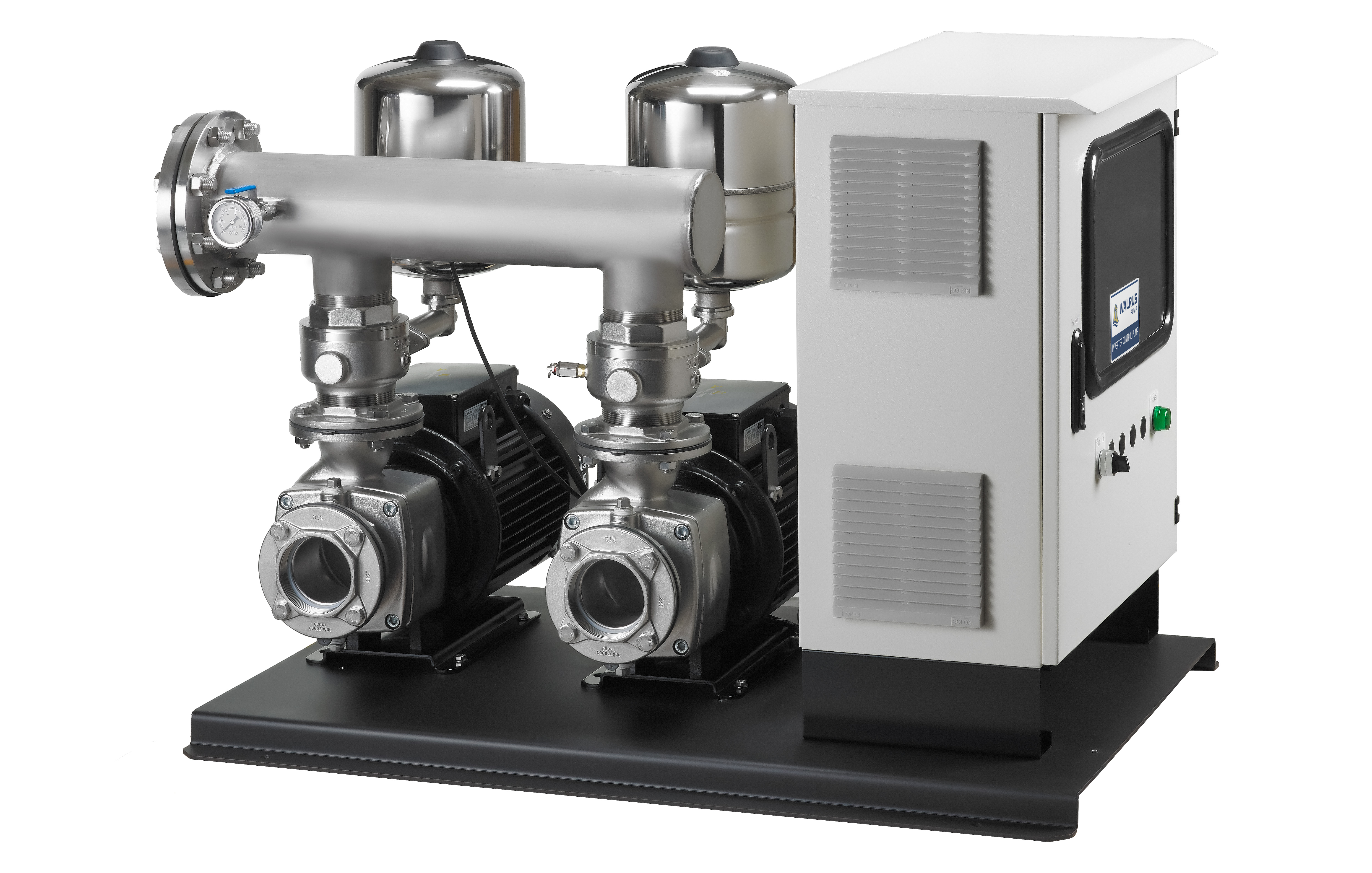

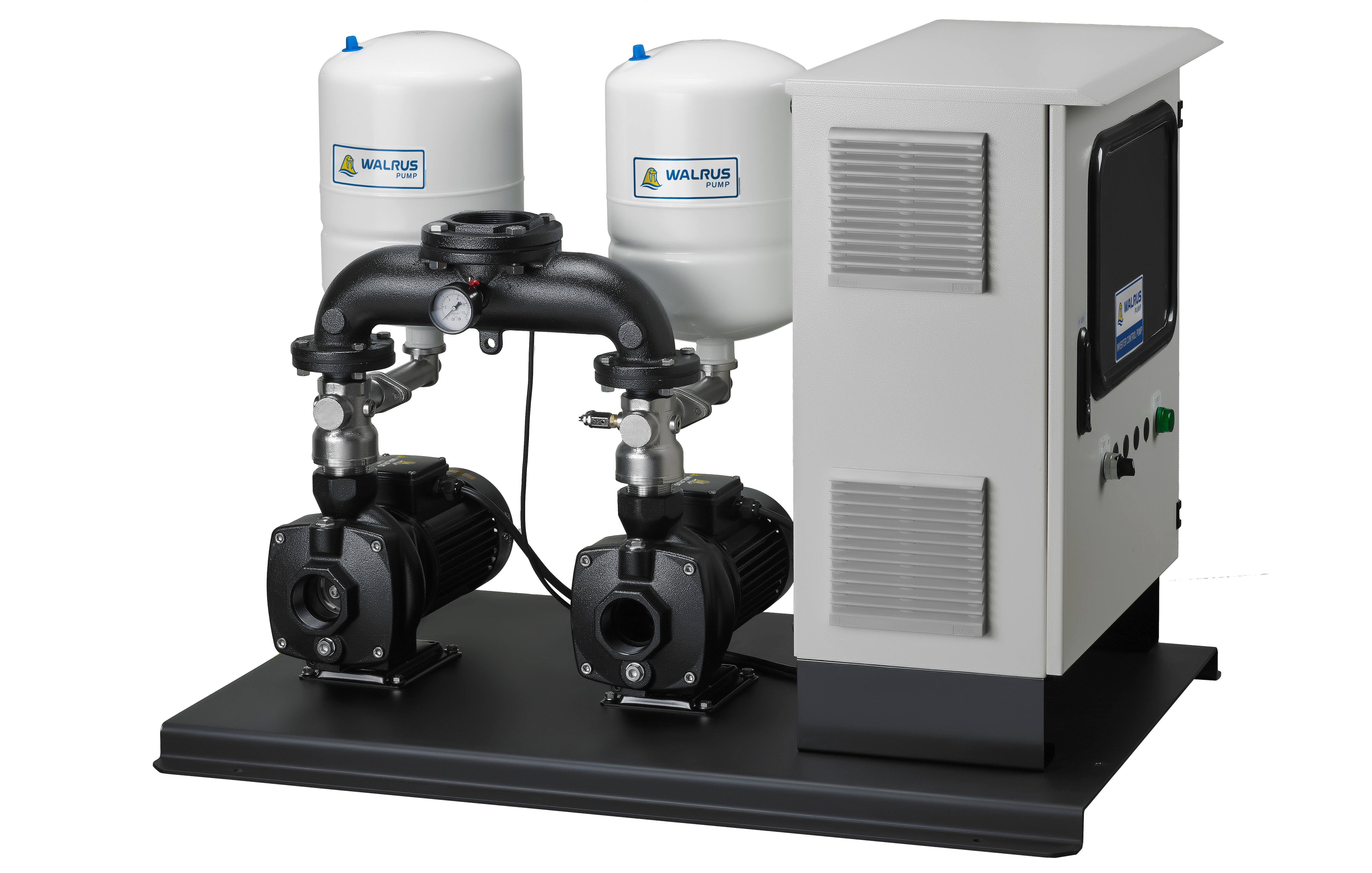

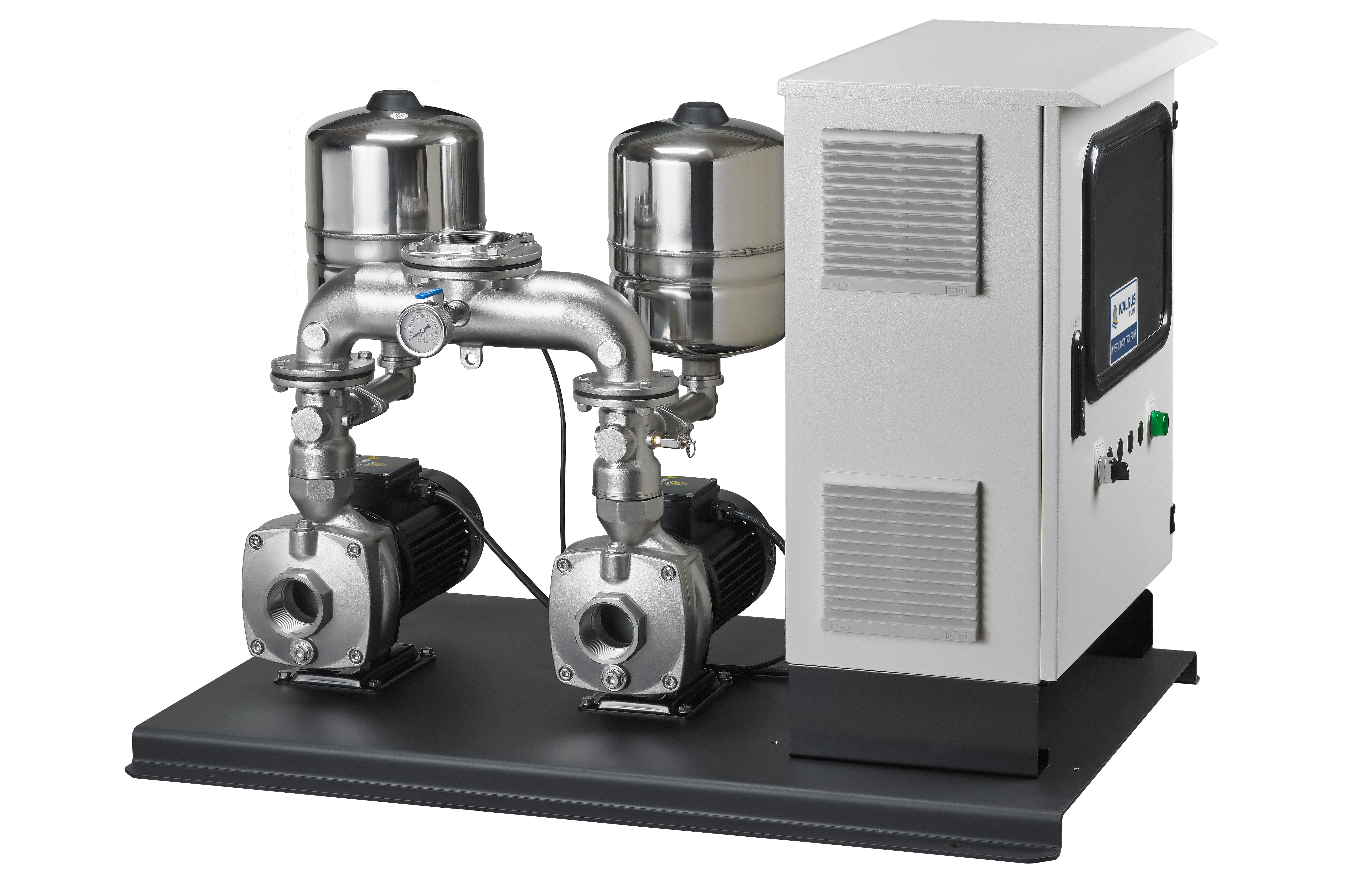

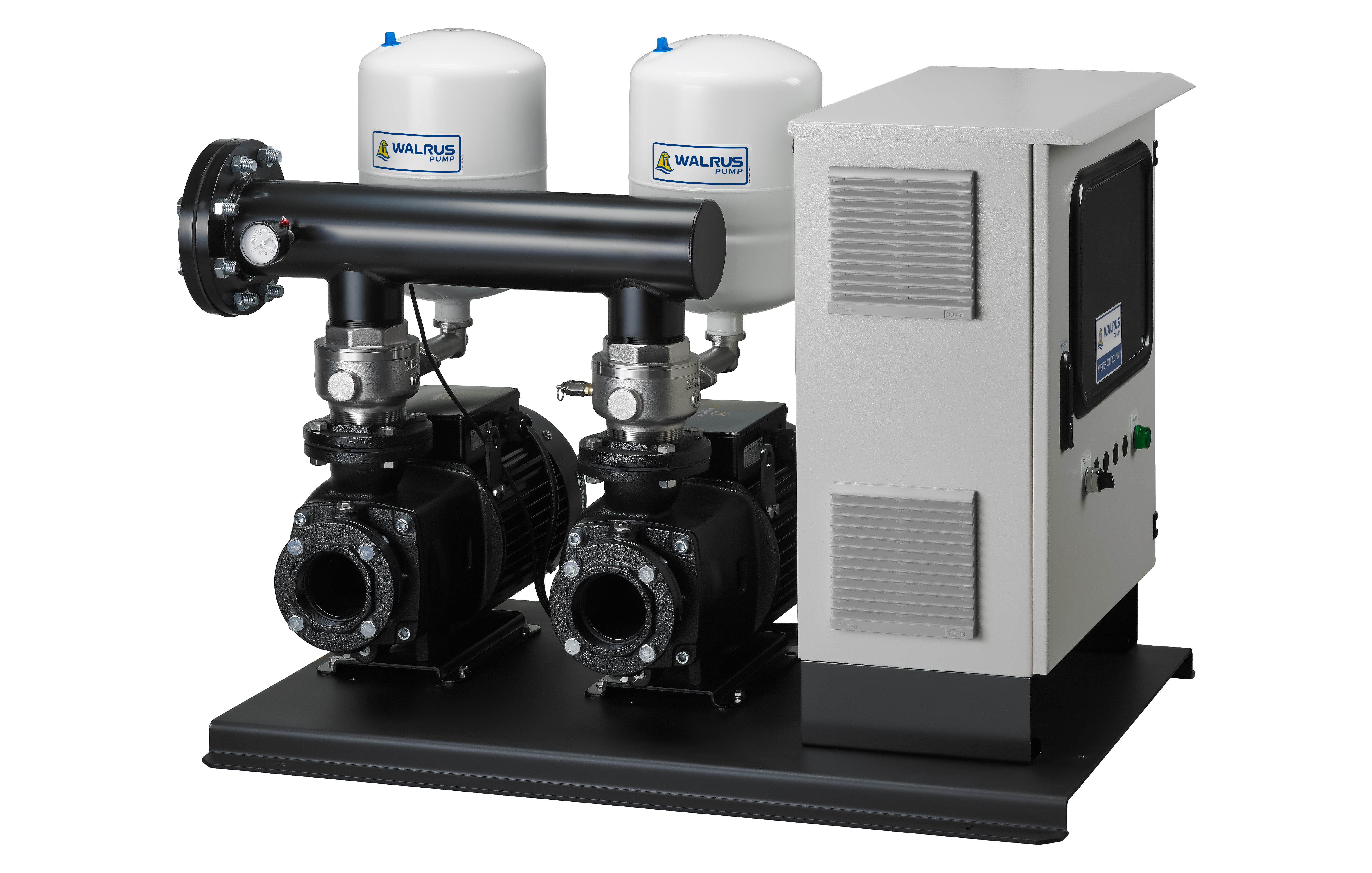

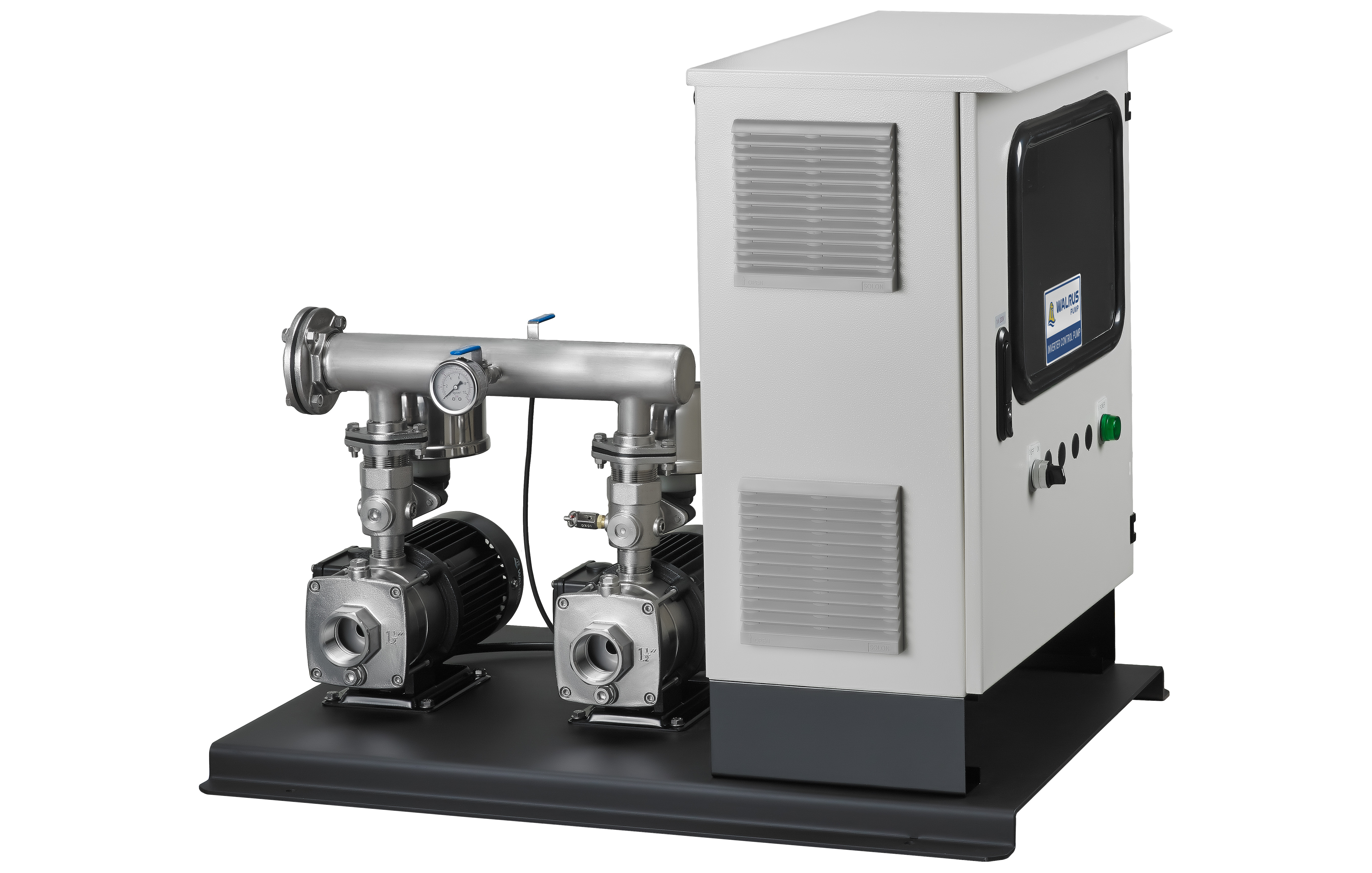

Constant Pressure Inverter Control System

Constant Pressure Inverter Control System
TPH_IC x2 Series

Inverter controller can continuously adjust the motor speed to meet constant pressure water supply requirements.
Intelligently adjusts based on water usage conditions to achieve high efficiency and energy savings.
The system supports parallel operation, activating additional units as demand increases and alternating startup sequences at set intervals to balance usage.

Construction Industry

Entertainment & Leisure Industry

Accommodation & Food Service Industry

Agriculture, Forestry, Fishery and Animal Husbandry

Wholesale & Retail Trade

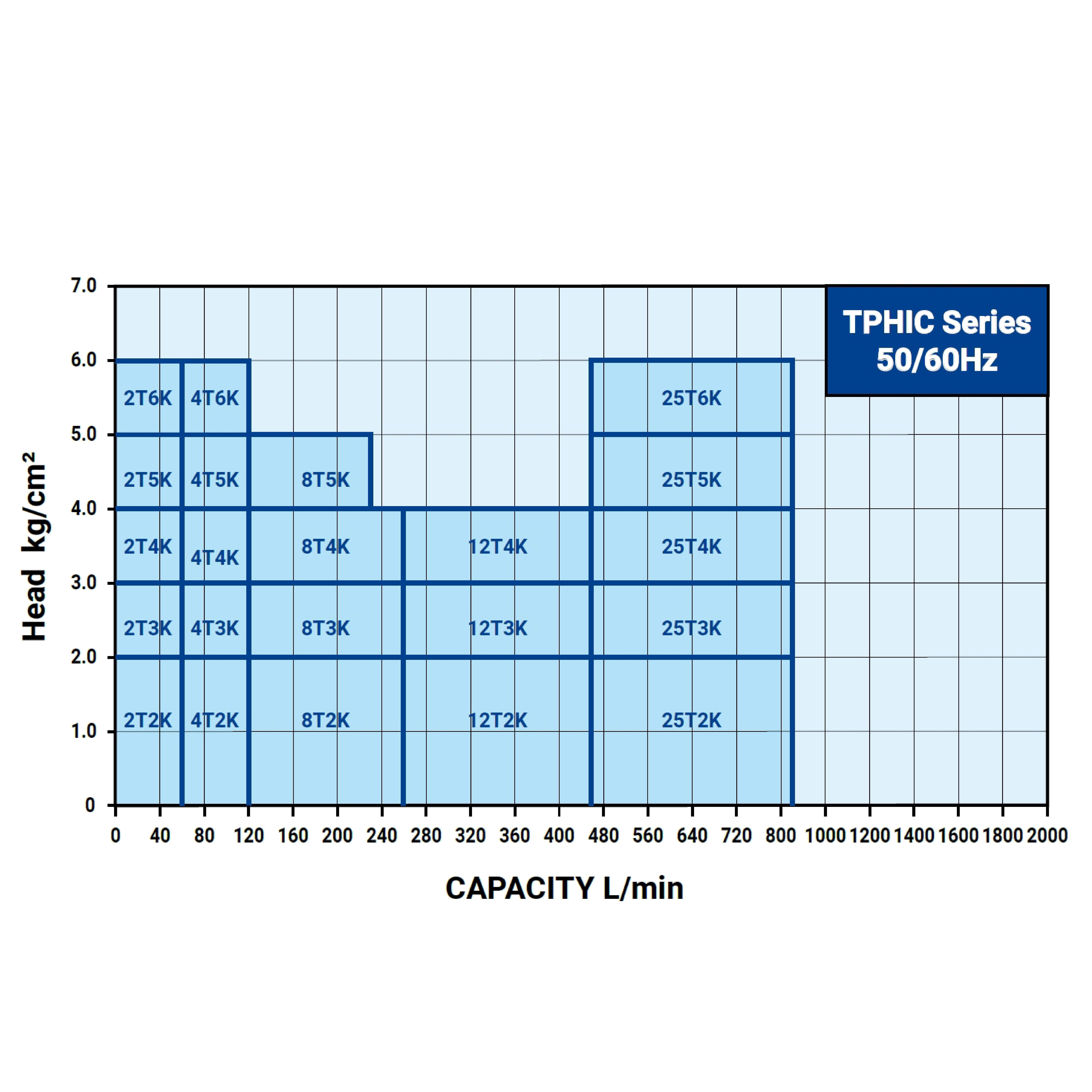

Motor Power (kW)

Inverter Power (kW)

Pre-Set Pressure (kg/cm²)

Nominal Set Flow (L/min)

0.38 x2 - 6.95 x2

0.75 x2 - 7.5 x2

Up to 8.0

Up to 830

Features

Inverter Controller

The motor starts smoothly during water usage, with the inverter controller continuously adjusting the motor speed via pressure sensor feedback to maintain stable pressure at the preset value.

Smart and Energy-Saving

The pump will maintain a constant operating pressure at the pressure setting, ensuring a stable water supply even though occasionally the output flow is over the capacity.

Dry-Run Protection

Auto shutoff after 1 minute of dry run; restarts hourly until water is restored.

Auto Stop Upon Flow Interruption

The pump will automatically cycle down as water usage decreases.

Pressure Compensation

Automatically detects pressure loss and operates the pump to maintain the pressure setting if there is leakage or dripping in the piping system.

Parallel Operation

When a single unit cannot meet the required pressure and flow, a second unit automatically starts to operate in parallel. It shuts down once demand decreases and one unit is sufficient.

Interchangeable Mode

When a pump has operated through the preset interval (adjustable at 0-24 hours) the system will automatically switch to the other unit. This cycle will continue through time.

Low-Noise Operation

The horizontal multistage centrifugal pump features low operational noise.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+4°C ~ +75°C

System Pressure

Max. 10 kg/cm²

Inlet Pressure

Lower than the constant pressure setting limit.

Motor

Enclosure Protection Class

IP44 (Standard type)
IP54 (Optional)

Insulation Class

Model code

Select Frequency

50 Hz

60 Hz

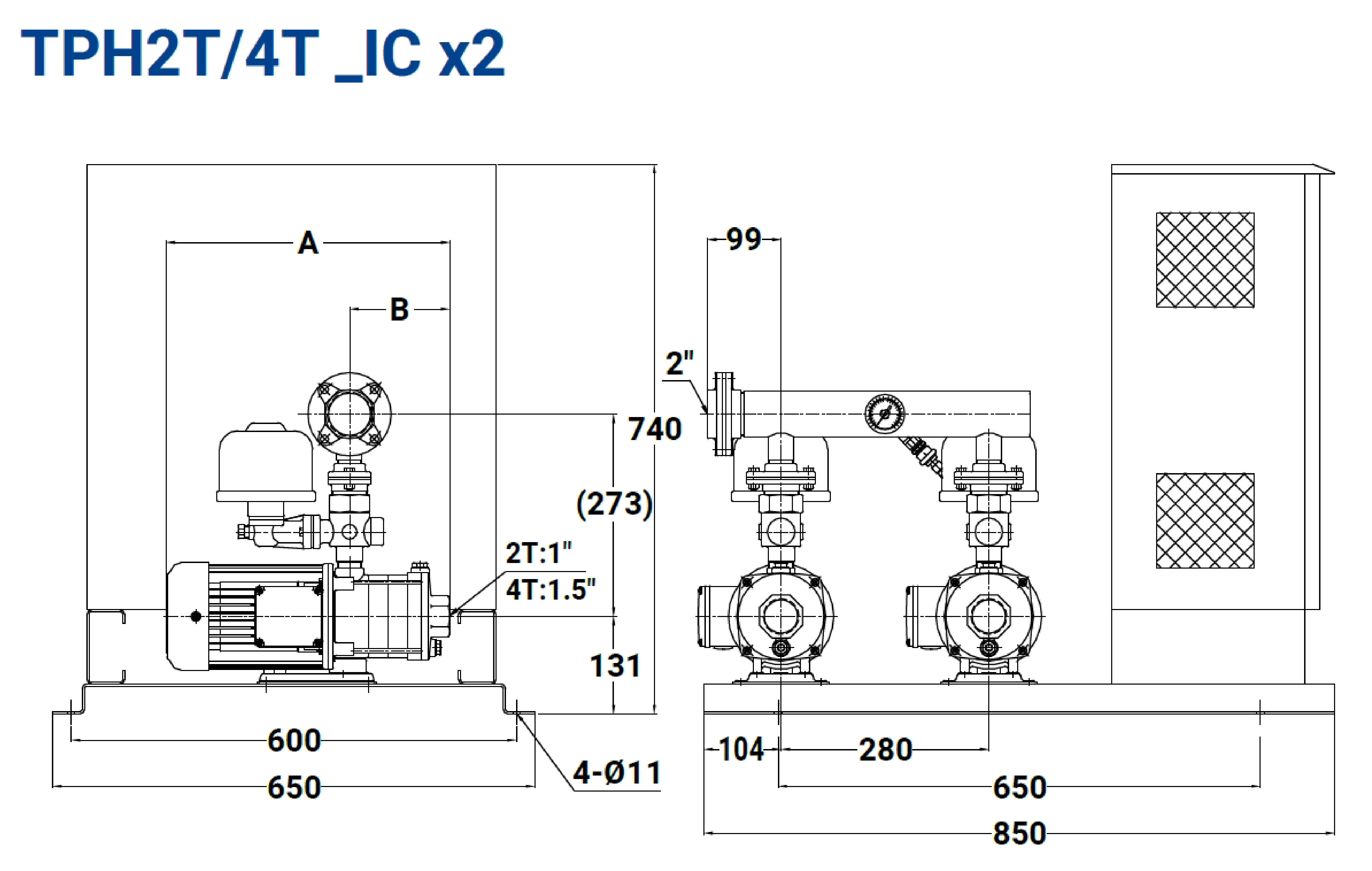

TPH2T_IC x2

TPH4T_IC x2

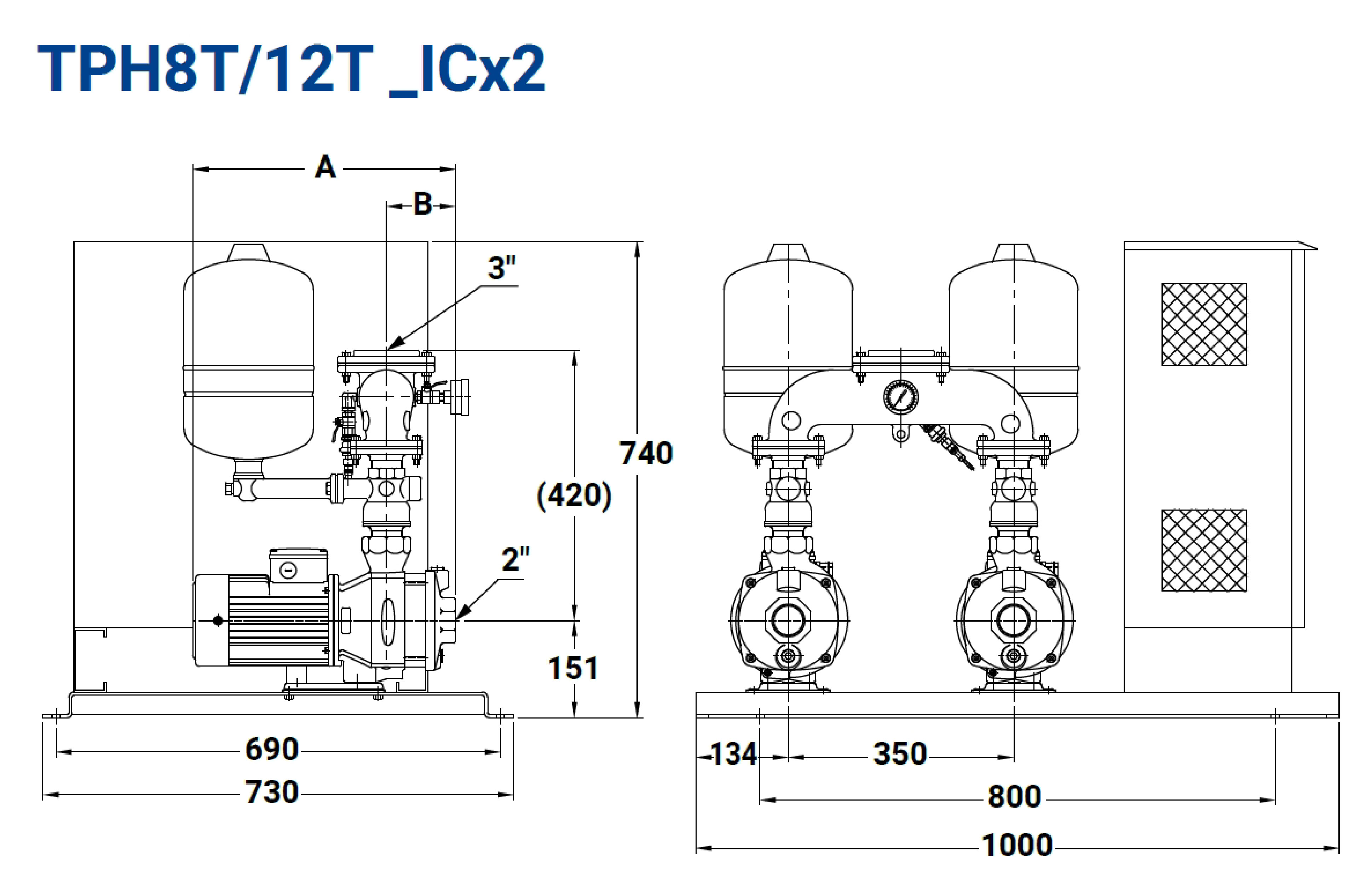

TPH8T_IC x2

TPH12T_IC x2

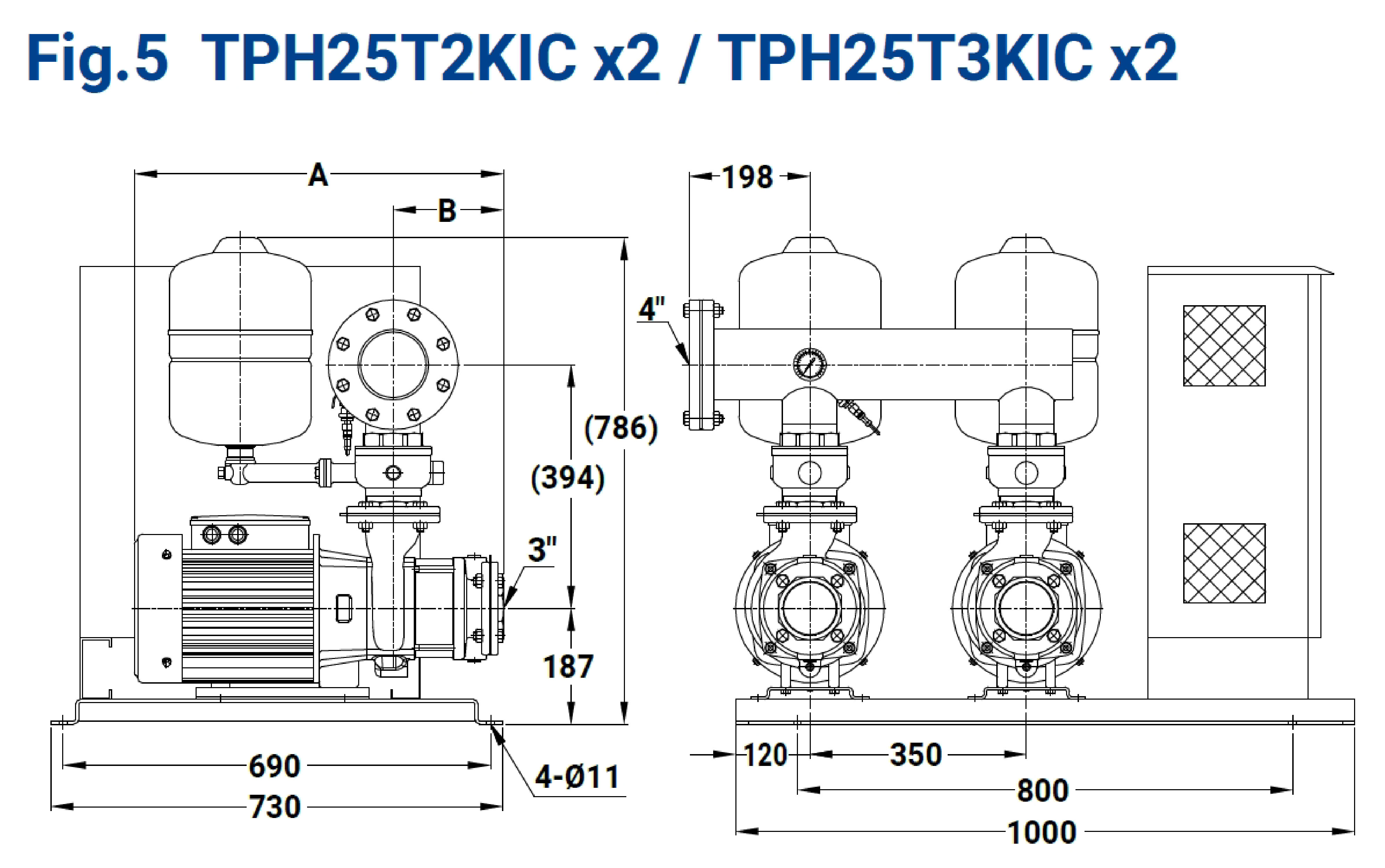

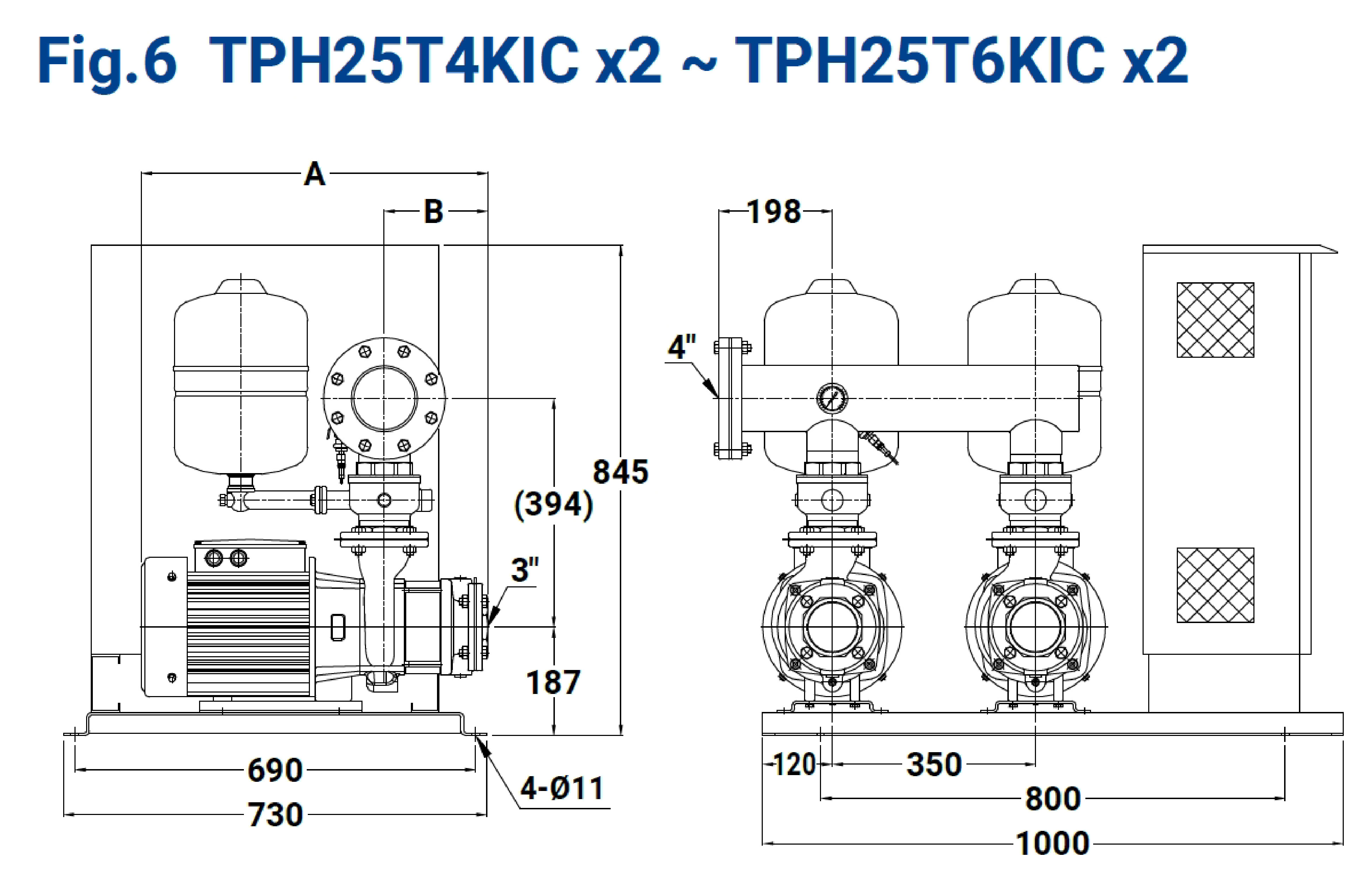

TPH25T_IC x2

TPH_IC x2 Series Applications

Construction Industry

Commercial HVAC Systems

Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.

Construction Industry

Building Water Supply Systems

Meeting the water extraction, storage, and constant pressure supply needs of large buildings and construction projects. Paired with VFDs, the system adjusts pressure based on water demand, ensuring a stable and uninterrupted water supply.

Construction Industry

Rainwater Harvesting and Treatment

Transfers rainwater from collection points to storage tanks, providing stable pressure for secondary uses such as irrigation, firefighting reserves, and cleaning. Supports water level sensing and smart control for automatic start-stop based on demand.

Entertainment & Leisure Industry

Irrigation for Landscaping

Ideal for efficiently transporting irrigation water to green spaces and planting areas. Integrated with automated sprinklers, smart sensors, and recycled water sources to optimize water usage, achieving energy and water conservation goals.

Entertainment & Leisure Industry

Aquatic Facility Water Systems

Providing water circulation, pressure regulation, and filtration support. Ensuring stable transport of large volumes of water to water entertainment facilities, enhancing guest safety and experience.

Entertainment & Leisure Industry

Commercial HVAC Systems

Accommodation & Food Service Industry

Hot Spring Water Transport

Extracting high-temperature spring water from storage wells or heat sources to various hot spring pools, spa areas, and heating circulation systems, ensuring adequate water flow and consistent temperature.

Accommodation & Food Service Industry

Large-Scale Shower Systems

The pump with inverter system addresses issues such as low water pressure, uneven water flow, and temperature fluctuations during peak times, ensuring a continuous and stable water supply that enhances customer comfort and satisfaction.

Accommodation & Food Service Industry

Commercial HVAC Systems

Agriculture, Forestry, Fishery and Animal Husbandry

Water Supply for Horticulture and Reforestation

Delivers water to lawns, gardens, and landscaping areas, ensuring even distribution. Adjusts water flow based on soil, climate, and time for precise irrigation and spraying, reducing resource waste.
