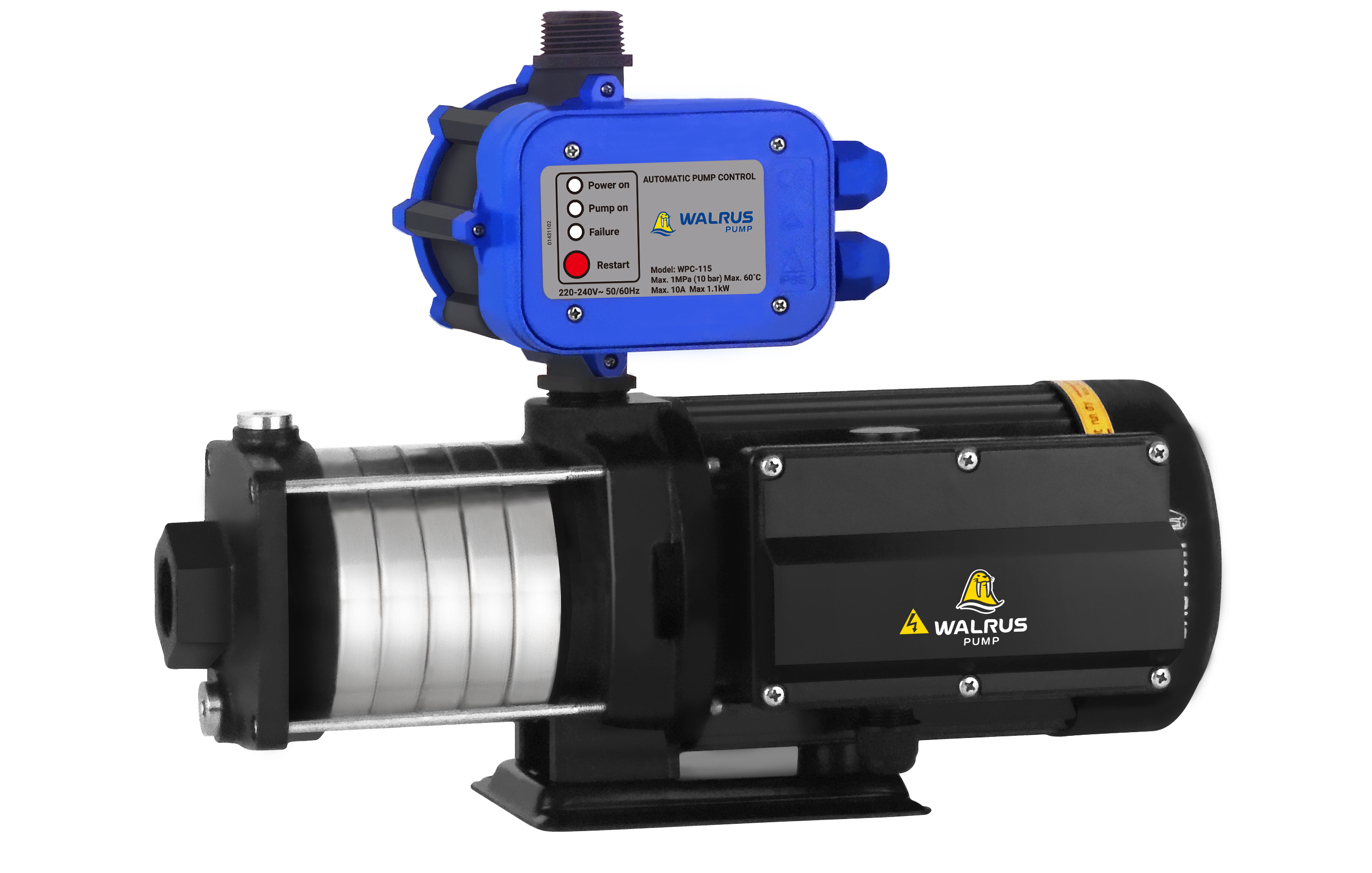

Model | TPH2T6KQ

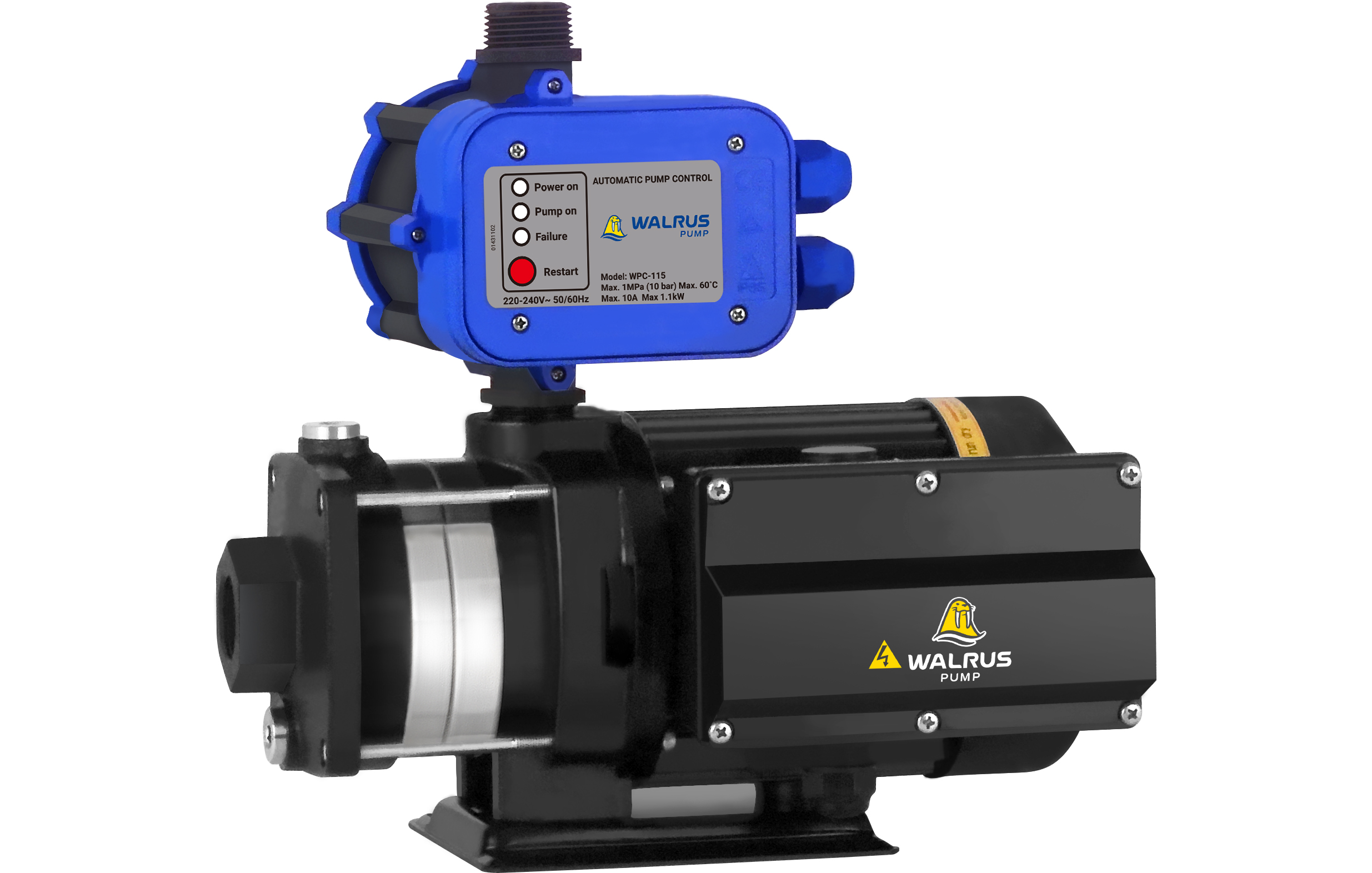

Model | TPH2T3KQ

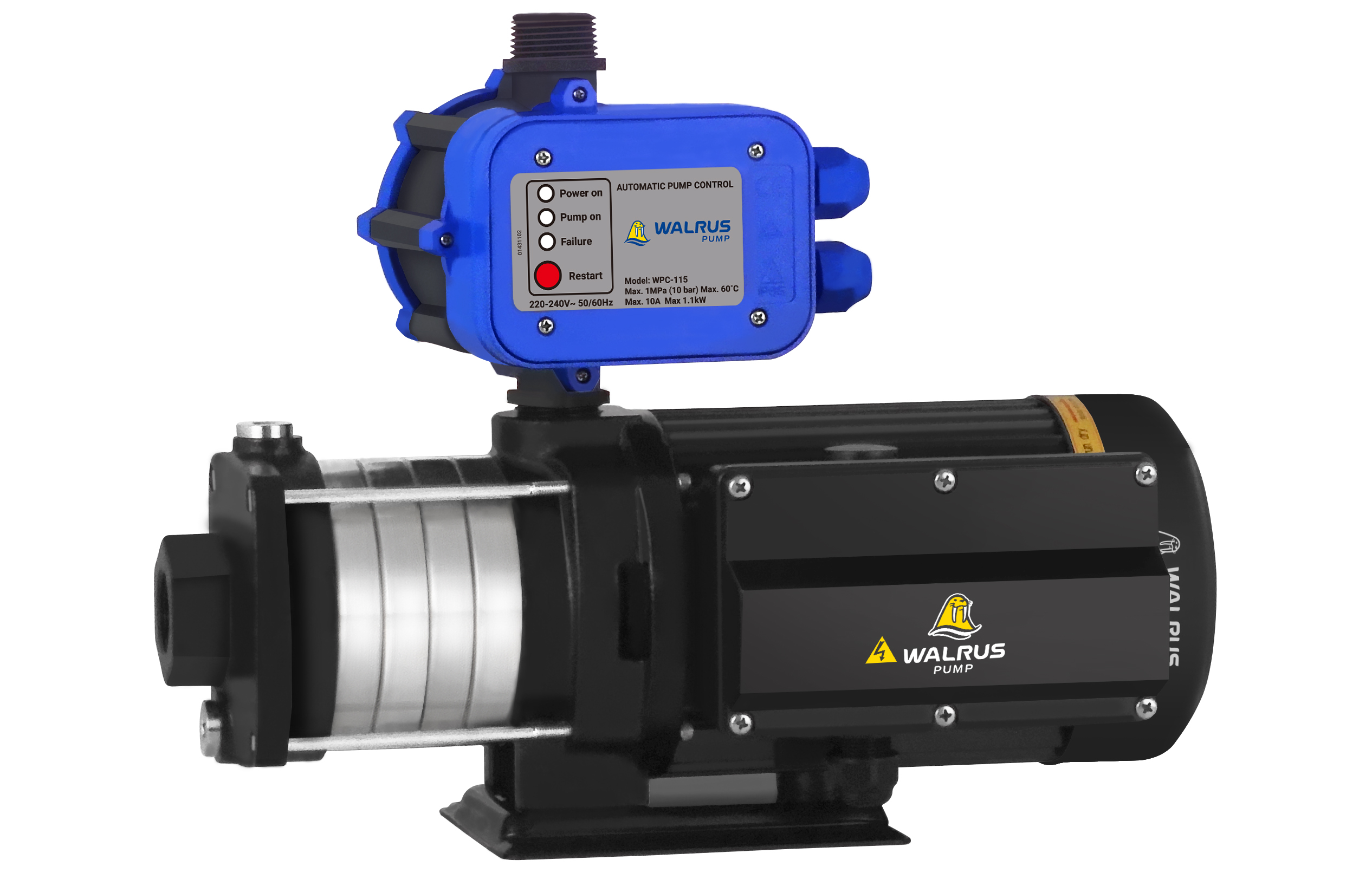

Model | TPH2T5KQ

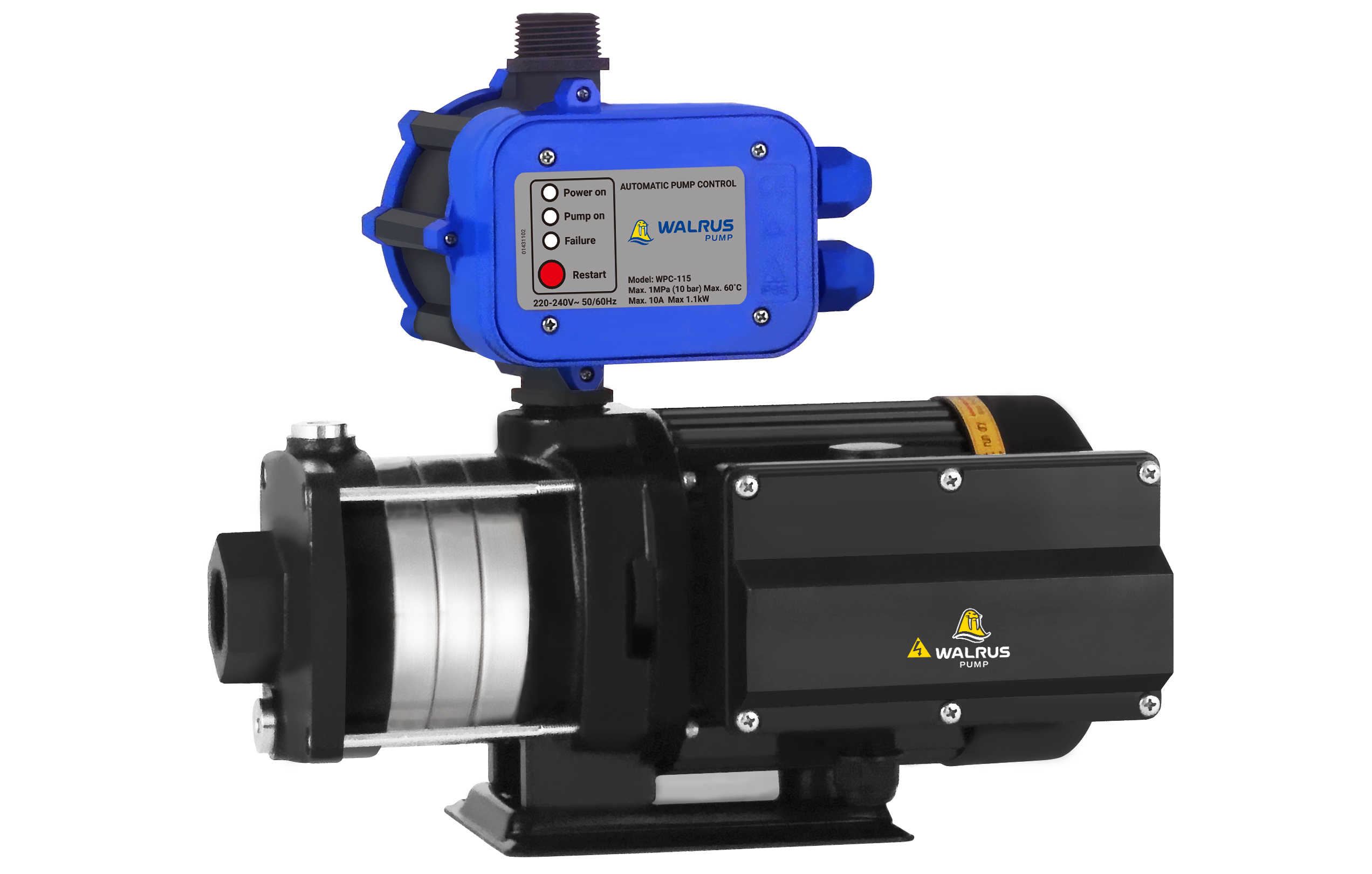

Model | TPH2T4KQ
Model | TPH4T4KQ

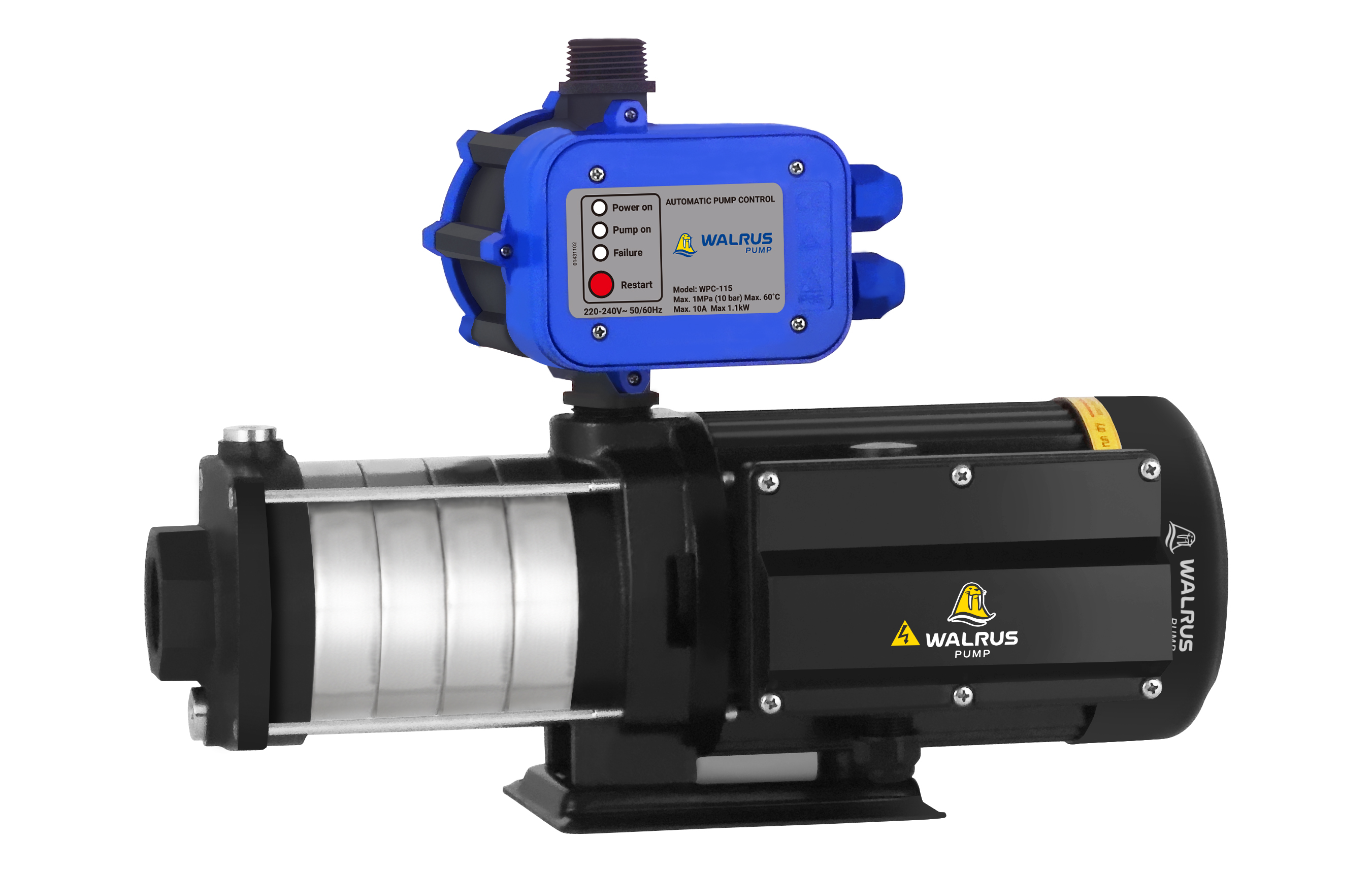

Model | TPH4T5KQ

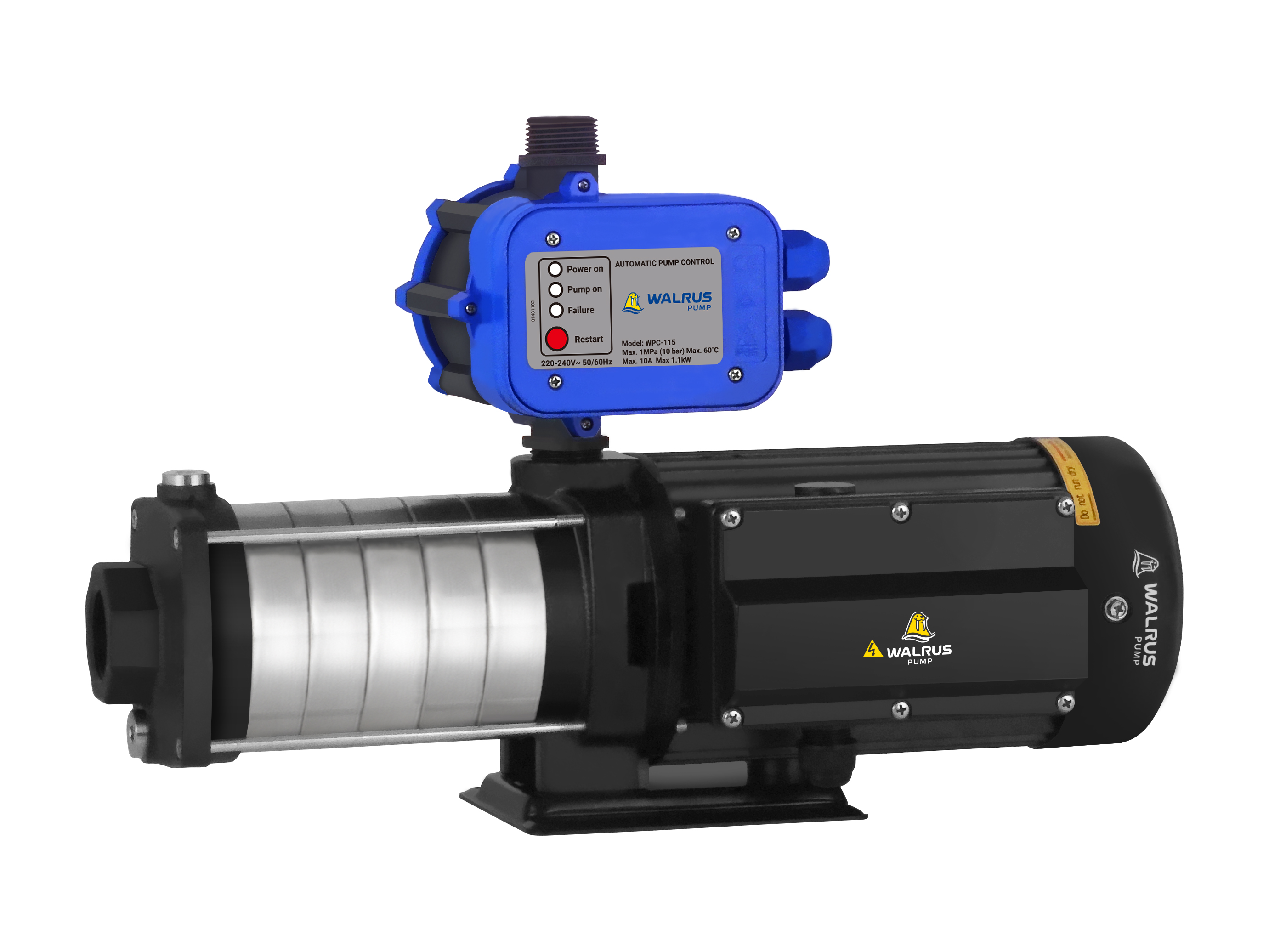

Model | TPH4T6KQ

Horizontal Centrifugal Pump

Booster Pump
TPH_Q Series

  • Suitable for water flow requirements between 3 to 6 kg.
  • Equipped with dry-run protection. Your Safety, Our Priority.
  • Using SUS304 stainless steel centrifugal impellers, quiet and durable.
Construction Industry Entertainment & Leisure Industry Accommodation & Food Service Industry Agriculture, Forestry, Fishery and Animal Husbandry Wholesale & Retail Trade Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37 - 1.1
Up to 56
Up to 160

Features

Low-Noise Operation
SUS304 stainless steel impeller runs quietly and is safe for drinking water.
Integrated with a Flow Controller
Flow controller reduces damage from water hammer.
Automatically Starts and Stops
Built-in electronic controller automatically starts and stops the pump to maintain stable pressure.
Dry-Running Protection
Dry-running protection prevents overheating when running without water, ensuring safety.
Anti-Cycling Function
Anti-cycling function prevents frequent start-stop due to low flow.
Suitable for 3~6 kg Water Flow Applications
Suitable for water flow requirements between 3 to 6 kg.
Flexible Configuration
The number of impeller segments can be adjusted to suit different application requirements.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+0°C ~ +90°C
Operating Pressure
Max. 10 kg/cm²
nlet Pressure
Max. 6 kg/cm²

Motor

Frequency
50Hz
Nominal Speed
2900 rpm
Enclosure Protection Class
IP54
Insulation Class
F

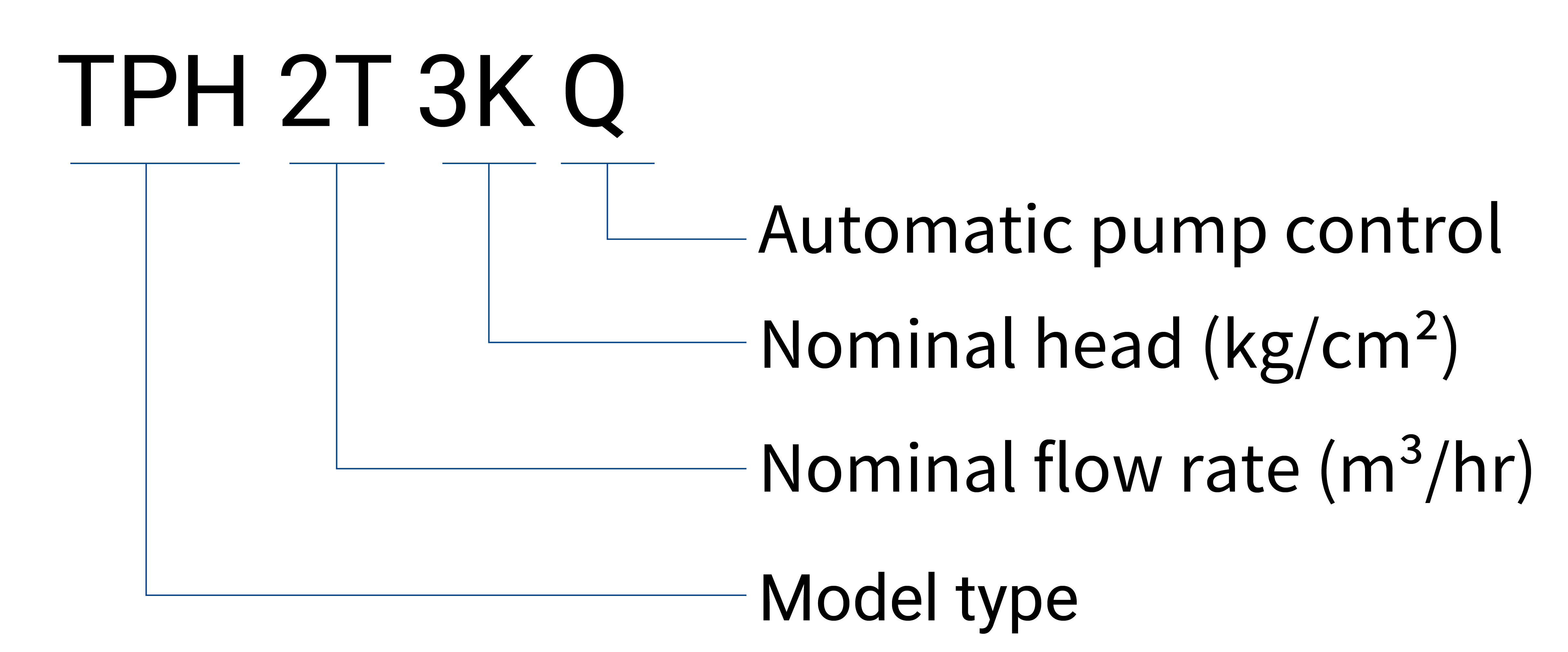

Model code

Select Frequency

TPH2T_Q

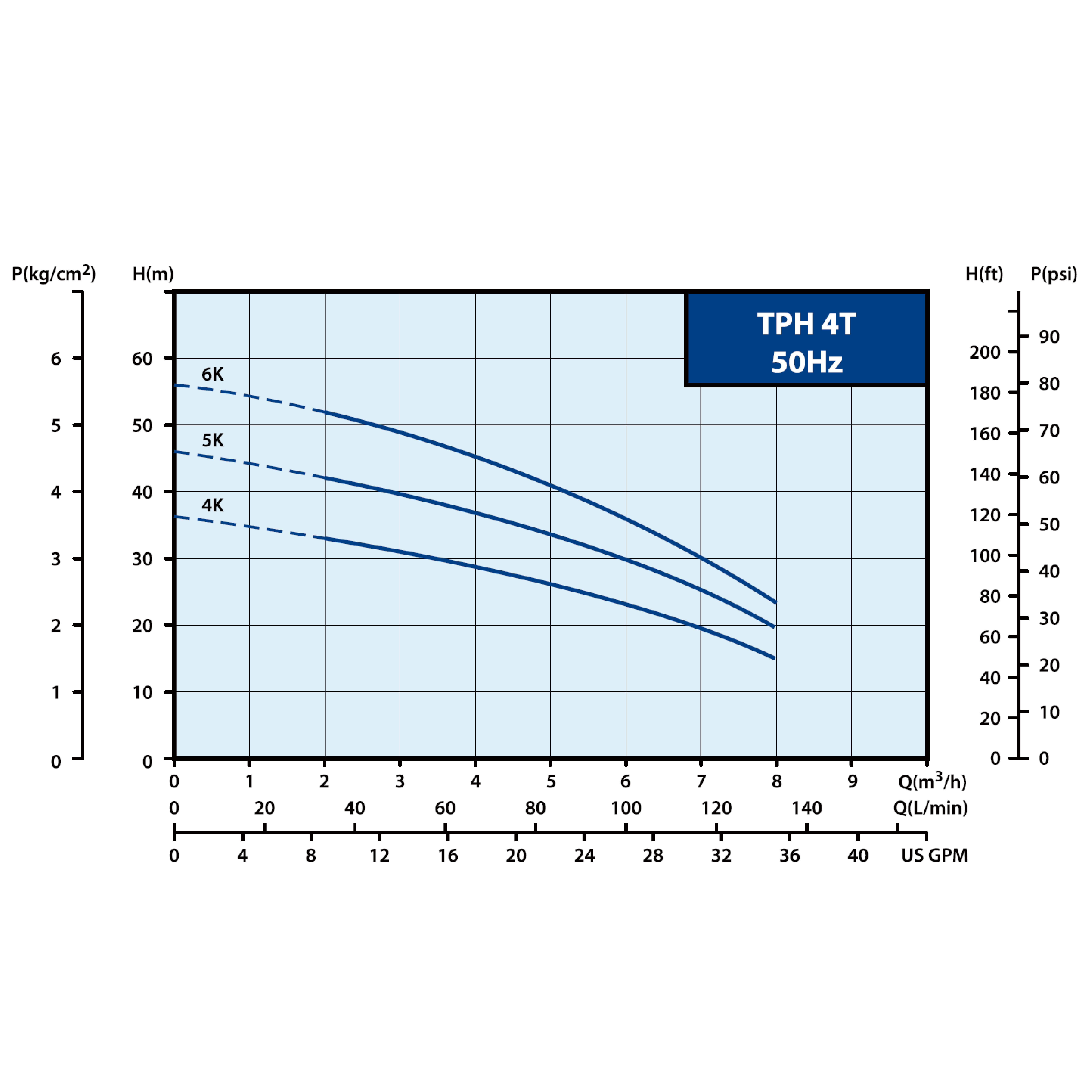

TPH4T_Q

TPH_Q Series Applications

Construction Industry
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Construction Industry
Building Water Supply Systems
Meeting the water extraction, storage, and constant pressure supply needs of large buildings and construction projects. Paired with VFDs, the system adjusts pressure based on water demand, ensuring a stable and uninterrupted water supply.
Construction Industry
Domestic Water Supply
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
Entertainment & Leisure Industry
Irrigation for Landscaping
Ideal for efficiently transporting irrigation water to green spaces and planting areas. Integrated with automated sprinklers, smart sensors, and recycled water sources to optimize water usage, achieving energy and water conservation goals.
Entertainment & Leisure Industry
Commercial Water Supply
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
Entertainment & Leisure Industry
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Accommodation & Food Service Industry
Commercial Water Supply
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
Accommodation & Food Service Industry
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Agriculture, Forestry, Fishery and Animal Husbandry
Irrigation
Delivers water to irrigation points for even moisture distribution across soil and plants. With inverters, settings can be adjusted based on soil moisture, weather conditions, and water demand to improve resource efficiency.
Agriculture, Forestry, Fishery and Animal Husbandry
Water Supply for Animal Husbandry and Aquaculture
Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
Agriculture, Forestry, Fishery and Animal Husbandry
Water Supply for Horticulture and Reforestation
Delivers water to lawns, gardens, and landscaping areas, ensuring even distribution. Adjusts water flow based on soil, climate, and time for precise irrigation and spraying, reducing resource waste.
Wholesale & Retail Trade
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Wholesale & Retail Trade
Commercial Water Supply
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
Service Industry
Domestic Water Supply
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
Service Industry
High-Pressure Water Supply and Cleaning Systems
Delivers powerful water pressure for efficient water supply, supporting cleaning, cooling, disinfection, and spraying. Optimized pump solutions meet diverse industry water needs.

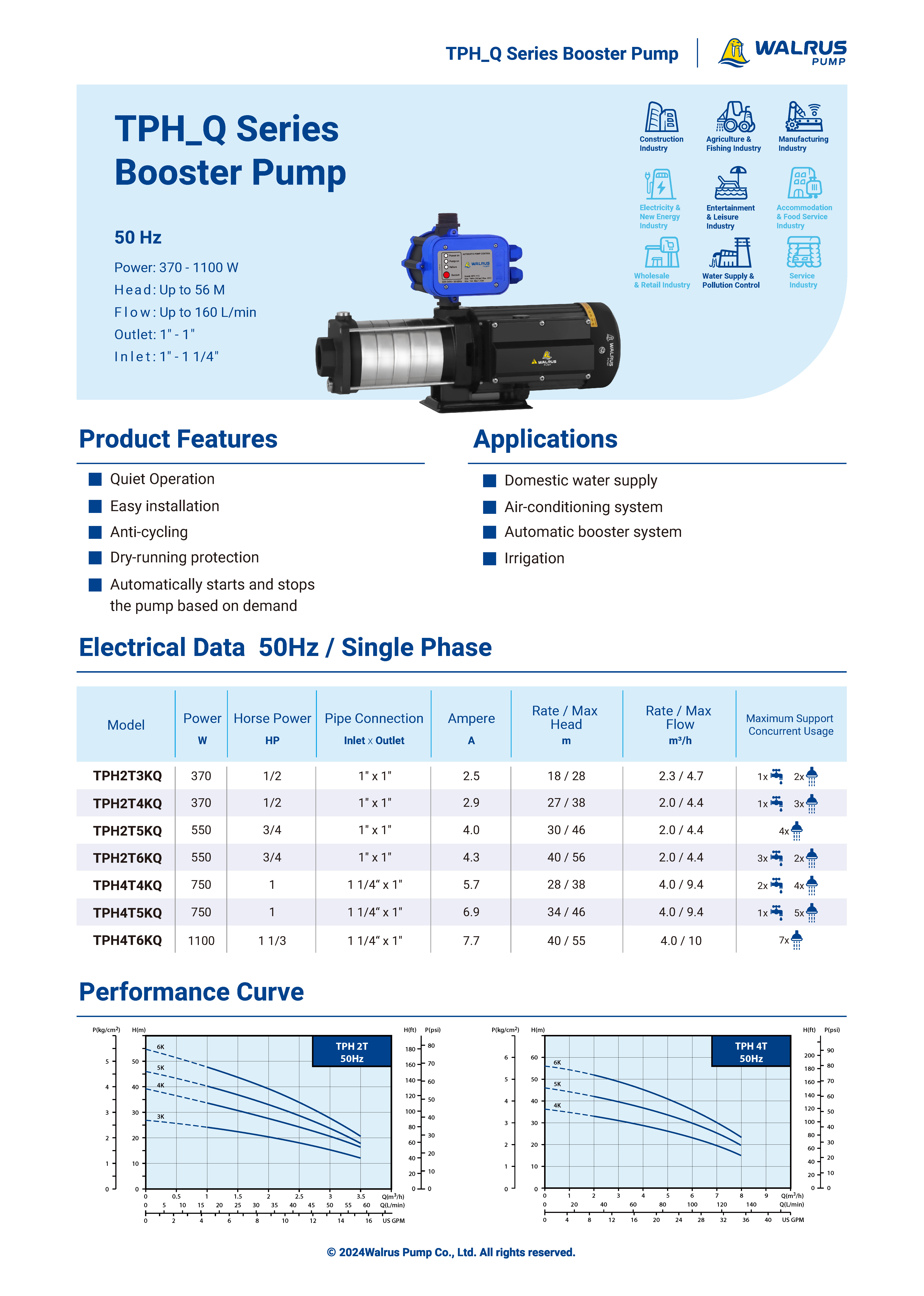

TPH-Q_Product Catalogue
