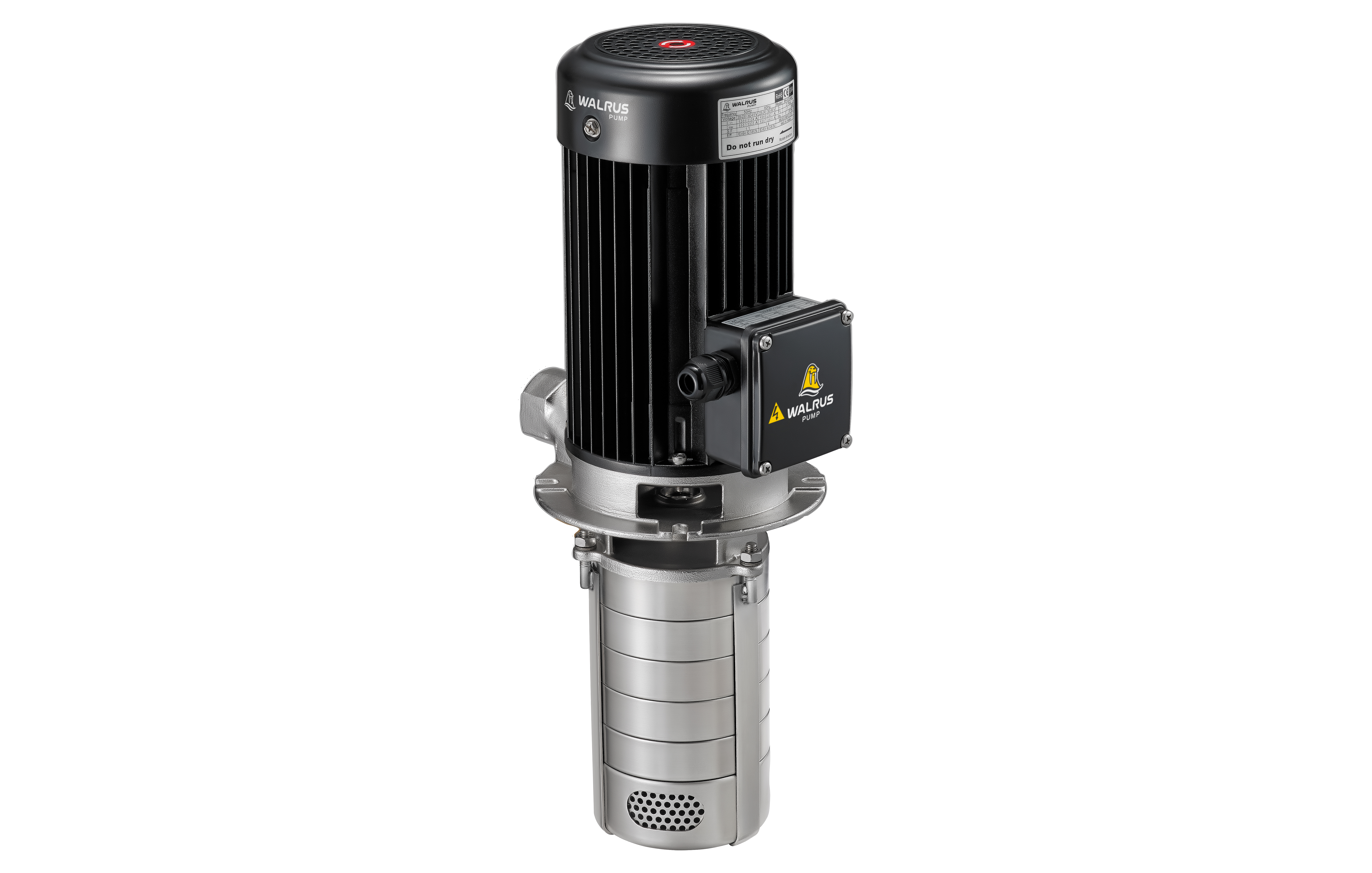

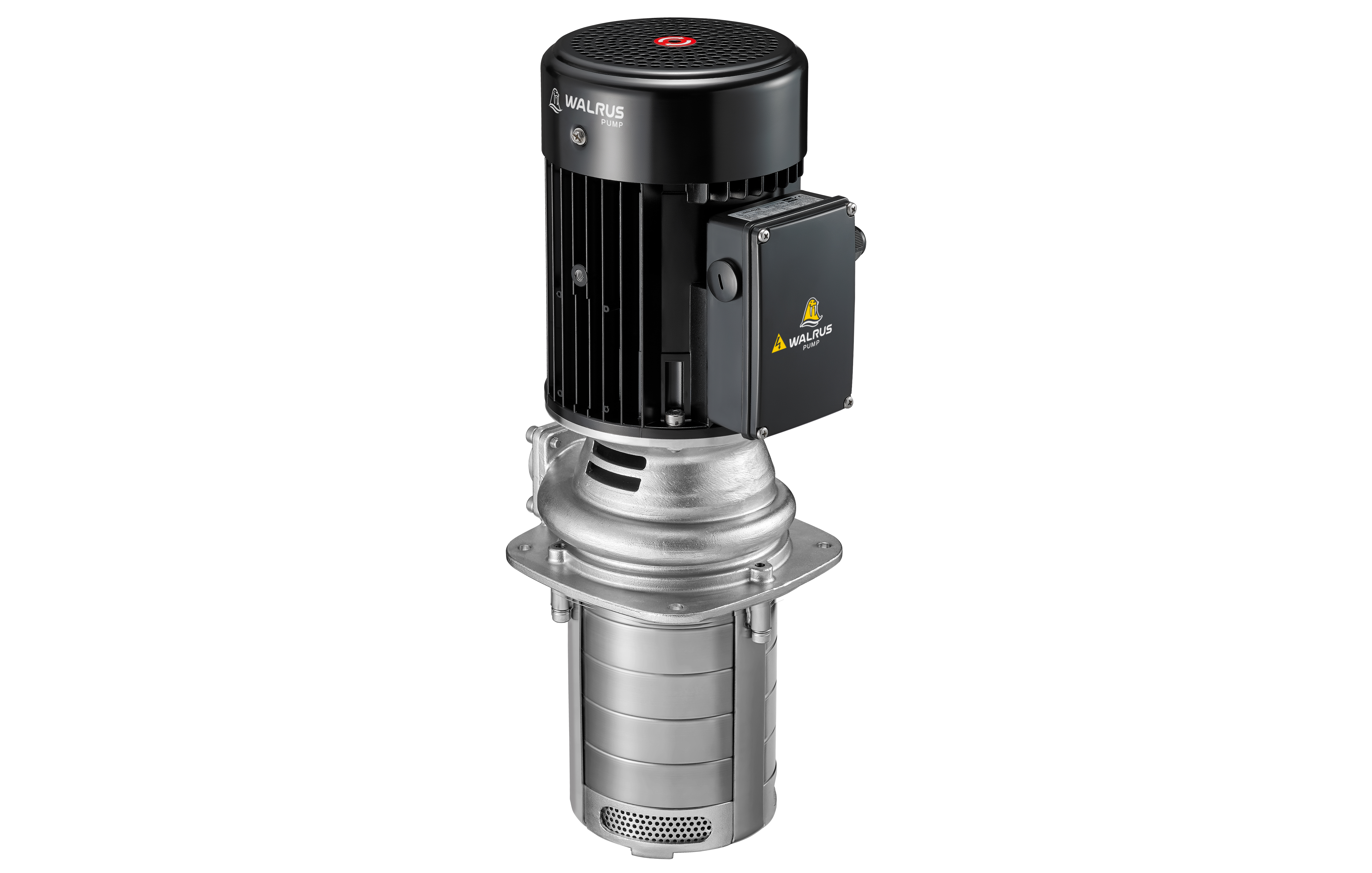

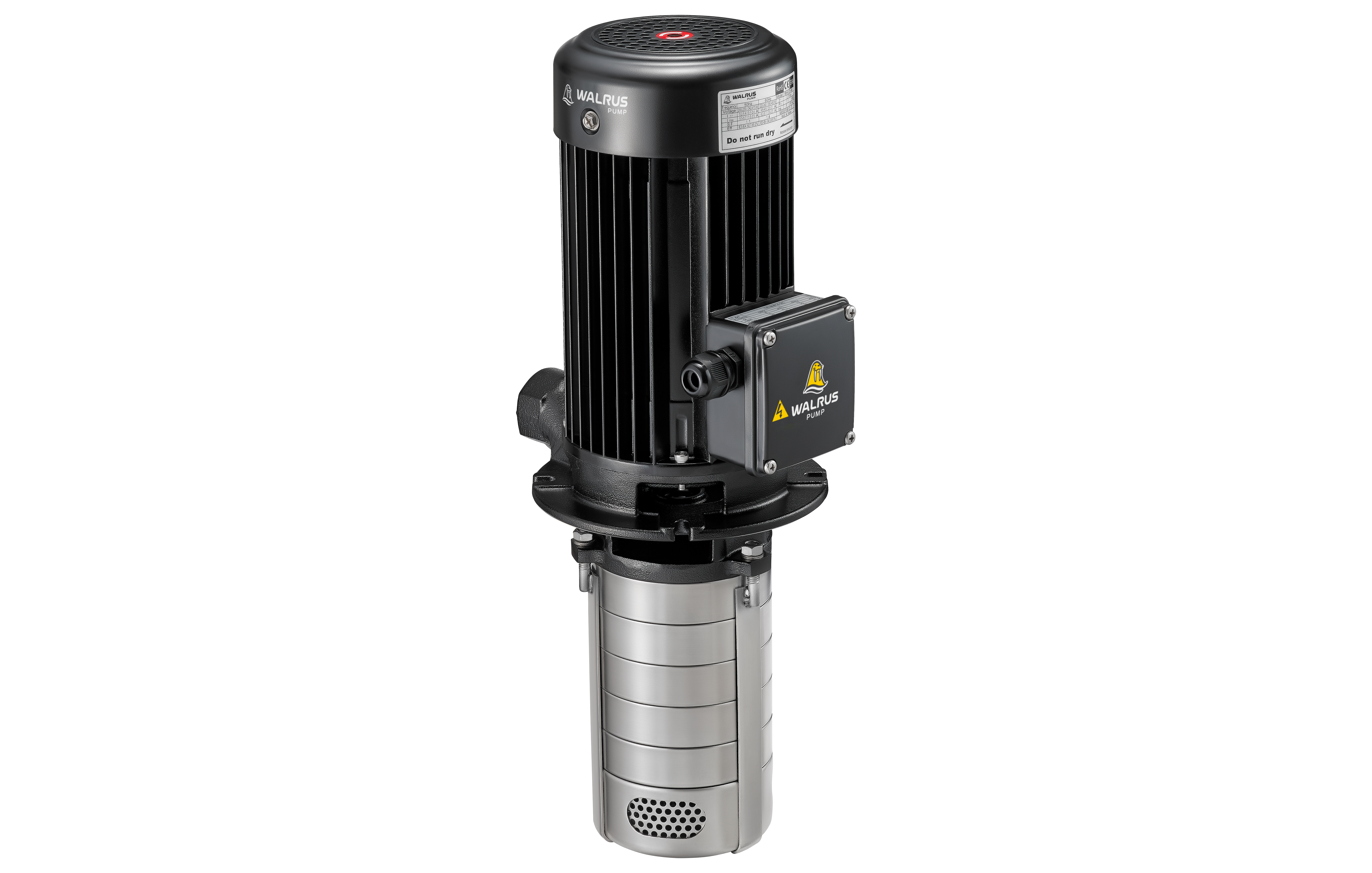

Immersible Centrifugal Pump

Multi-Stage Immersible Pump
TPHK Series

Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.
In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.
Different material options are available for pump casings and seals depending on the application.

Manufacturing Industry

Frequency (Hz)

Power (kW)

Head (M)

Flow (L/min)

0.37 - 3.4

Up to 65

Up to 280

0.37 - 3.7

Up to 90

Up to 280

Features

Stability and Reliability

A centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.

Flexible Configuration

The number of impeller segments can be adjusted to suit different application requirements

Energy Efficient

Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.

Low-Noise Operation

The immersible multistage centrifugal pump features low operational noise.

Material Selection

Different material selections are offered for pump casings and seals for various liquid applications.

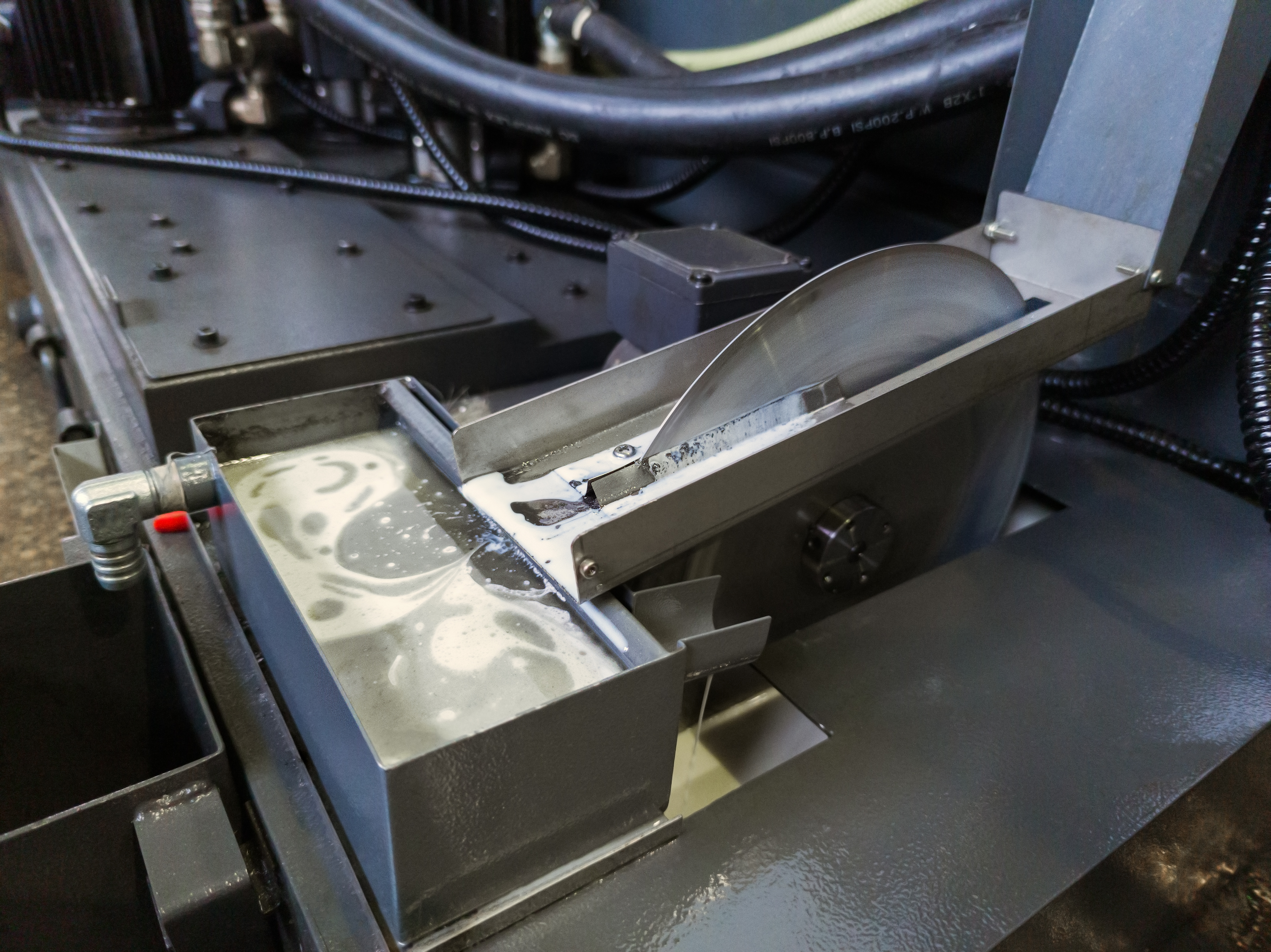

Ideal for the Machine Tool

Designed for industrial use, especially for machine tools. It is suitable for carrying fluids such as water, coolant, light oil and other clean, non aggressive matters.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+0°C ~ +90°C

Operating Pressure

Max. 10 kg/cm²

Submerged Depth

Min. 40 mm

Motor

Frequency Range

50 / 60 Hz

Nominal Speed

2900 / 3500 rpm

Enclosure Protection Class

IP54

Insulation Class

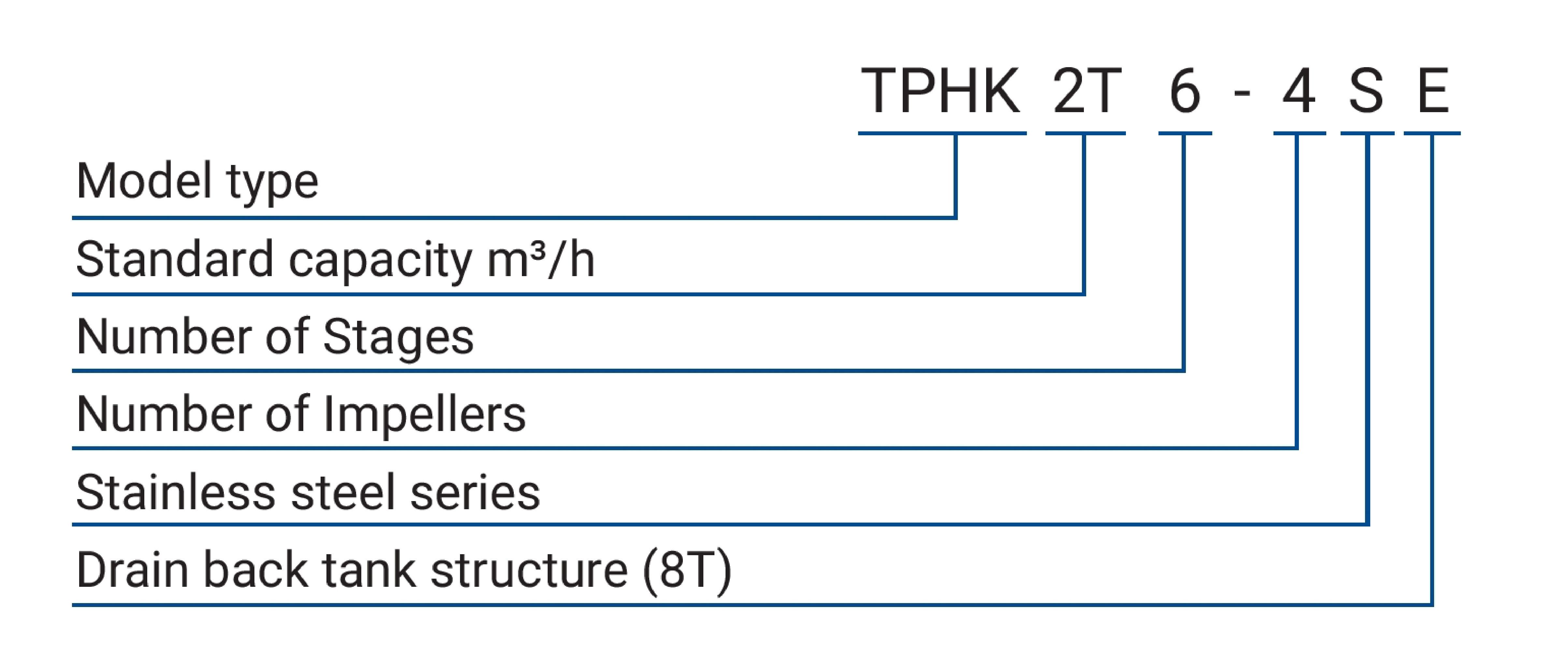

Model code

Select Frequency

50 Hz

60 Hz

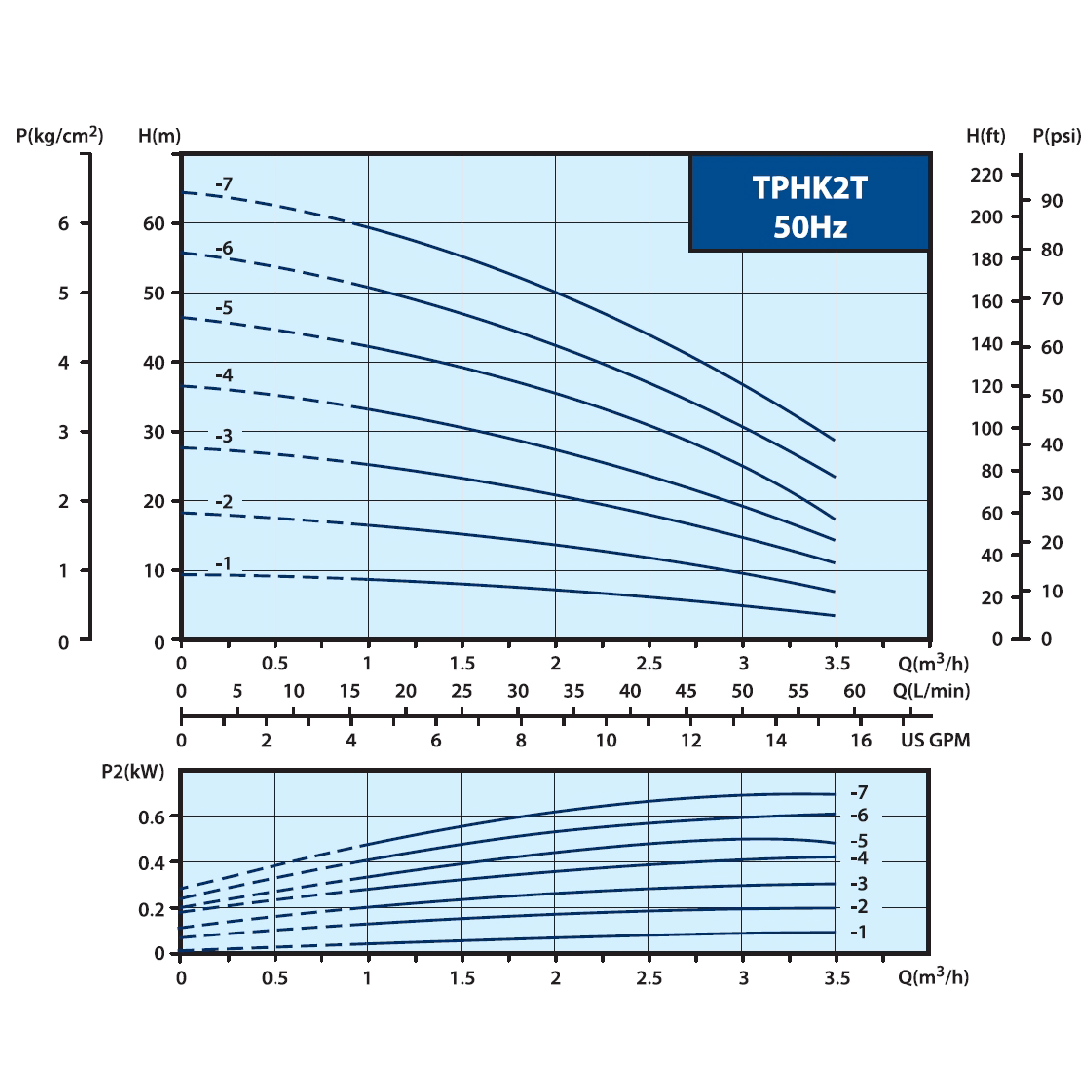

TPHK2T

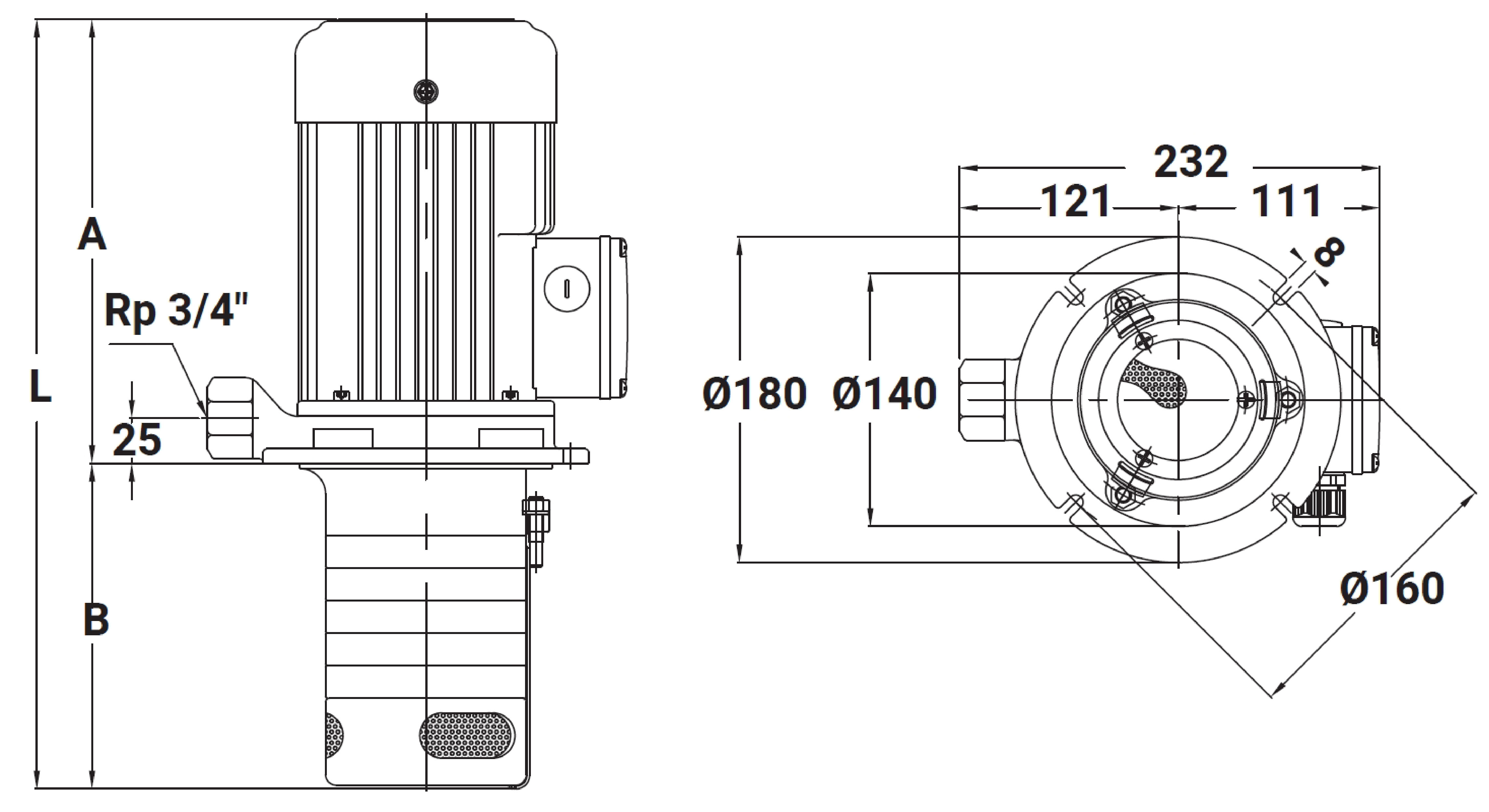

TPHK4T

TPHK8T

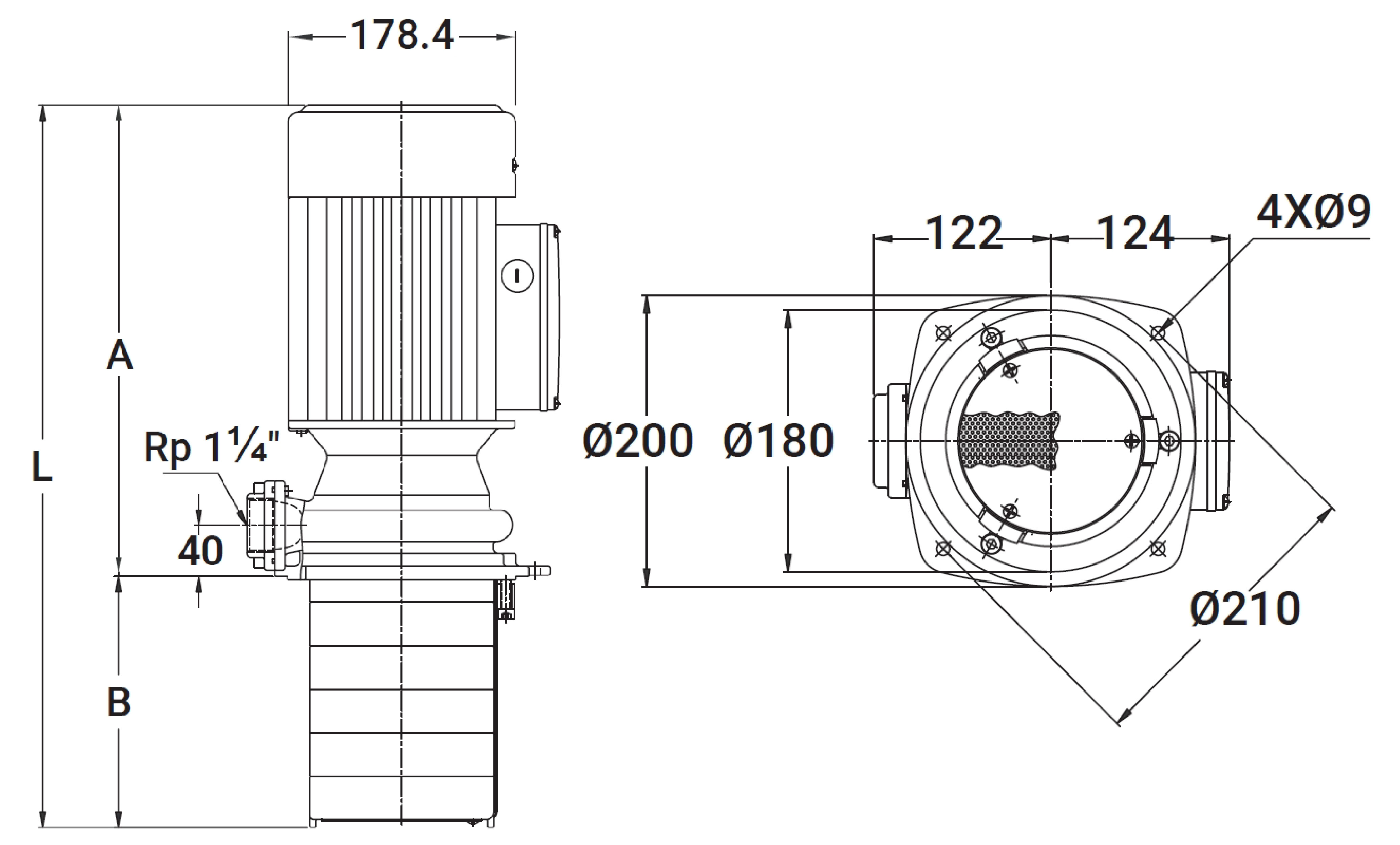

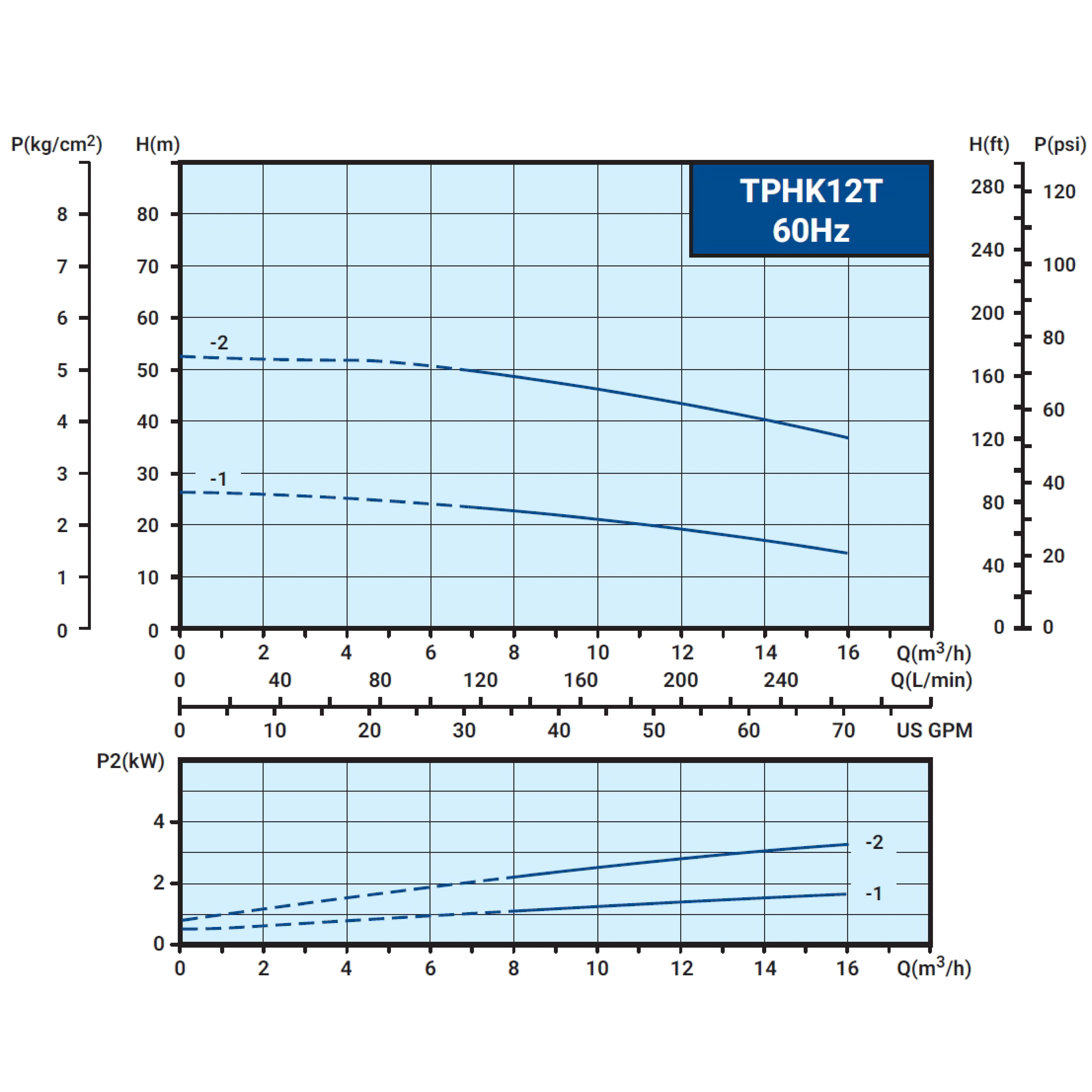

TPHK12T

TPHK Series Applications

Manufacturing Industry

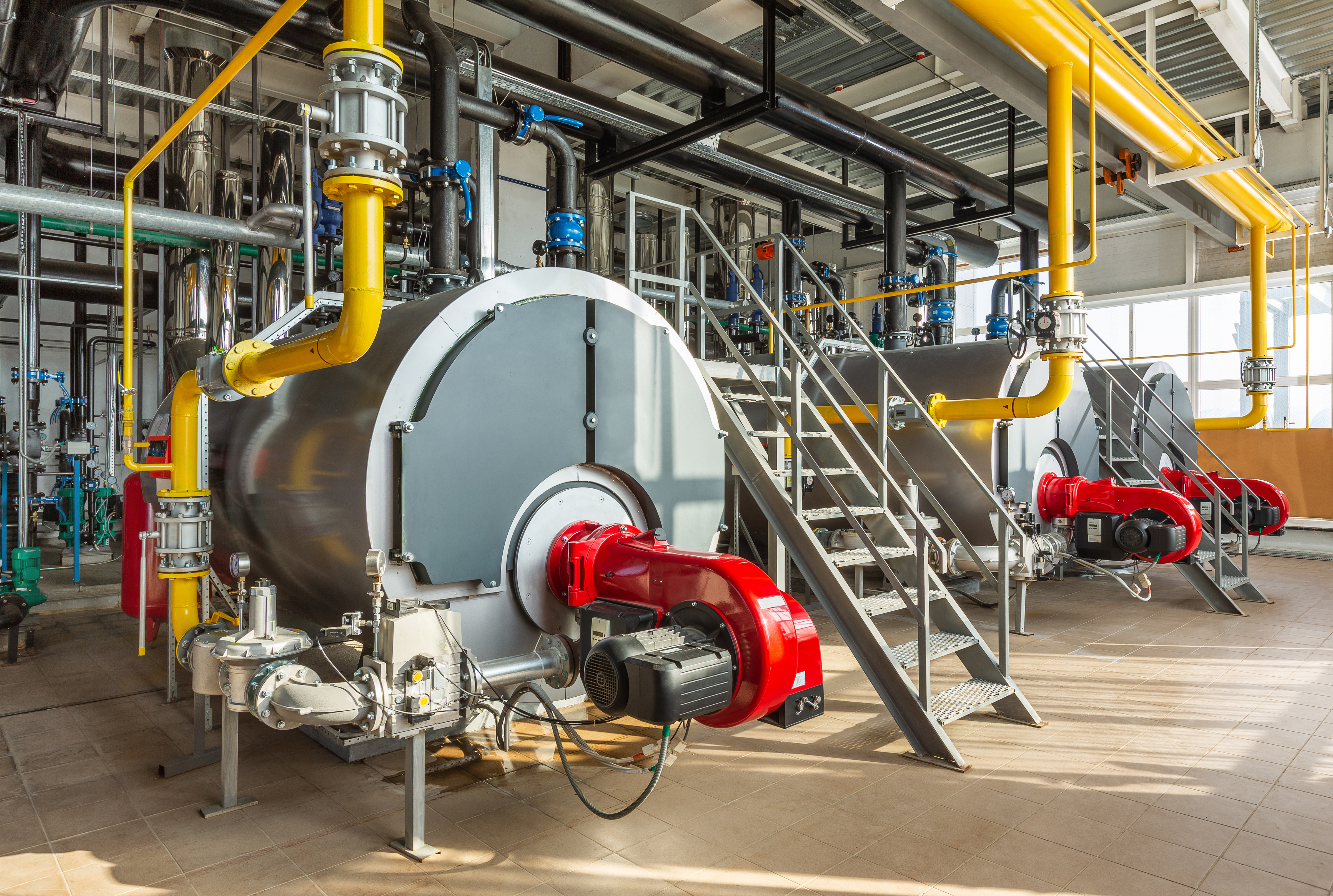

Hot and Cold Liquid Transfer

Meeting the water needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas, maintaining low temperature environments for machinery or steady heat flow, and ensuring overall stable operation

Manufacturing Industry

Data Center Cooling

Meets the cooling and heat dissipation needs of technology servers, efficiently removing the large amount of heat generated during operations to ensure stable equipment performance. Providing innovative pump solutions in response to the growing demand of the AI era.

Manufacturing Industry

Industrial Filtration

Reliable and efficient transportation to storage tanks or subsequent processing stages ensures continuity and consistent quality. Integration with filtration and recycling systems enables cost-effective reuse, further enhancing operational efficiency.

Manufacturing Industry

Industrial Process Cooling

Circulating coolant solutions dissipate heat, ensuring stable operation of industrial equipment, maintaining precise output quality, and enhancing production efficiency.

Manufacturing Industry

Industrial Process Cleaning

Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants, ensuring high-quality results for subsequent processes.
