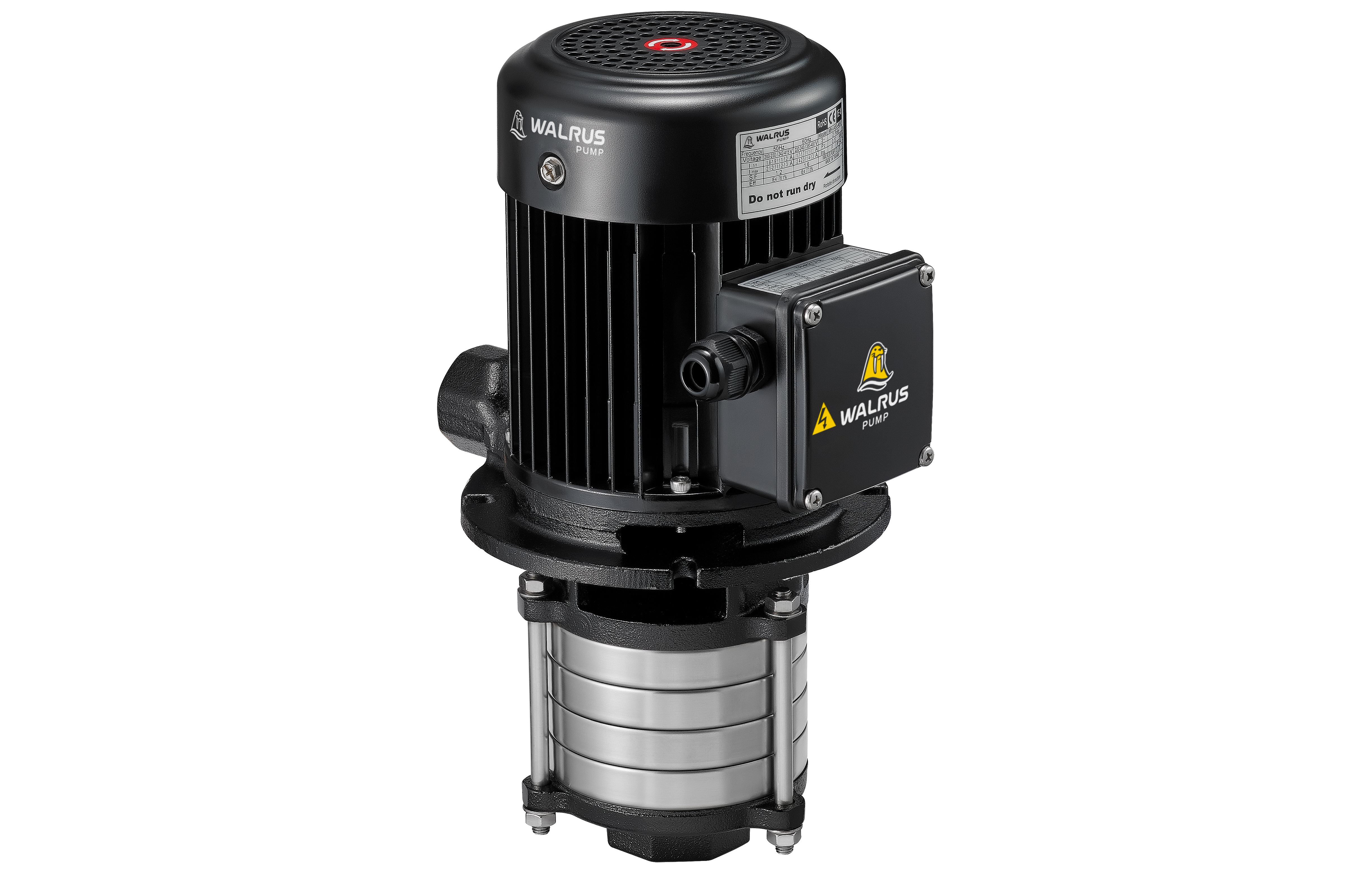

Model | TPHK2T3-3L

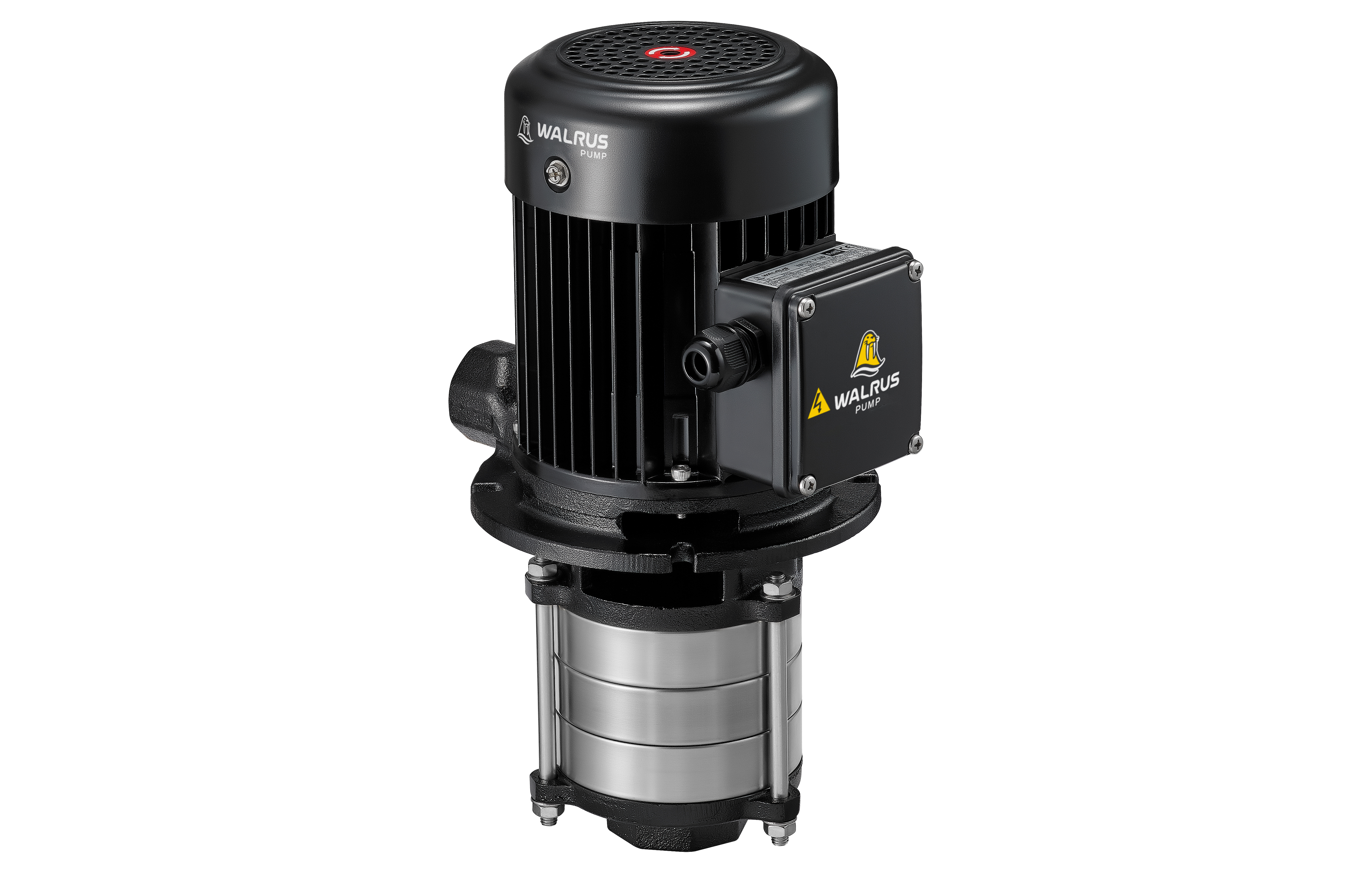

Model | TPHK4T2-2L

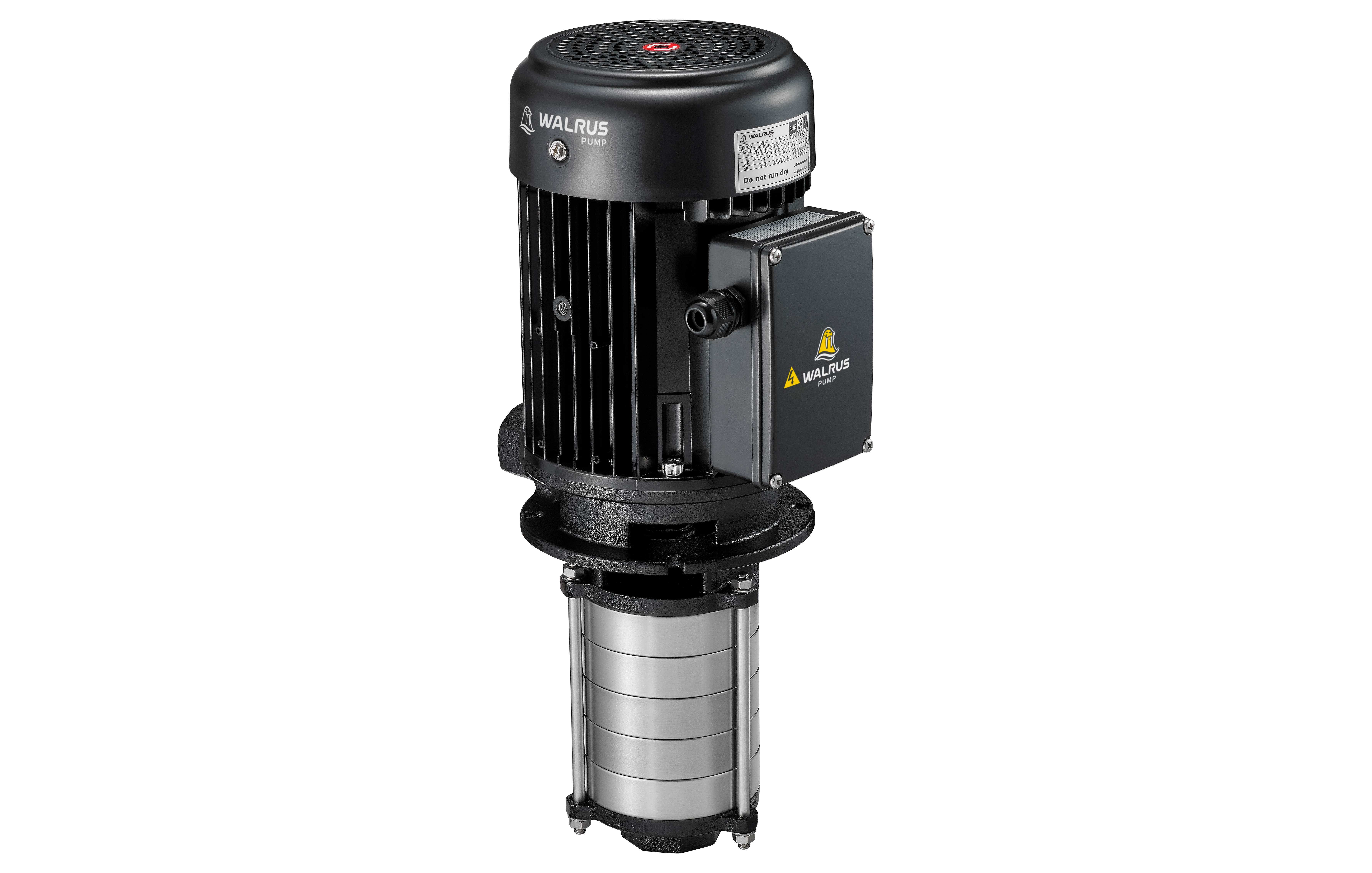

Model | TPHK8T3-3EL

Immersible Centrifugal Pump

Multi-Stage Immersible Pump
TPHK_L Series

  • The design of the extended pipe is ideal for deep tanks.
  • Patented drain back tank design allows the leaked liquids to flow back to the tank without interrupting the process.
  • In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.
  • Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.
Manufacturing Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37 - 3.4
Up to 70
Up to 165
60
0.37 - 3.7
Up to 90
Up to 230

Features

Drain Back Tank
Patented drain back tank structure allows the leaked liquids to flow back to the tank without interrupting the process.
Ideal for Deep Tank
The design of the extended pipe is ideal for deep tanks, effectively helping customers reduce usage costs and achieve optimal product benefits.
Stability and Reliability
A centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.
Flexible Configuration
The number of impeller segments can be adjusted to suit different application requirements
Energy Efficient
Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.
Low-Noise Operation
The immersible multistage centrifugal pump features low operational noise.
Seal Material Selection
Various seal material options are offered for different liquid applications.
Ideal for the Machine Tool
Designed for industrial use, especially for machine tools. It is suitable for carrying fluids such as water, coolant, light oil and other clean, non aggressive matters.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+0°C ~ +90°C
Operating Pressure
Max. 15 kg/cm²
Submerged Depth
Min. Top of second stage

Motor

Frequency
50 / 60 Hz
Nominal Speed
2900 / 3500 rpm
Enclosure Protection Class
IP54
Insulation Class
F

Model code

Select Frequency

TPHK2T_L
TPHK4T_L
TPHK8T_L

TPHK_L Series Applications

Manufacturing Industry
Hot and Cold Liquid Transfer
Meeting the water needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas, maintaining low temperature environments for machinery or steady heat flow, and ensuring overall stable operation
Manufacturing Industry
Industrial Filtration
Reliable and efficient transportation to storage tanks or subsequent processing stages ensures continuity and consistent quality. Integration with filtration and recycling systems enables cost-effective reuse, further enhancing operational efficiency.
Manufacturing Industry
Industrial Process Cooling
Circulating coolant solutions dissipate heat, ensuring stable operation of industrial equipment, maintaining precise output quality, and enhancing production efficiency.
Manufacturing Industry
Industrial Process Cleaning
Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants, ensuring high-quality results for subsequent processes.
