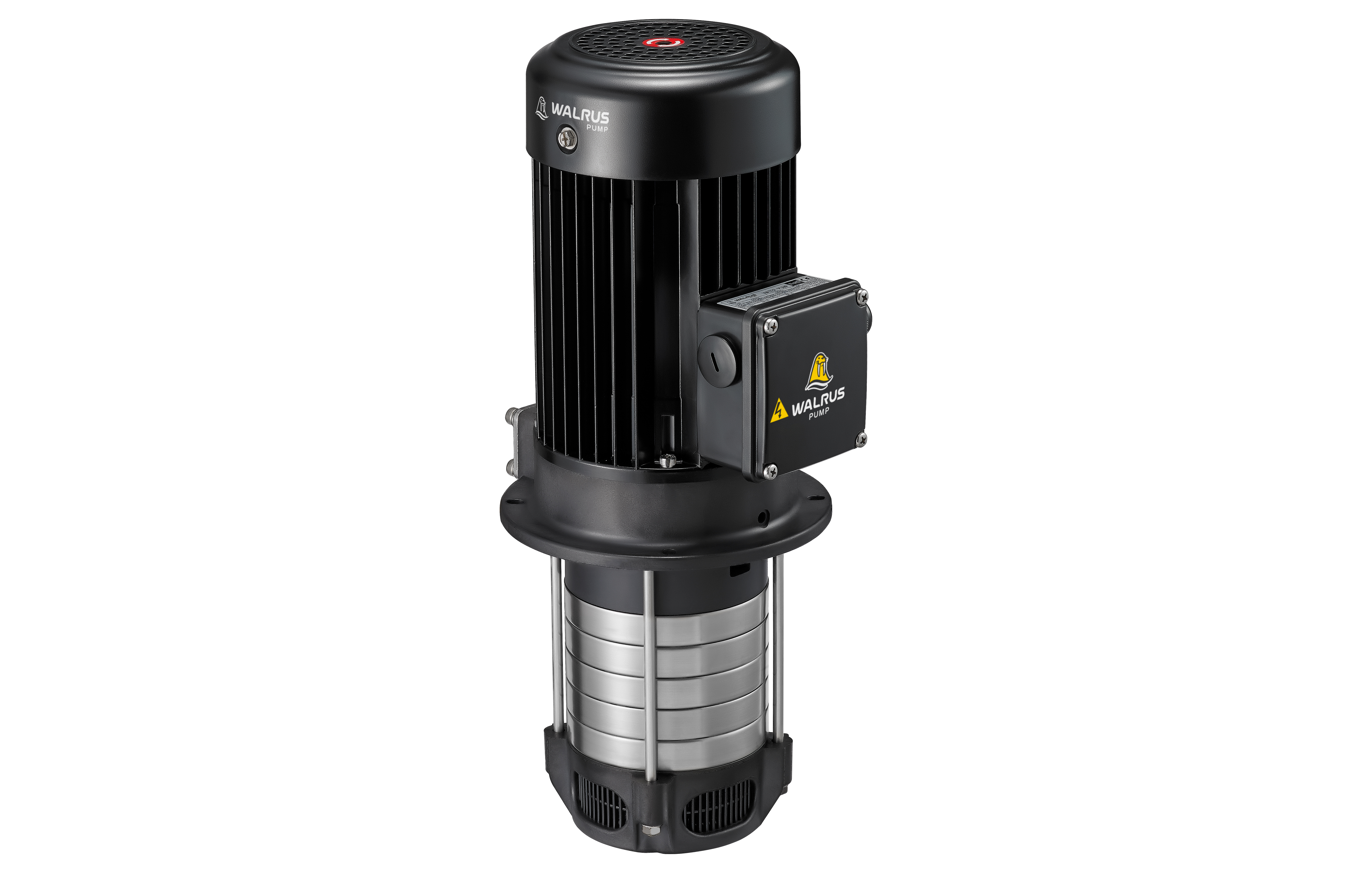

Model | TPHK2T5-5P

Immersible Centrifugal Pump

Multi-Stage Immersible Pump
TPHK_P Series

  • Stainless steel and high-performance composites resist corrosion and rust.
  • Reduces lead time by 97%, cuts weight by 60–70%, lowers emissions by over 75%, and enables over 90% recyclability.
  • Patented drain back tank design allows the leaked liquids to flow back to the tank without interrupting the process.
  • In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.
Manufacturing Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37 - 0.58
Up to 55
Up to 60
60
0.37 - 0.88
Up to 78
Up to 75

Features

Drain Back Tank structure
Patented drain back tank structure allows the leaked liquids to flow back to the tank without interrupting the process.
Materials Innovation
Key moving parts are made of stainless steel, combined innovatively with high-performance composite materials, featuring corrosion resistance and light weight advantages.
Achieving Green Manufacturing
By using high-performance composite materials in place of traditional cast iron, the lead time is reduced by 97%, weight is decreased by 60–70%, carbon emissions are reduced by over 75%, and recyclability exceeds 90%, fully complying with green manufacturing requirements.
Stability and Reliability
A centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.
Flexible Configuration
The number of impeller segments can be adjusted to suit different application requirements.
Energy Efficient
Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.
Low-Noise Operation
The immersible multistage centrifugal pump features low operational noise.
Seal Material Selection
Various seal material options are offered for different liquid applications.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+0℃ ~ +90℃
Operating Pressure
Max. 10 kg/cm²
Submerged Depth
Min. 40 mm
Particle Size
Below Ø2 mm

Motor

Frequency Range
50 / 60 Hz
Nominal Speed
2900 / 3500 rpm
Enclosure Protection Class
IP54
Insulation Class
F

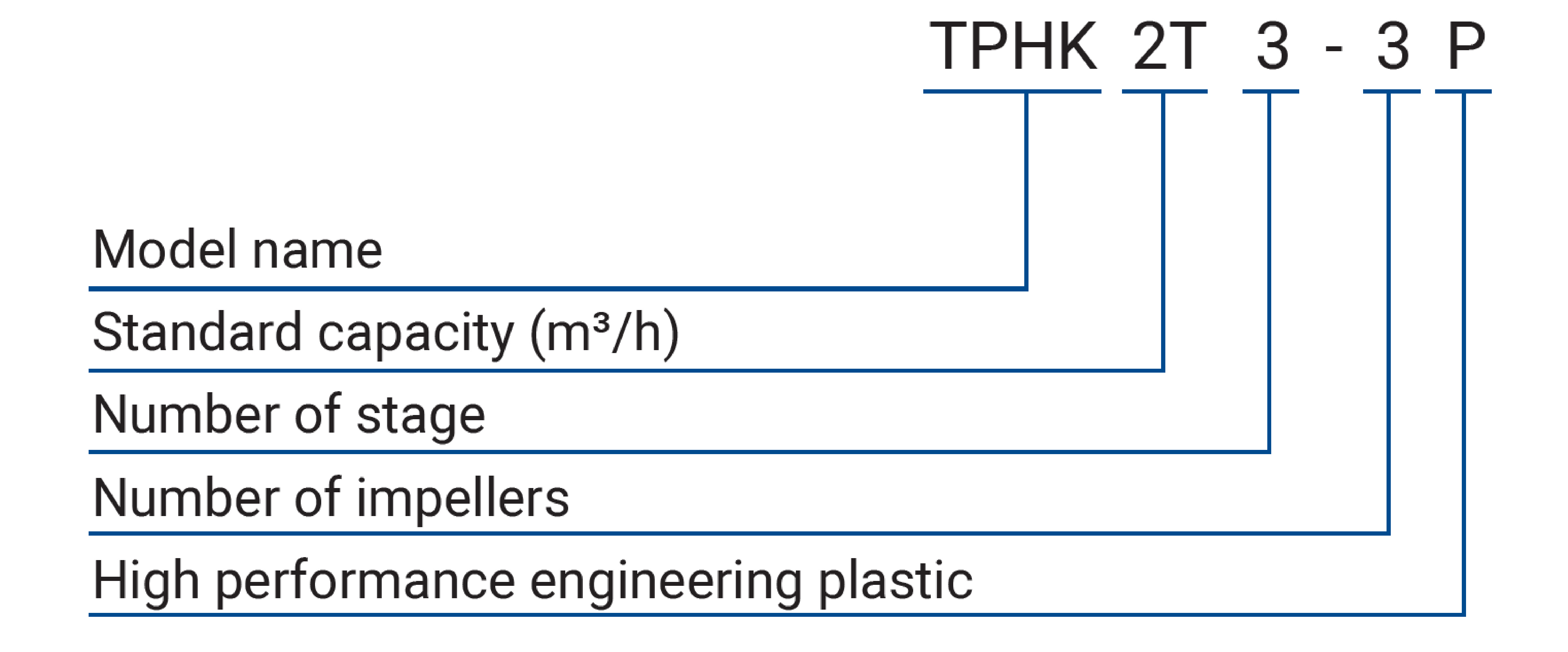

Model code

Select Frequency

Electrical standards
Inquiry
Model
Frequency
50/60Hz Common Motor
Phase
(Ø)
Input Power
Output Power P2
Voltage
(V)
Current I1/1
Current Imax
TPHK2T3-1P
50
Y
3
-
0.37
200-240 / 342-415
1.8-2.0 / 1.1-1.2
2.0-2.1 / 1.1-1.2
TPHK2T3-1P
60
Y
3
-
0.37
200-255 / 342-480
1.8-1.7 / 1.0-1.0
2.3-2.1 / 1.3-1.2
TPHK2T3-2P
50
Y
3
-
0.37
200-240 / 342-415
1.8-2.0 / 1.1-1.2
2.0-2.1 / 1.1-1.2
TPHK2T3-2P
60
Y
3
-
0.37
200-255 / 342-480
1.8-1.7 / 1.0-1.0
2.3-2.1 / 1.3-1.2
TPHK2T3-3P
50
Y
3
-
0.37
200-240 / 342-415
1.8-2.0 / 1.1-1.2
2.0-2.1 / 1.1-1.2
TPHK2T3-3P
60
Y
3
-
0.37
200-255 / 342-480
1.8-1.7 / 1.0-1.0
2.3-2.1 / 1.3-1.2
TPHK2T4-4P
50
Y
3
0.62
0.42
200-255 / 380-440
-
2.2-2.9 / 1.4-1.7
TPHK2T4-4P
60
Y
3
0.91
0.62
200-255 / 380-480
-
3.0-2.9 / 1.7-1.7
TPHK2T5-5P
50
Y
3
0.70
0.48
200-255 / 380-440
-
2.4-3.0 / 1.4-1.6
TPHK2T5-5P
60
Y
3
1.06
0.72
200-255 / 380-480
-
3.3-3.0 / 1.8-1.8
TPHK2T6-6P
50
Y
3
0.85
0.58
200-255 / 380-440
-
3.1-3.6 / 1.8-2.1
TPHK2T6-6P
60
Y
3
1.29
0.88
200-255 / 380-480
-
4.0-3.6 / 2.4-2.4
Pump specifications

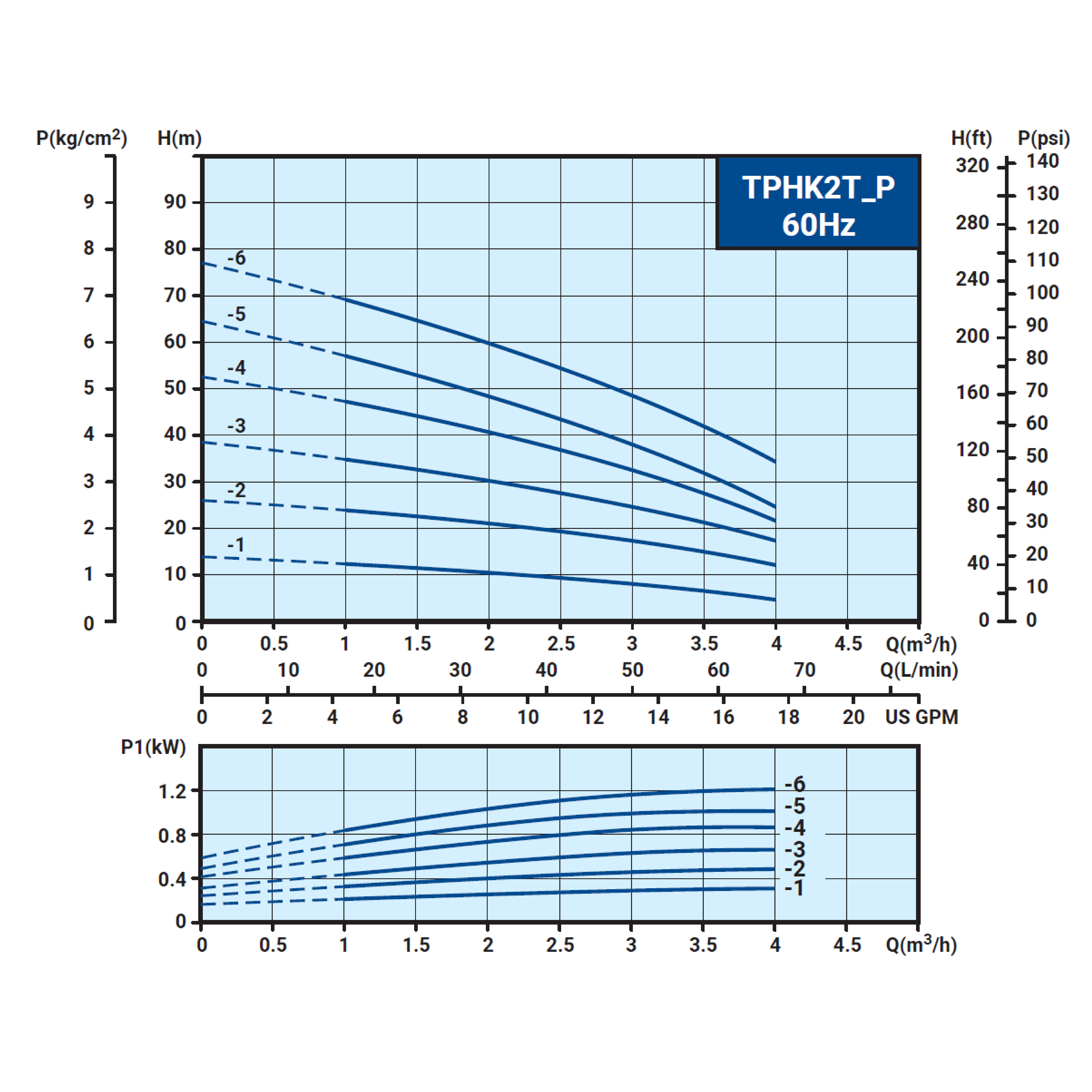

Graph
Model
Frequency
Rated Head
Rated Flow
Outlet
TPHK2T3-1P
50
6
33
Rp ¾"
TPHK2T3-1P
60
9
45
Rp ¾"
TPHK2T3-2P
50
12
33
Rp ¾"
TPHK2T3-2P
60
17
45
Rp ¾"
TPHK2T3-3P
50
18
33
Rp ¾"
TPHK2T3-3P
60
27
45
Rp ¾"
TPHK2T4-4P
50
27
33
Rp ¾"
TPHK2T4-4P
60
30
45
Rp ¾"
TPHK2T5-5P
50
30
33
Rp ¾"
TPHK2T5-5P
60
40
45
Rp ¾"
TPHK2T6-6P
50
40
33
Rp ¾"
TPHK2T6-6P
60
50
45
Rp ¾"

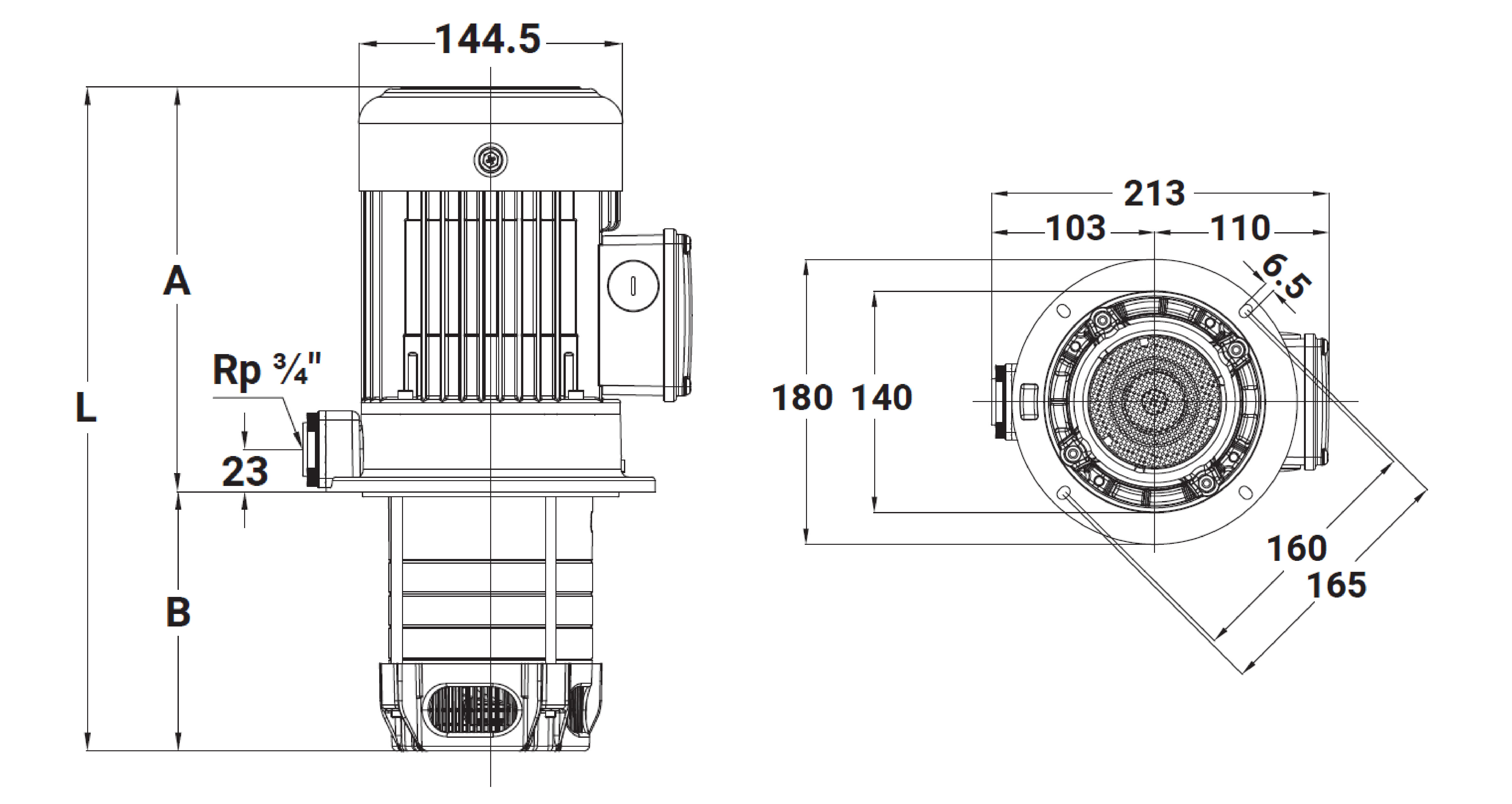

Dimension
Model
Frequency
A
B
L
N.W.
Pallet Loading Qty.
TPHK2T3-1P
50
201.5
142
343.5
7.4
36
TPHK2T3-1P
60
201.5
142
343.5
7.4
36
TPHK2T3-2P
50
201.5
142
343.5
7.6
36
TPHK2T3-2P
60
201.5
142
343.5
7.6
36
TPHK2T3-3P
50
201.5
142
343.5
7.7
36
TPHK2T3-3P
60
201.5
142
343.5
7.7
36
TPHK2T4-4P
50
221.5
160
381.5
9.0
30
TPHK2T4-4P
60
221.5
160
381.5
9.0
30
TPHK2T5-5P
50
261.5
178
439.5
10.2
30
TPHK2T5-5P
60
261.5
178
439.5
10.2
30
TPHK2T6-6P
50
253.5
198
451.5
11.5
30
TPHK2T6-6P
60
253.5
198
451.5
11.5
30

TPHK_P Series Applications

Manufacturing Industry
Hot and Cold Liquid Transfer
Meeting the water needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas, maintaining low temperature environments for machinery or steady heat flow, and ensuring overall stable operation
Manufacturing Industry
Data Center Cooling
Meets the cooling and heat dissipation needs of technology servers, efficiently removing the large amount of heat generated during operations to ensure stable equipment performance. Providing innovative pump solutions in response to the growing demand of the AI era.
Manufacturing Industry
Industrial Process Cooling
Circulating coolant solutions dissipate heat, ensuring stable operation of industrial equipment, maintaining precise output quality, and enhancing production efficiency.
Manufacturing Industry
Industrial Process Cleaning
Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants, ensuring high-quality results for subsequent processes.

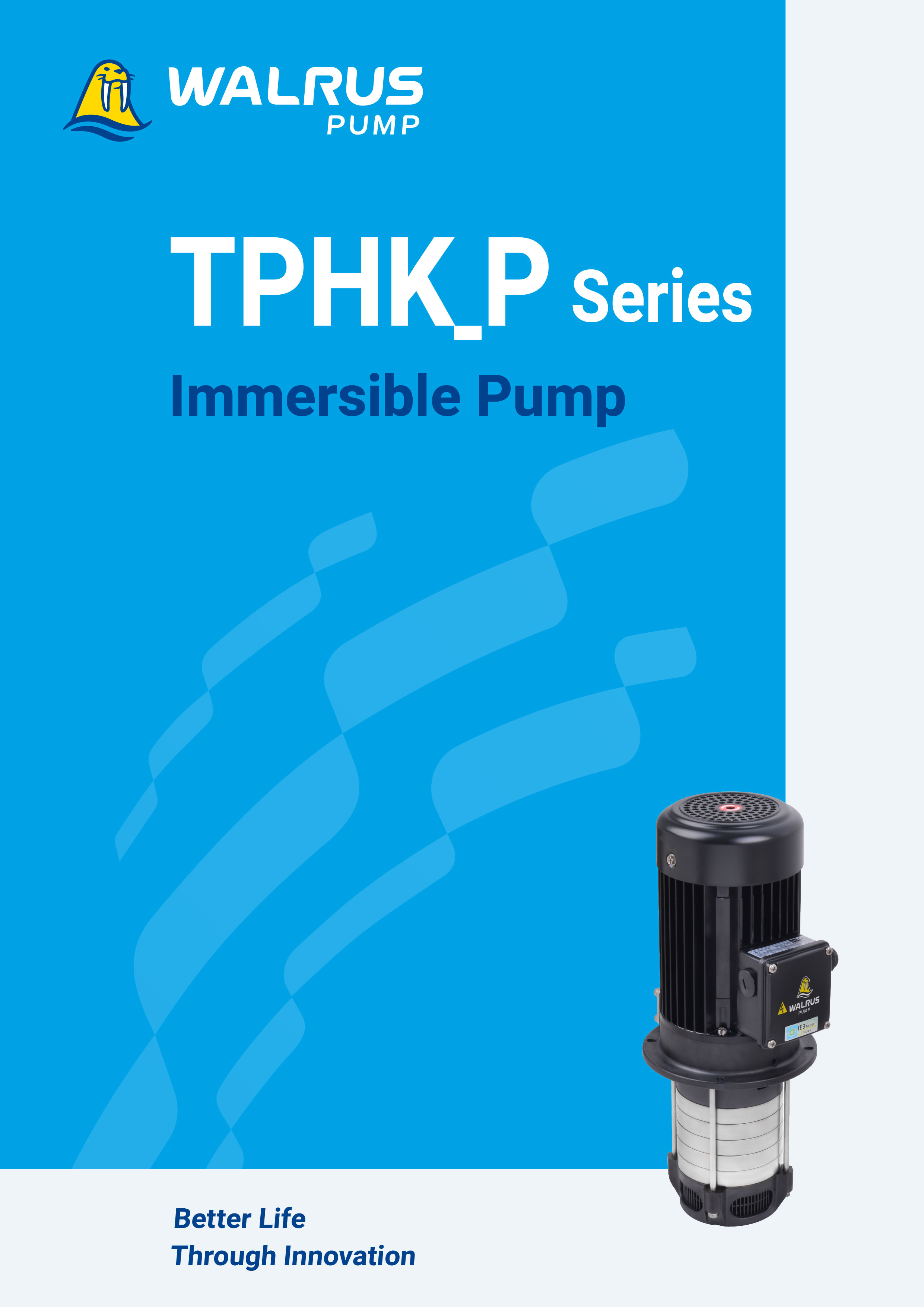

TPHK_P_Product Catalogue
Update2025-09-09
Size7.92 MB

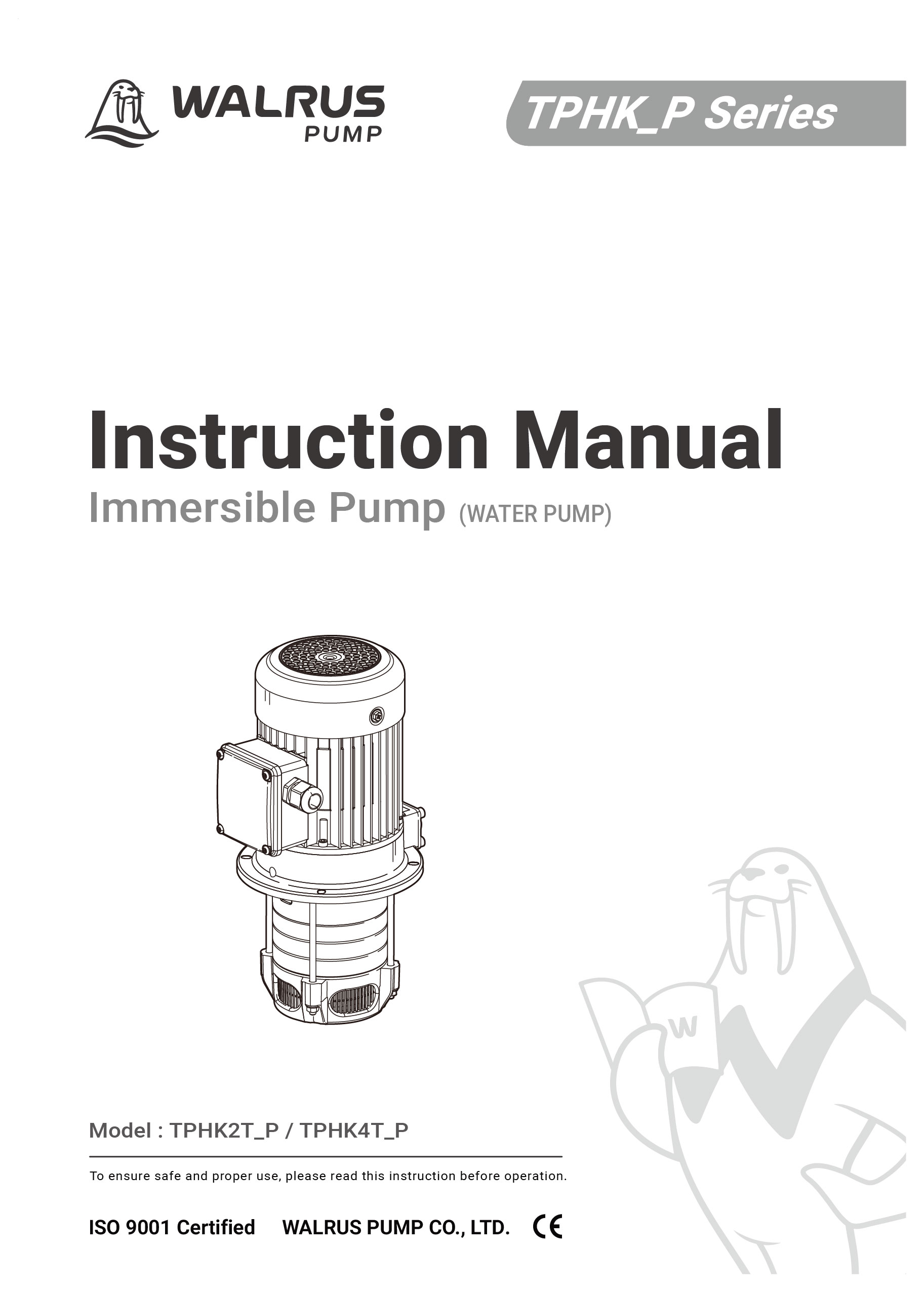

TPHK_P_Instruction Manual
Update2025-09-09
Size1.44 MB
