Model | TPR1-2F

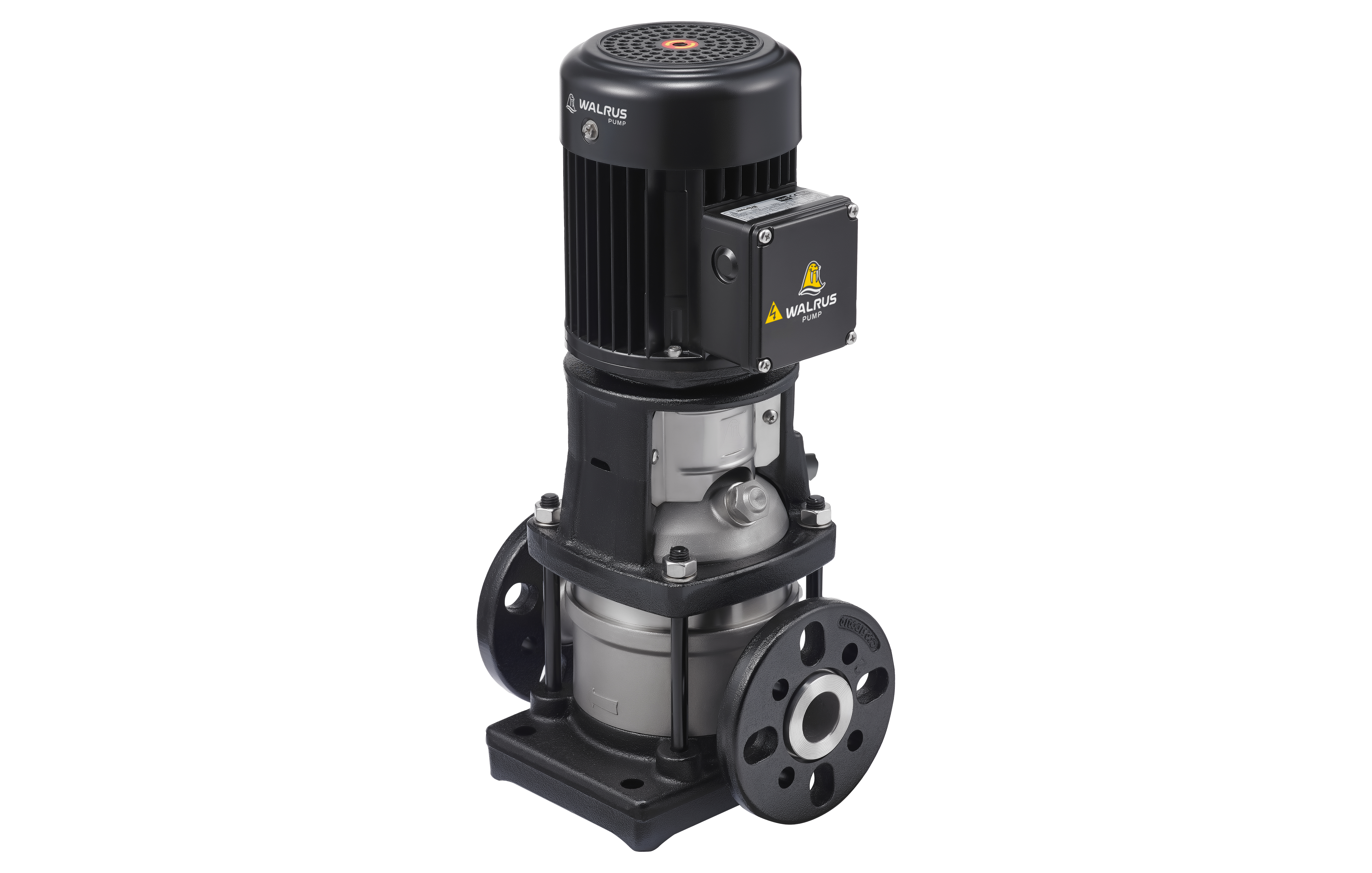

Model | TPR1-2SF

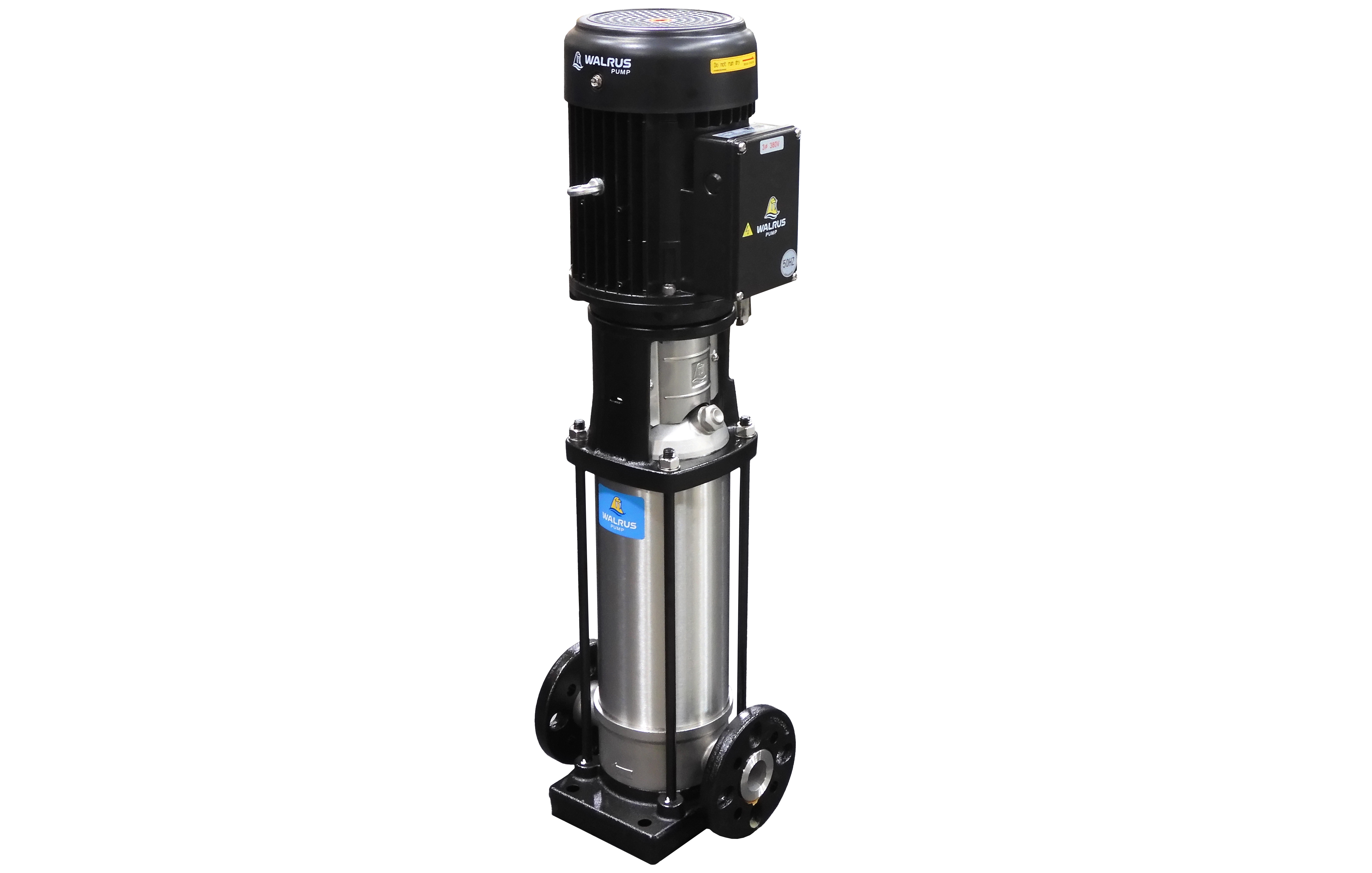

Model | TPR3-15SF
Model | TPR3-17SF

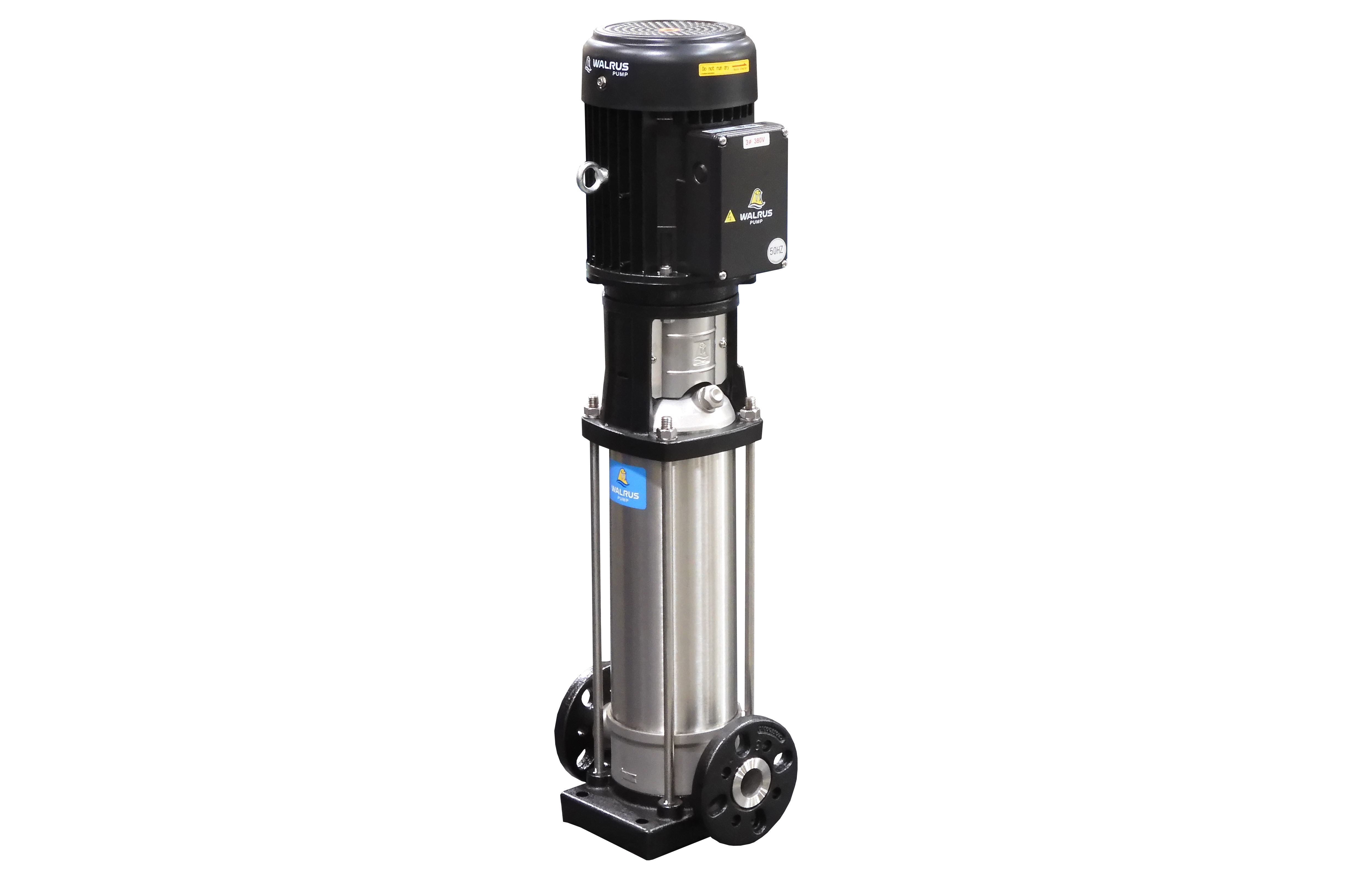

Model | TPR5-19SF

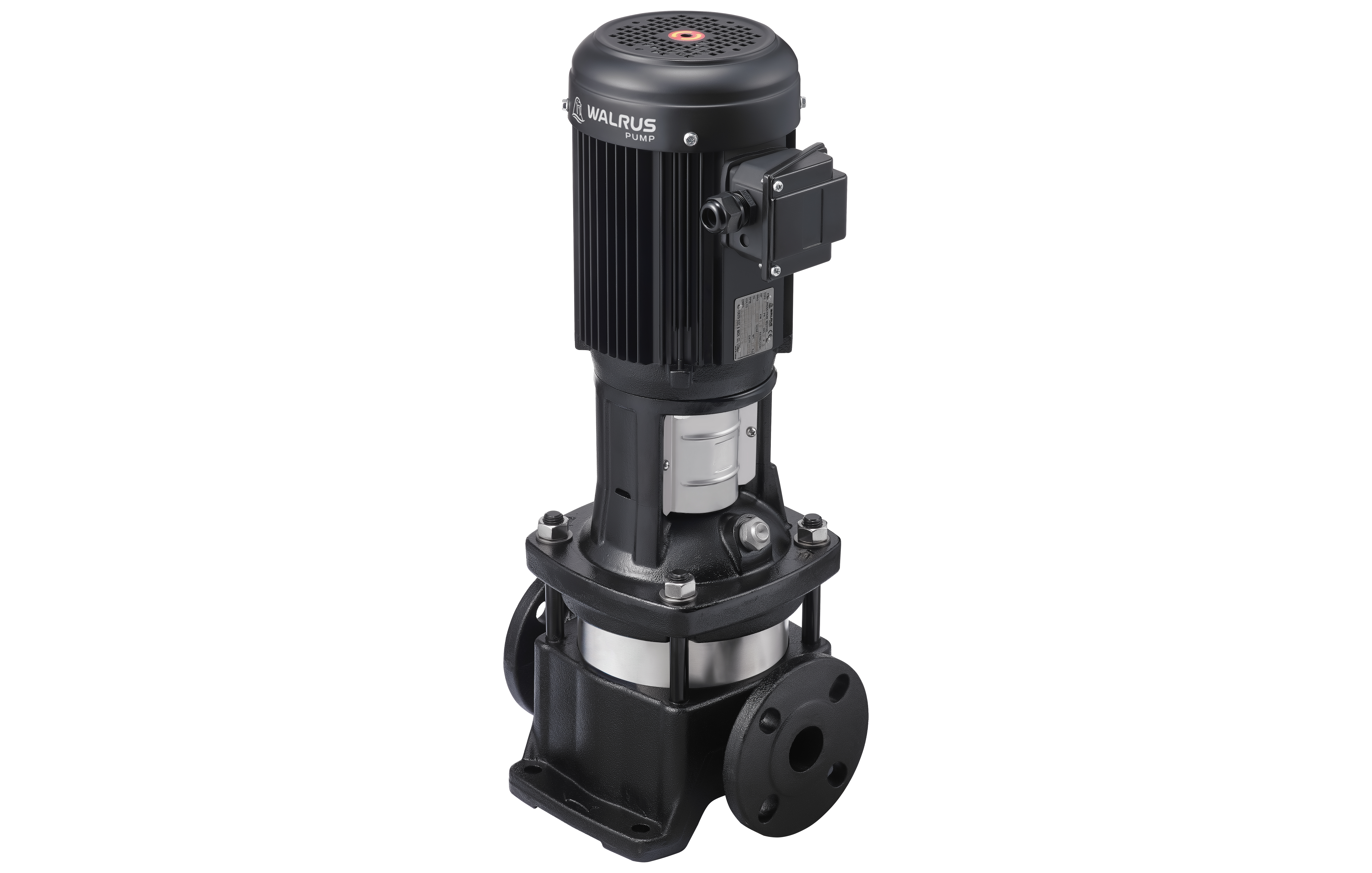

Model | TPR10-2F

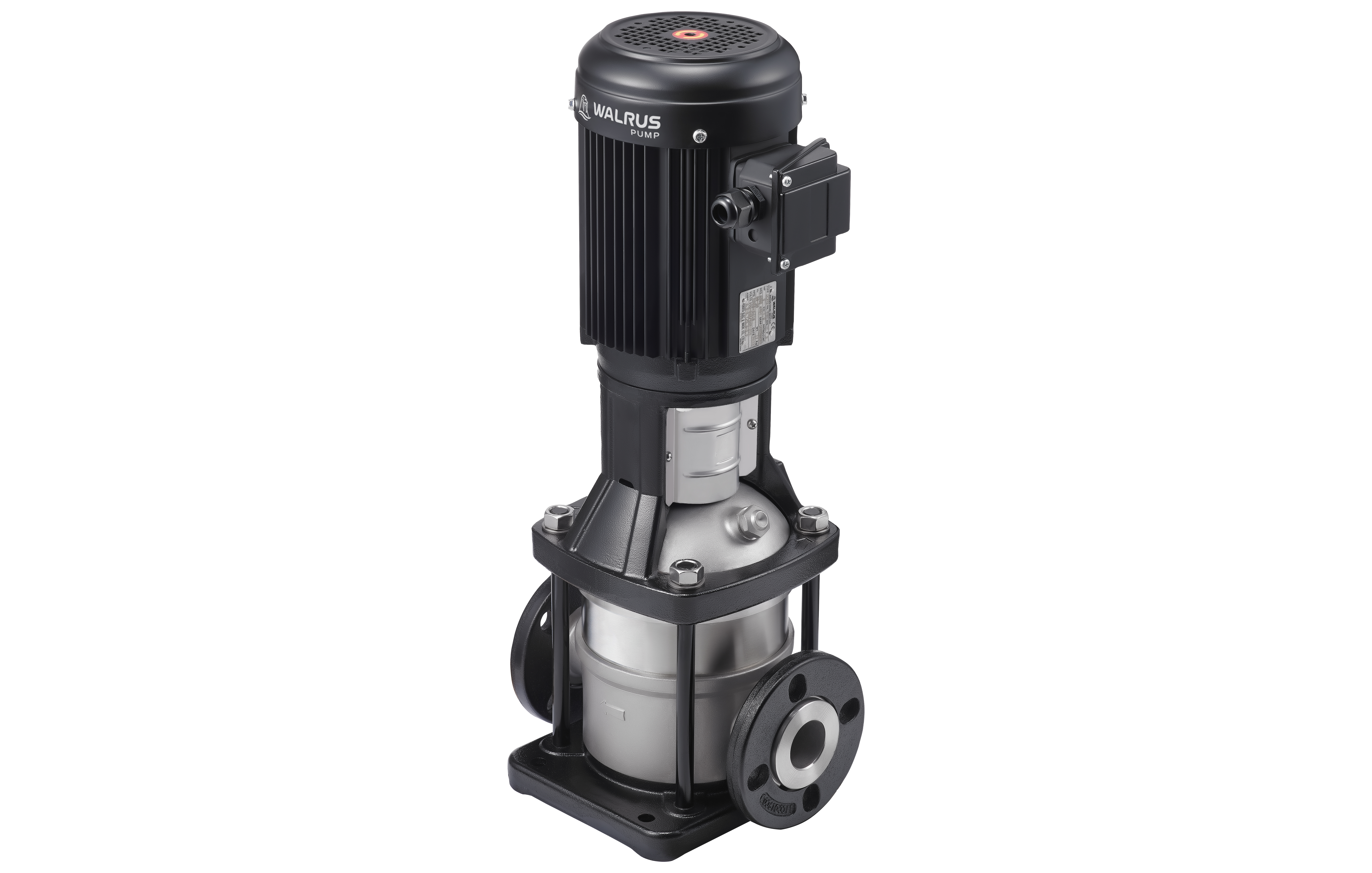

Model | TPR10-2SF

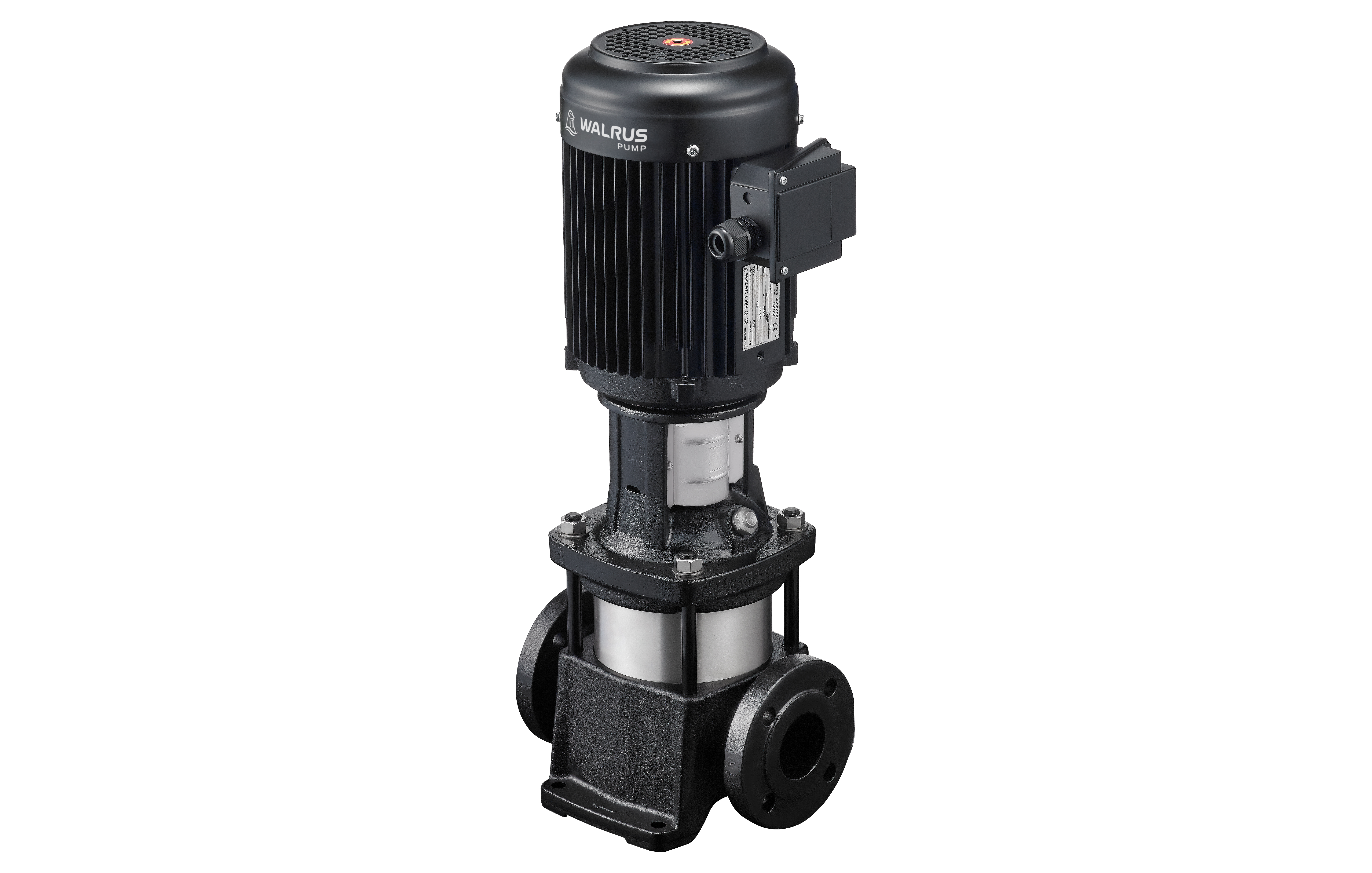

Model | TPR15-2F

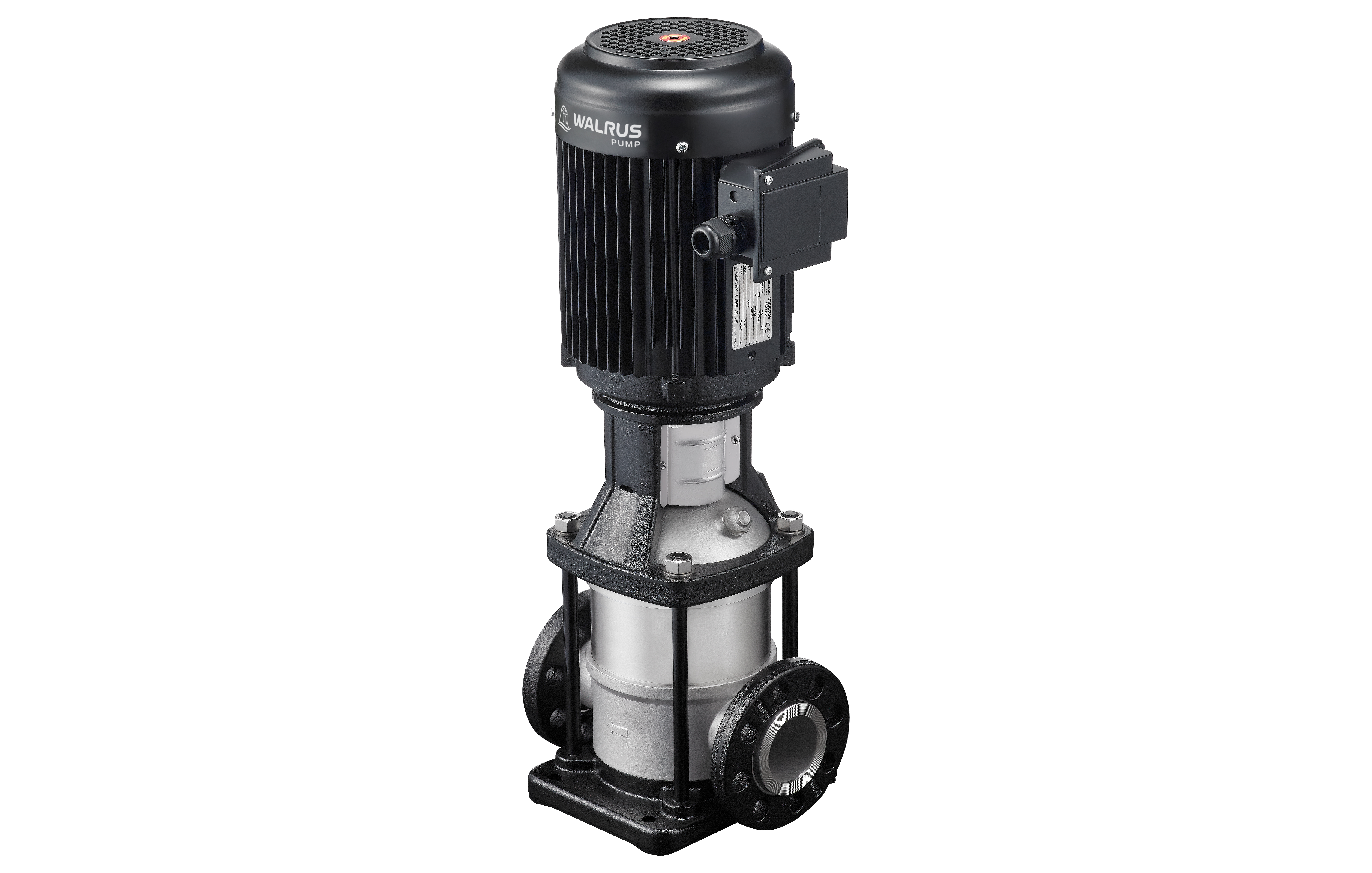

Model | TPR15-2SF

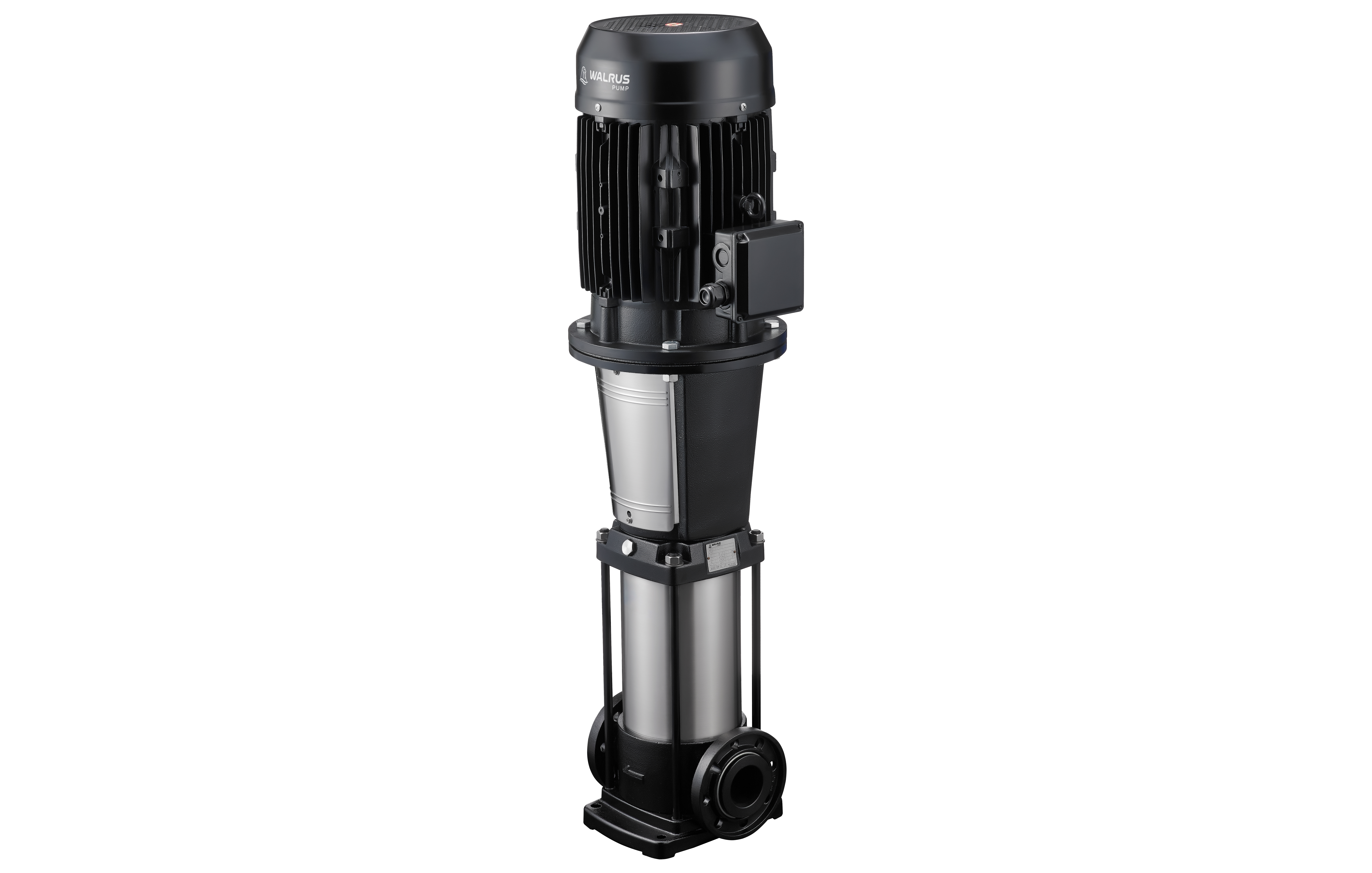

Model | TPR32-4F

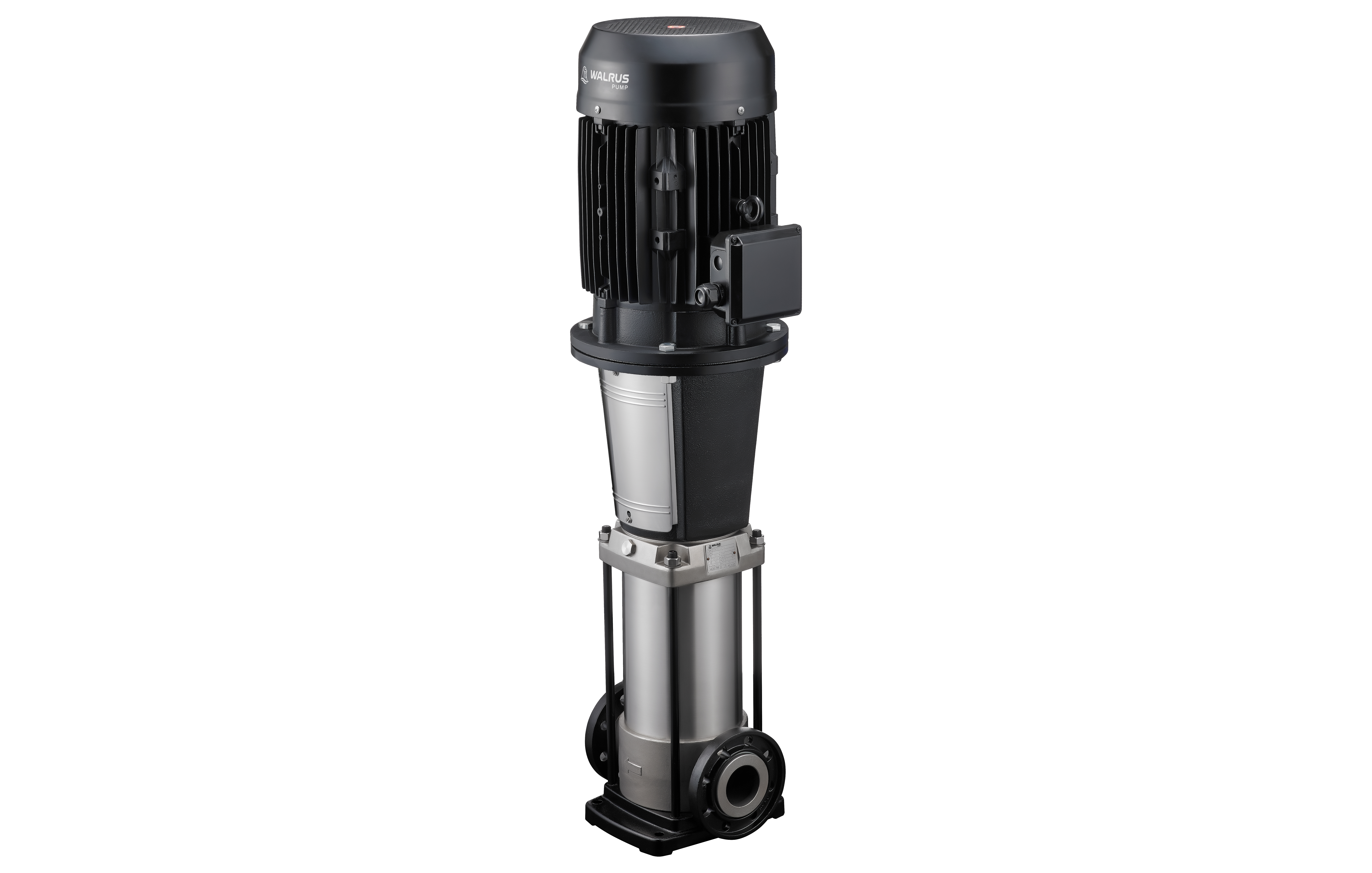

Model | TPR32-4SF
Model | TPR64-1F

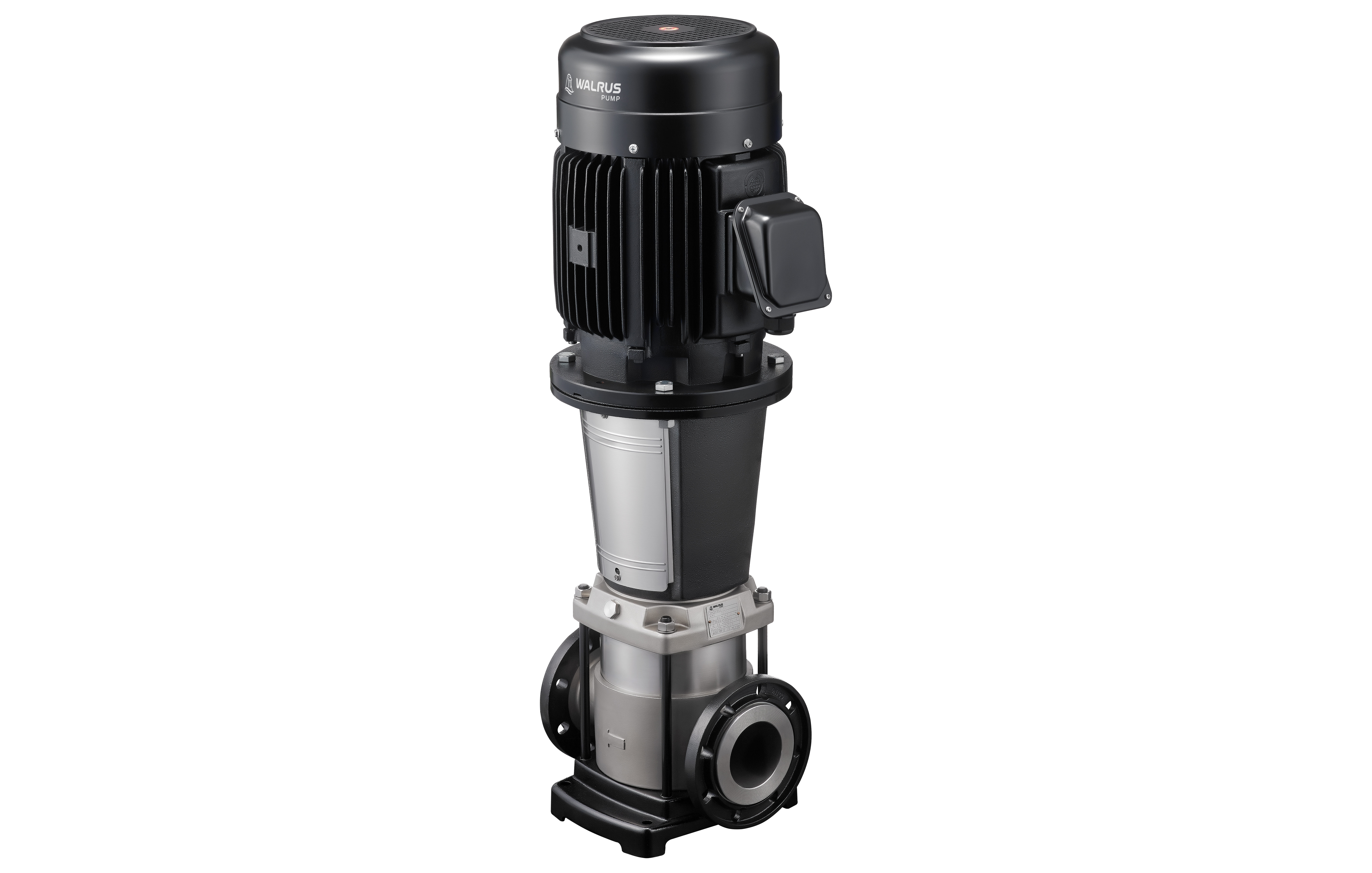

Model | TPR64-1SF

Vertical Centrifugal Pump

Multi-Stage Vertical Pump
TPR Series

  • Capable of delivering high water pressure and suitable for a wide range of applications.
  • Coupling design for easy maintenance.
  • Material selections for seals and pump casings, along with piping connections, can be tailored to meet requirements.
  • Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.
  • In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.
Construction Industry Manufacturing Industry Electricity & New Energy Industry Entertainment & Leisure Industry Accommodation & Food Service Industry Wholesale & Retail Trade Water Supply & Pollution Control Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37 - 45
Up to 320
Up to 2,000
60
0.37 - 45
Up to 260
Up to 2,333

Features

Coupling design
Coupling design enables easy shaft seal replacement, improving maintenance and lowering costs.
Configured According to Requirements
Different material options are available for pump casings and seals, along with various piping connections to suit different applications.
Widely applicable
Vertical multi-stage pump delivers high pressure for diverse applications.
Low-Noise Operation
The horizontal multistage centrifugal pump features low operational noise.
Energy Efficient
Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.
Stability and Reliability
A centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
-20°C ~ +120°C

Motor

Frequency Range
50 or 60 Hz
Nominal Speed
2900 or 3500 rpm
Enclosure Protection Class
IP55, IP54
Insulation Class
F

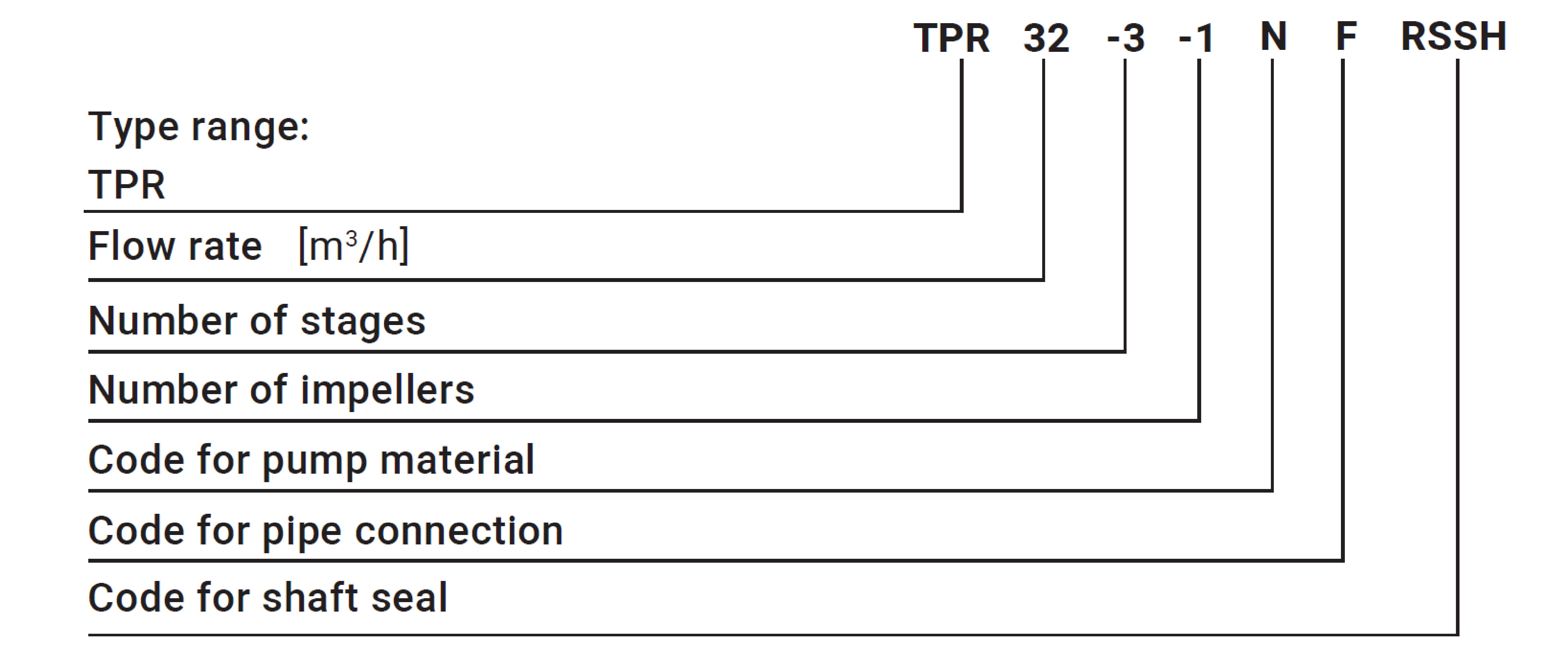

Model code

Select Frequency

TPR1

TPR Series Applications

Construction Industry
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Construction Industry
Building Water Supply Systems
Meeting the water extraction, storage, and constant pressure supply needs of large buildings and construction projects. Paired with VFDs, the system adjusts pressure based on water demand, ensuring a stable and uninterrupted water supply.
Construction Industry
Rainwater Harvesting and Treatment
Transfers rainwater from collection points to storage tanks, providing stable pressure for secondary uses such as irrigation, firefighting reserves, and cleaning. Supports water level sensing and smart control for automatic start-stop based on demand.
Manufacturing Industry
Hot and Cold Liquid Transfer
Meeting the water needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas, maintaining low temperature environments for machinery or steady heat flow, and ensuring overall stable operation
Manufacturing Industry
Data Center Cooling
Meets the cooling and heat dissipation needs of technology servers, efficiently removing the large amount of heat generated during operations to ensure stable equipment performance. Providing innovative pump solutions in response to the growing demand of the AI era.
Manufacturing Industry
Industrial Filtration
Reliable and efficient transportation to storage tanks or subsequent processing stages ensures continuity and consistent quality. Integration with filtration and recycling systems enables cost-effective reuse, further enhancing operational efficiency.
Manufacturing Industry
Industrial Process Cooling
Circulating coolant solutions dissipate heat, ensuring stable operation of industrial equipment, maintaining precise output quality, and enhancing production efficiency.
Manufacturing Industry
Industrial Process Cleaning
Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants, ensuring high-quality results for subsequent processes.
Manufacturing Industry
Industrial Wastewater Discharge (Compliance-Oriented)
Enabling businesses to reliably transport treated industrial wastewater to discharge systems, ensuring environmental protection and regulatory compliance.
Electricity & New Energy Industry
Power Supply System Cooling and Heat Dissipation
Driving the circulation of cooling liquids in fast charging systems to efficiently dissipate generated heat, extending system lifespan and preventing overheating that could lead to failures or downtime.
Electricity & New Energy Industry
Energy Storage System Cooling and Heat Dissipation
Drives the circulation of cooling liquids in energy storage systems, effectively dissipating heat generated during operation, extending system lifespan, preventing overheating, and ensuring safe and efficient performance.
Entertainment & Leisure Industry
Aquatic Facility Water Systems
Providing water circulation, pressure regulation, and filtration support. Ensuring stable transport of large volumes of water to water entertainment facilities, enhancing guest safety and experience.
Entertainment & Leisure Industry
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Accommodation & Food Service Industry
Hot Spring Water Transport
Extracting high-temperature spring water from storage wells or heat sources to various hot spring pools, spa areas, and heating circulation systems, ensuring adequate water flow and consistent temperature.
Accommodation & Food Service Industry
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Wholesale & Retail Trade
Commercial HVAC Systems
Application in transporting cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems. Adjusts to varying loads, effectively reducing energy consumption and extending the lifespan of equipment.
Water Supply & Pollution Control
Water Distribution Transport
Transports water to reservoirs, municipal systems, and end-users, designed for large-scale capacity and continuous operation. Efficiently stabilizes water pressure and supply, enhances distribution performance, and reduces energy consumption.
Water Supply & Pollution Control
Purified Water Treatment (RO)
Provides high pressure to deliver water to RO systems, ensuring efficient treatment and optimal filtration performance to meet the demands of reverse osmosis.
Water Supply & Pollution Control
Wastewater Discharge (Compliance-Oriented)
Stable transfer of treated wastewater to discharge systems, complying with regulations, preventing pollution, and supporting sustainability goals.
Service Industry
High-Pressure Water Supply and Cleaning Systems
Delivers powerful water pressure for efficient water supply, supporting cleaning, cooling, disinfection, and spraying. Optimized pump solutions meet diverse industry water needs.
TPR(50Hz)_Product Catalogue
Update2025-09-10
Size2.8 MB

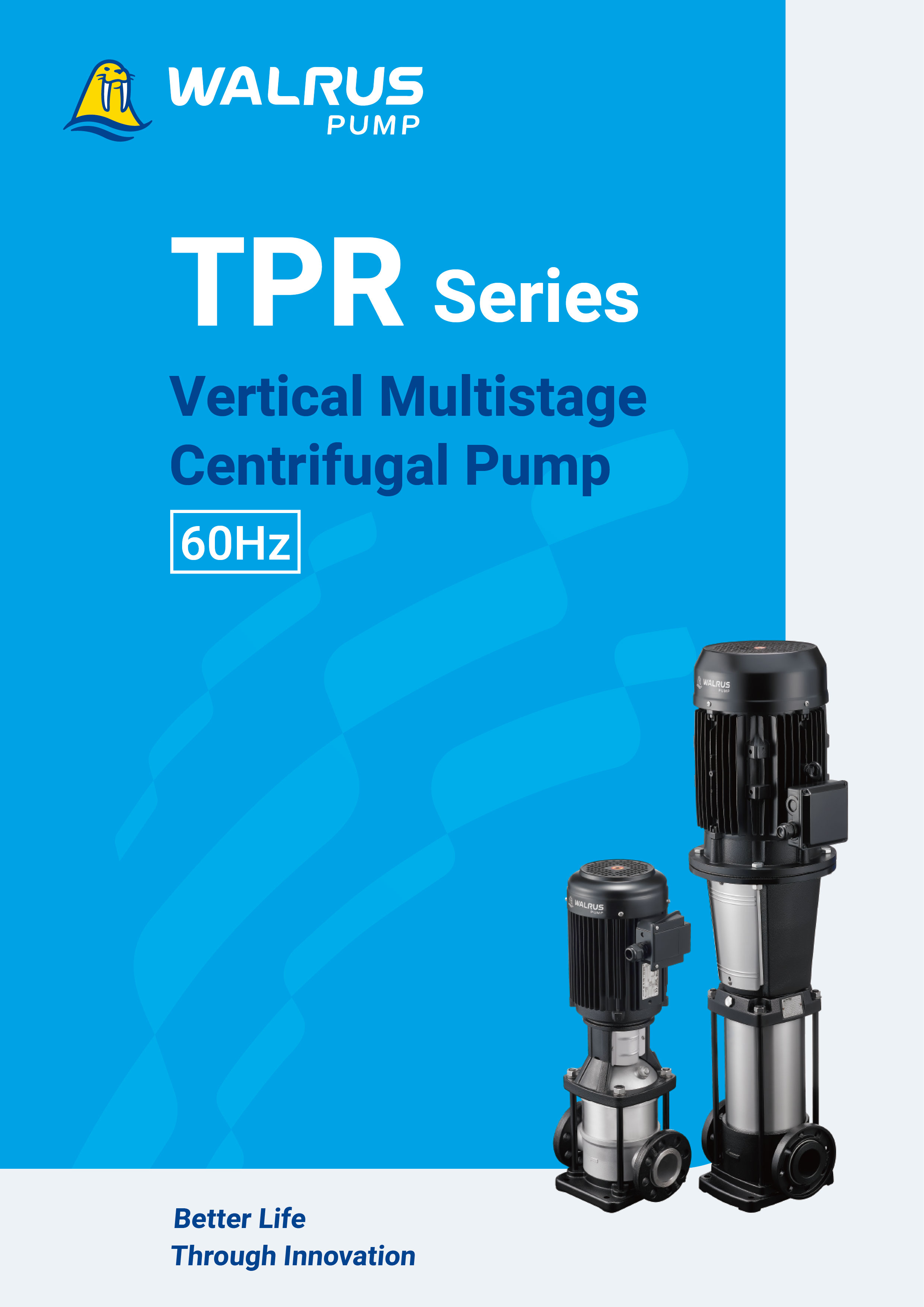

TPR(60Hz)_Product Catalogue
Update2025-09-10
Size2.7 MB

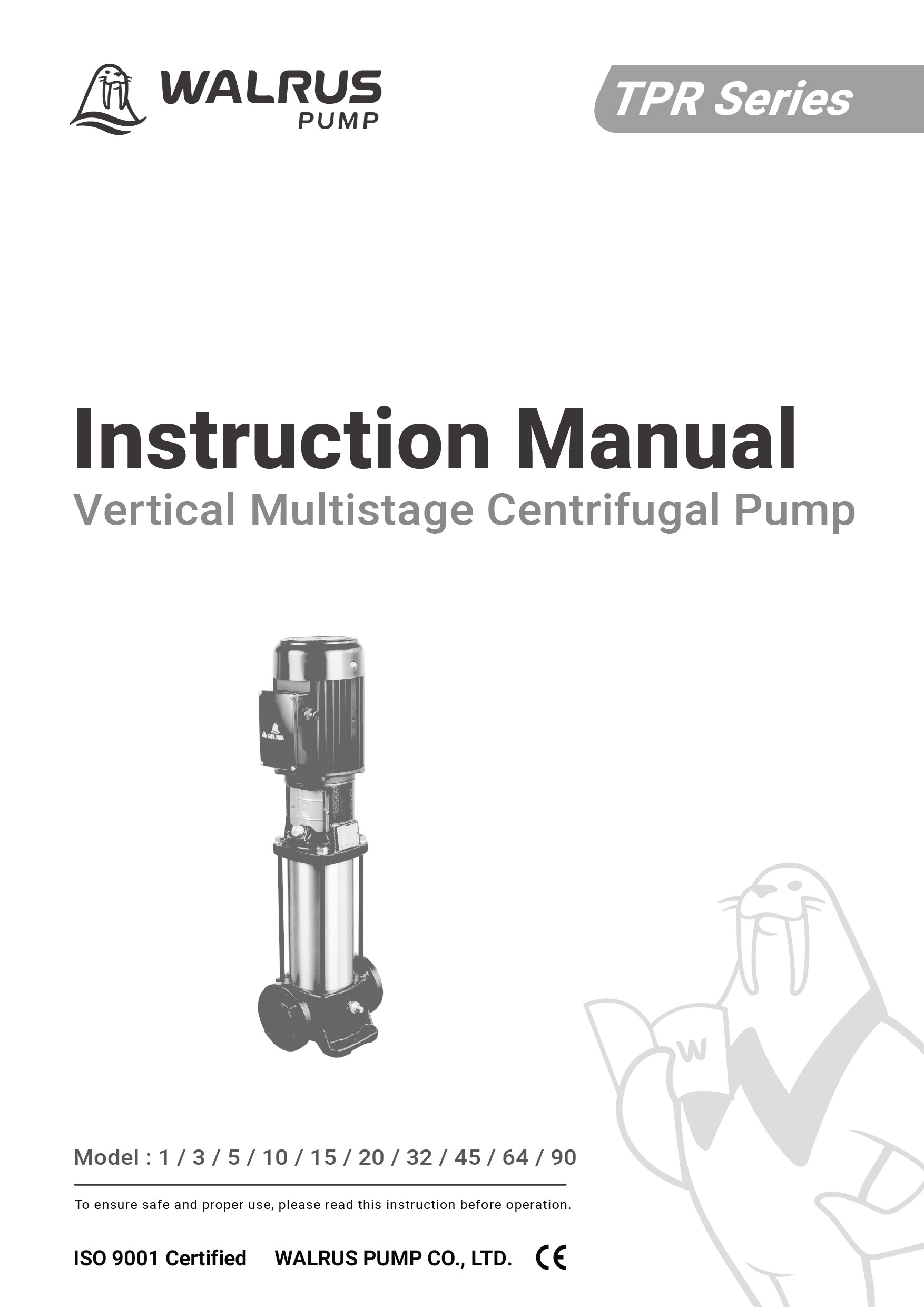

TPR_Instruction Manual
