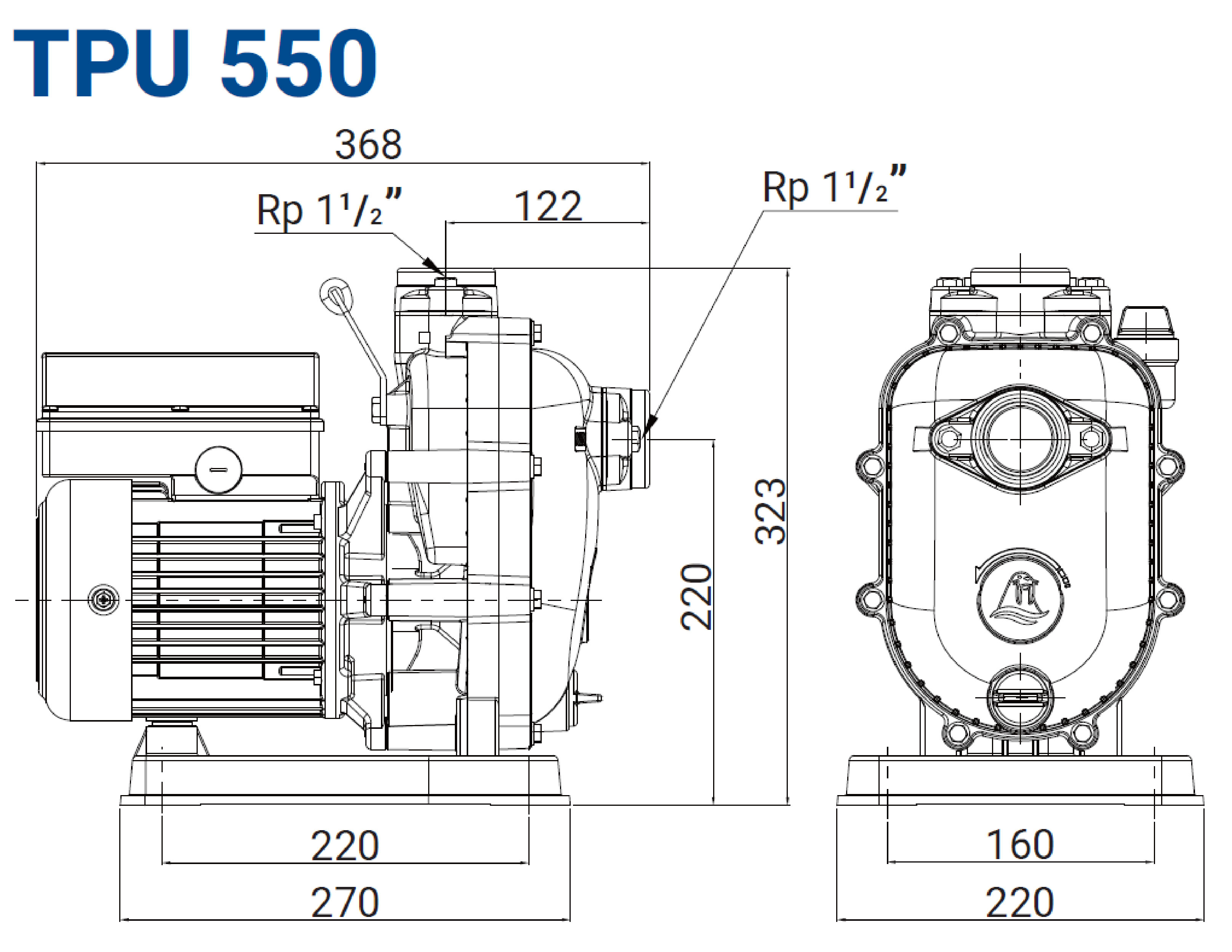

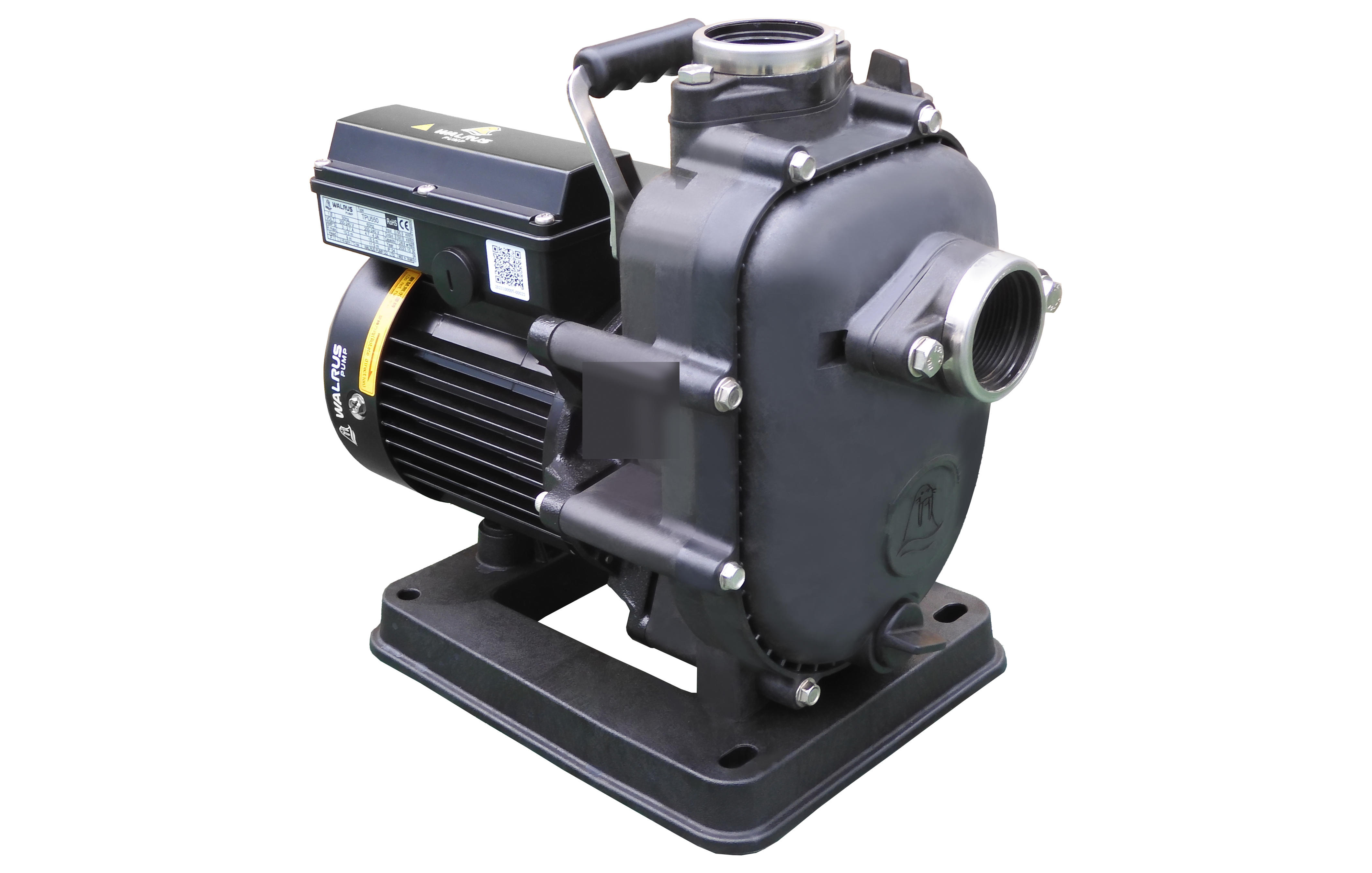

Model | TPU550

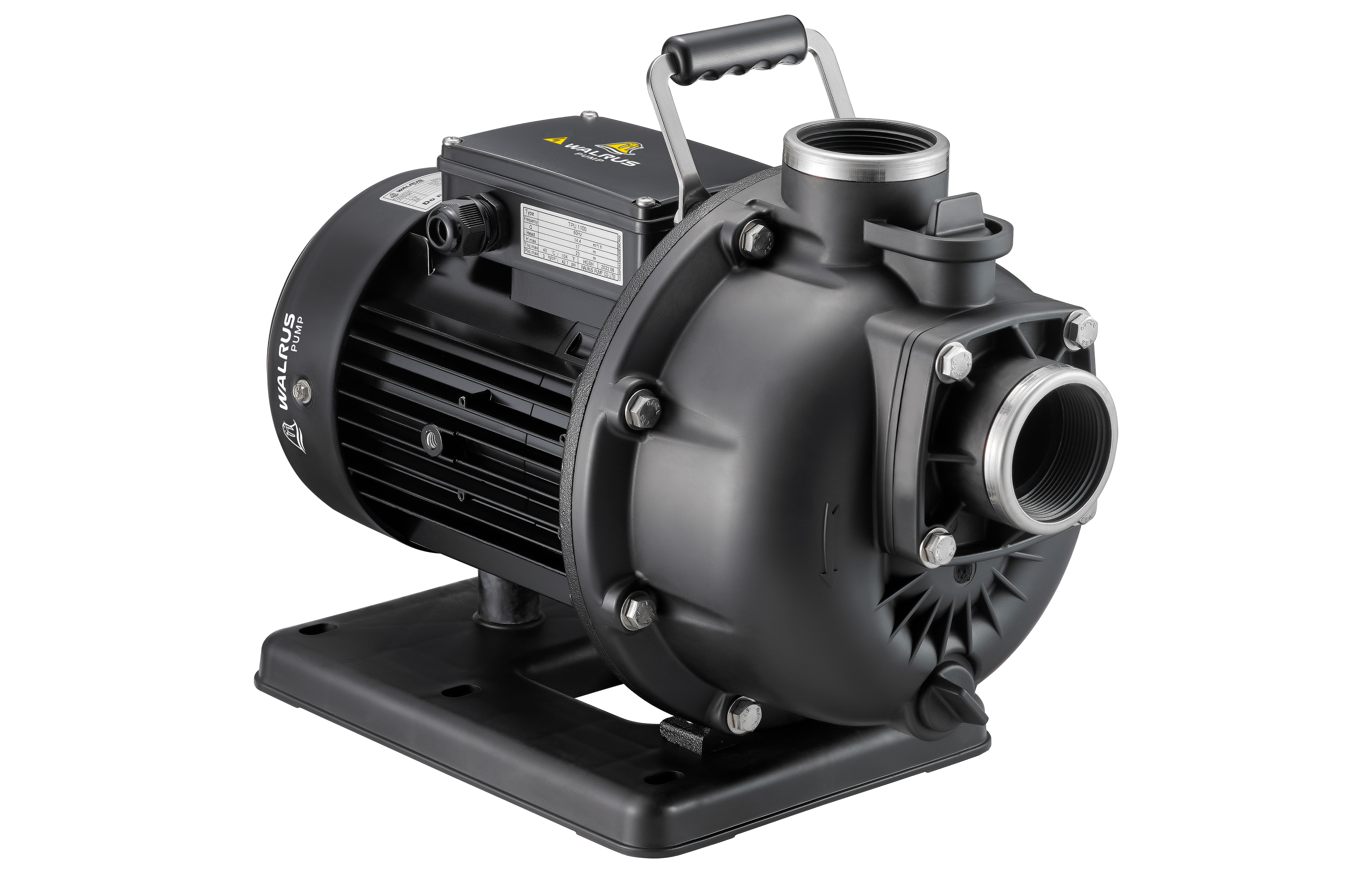

Model | TPU1100

Horizontal Centrifugal Pump

Self Priming Pump
TPU Series

  • Features excellent self-priming capability and superior air evacuation performance.
  • Semi-open impeller design, suitable for high flow delivery.
  • It is ideal for salty environments.
Frenquency (Hz)
Power (kW)
Head (M)
Flow (L / min)

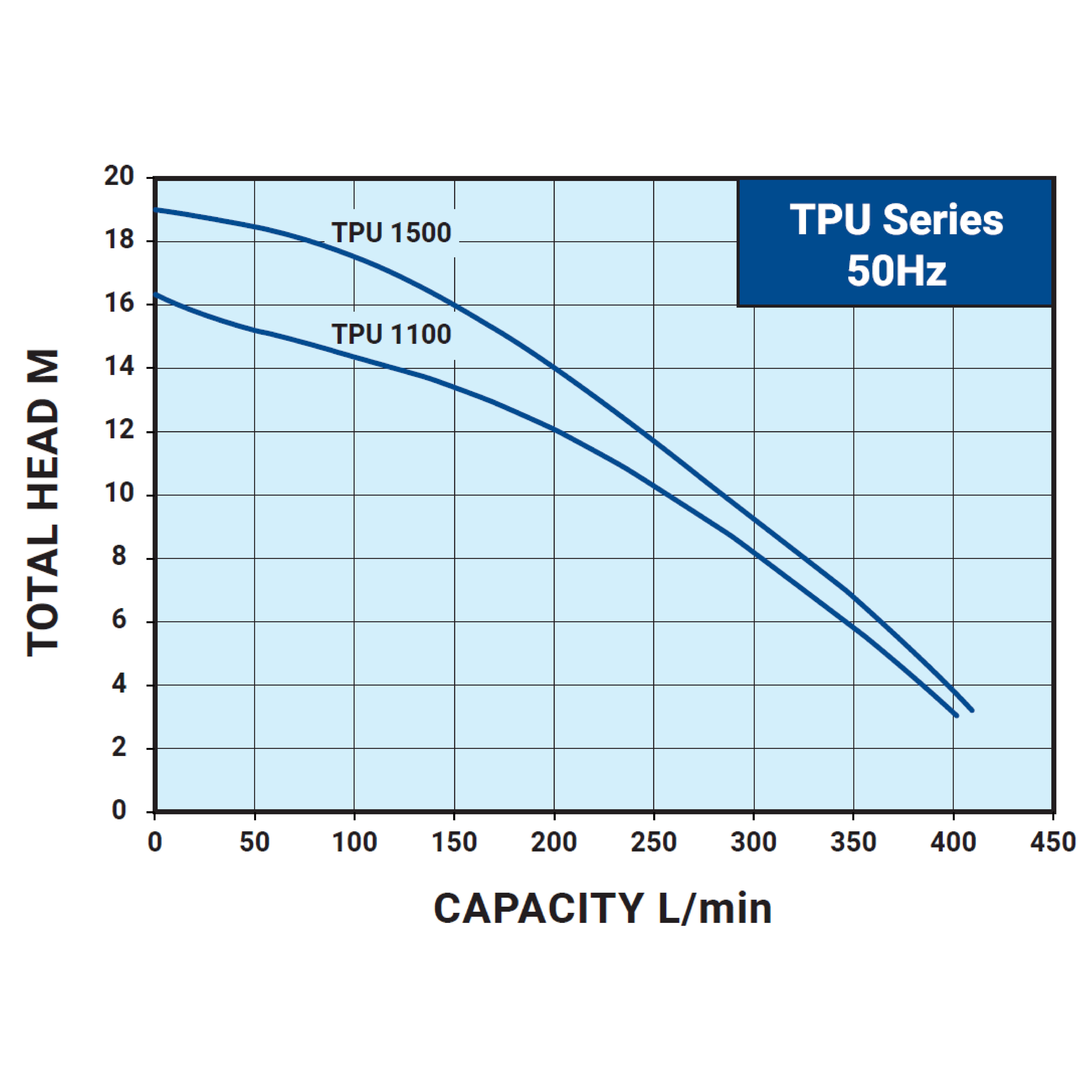

50
1.1 - 1.5
Up to 19
Up to 415

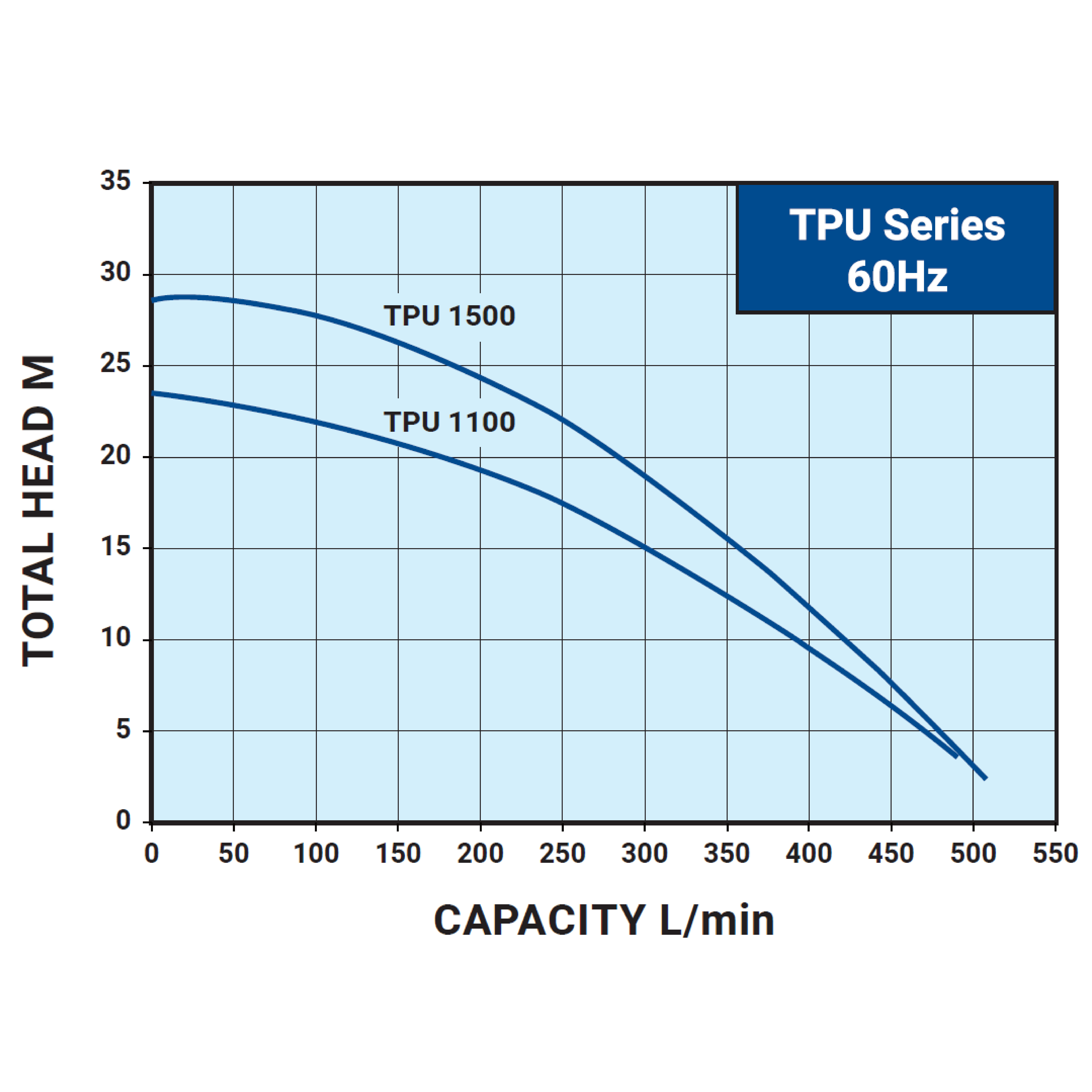

60
0.55 - 1.5
Up to 28
Up to 510

Features

Self-Priming Capacity
Horizontal single-stage centrifugal pump, excellent self-priming capacity.
Suitable for salty environments
The pump is made from high-performance composite materials, making it particularly wellsuited for salty environments.
Designed for large-volume water transportation
The semi-open impeller design helps prevent blockages from suspended solids in the fluid being transported, making it well-suited for highvolume water transfer.
Energy Efficient
Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption

Operating Conditions

Ambient Temperature
Max. +40°C
Liquids Temperature
+4°C ~ +40°C
System Pressure
Max. 3 kg/cm²
Inlet Pressure
Max. 0 kg/cm²
Max. Suction Depth
6 m
Kinematical Viscosity
1 cst (mm²/s)
Particle Size
1mm

Motor

Frequency range
50 / 60 Hz
Nominal Speed
2900 / 3500 rpm
Enclosure Protection Class
IP54
Insulation Class
F

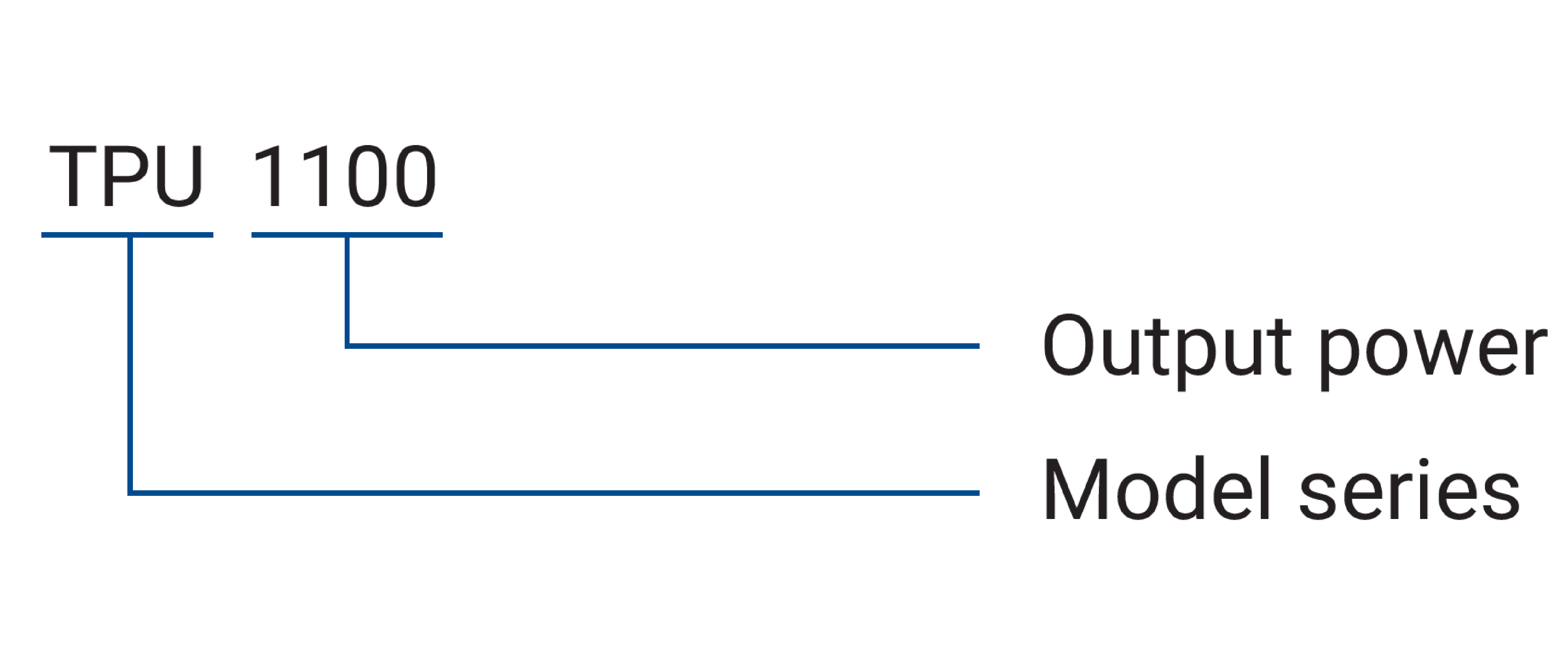

Model code

Select Frequency

TPU (Single Phase)
TPU (Three Phase)

TPU Series Applications

Delivers water to irrigation points for even moisture distribution across soil and plants. With inverters, settings can be adjusted based on soil moisture, weather conditions, and water demand to improve resource efficiency.
Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
Designed for saline environments, suitable for coastal facilities, fish farms, and seawater treatment systems.
TPU_Product Catalogue
Update2025-09-09
Size1.93 MB

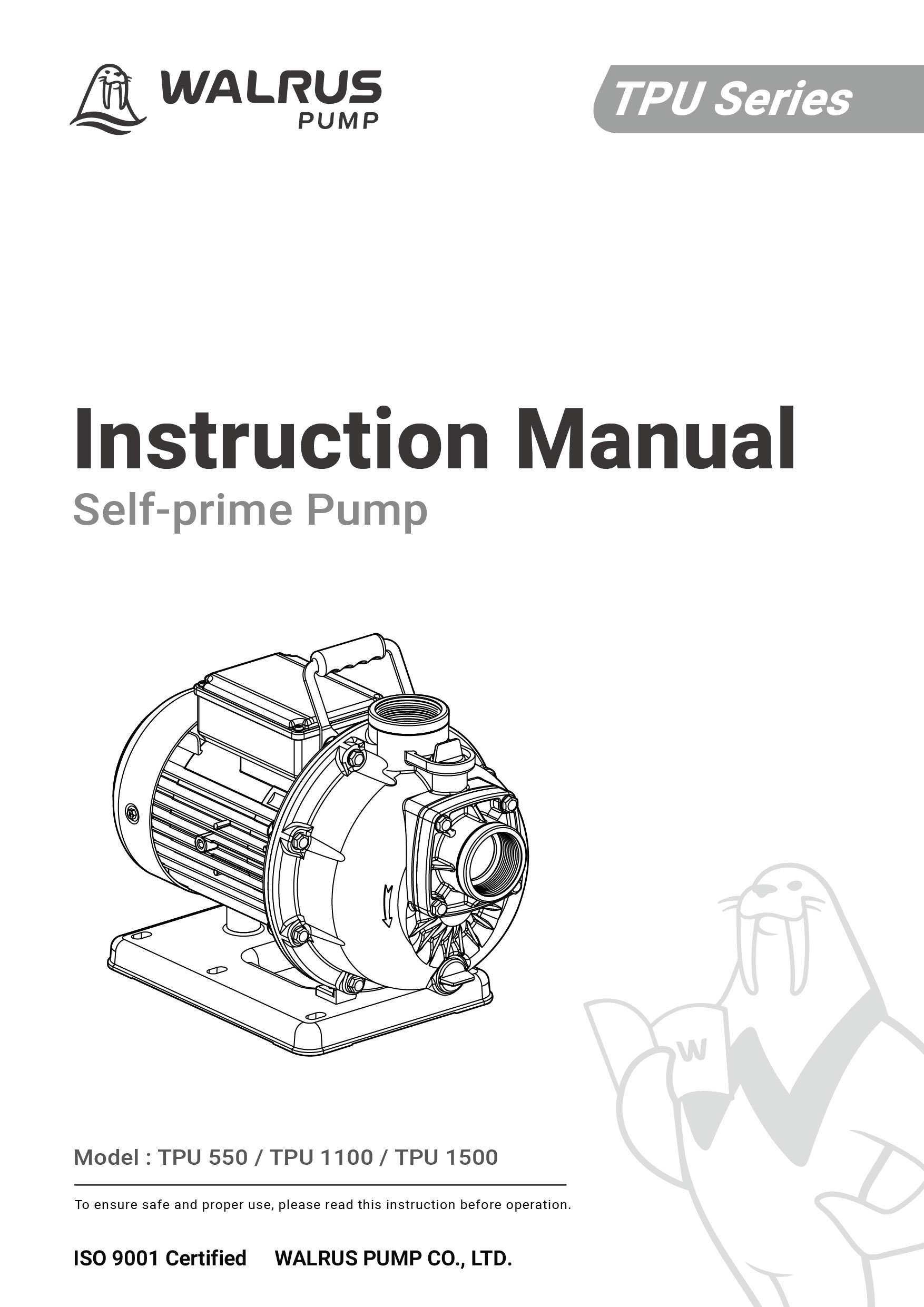

TPU_Instruction Manual
