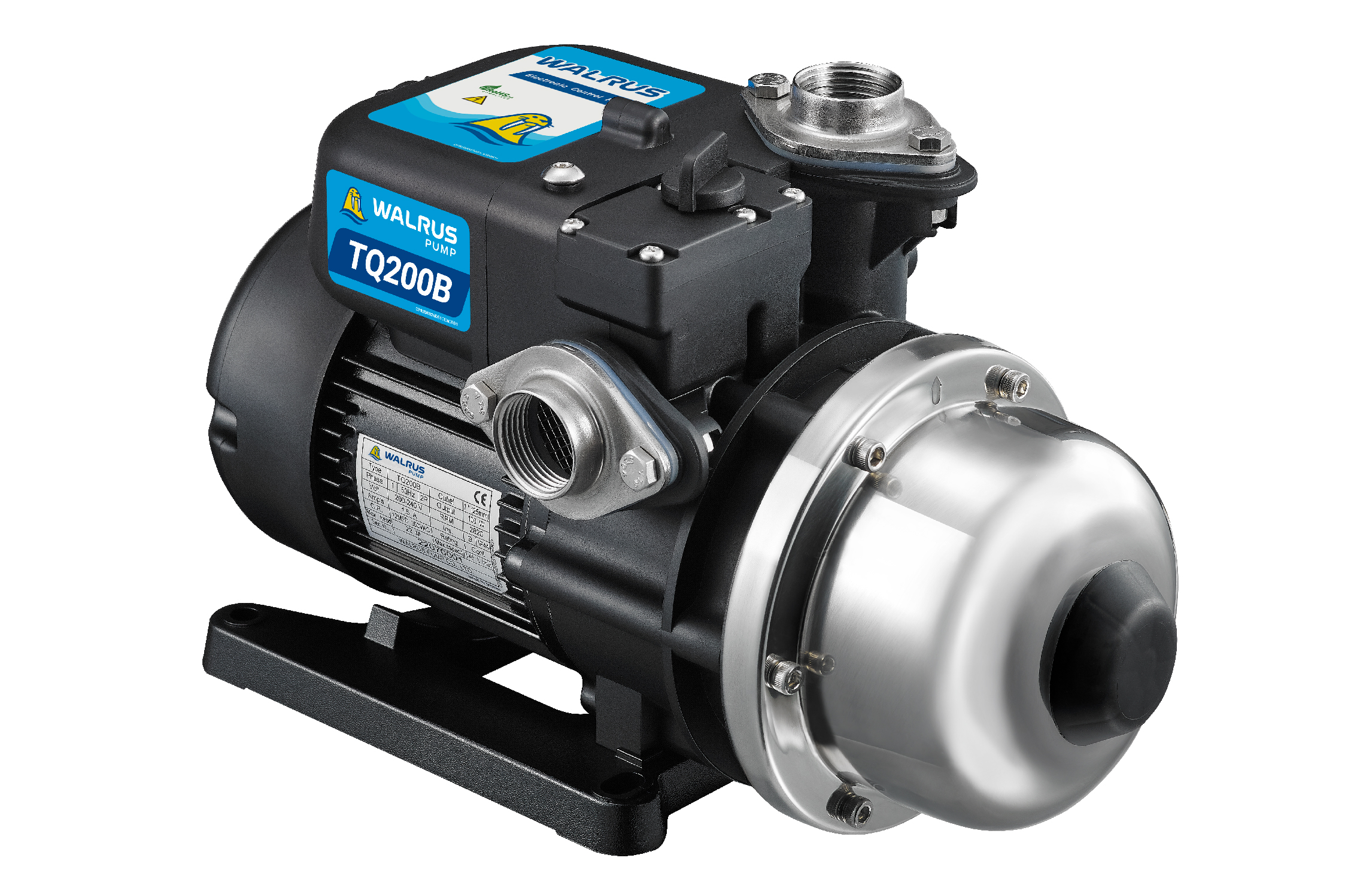

Model | TQ200B

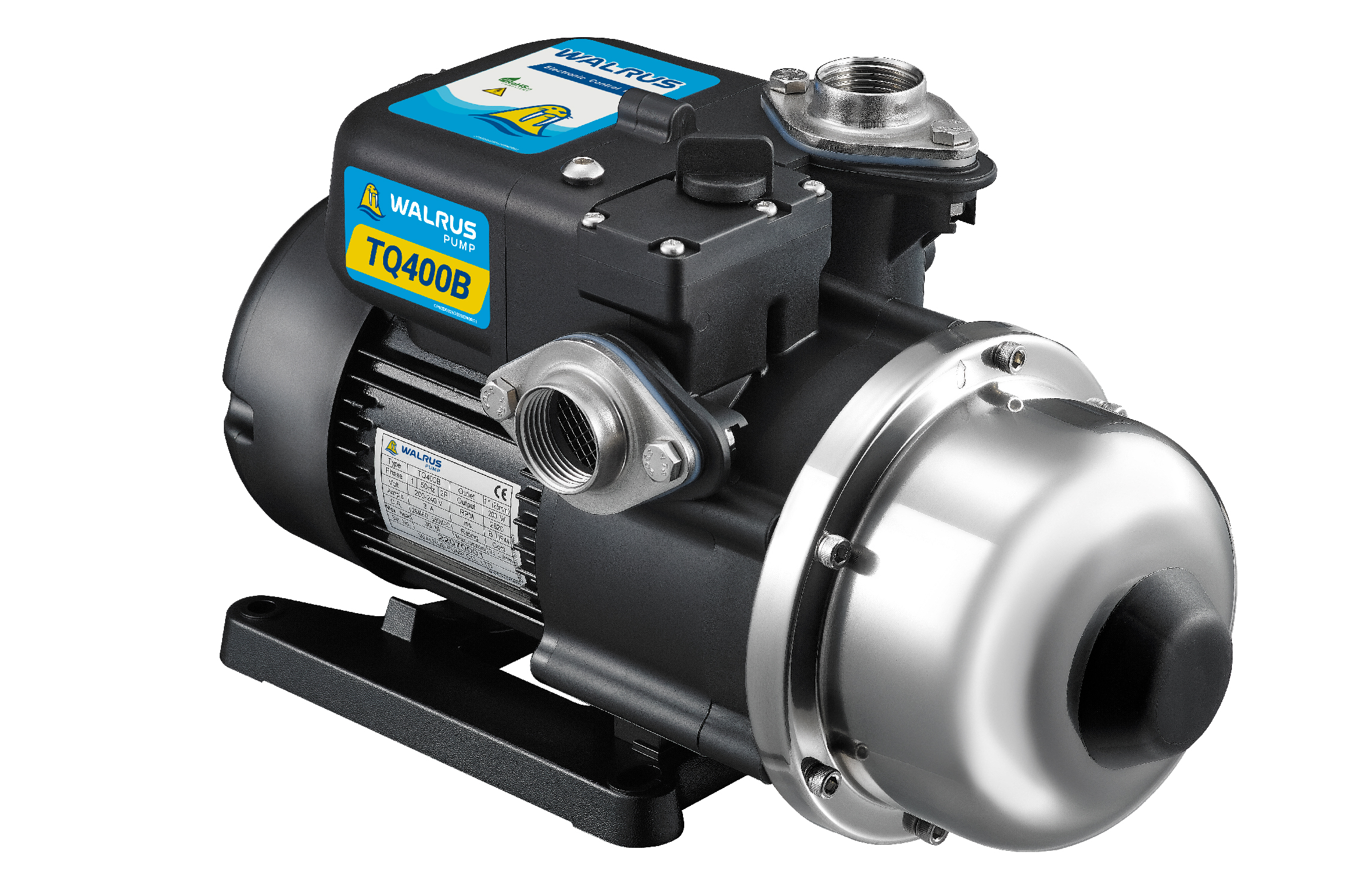

Model | TQ400B

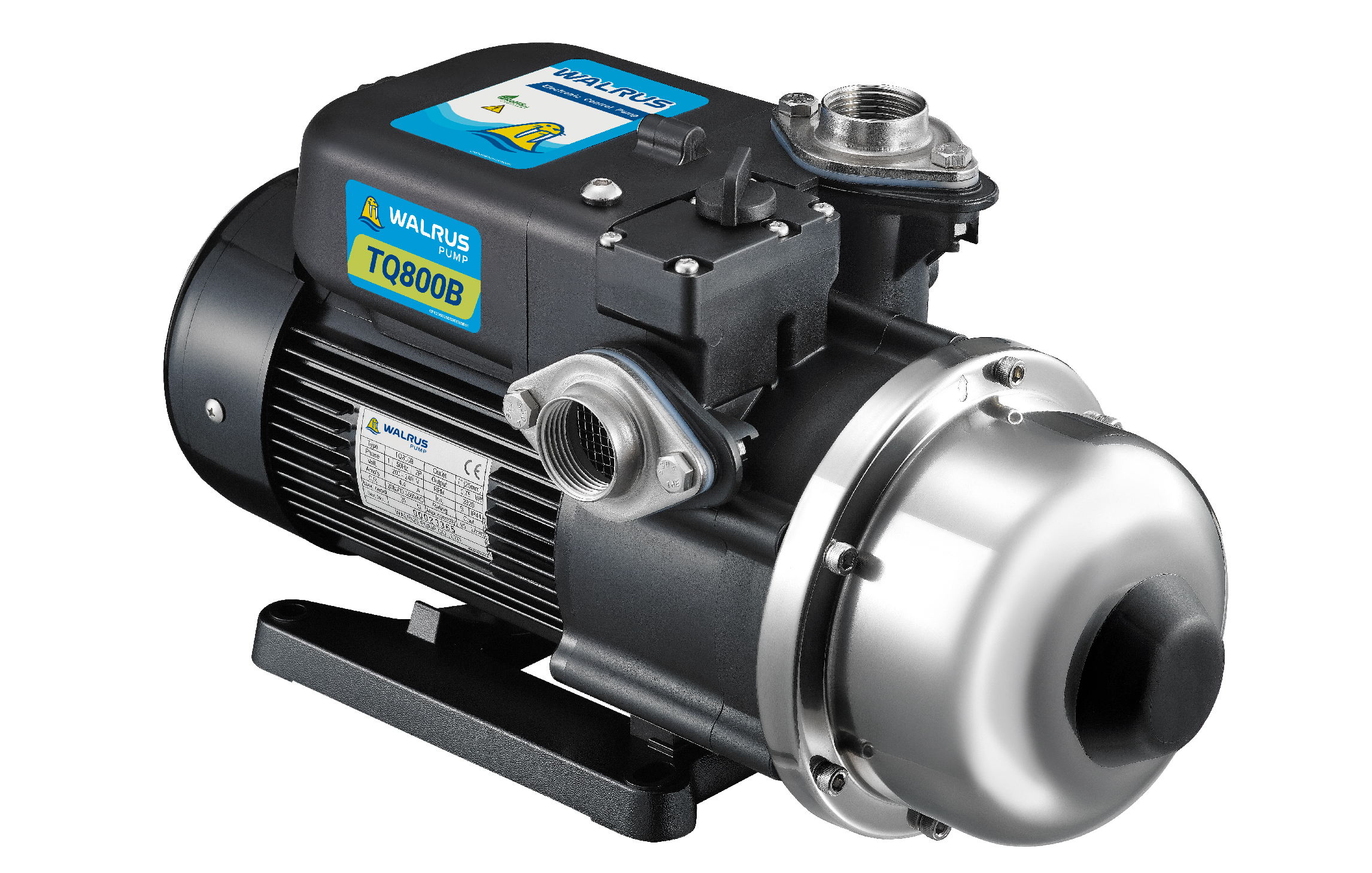

Model | TQ800B

Horizontal Centrifugal Pump

Electronic Control Booster Pump
TQ_B Series

  • Electronic program control ensures stable water pressure.
  • Using composite plastic centrifugal impellers, quiet and durable.
  • Equipped with dry-run protection. Your Safety, Our Priority.
Construction Industry Entertainment & Leisure Industry Accommodation & Food Service Industry Agriculture, Forestry, Fishery and Animal Husbandry Wholesale & Retail Trade Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.18 - 2.2
Up to 34
Up to 250
60
0.18 - 3.7
Up to 52
Up to 270

Features

Quiet and Durable
Adopts composite plastic multi-stage centrifugal impellers for quiet and low-noise operation.
Dry-Running Protection
Features program-controlled dry-run protection to avoid damage when the pump runs without water.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Rapid Cycling Protection
A design allows for programmable control to delay shutdown by 6 seconds, avoiding frequent pump starts and stops due to low water volume, effectively extending the pump's lifespan.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.
All-In-One
Integrated system that combines the pump, motor, pressure tank, and electronic controller for a stable and enduring water supply environment for household use.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Relative Humidity
Max. 85%(RH)
System Pressure
Max. 8.5 kg/cm²
Inlet Pressure
Must be less than the pressure switch start value.

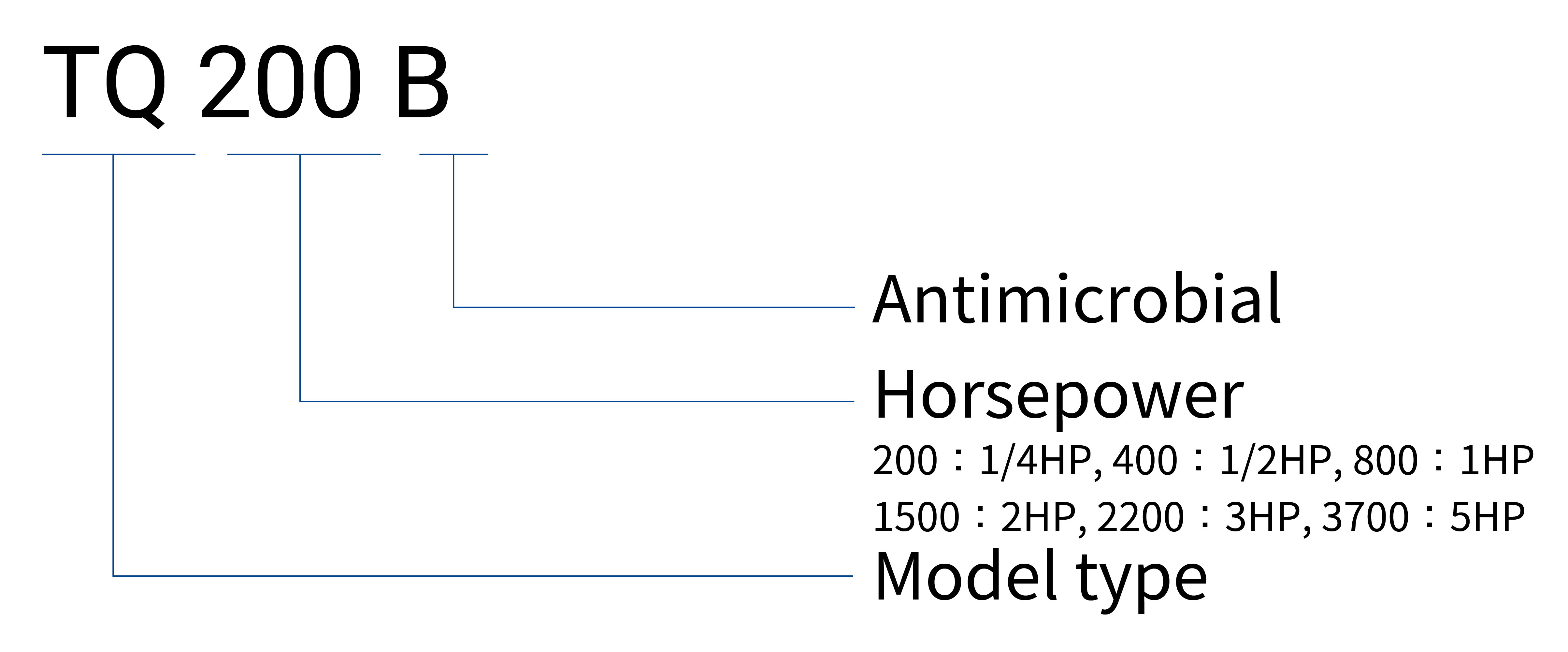

Model code




















Select Frequency
































Electrical standards


Inquiry
Model
Frequency
Phase
(Ø)
Power
(kW)
Voltage
(V)
Current
(A)
TQ200B
50
1
0.18
200 - 240
1.5
TQ200B
60
1
0.18
110 / 220
4.0 / 2.0
TQ400B
50
1
0.37
200 - 240
3.0
TQ400B
60
1
0.37
110 / 220
6.0 / 3.0
TQ800B
50
1
0.75
200 - 240
4.4
TQ800B
60
1
0.75
110 / 220
11.0 / 5.5
TQ1500B
50
1
1.5
200 - 240
7.2
TQ1500B
50
3
1.5
200 - 240
5.8
TQ1500B
50
3
1.5
380 - 440
3.3
TQ1500B
60
1
1.5
220
9.5
TQ1500B
60
3
1.5
220
6.5
TQ1500B
60
3
1.5
380
4.2
TQ2200B
50
1
2.2
200 - 240
11.1
TQ2200B
50
3
2.2
200 - 240
7.2
TQ2200B
50
3
2.2
380 - 440
4.1
TQ2200B
60
3
2.2
220
9.5
TQ2200B
60
3
2.2
380
5.2
TQ3700B
60
3
3.7
220
13.8
TQ3700B
60
3
3.7
380
6.8





Pump specifications

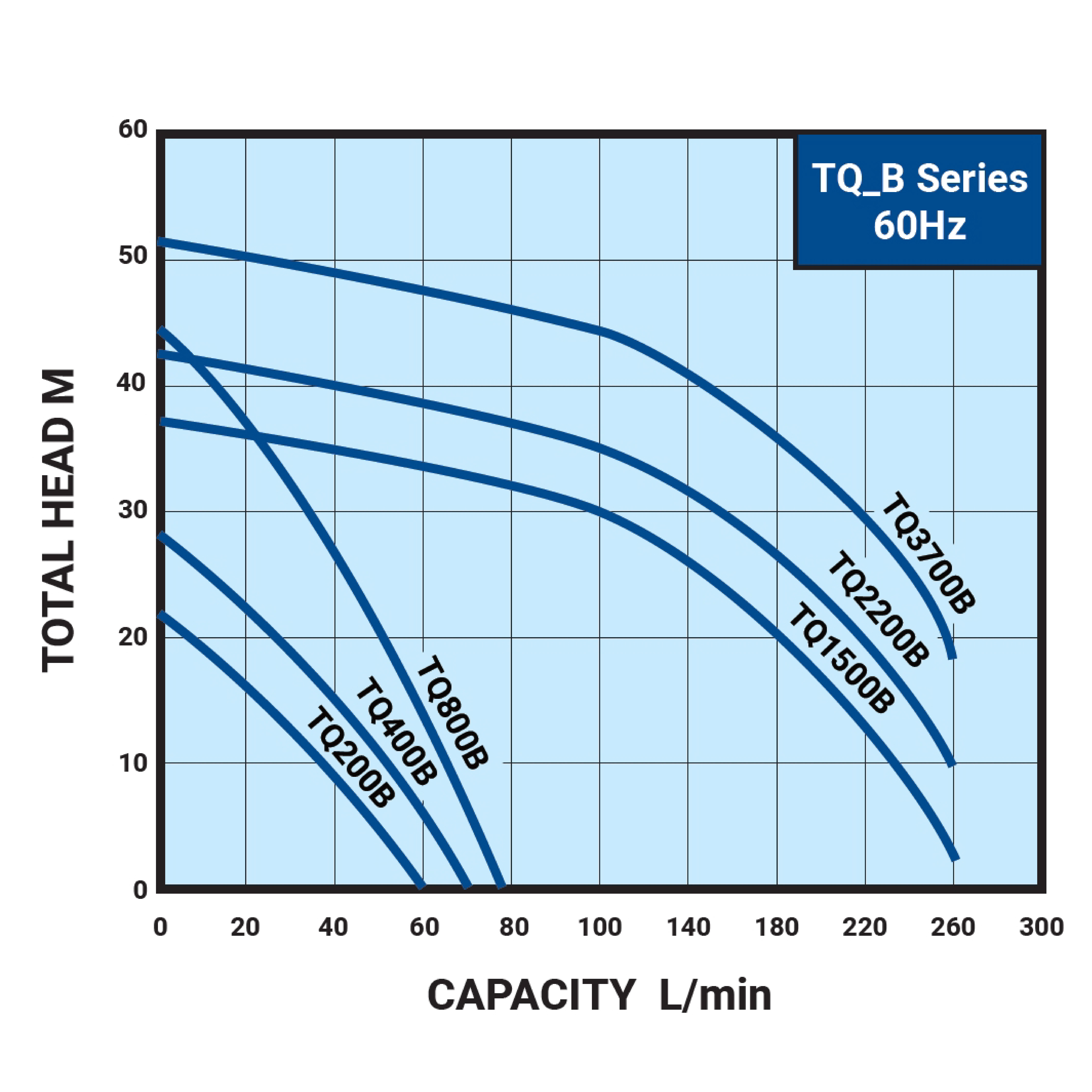

Graph
Model
Frequency
Max. Head
(m)
Max. Flow
(L/min)
Activation Pressure
(kg/cm2)
Inlet
(in.)
Outlet
(in.)
TQ200B
50
22
45
1.2
1"
1"
TQ200B
60
22
60
1.4
1"
1"
TQ400B
50
30
75
1.8
1"
1"
TQ400B
60
28
70
1.8
1"
1"
TQ800B
50
35
95
2.0
1"
1"
TQ800B
60
44
75
2.5
1"
1"
TQ1500B
50
32
230
2.5
2"
2"
TQ1500B
60
37
270
3.0
2"
2"
TQ2200B
50
34
250
2.5
2"
2"
TQ2200B
60
42
270
3.0
2"
2"
TQ3700B
60
52
270
3.0
2"
2"

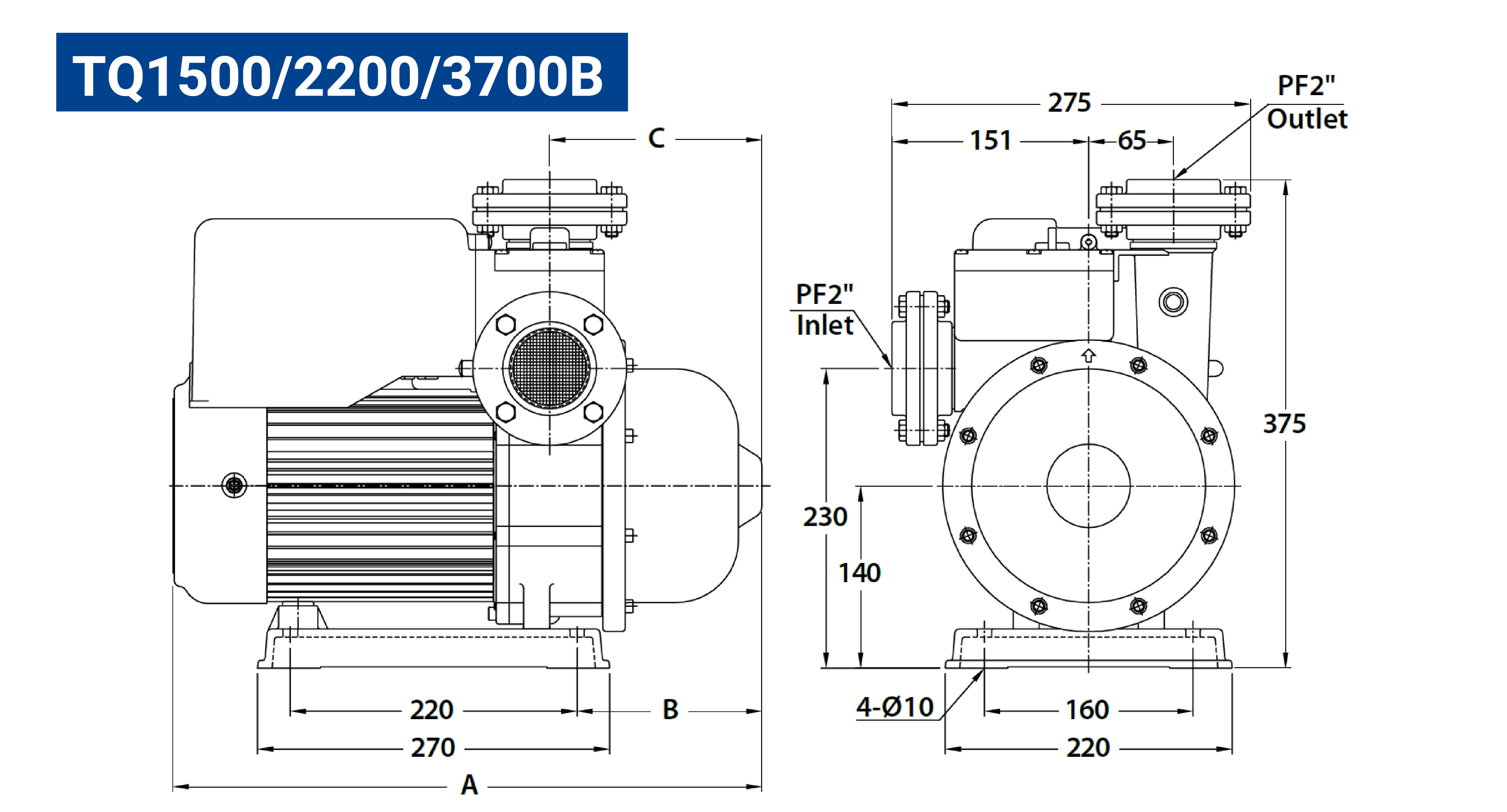

Dimension



Model
Frequency
A
B
C
D
N.W.
G.W.
Pallet Loading Qty.
TQ200B
50
360
153
158
176
7.2
7.8
36
TQ200B
60
336
129
134
176
6.8
7.5
36
TQ400B
50
371
164
169
181
8.7
9.3
36
TQ400B
60
345
138
143
181
8.2
8.9
36
TQ800B
50
417
164
169
181
10.9
11.5
36
TQ800B
60
417
164
169
181
11.2
11.9
36
TQ1500B
50
452
142
163
-
21.3
23.4
12
TQ1500B
60
452
142
163
-
21.2
23.4
12
TQ2200B
50
452
142
163
-
22.2
24.4
12
TQ2200B
60
452
142
163
-
22.2
24.4
12
TQ3700B
60
452
142
163
-
25.4
27.6
12



























TQ_B Series Applications












Construction Industry


Building Water Supply Systems


Meeting the water extraction, storage, and constant pressure supply needs of large buildings and construction projects. Paired with VFDs, the system adjusts pressure based on water demand, ensuring a stable and uninterrupted water supply.

















Construction Industry


Domestic Water Supply


For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.

















Entertainment & Leisure Industry


Irrigation for Landscaping


Ideal for efficiently transporting irrigation water to green spaces and planting areas. Integrated with automated sprinklers, smart sensors, and recycled water sources to optimize water usage, achieving energy and water conservation goals.

















Entertainment & Leisure Industry


Commercial Water Supply


Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.

















Accommodation & Food Service Industry


Commercial Water Supply


Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.

















Agriculture, Forestry, Fishery and Animal Husbandry


Irrigation


Delivers water to irrigation points for even moisture distribution across soil and plants. With inverters, settings can be adjusted based on soil moisture, weather conditions, and water demand to improve resource efficiency.

















Agriculture, Forestry, Fishery and Animal Husbandry


Water Supply for Animal Husbandry and Aquaculture


Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.

















Agriculture, Forestry, Fishery and Animal Husbandry


Water Supply for Horticulture and Reforestation


Delivers water to lawns, gardens, and landscaping areas, ensuring even distribution. Adjusts water flow based on soil, climate, and time for precise irrigation and spraying, reducing resource waste.

















Wholesale & Retail Trade


Ice Machine Water Supply


We offer pump solutions that reliably transport clean water from storage to ice machines, ensuring continuous ice production. Integrated with filters, water purification systems, or RO systems, our products enhance hygiene and operational safety.

















Wholesale & Retail Trade


Commercial Water Supply


Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.

















Service Industry


Domestic Water Supply


For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.





































TQ_B Product Catalogue







                                                        Update2025-08-16



Size1013.73 KB

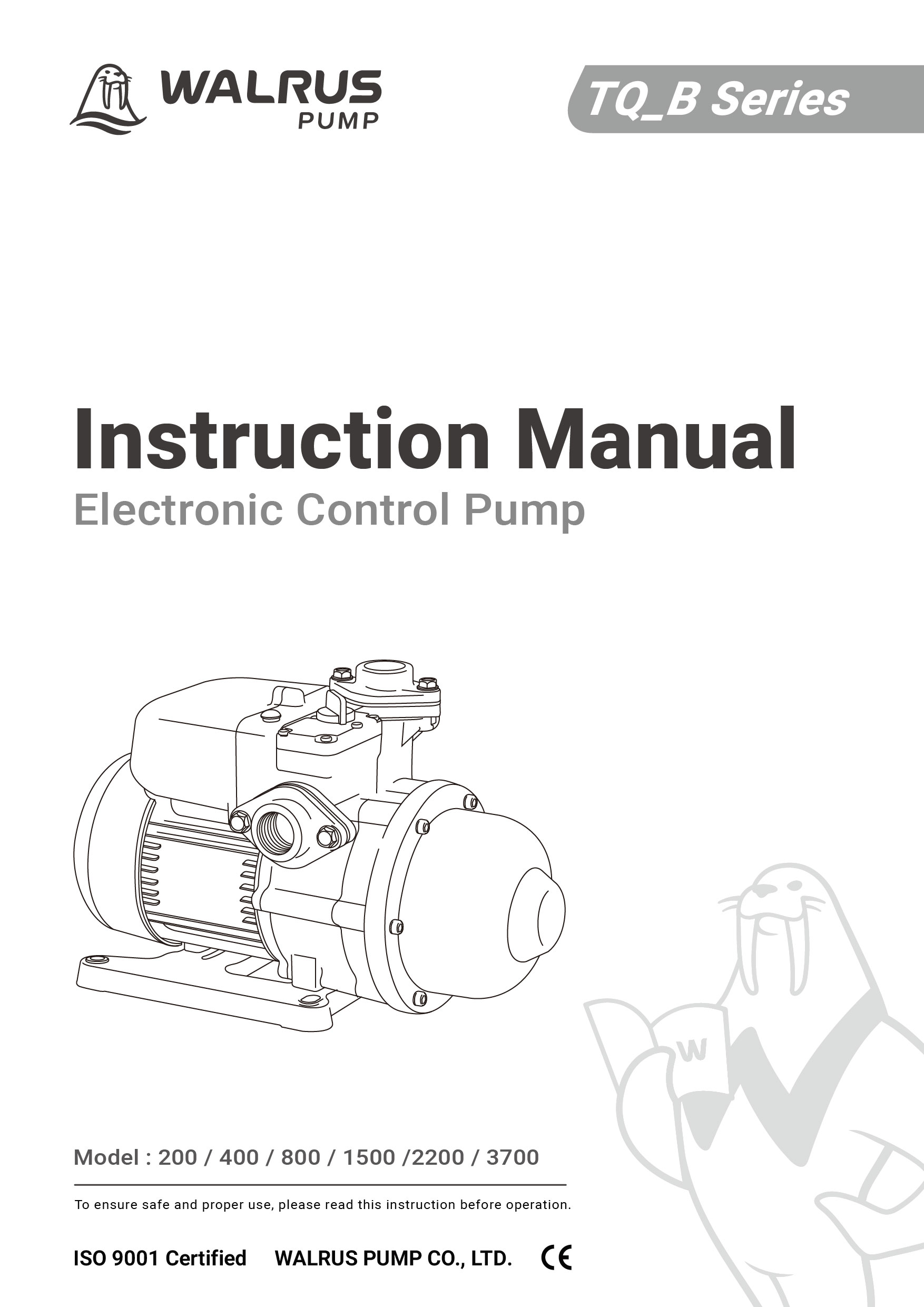

TQ_B Instruction Manual







                                                        Update2025-08-16



Size1.36 MB
























                                        Download ({{ selectedDownloadIds.length }})















Downward Pressurization: Calculated at 15 L/min per faucet.


Upward Water Lifting: Each floor is approximately 5 meters high, calculated at 0.5 kg/cm² per floor.
