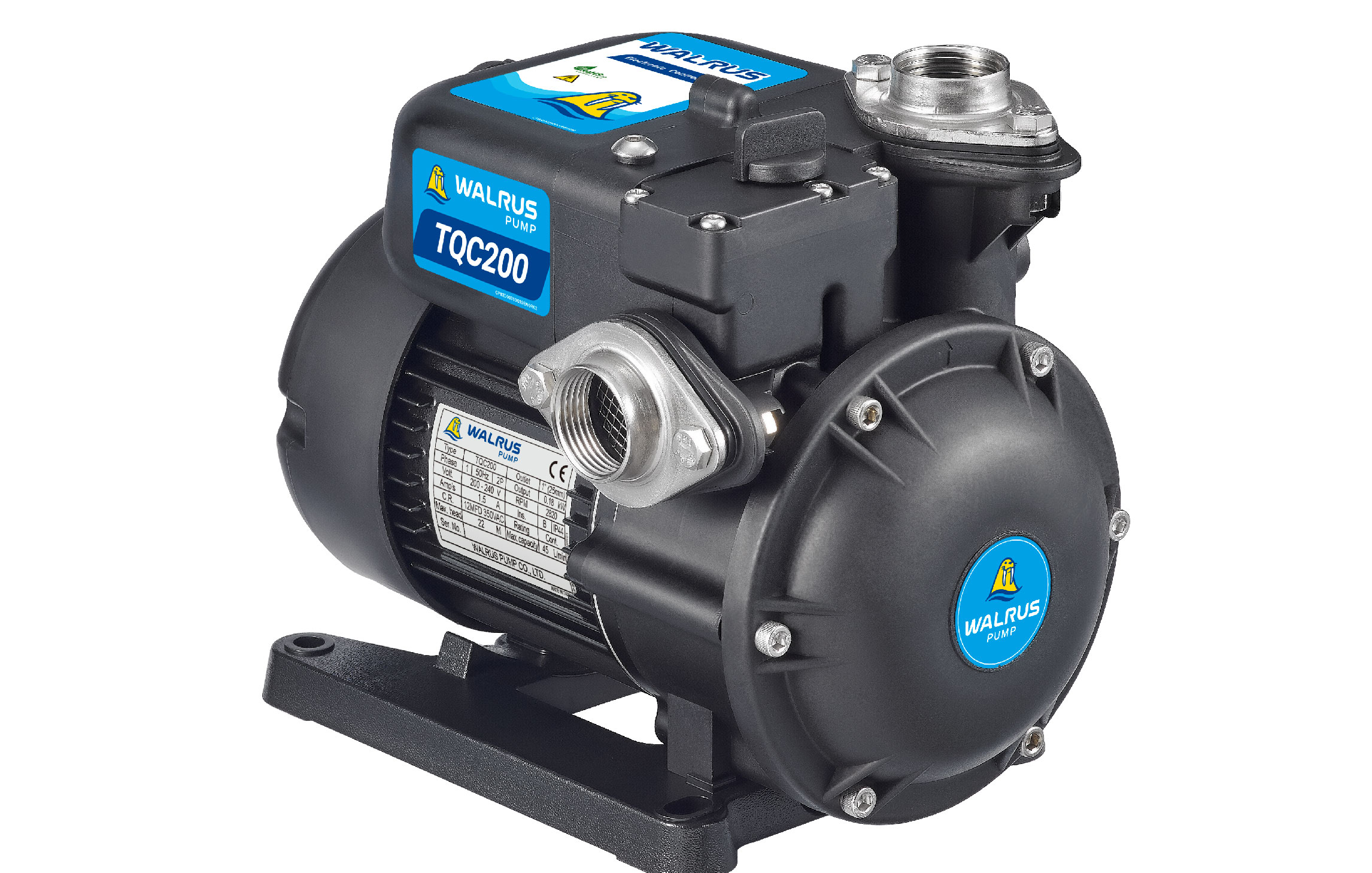

Model | TQC200B

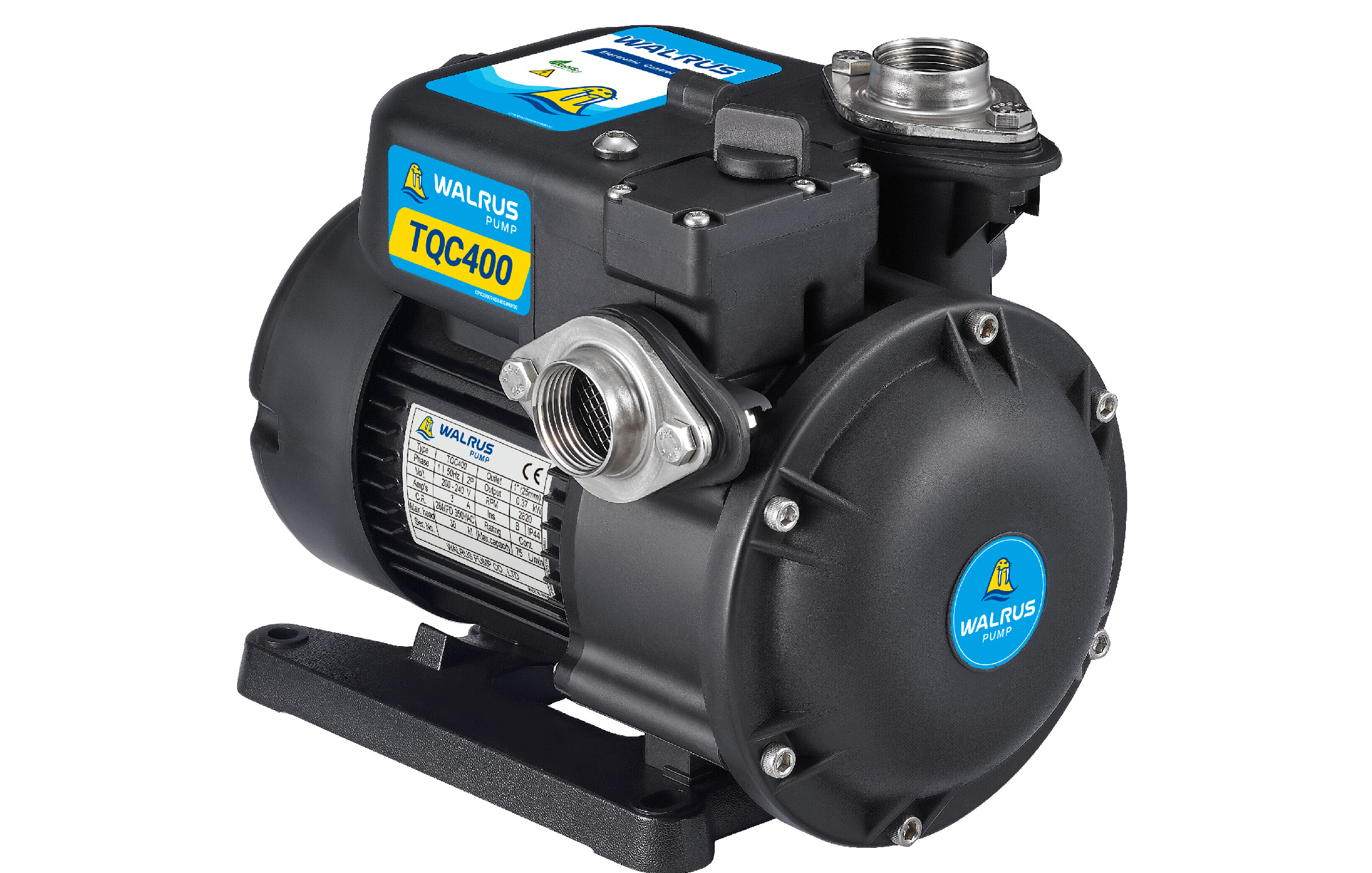

Model | TQC400B

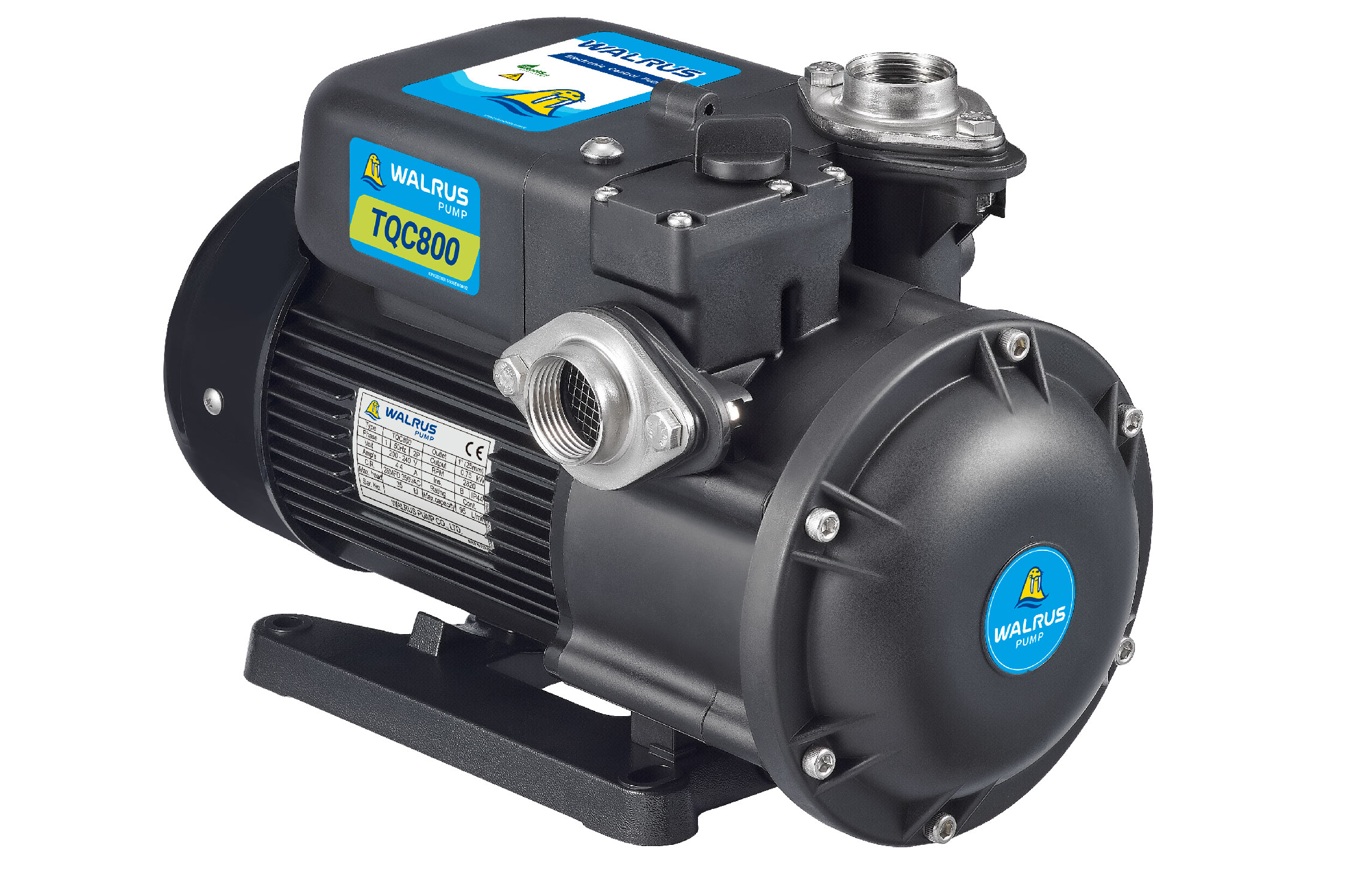

Model | TQC800B

Horizontal Centrifugal Pump

Automatic Flow-Controlled Booster Pump
TQC_B Series

  • Automatically starts and stops based on water inflow, no pressure retention in pipes.
  • Using composite plastic centrifugal impellers, quiet and durable.
  • The parts in contact with liquid are made of rust-resistant materials
Construction Industry Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.18 - 0.75
Up to 35
Up to 95
60
0.18 - 0.75
Up to 44
Up to 75

Features

Quiet and Durable
Adopts composite plastic multi-stage centrifugal impellers for quiet and low-noise operation.
No pressure retention in pipes
Intelligent electronic control with automatic start / stop based on inflow.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Suction Pipes
Must run in positive pressure only a negative pressure unable to work the pump.
Discharge Pipes
Must lower than water tower over 0.5 meter.
Operation Method
It must be installed below a water tower to enable downward pressurization and automatically starts and stops with water usage.
Operating Limitations
The pump cannot operate if the faucet outlet is higher than the water tower or when drawing water upwards from a reservoir.

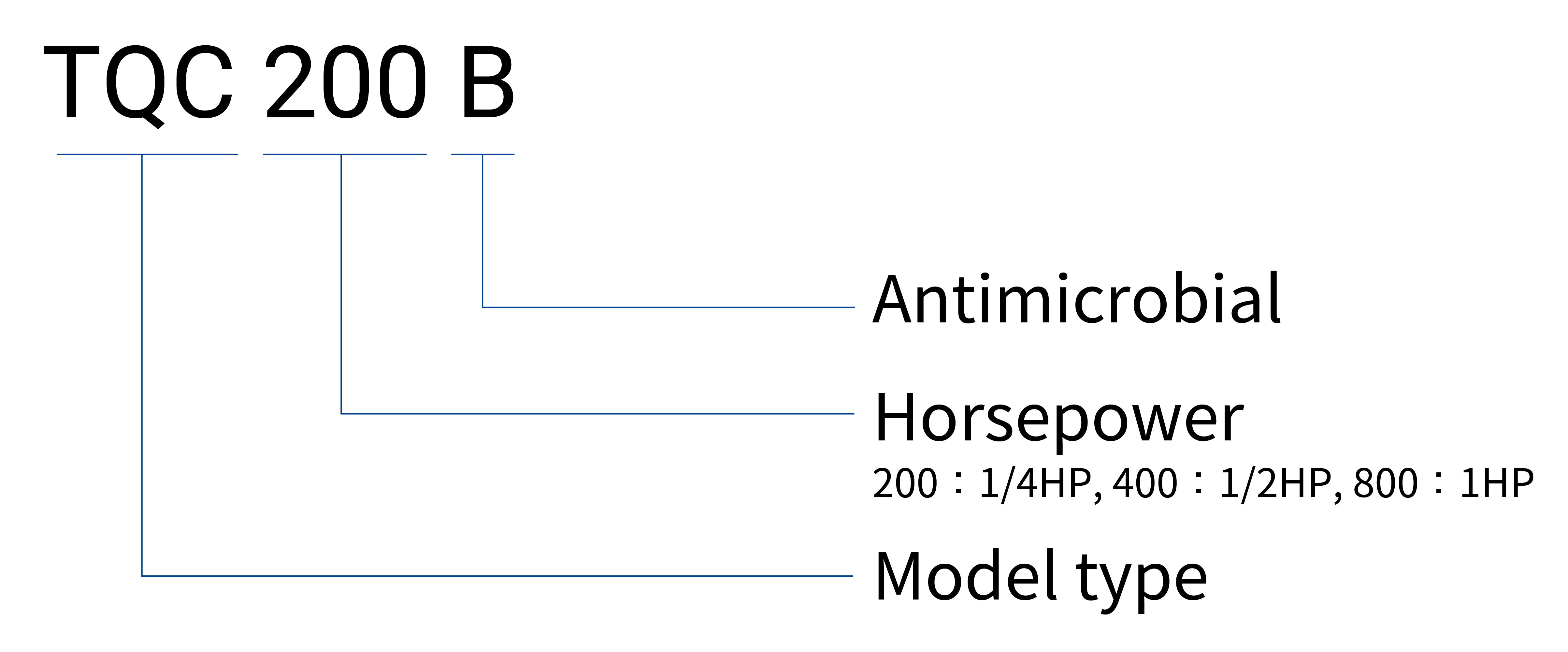

Model code

Select Frequency

Electrical standards
Inquiry
Model
Frequency
Phase
(Ø)
Power
(kW)
Voltage
(V)
Current
(A)
TQC200B
50
1
0.18
200 - 240
1.5
TQC200B
60
1
0.18
110 / 220
4.0 / 2.0
TQC400B
50
1
0.37
200 - 240
3.0
TQC400B
60
1
0.37
110 / 220
6.0 / 3.0
TQC800B
50
1
0.75
200 - 240
4.4
TQC800B
60
1
0.75
110 / 220
11.0 / 5.5
Pump specifications

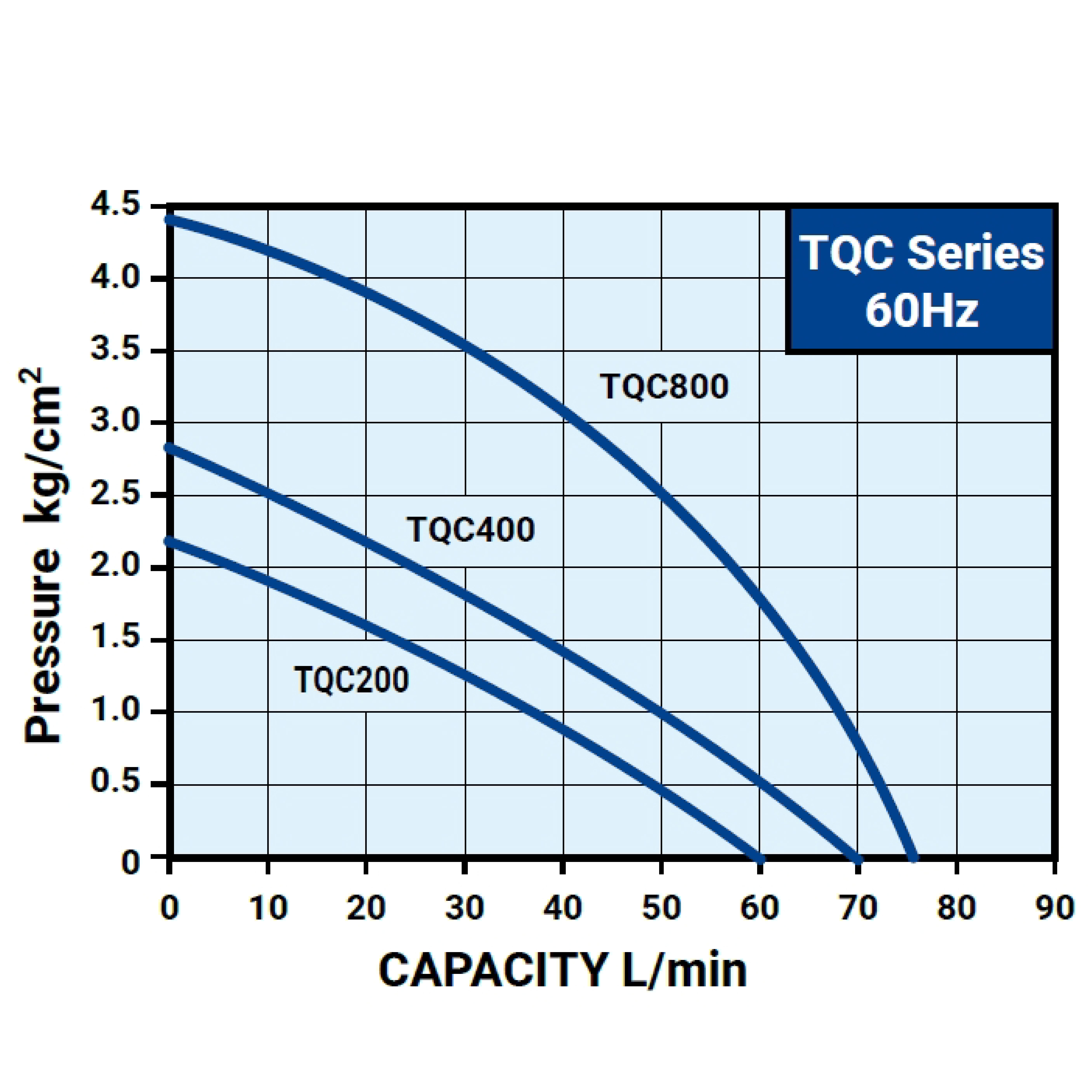

Graph
Model
Frequency
Max. Head
(m)
Max. Flow
(L/min)
Inlet
(in.)
Outlet
(in.)
TQC200B
50
22
45
1"
1"
TQC200B
60
22
60
1"
1"
TQC400B
50
30
75
1"
1"
TQC400B
60
28
70
1"
1"
TQC800B
50
35
95
1"
1"
TQC800B
60
44
75
1"
1"

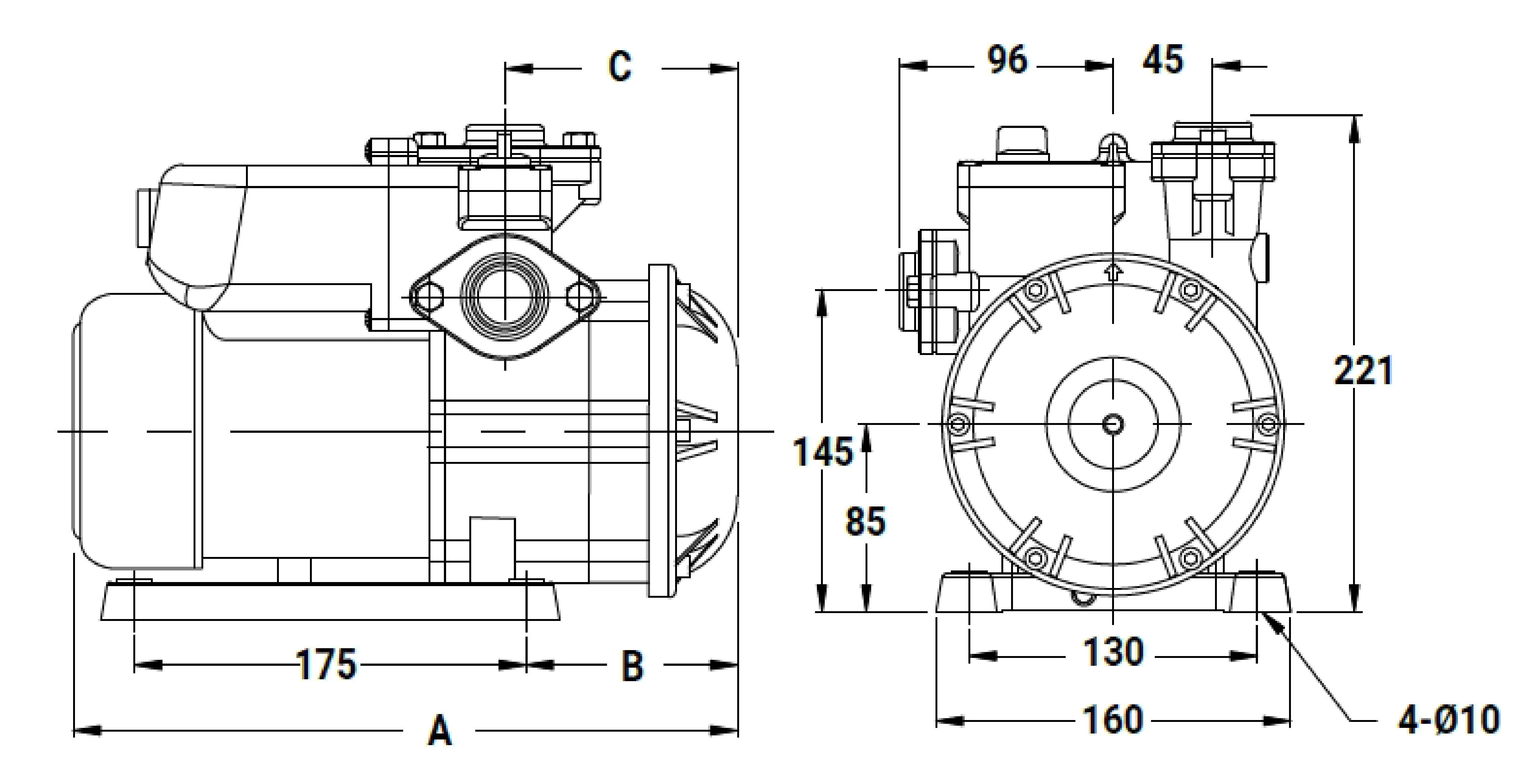

Dimension
Model
Frequency
A
B
C
N.W.
G.W.
Pallet Loading Qty.
TQC200B
50
297
91
96
6.7
7.2
45
TQC200B
60
273
67
72
6.3
7.4
45
TQC400B
50
306
99
104
8.2
8.7
45
TQC400B
60
280
73
78
7.8
8.9
45
TQC800B
50
352
99
104
10.4
10.9
30
TQC800B
60
352
99
104
10.7
12.0
30

TQC_B Series Applications

Construction Industry
Domestic Water Supply
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
Service Industry
Domestic Water Supply
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.

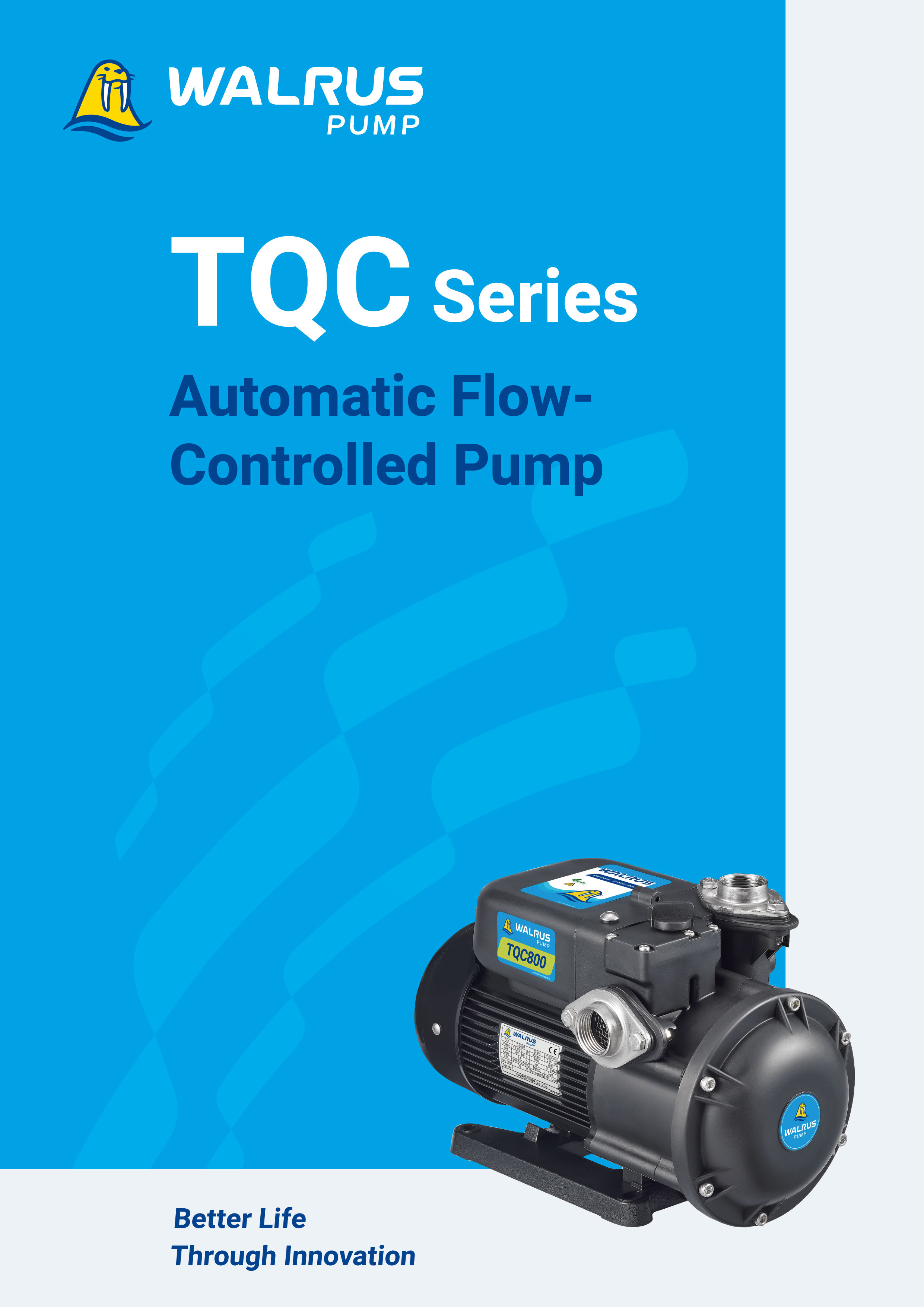

TQC_B Product Catalogue
Update2025-08-18
Size1.1 MB

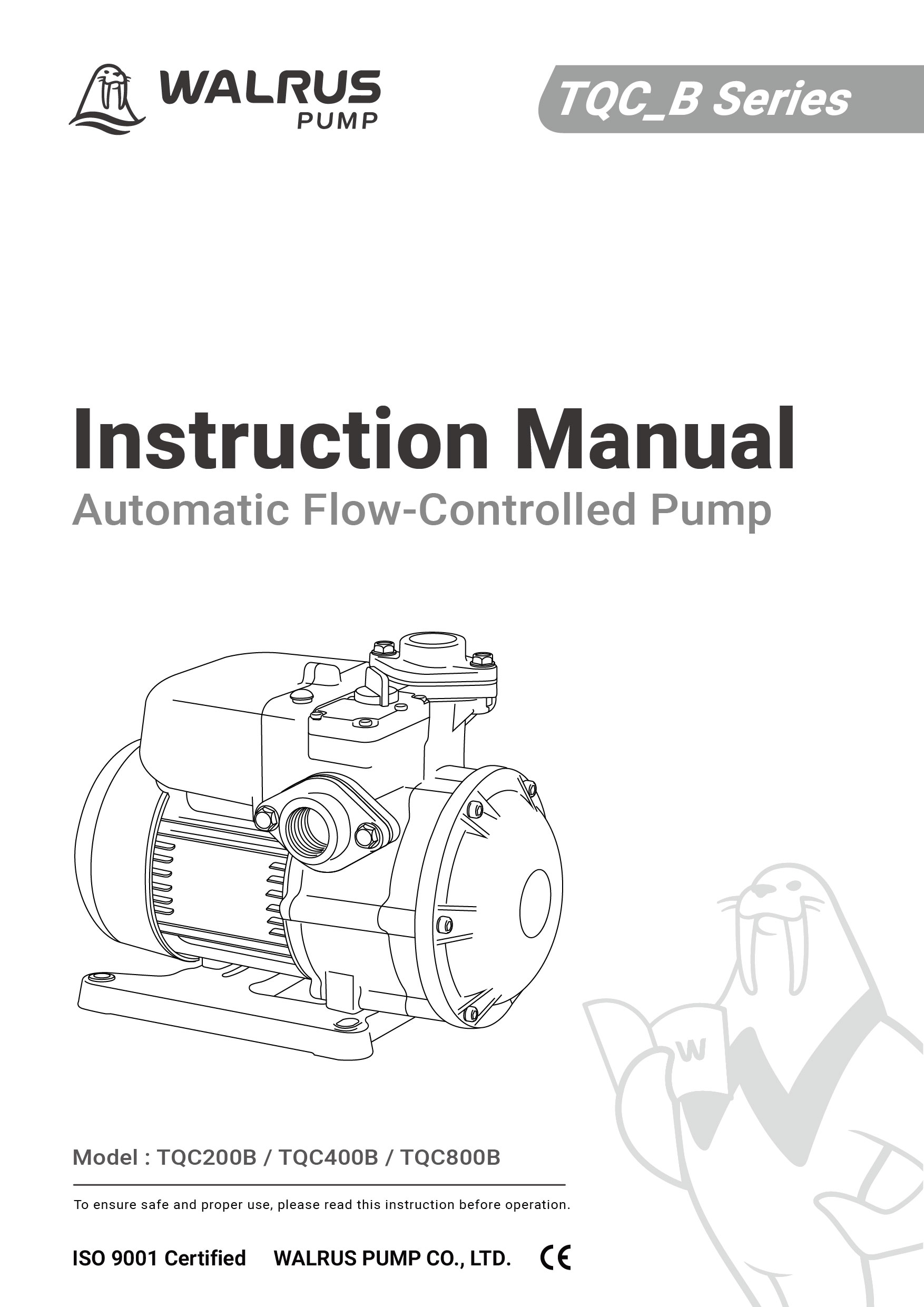

TQC_B Instruction Manual
