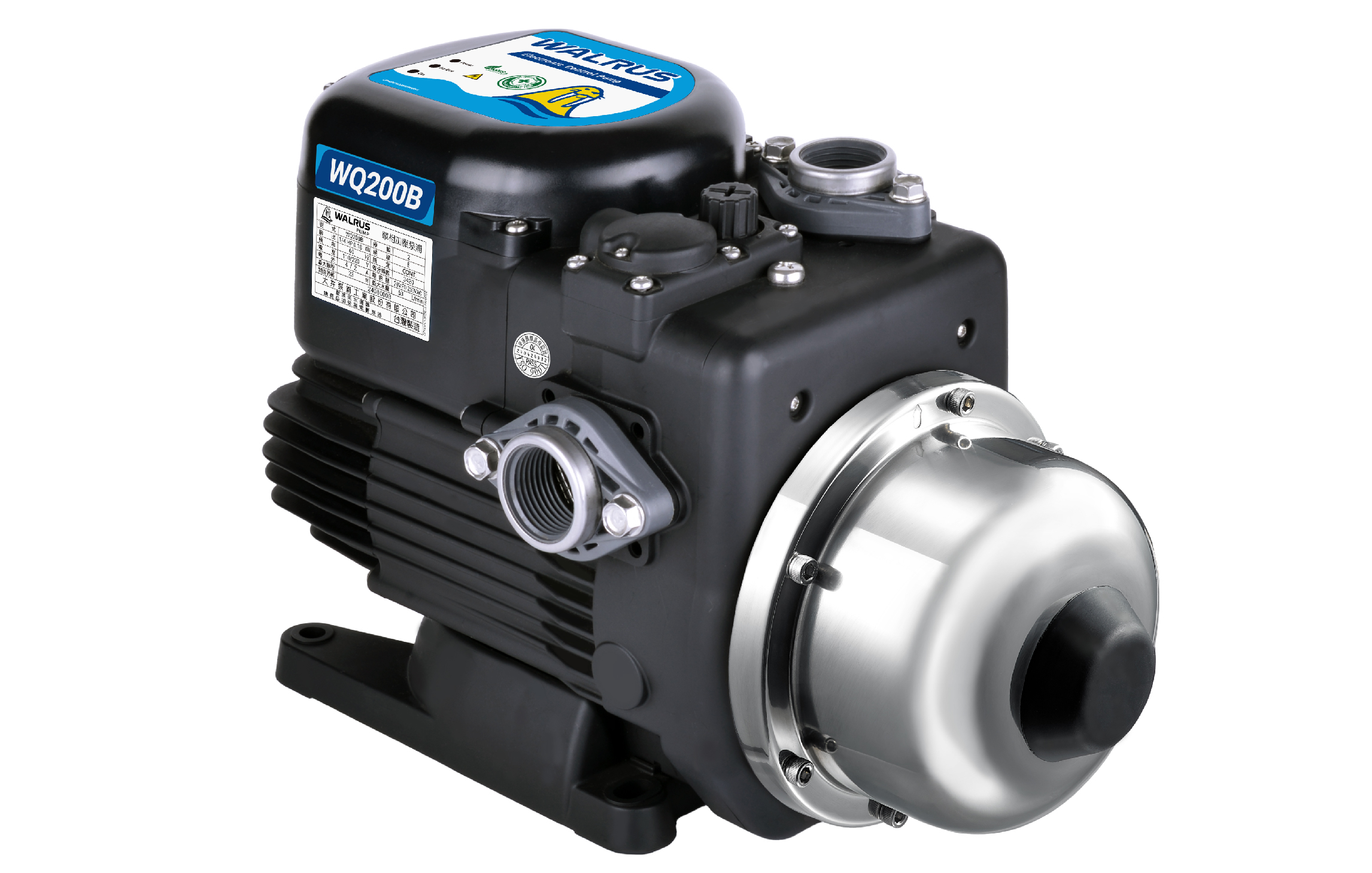

Model | WQ200B

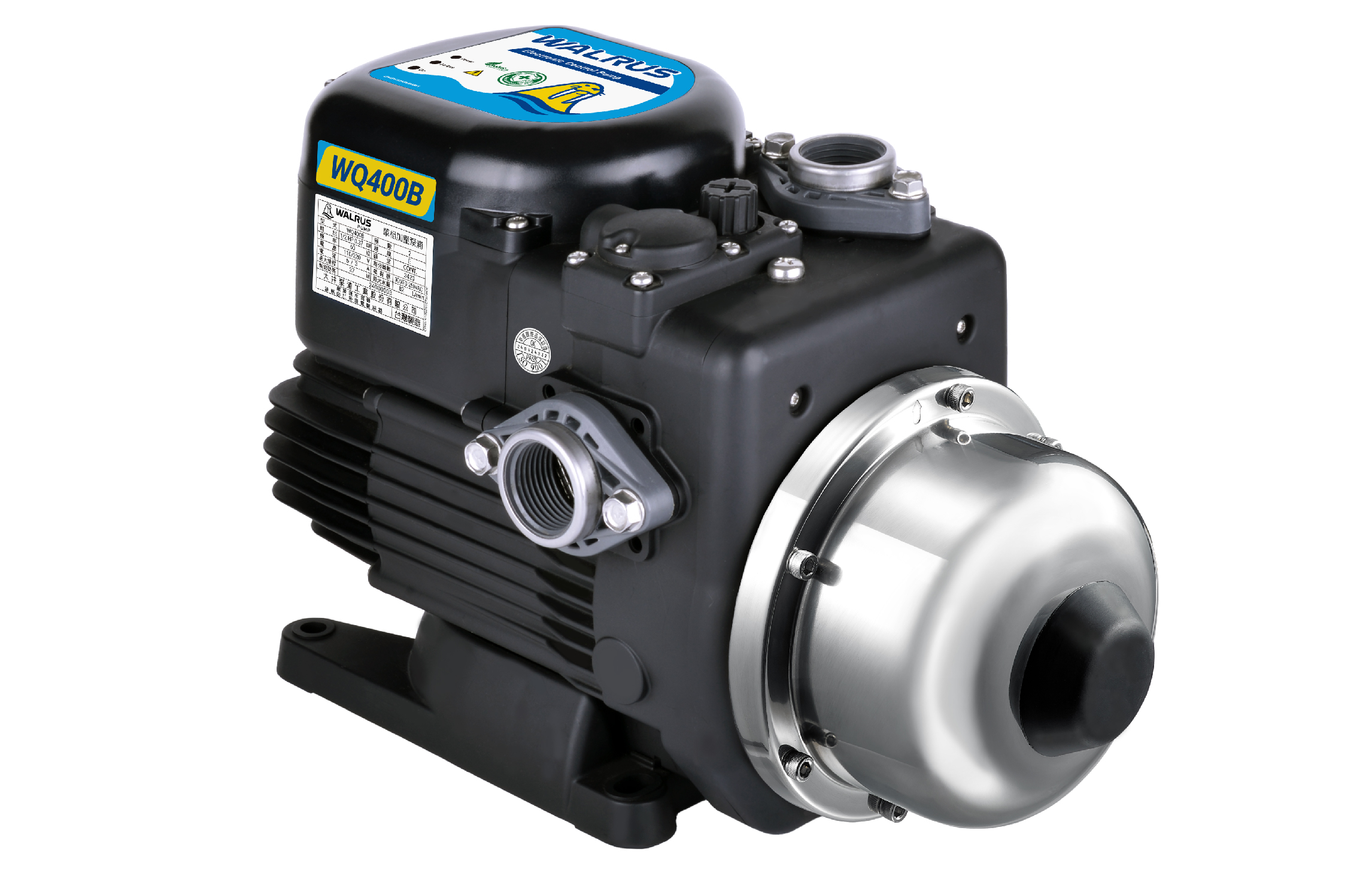

Model | WQ400B

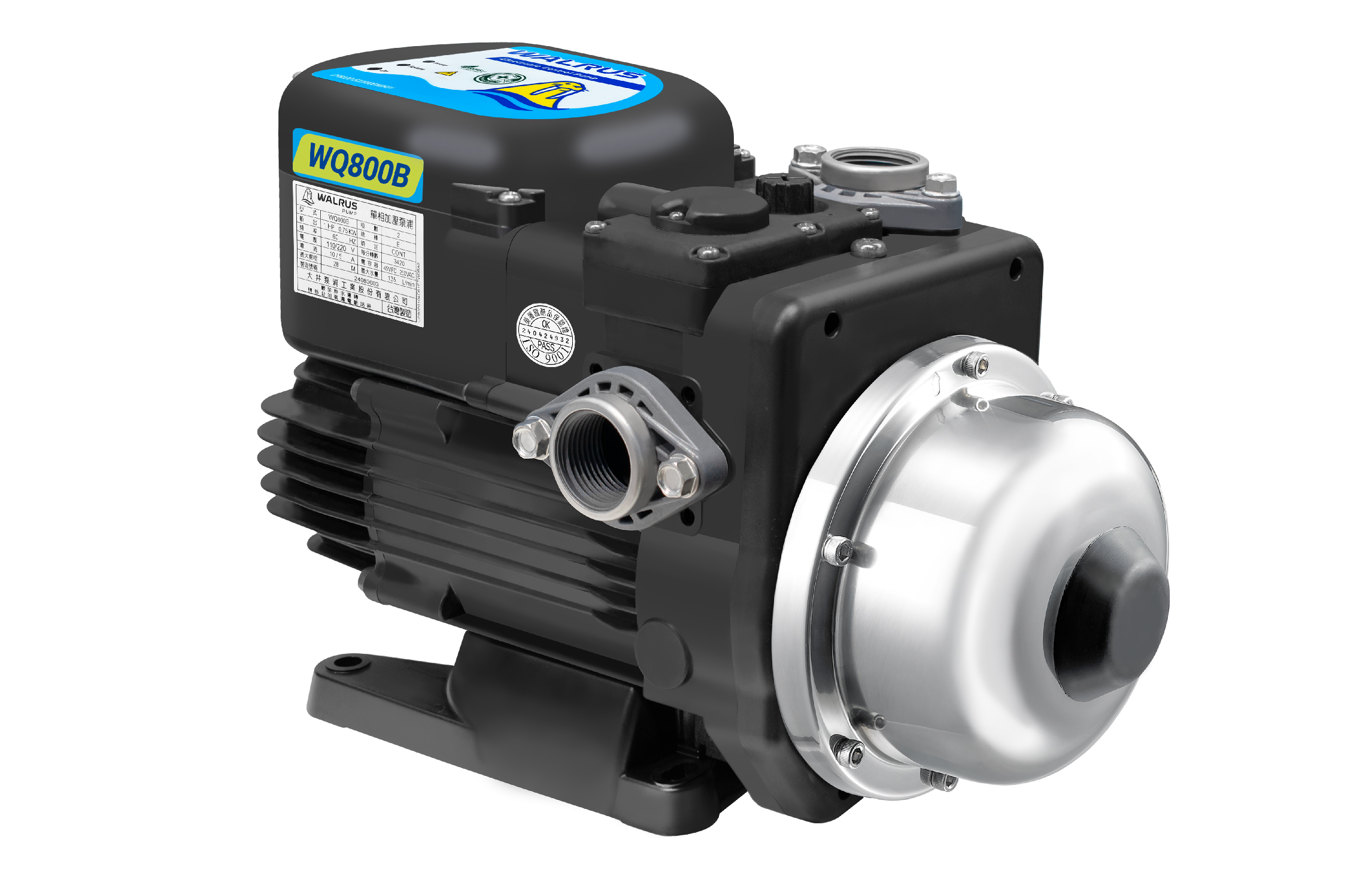

Model | WQ800B

Horizontal Centrifugal Pump

Water-Cooled Electronic Control Booster Pump
WQ_B Series

  • Innovative fanless, water-cooled technology featuring SUS304 stainless steel centrifugal impellers for ultra-quiet and long-lasting operation.
  • Dual Outlet Design (Horizontal / Vertical).
  • Excellent heat dissipation and energy saving.
  • Electronic program control ensures stable water pressure.
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.18 - 0.75
Up to 34
Up to 125
60
0.18 - 0.75
Up to 45
Up to 135

Features

Efficient Heat Dissipation
Can be installed under the kitchen counter without concerns about poor heat dissipation in tight spaces.
Dual Outlet Design
Dual outlet design (horizontal/vertical) adaptable to various installation space requirements.
Energy-Saving
Water has three times the heat capacity of air, reducing the energy loss from heat.
Ultra-Quite
Replacing fan designs, it significantly reduces noise levels, making it as quiet as a library.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Power Module
Equipped with industrial-grade safety protections, it adapts to various voltage conditions to ensure consistently stable water pressure.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Double Dry-Running Protection
Features a built-in temperature protection switch and a dry-running protection device to prevent overheating caused by operation without water, ensuring safe use.
Rapid Cycling Protection
A design allows for programmable control to delay shutdown by 6 seconds, avoiding frequent pump starts and stops due to low water volume, effectively extending the pump's lifespan.
Hygiene and Durable
The impeller is made of SUS304 stainless steel to ensure water hygiene and strength.
All-In-One
Integrated system that combines the pump, motor, pressure tank, and electronic controller for a stable and enduring water supply environment for household use.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Relative Humidity
Max. 85%(RH)
System Pressure
Max. 8.5 kg/cm²
Inlet Pressure
Must be less than the pressure switch start value.

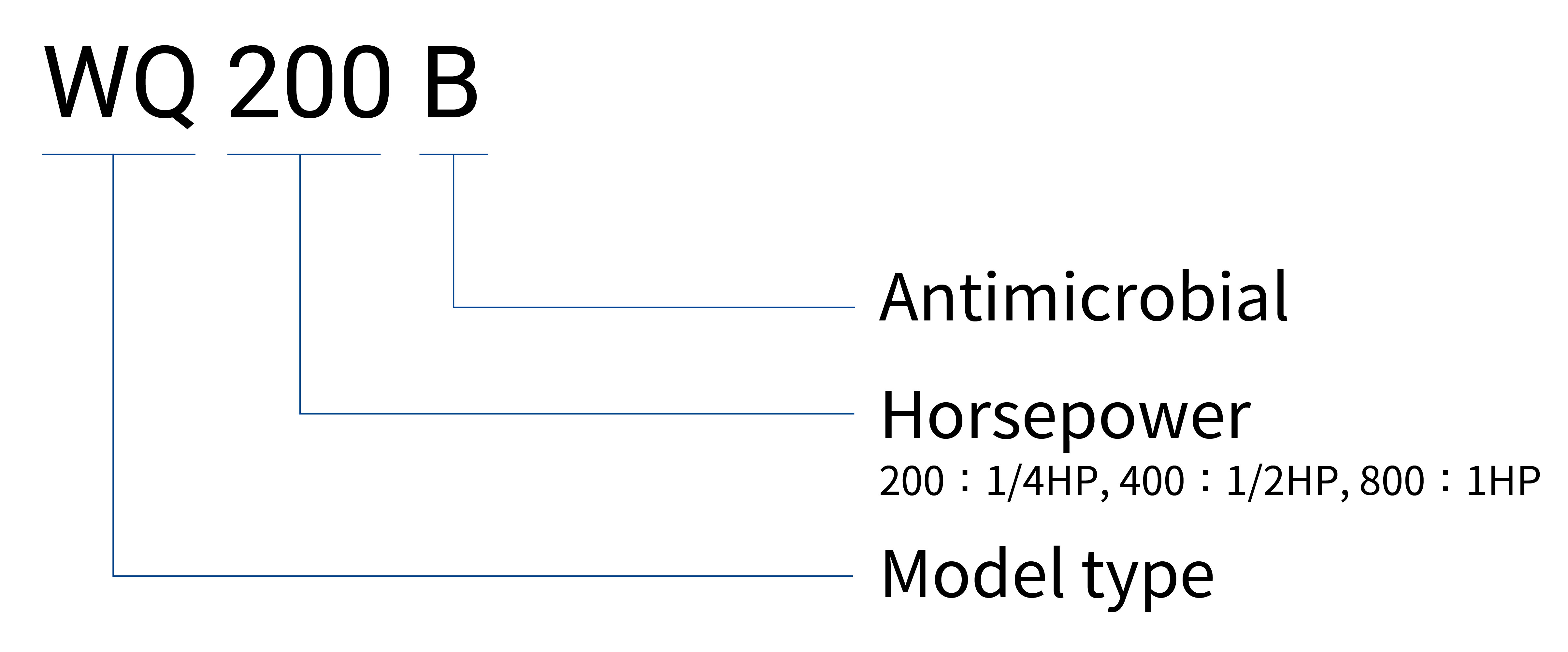

Model code




Select Frequency

Electrical standards
Inquiry
Model
Frequency
Phase
(Ø)
Power
(kW)
Voltage
(V)
Current
(A)
WQ200B
50
1
0.18
200 - 240
1.5
WQ200B
60
1
0.18
110 / 220
4.0 / 2.0
WQ400B
50
1
0.37
200 - 240
2.8
WQ400B
60
1
0.37
110 / 220
6.0 / 3.0
WQ800B
50
1
0.75
200 - 240
4.7
WQ800B
60
1
0.75
110 / 220
10.0 / 5.0
WQ800HB
60
1
0.75
110 / 220
10.0 / 5.0
Pump specifications

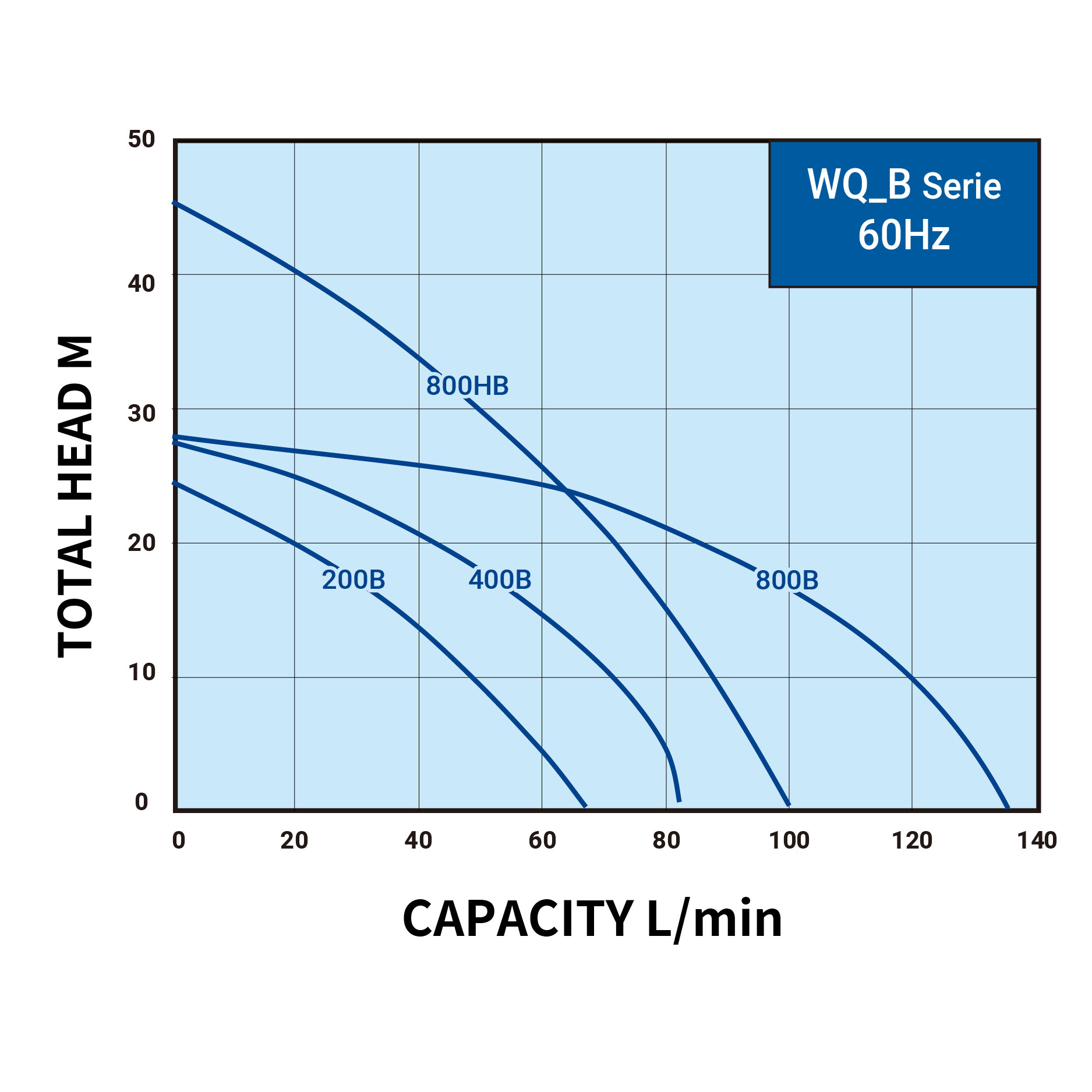

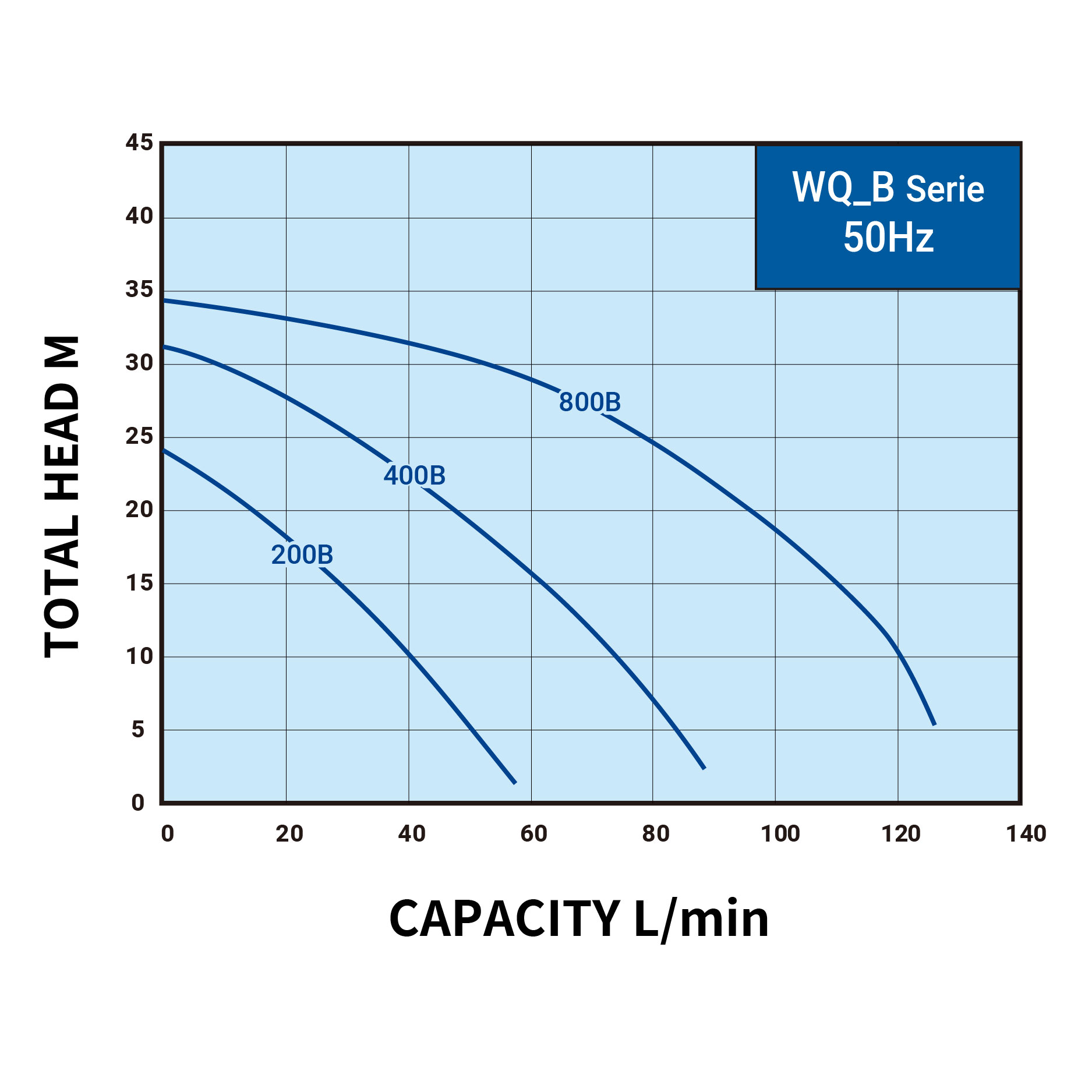

Graph
Model
Frequency
Max. Head
(m)
Max. Flow
(L/min)
Activation Pressure
(kg/cm2)
Inlet
(in.)
Outlet
(in.)
WQ200B
50
24
58
1.6
1"
1"
WQ200B
60
23
63
1.6
1"
1"
WQ400B
50
31
87
2.0
1"
1"
WQ400B
60
27
82
1.8
1"
1"
WQ800B
50
34
125
2.0
1"
1"
WQ800B
60
28
135
2.0
1"
1"
WQ800HB
60
45
100
2.5
1"
1"

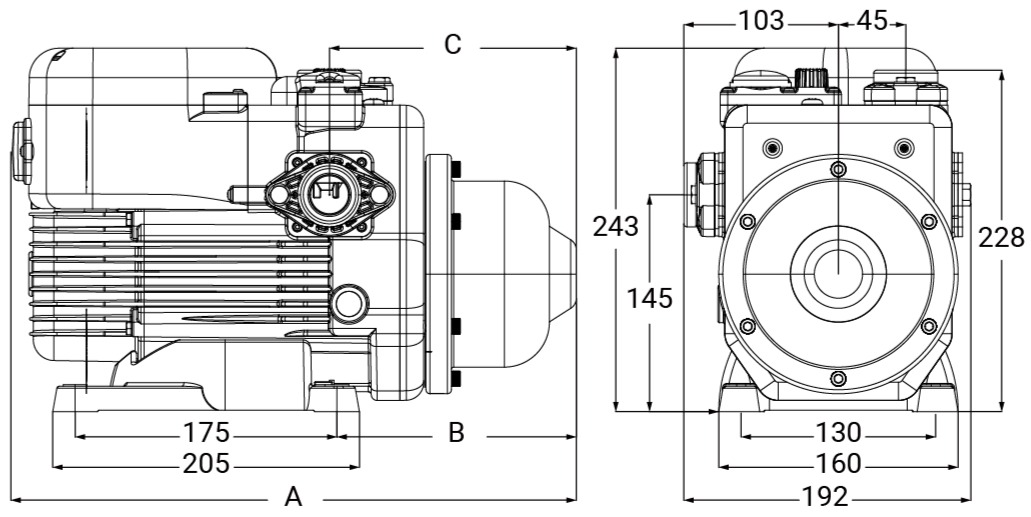

Dimension
Model
Frequency
A
B
C
N.W.
G.W.
Pallet Loading Qty.
WQ200B
50
378
160
165
8.9
9.5
36
WQ200B
60
378
160
165
8.4
9.0
36
WQ400B
50
378
160
165
9.9
10.5
36
WQ400B
60
378
160
165
9.7
10.3
36
WQ800B
50
404
167
172
11.8
12.4
36
WQ800B
60
404
167
172
11.5
12.1
36
WQ800HB
60
404
167
172
11.5
12.1
36

WQ_B Series Applications

For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
We offer pump solutions that reliably transport clean water from storage to ice machines, ensuring continuous ice production. Integrated with filters, water purification systems, or RO systems, our products enhance hygiene and operational safety.
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
WQ_B Product Catalogue
Update2025-08-16
Size753.74 KB
WQ_B Instruction Manual
Update2025-08-16
Size1.21 MB

Downward Pressurization: Calculated at 15 L/min per faucet.

Upward Water Lifting: Each floor is approximately 5 meters high, calculated at 0.5 kg/cm² per floor.
