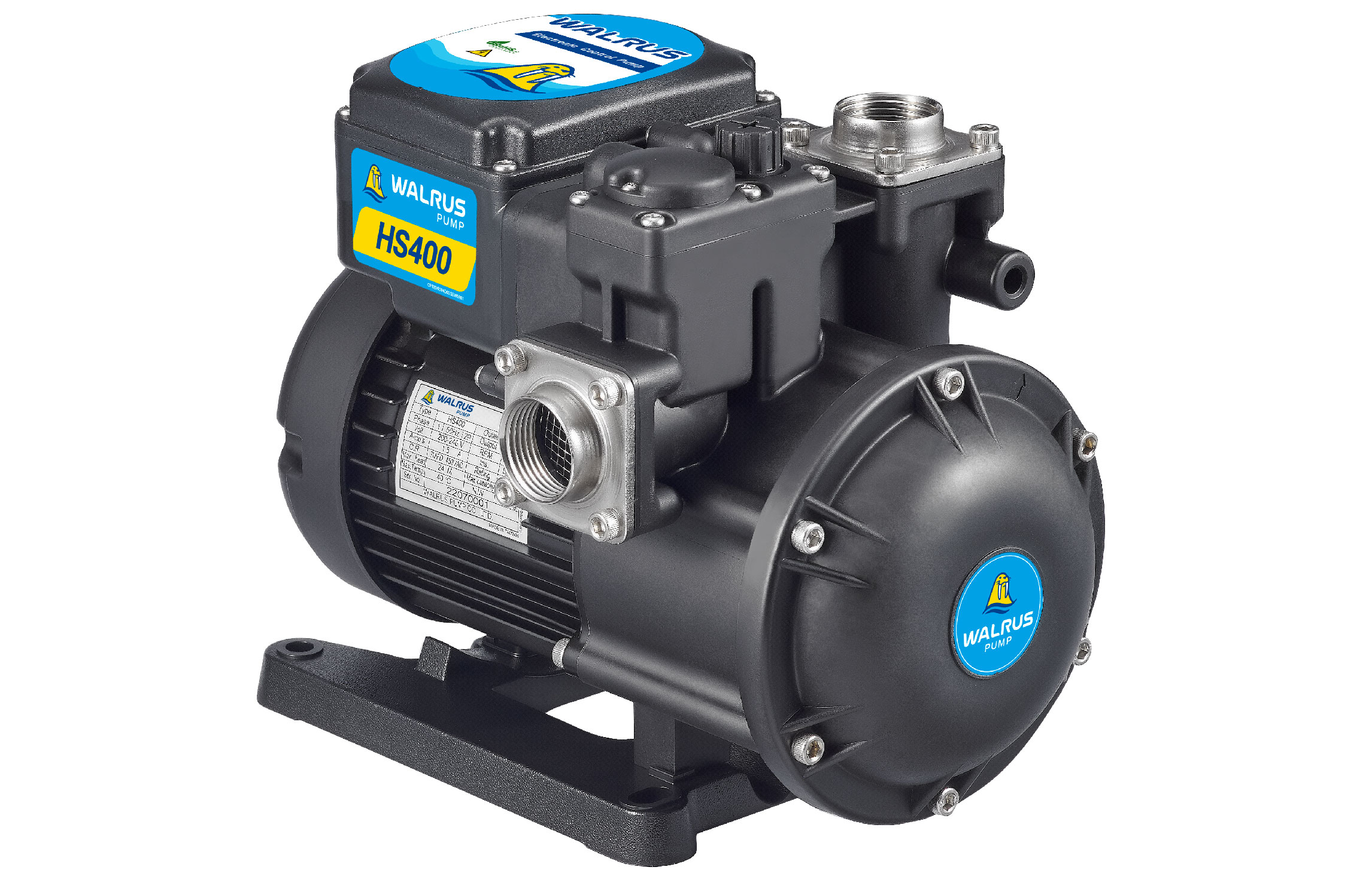

Model | HS400B

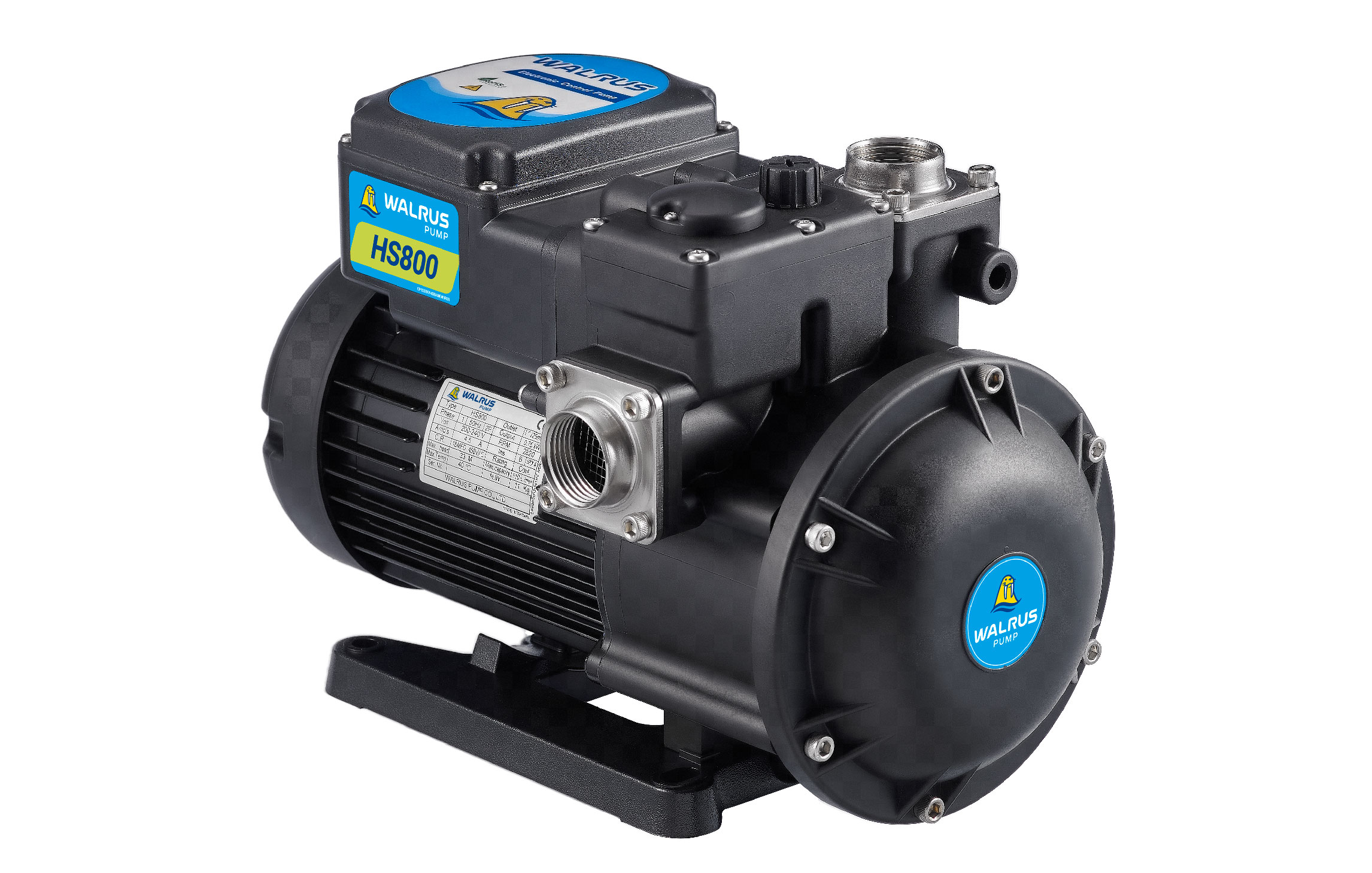

Model | HS800B

Horizontal Centrifugal Pump

Direct-Drive Water Pump
HS_B Series

  • Using SUS304 stainless steel centrifugal impellers, quiet and durable.
  • Equipped with dry-run protection. Your Safety, Our Priority.
  • Thermal overload protection to prevent burnout.
Construction Industry Entertainment & Leisure Industry Accommodation & Food Service Industry Agriculture, Forestry, Fishery and Animal Husbandry Wholesale & Retail Trade Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37 - 0.75
Up to 33
Up to 110
60
0.37 - 0.75
Up to 45
Up to 100

Features

Quiet and Durable
The impeller is made of SUS304 stainless steel to ensure quite operation, high water quality and strength.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Dry-Running Protection
Features program-controlled dry-run protection to avoid damage when the pump runs without water.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Suction Head
Max. 6 m
System Pressure
Max. 8.5 kg/cm²

Model code

Select Frequency

Electrical standards
Inquiry
Model
Frequency
Phase
(Ø)
Power
(kW)
Voltage
(V)
Current
(A)
HS400B
50
1
0.37
200 - 240
2.8
HS400B
60
1
0.37
110 / 220
6.0 / 3.0
HS800B
50
1
0.75
200 - 240
4.5
HS800B
60
1
0.75
110 / 220
10.0 / 5.0
Pump specifications

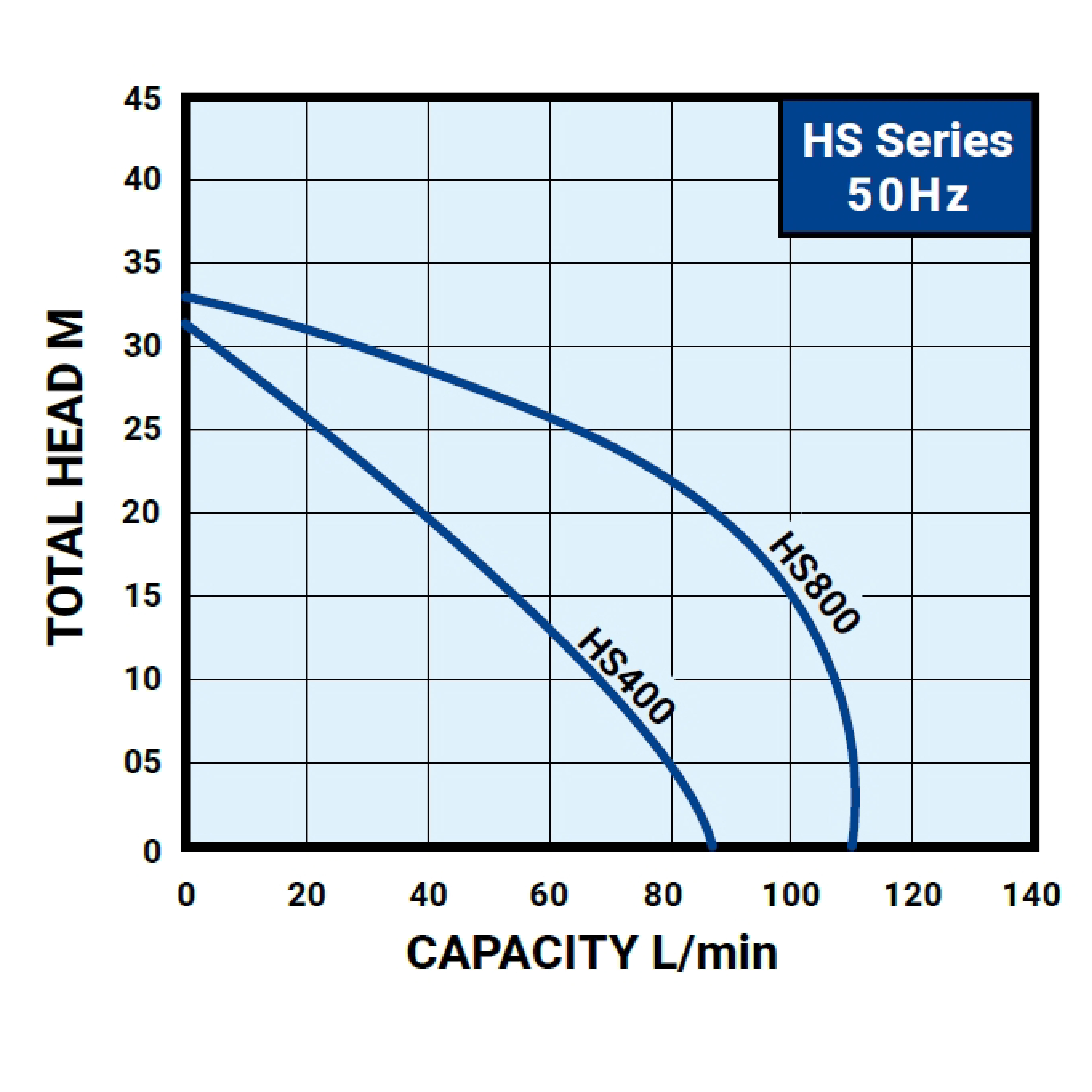

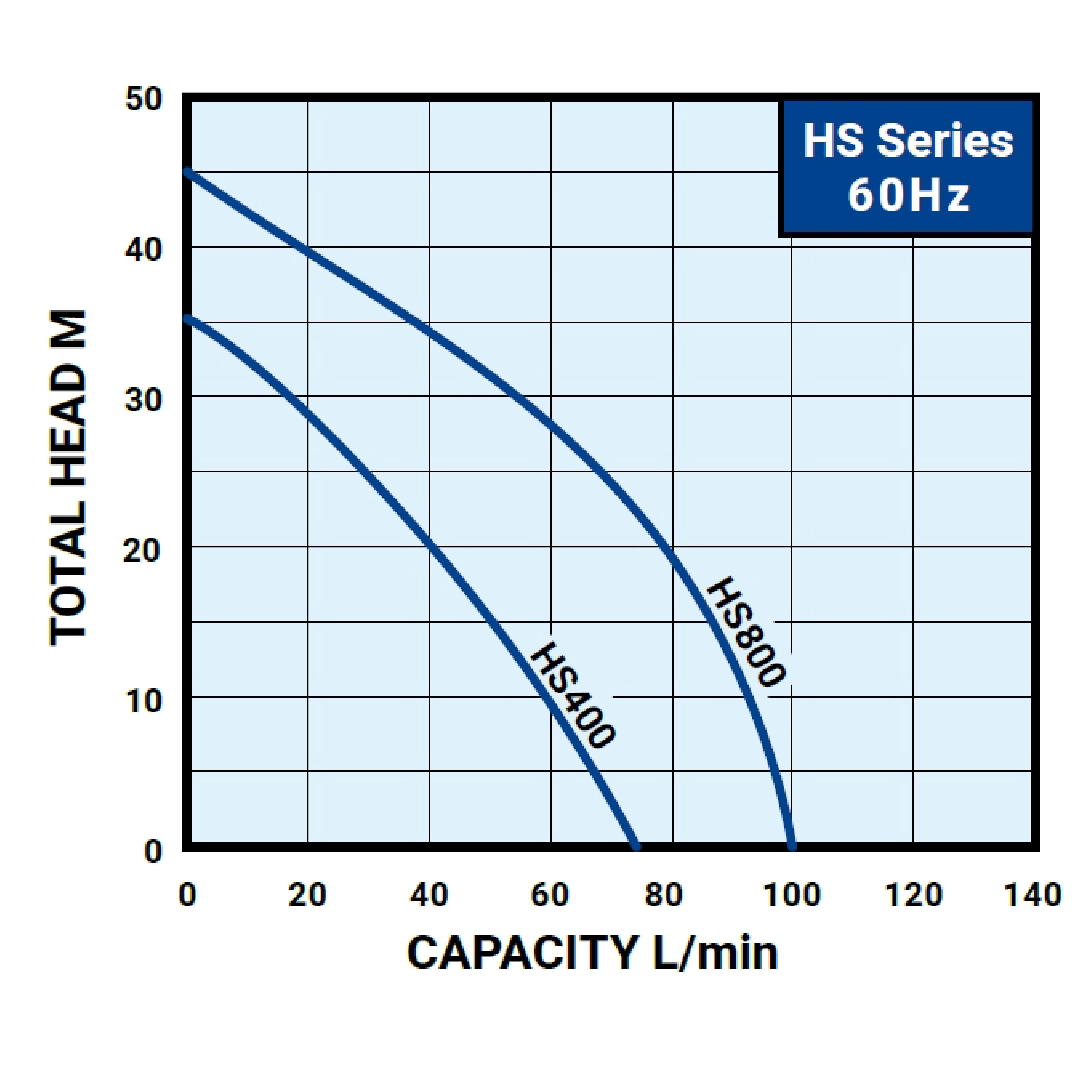

Graph
Model
Frequency
Max. Head
(m)
Max. Flow
(L/min)
Inlet
(in.)
Outlet
(in.)
HS400B
50
31
85
1"
1"
HS400B
60
36
75
1"
1"
HS800B
50
33
110
1"
1"
HS800B
60
46
100
1"
1"

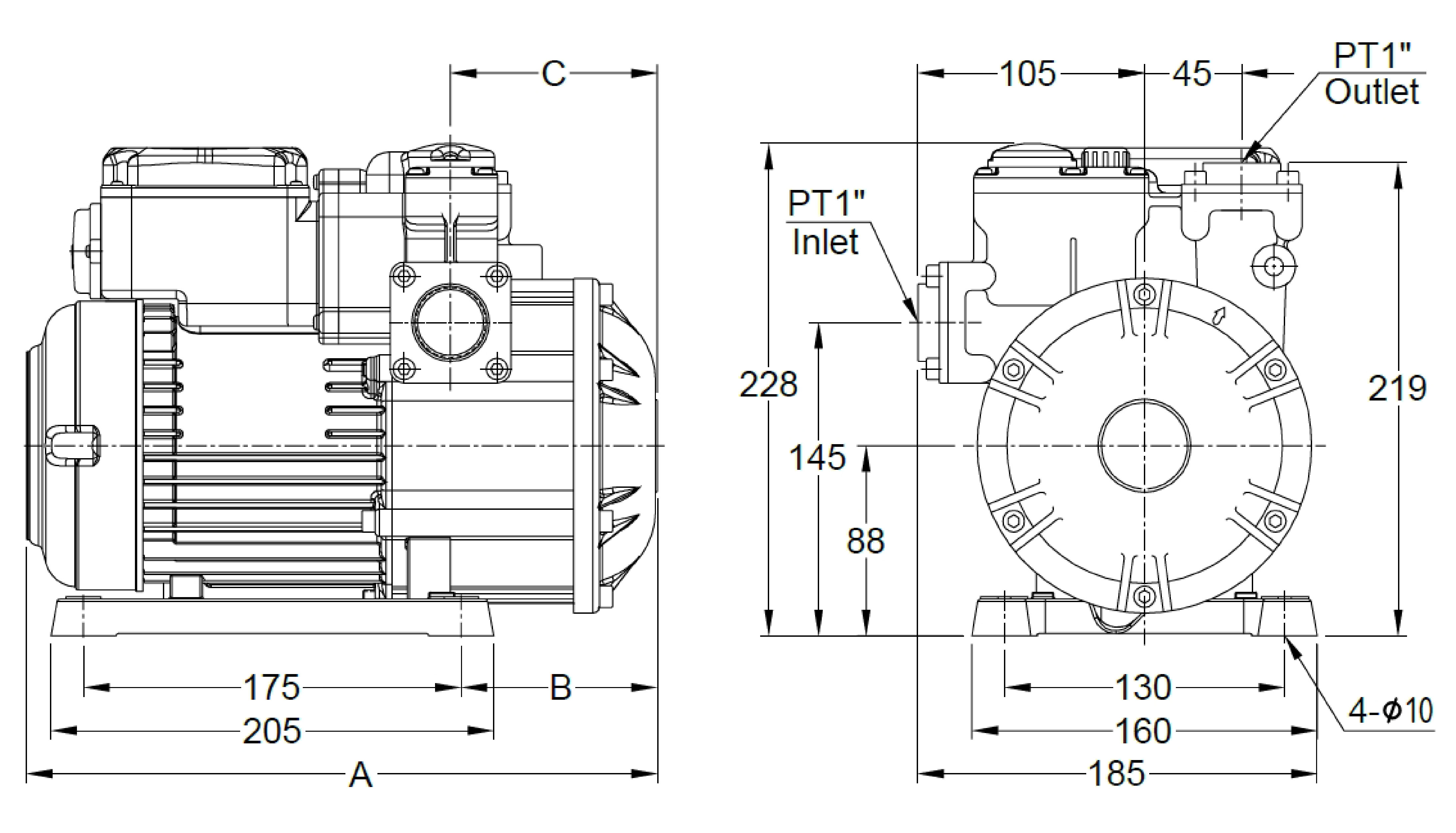

Dimension
Model
Frequency
A
B
C
N.W.
G.W.
Pallet Loading Qty.
HS400B
50
292
91
96
8.1
8.5
45
HS400B
60
292
91
96
8.1
8.5
45
HS800B
50
344
96
101
10.1
10.9
36
HS800B
60
344
96
101
10.1
10.9
36

HS_B Series Applications

Construction Industry
Landscape Pond Water Recirculation
A key component in maintaining water clarity, enhancing landscaping, and preserving ecological balance. Driving water flow to achieve circulation, filtration, and oxygenation, creating a fresh and natural aquatic environment.
Construction Industry
Domestic Water Supply
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.
Entertainment & Leisure Industry
Landscape Pond Water Circulation
A key component in maintaining water clarity, enhancing landscaping, and preserving ecological balance. Driving water flow to achieve circulation, filtration, and oxygenation, creating a fresh and natural aquatic environment.
Entertainment & Leisure Industry
Commercial Water Supply
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
Accommodation & Food Service Industry
Commercial Water Supply
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
Agriculture, Forestry, Fishery and Animal Husbandry
Irrigation
Delivers water to irrigation points for even moisture distribution across soil and plants. With inverters, settings can be adjusted based on soil moisture, weather conditions, and water demand to improve resource efficiency.
Agriculture, Forestry, Fishery and Animal Husbandry
Water Supply for Animal Husbandry and Aquaculture
Extracts water into storage tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
Wholesale & Retail Trade
Ice Machine Water Supply
We offer pump solutions that reliably transport clean water from storage to ice machines, ensuring continuous ice production. Integrated with filters, water purification systems, or RO systems, our products enhance hygiene and operational safety.
Wholesale & Retail Trade
Commercial Water Supply
Providing water extraction, storage, and stable distribution to various areas, including kitchens, restrooms, and other commercial water needs. Ensuring an uninterrupted water supply to enhance operational efficiency and customer experience.
Service Industry
Domestic Water Supply
For everyday domestic use, including water pressure boosting, rooftop tank refilling, and extracting water from underground reservoirs, ensuring balanced water supply across all floors to meet daily consumption needs.

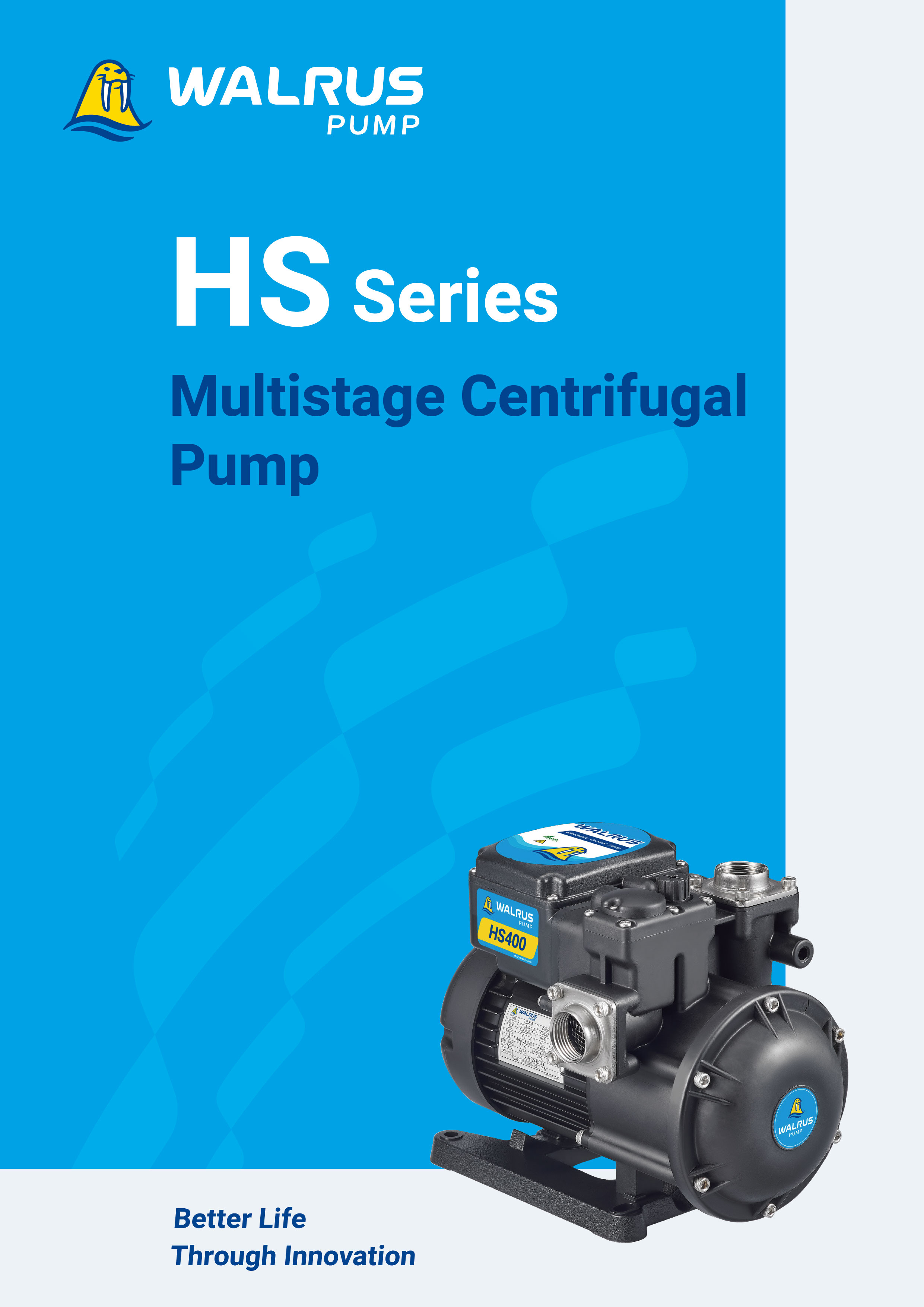

HS_B Product Catalogue
Update2025-08-18
Size1.34 MB

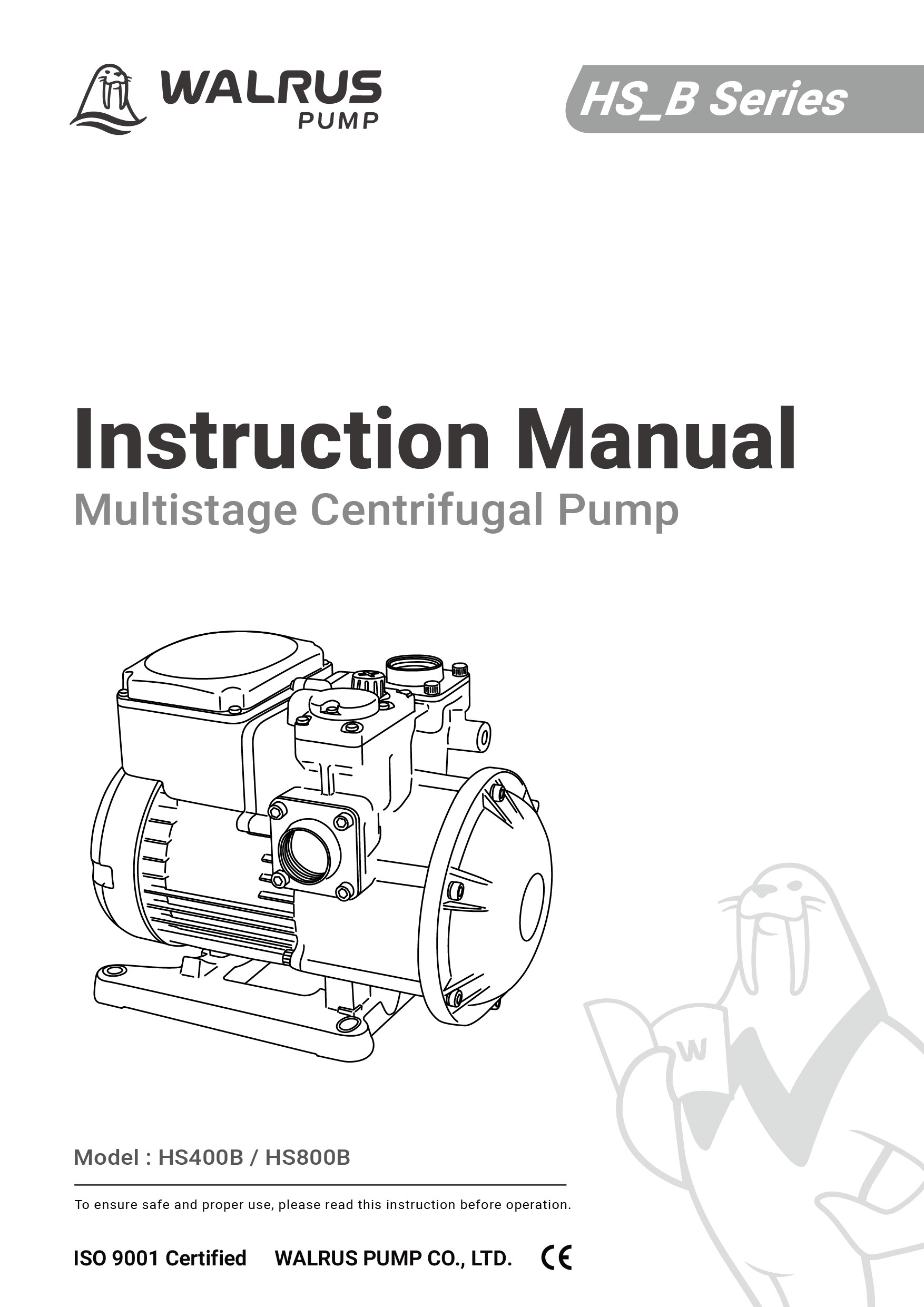

HS_B Instruction Manual
Update2025-08-18
Size435.41 KB
